Isuzu WW
▶
PICKUP
▶
TFR
▶
51411 - TFR/TFS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-42 - AUTO TRANS OIL PAN AND OIL CONTROL
▶

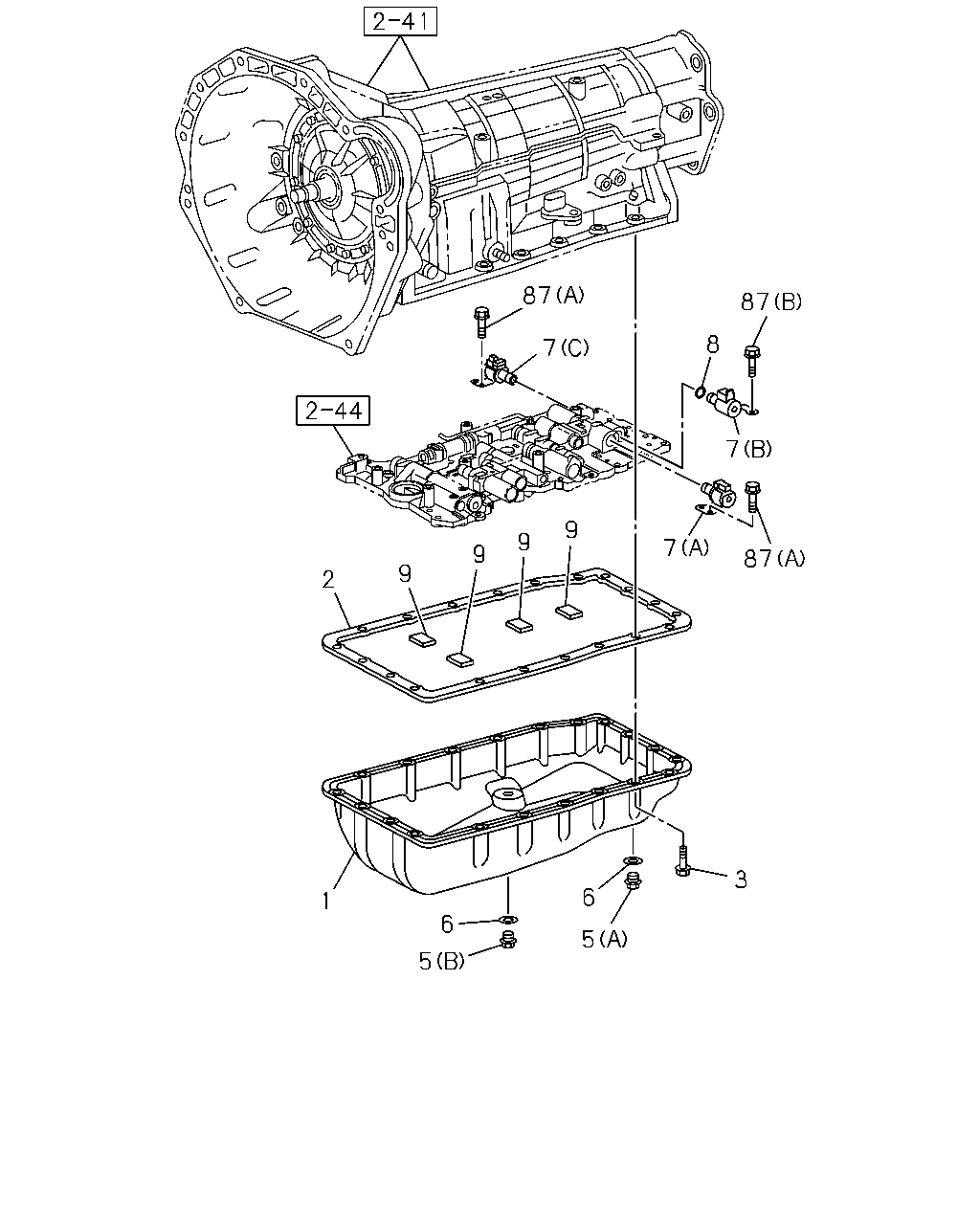

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL
(#91069) — 15 parça
87
87
8
7
7
87
7
9
9
9
9
2
1
6
6
3
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.195 PAN ASM; OIL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)
8-98209-424-0
01
1
1206-
1
04.195 PAN ASM; OIL,A/T
4X2 CREW CAB(TFB*W*) 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)
8-98197-679-0
01
1
1206-
1
04.195 PAN ASM; OIL,A/T
4JK1-TCY ENG(RDX)
8-98197-897-0
01
1
1206-
2
04.196 GASKET; OIL PAN,A/T
8-98189-738-0
01
1
1206-
3
04.196 BOLT; OIL PAN TO CASE
M6X15
8-98189-751-0
20
1
1206-
5
04.195 PLUG; OIL PAN
(A) M10X9
8-97367-573-0
01
1
1206-
5
04.195 PLUG; OIL PAN
(B) M10X9
8-98189-752-0
01
1
1206-
6
04.195 GASKET; OIL PAN TO PLUG
ID=12
5-34132-002-0
02
1
1206-
7
04.265 SOLENOID; DOWN SHIFT,A/T
(A)
8-98189-501-0
01
1
1206-
7
04.265 SOLENOID; DOWN SHIFT,A/T
(B)
8-98189-502-0
01
1
1206-
7
04.265 SOLENOID; DOWN SHIFT,A/T
(C)
8-98189-503-0
01
1
1206-
8
04.265 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1
8-94480-101-0
01
1
1206-
9
04.195 MAGNET; OIL PAN
5-34138-004-0
04
1
1206-
87
04.265 BOLT; SOLENOID
04.197 (A) M5X12
8-94405-335-0
03
1
1206-
87
04.265 BOLT; SOLENOID
(B) M6X12
8-94479-927-0
01
1
1206-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
