◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#91065) — 292 parça

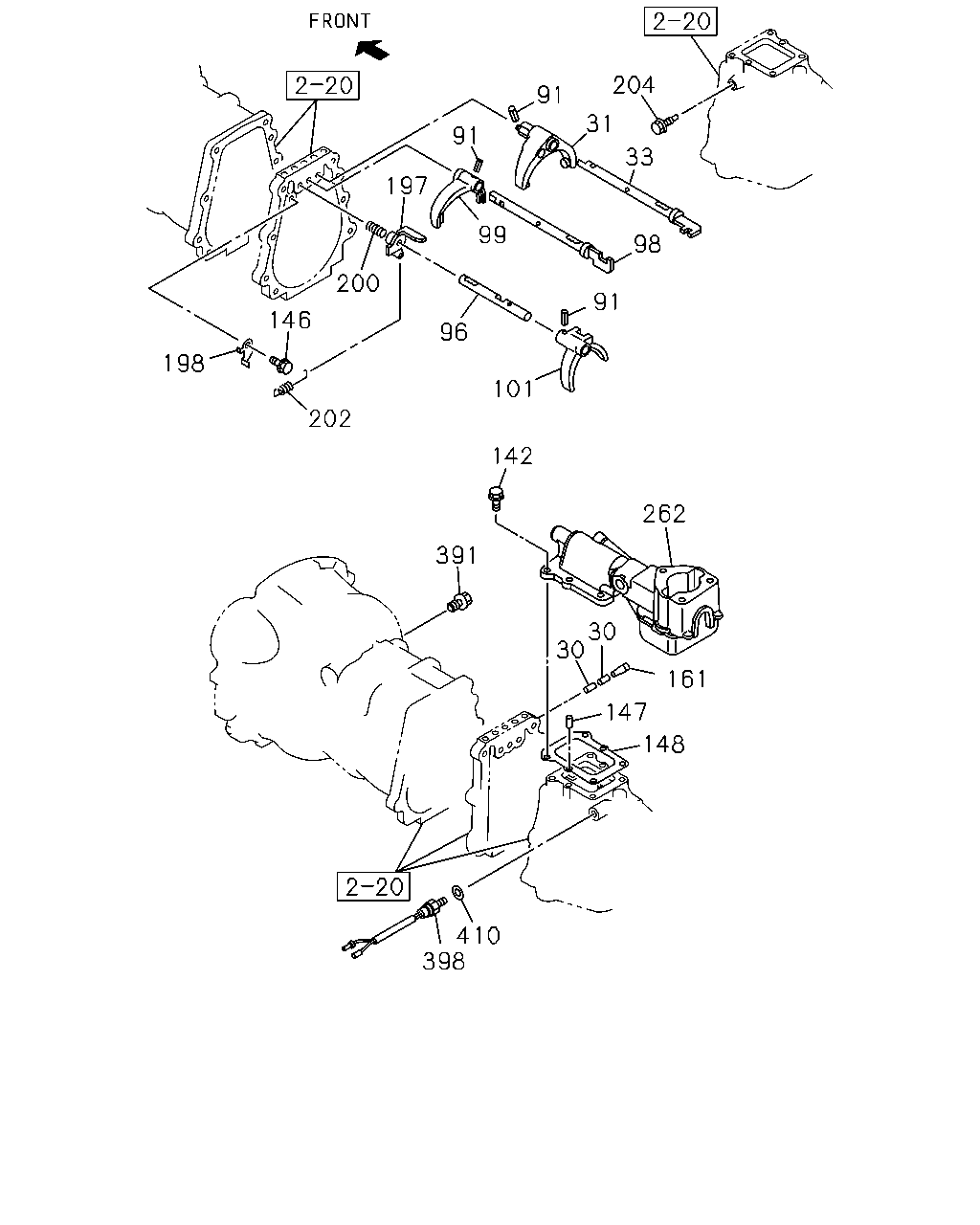

çizim 283178
91 204 31 33 91 197 99 96 91 98 101 142 262 161 147 148 30 30 391 410 398 202 146 200 198
BalonParca AdiParca NoAdetTipApplied Date A B C D E
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 1206-1301 ● ● ●
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 1302- ● ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 1206-1301 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 1302- ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 1206- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-98203-156-0 01 1 1206- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1206-1301 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1302- ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97213-047-0 01 1 1206- ●
91 04.302 PIN; SPR,SHIFT ARM 8-97164-994-0 01 1 1206- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1206-1301 ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1302- ● ● ● ●
96 04.309 ROD; SHIFT,5TH
IDENTIFICATION LABEL FOR KD<6UT> 		8-97232-886-0 01 1 1206-1301 ● ●
96 04.309 ROD; SHIFT,5TH
IDENTIFICATION LABEL FOR KD<6UT> 		8-97232-886-0 01 1 1302- ● ●
96 04.309 ROD; SHIFT,5TH 8-97232-886-0 01 1 1302- ●
96 04.309 ROD; SHIFT,5TH
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94440-079-1 01 1 1206- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1206-1301 ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1302- ● ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97213-045-0 01 1 1206- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1206-1301 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1302- ● ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 1206- ●
101 04.302 ARM; SHIFT,REV & 5TH
IDENTIFICATION LABEL FOR KD<6UT> 		8-97232-894-0 01 1 1206-1301 ● ●
101 04.302 ARM; SHIFT,REV & 5TH
IDENTIFICATION LABEL FOR KD<6UT> 		8-97232-894-0 01 1 1302- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-97232-894-0 01 1 1302- ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94448-755-2 01 1 1206- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94455-851-3 01 1 1206- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1206-1301 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1302- ● ● ● ●
146 04.032 BOLT; REV INHIBITOR
IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1206-1301 ● ●
146 04.032 BOLT; REV INHIBITOR
IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1302- ● ●
146 04.032 BOLT; REV INHIBITOR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
146 04.032 BOLT; REV INHIBITOR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.338 M8X20 FLANGE 		0-28050-820-0 01 1 1206- ● ●
147 04.020 PIN; KNOCK
04.510 OD=6 L=12 		9-08150-612-0 02 1 1206-1301 ● ●
147 04.020 PIN; KNOCK
04.510 OD=6 L=12 		9-08150-612-0 02 1 1302- ● ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1206-1301 ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1302- ● ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 1206- ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 1206-1301 ● ● ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 1302- ● ● ● ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 1206-1301 ● ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 1302- ● ● ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 1206-1301 ● ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 1302- ● ● ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 1206-1301 ● ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 1302- ● ● ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 1206-1301 ● ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 1302- ● ● ●
204 04.309 STOPPER; REV INHIBITOR 8-98035-673-0 01 1 1206-1301 ● ●
204 04.309 STOPPER; REV INHIBITOR 8-98035-673-0 01 1 1302- ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-762-0 01 1 1206- ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1206-1206 ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1207-1301 ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1302- ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98105-995-0 01 1 1206-1206 ●
391 04.104 PLUG; SW HOLE
M14X11 		8-98035-674-0 01 1 1206-1301 ●
391 04.104 PLUG; SW HOLE
M14X11 		8-98035-674-0 01 1 1302- ● ●
398 02.698 SWITCH; REV LAMP
CONGO EQUIPMENT(CDF) 		8-98254-591-0 01 1 1503- ●
398 02.698 SWITCH; REV LAMP 8-98254-591-0 01 1 1503- ●
398 02.698 SWITCH; REV LAMP 8-98208-758-0 01 1 1206- ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1206-1301 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1302-1502 ● ● ● ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1503- ● ●
398 02.698 SWITCH; REV LAMP
EXC. CONGO EQUIPMENT(CDF) 		8-98103-750-0 01 1 1503- ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1206-1301 ● ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1302- ● ● ●

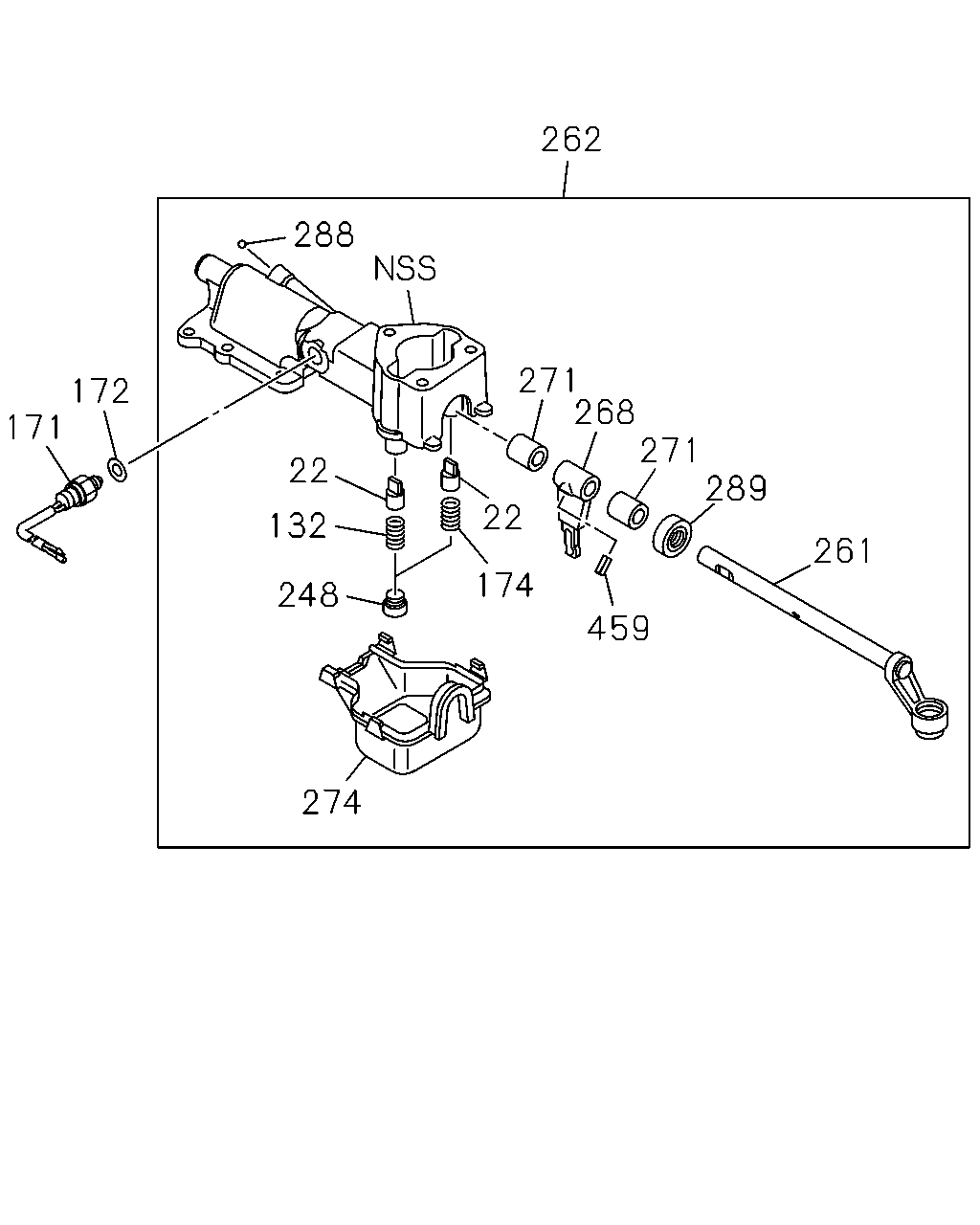

çizim 283179
262 288 271 271 261 459 22 174 22 132 248 274 172 171 268 289
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 1206-1301 ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 1302- ● ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 02 1 1206-1301 ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 02 1 1302- ● ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98203-248-0 01 1 1206- ●
171 04.054 SWITCH; NEUTRAL 8-98103-743-0 01 1 1206- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		8-98210-376-0 01 1 1206- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1206-1301 ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1302- ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 02 1 1206-1206 ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1206-1301 ● ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1302- ● ● ● ●
248 04.105 RETAINER; CONT BOX 8-98203-143-0 01 1 1206- ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 1206-1206 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1206-1301 ● ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1302- ● ● ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 1206- ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-762-0 01 1 1206- ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1206-1206 ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1207-1301 ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1302- ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98105-995-0 01 1 1206-1206 ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1206-1301 ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1302- ● ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-894-0 01 1 1206- ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 1206-1301 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 1302- ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 1206-1301 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 1302- ● ● ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1206-1301 ● ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1302- ● ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 1206-1301 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 1302- ● ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 1206-1301 ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 1302- ● ● ● ●

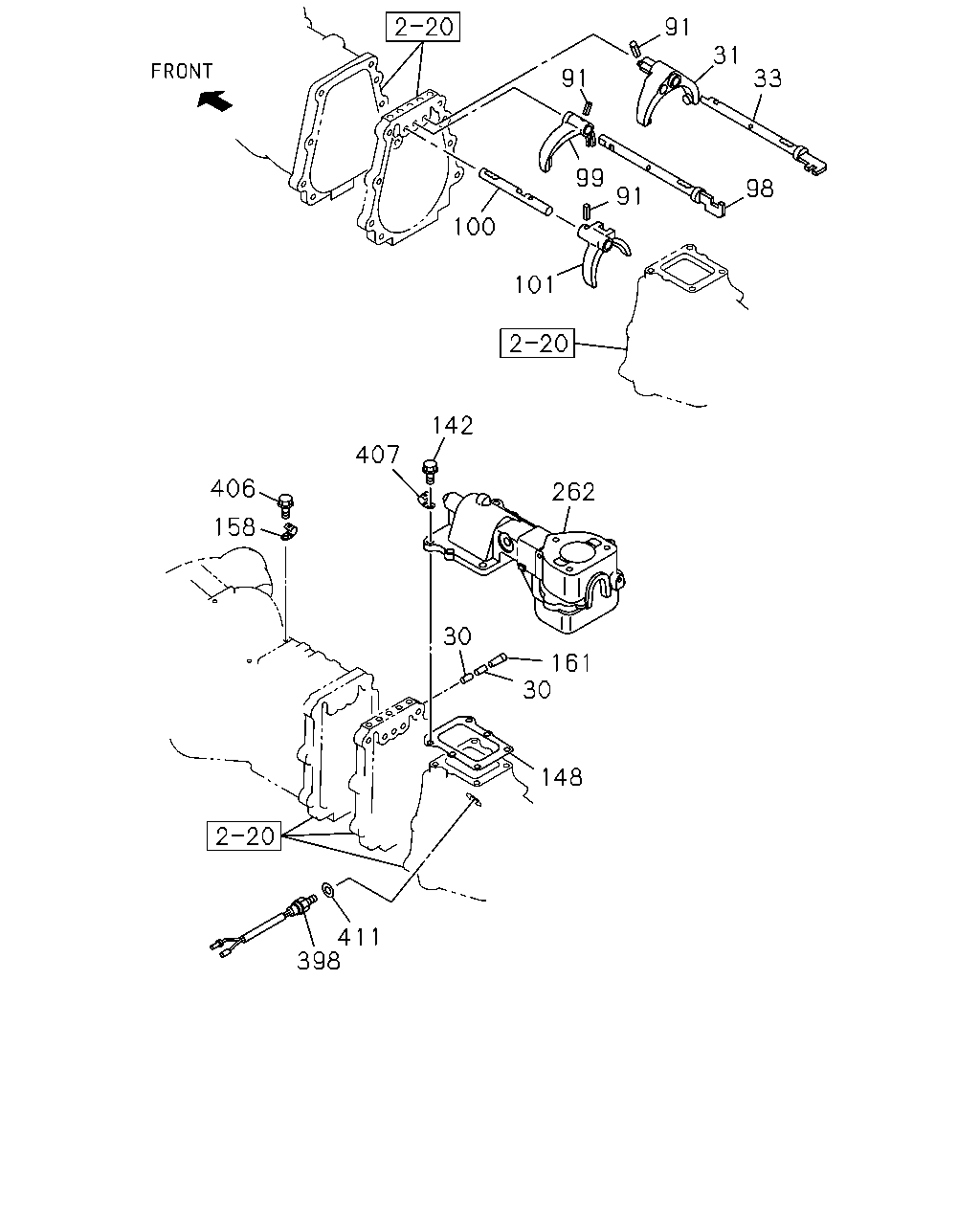

çizim 283181
30 30 161 148 262 142 407 158 406 411 398 100 101 91 99 91 91 31 33 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 1206-1301 ● ● ●
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 1302- ● ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 1206-1301 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 1302- ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 1206- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-98203-156-0 01 1 1206- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1206-1301 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1302- ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97213-047-0 01 1 1206- ●
91 04.302 PIN; SPR,SHIFT ARM 8-97164-994-0 01 1 1206- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1206-1301 ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1302- ● ● ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1206-1301 ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1302- ● ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97213-045-0 01 1 1206- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1206-1301 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1302- ● ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 1206- ●
100 04.309 ROD; SHIFT,REV & 5TH 8-97232-885-0 01 1 1206- ●
101 04.302 ARM; SHIFT,REV & 5TH
IDENTIFICATION LABEL FOR KD<6UT> 		8-97232-894-0 01 1 1206-1301 ● ●
101 04.302 ARM; SHIFT,REV & 5TH
IDENTIFICATION LABEL FOR KD<6UT> 		8-97232-894-0 01 1 1302- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-97232-894-0 01 1 1302- ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94448-755-2 01 1 1206- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94455-851-3 01 1 1206- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1206-1301 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1302- ● ● ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1206-1301 ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1302- ● ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 1206- ●
158 04.105 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1206- ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 1206-1301 ● ● ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 1302- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-762-0 01 1 1206- ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1206-1206 ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1207-1301 ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1302- ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98105-995-0 01 1 1206-1206 ●
398 02.698 SWITCH; REV LAMP
CONGO EQUIPMENT(CDF) 		8-98254-591-0 01 1 1503- ●
398 02.698 SWITCH; REV LAMP 8-98254-591-0 01 1 1503- ●
398 02.698 SWITCH; REV LAMP 8-98208-758-0 01 1 1206- ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1206-1301 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1302-1502 ● ● ● ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1503- ● ●
398 02.698 SWITCH; REV LAMP
EXC. CONGO EQUIPMENT(CDF) 		8-98103-750-0 01 1 1503- ●
406 02.559 BOLT; HARNESS CLIP
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1206- ●
407 02.698 CLIP; SWITCH HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1206- ●
411 02.698 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 04.054 		8-98210-376-0 01 1 1206- ●
411 02.698 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1206- ●

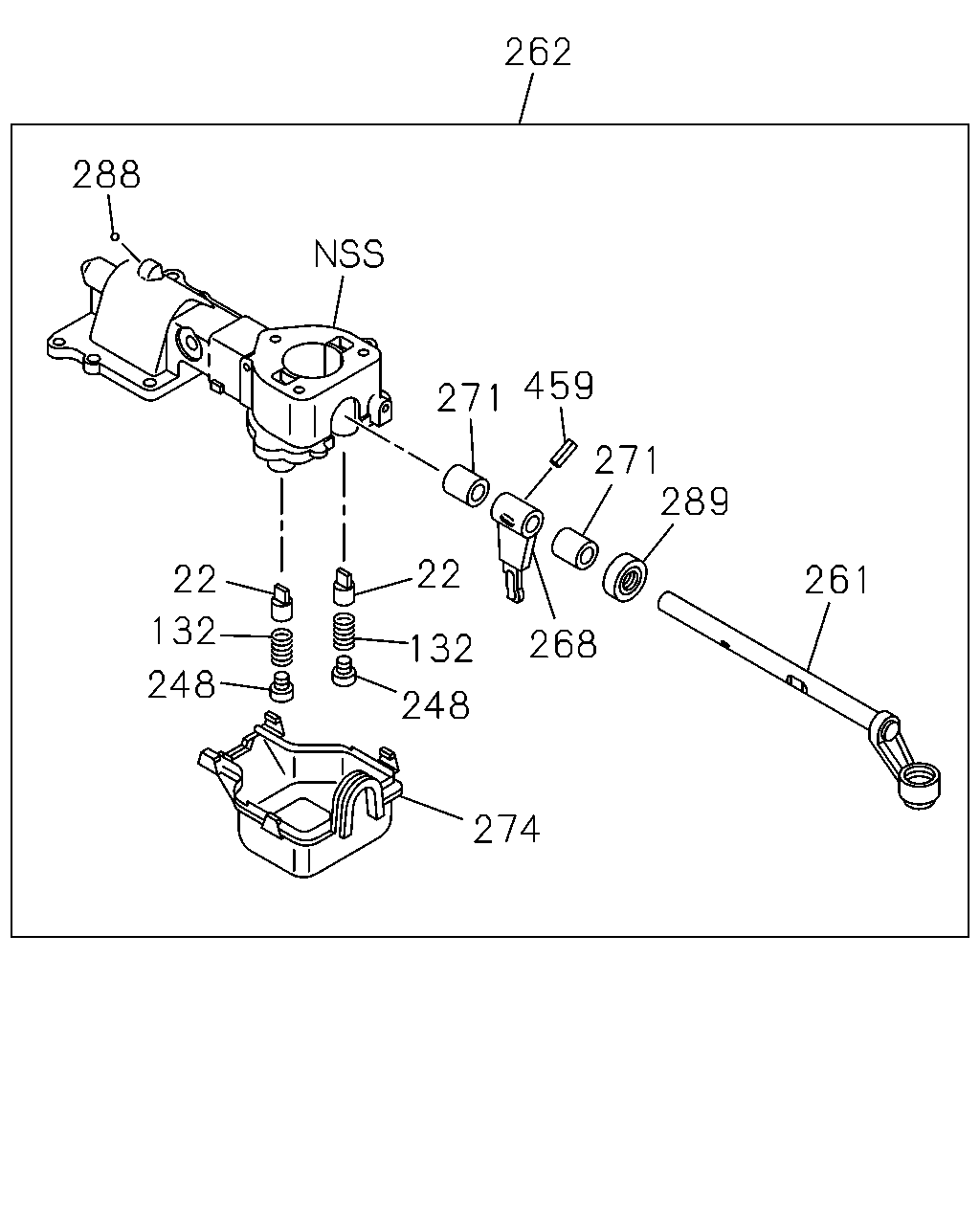

çizim 283182
262 288 22 22 271 271 459 261 289 268 248 274 132 132 248
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 1206-1301 ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 1302- ● ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 02 1 1206-1301 ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 02 1 1302- ● ● ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1206-1301 ● ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1302- ● ● ● ●
248 04.105 RETAINER; CONT BOX 8-98203-143-0 01 1 1206- ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 1206-1206 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1206-1301 ● ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1302- ● ● ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 1206- ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-762-0 01 1 1206- ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1206-1206 ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1207-1301 ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98219-761-0 01 1 1302- ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98105-995-0 01 1 1206-1206 ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1206-1301 ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1302- ● ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-894-0 01 1 1206- ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 1206-1301 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 1302- ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 1206-1301 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 1302- ● ● ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1206-1301 ● ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1302- ● ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 1206-1301 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 1302- ● ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 1206-1301 ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 1302- ● ● ● ●

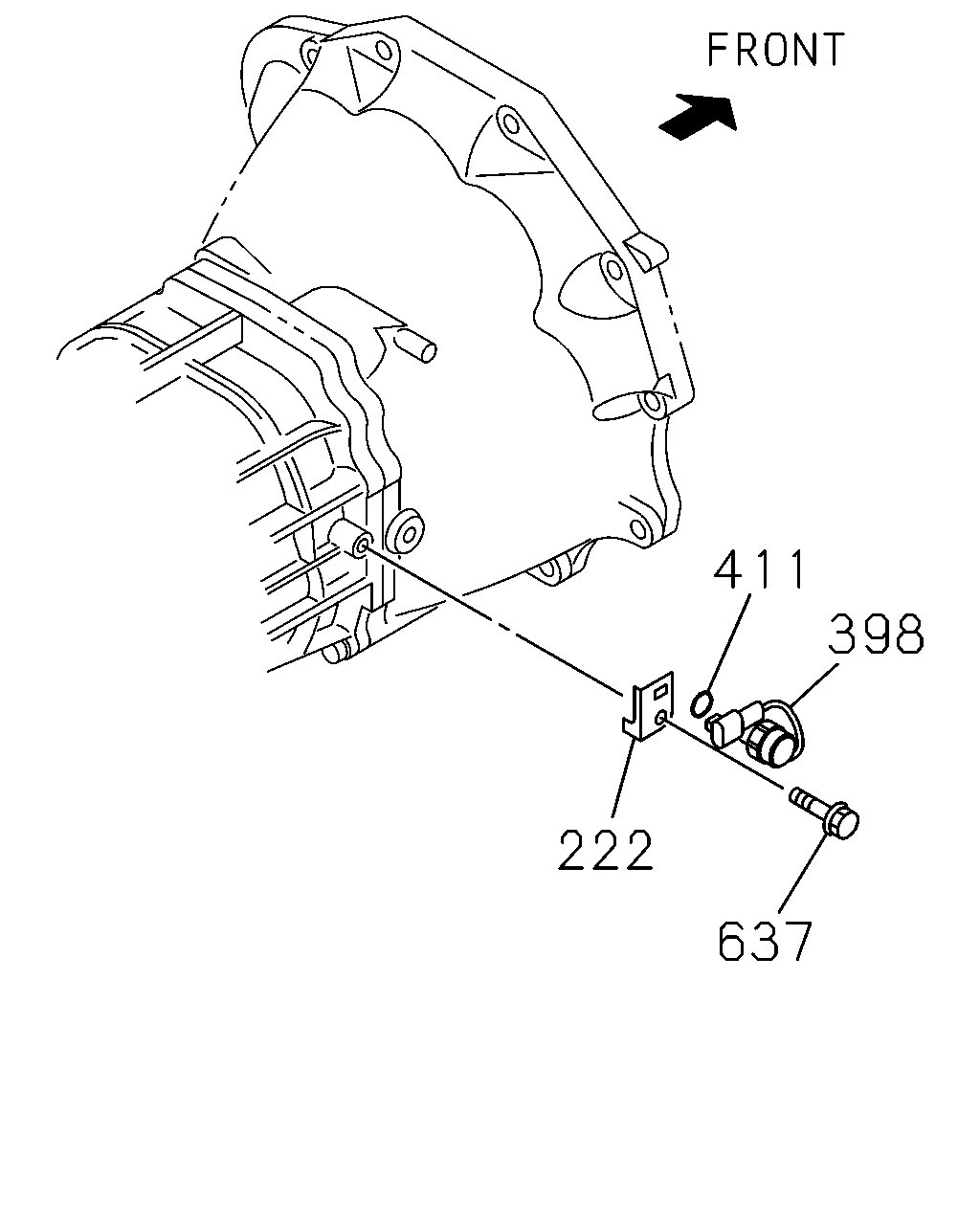

çizim 283630
411 398 637 222
BalonParca AdiParca NoAdetTipApplied Date A B C D E
222 04.057 BRACKET; CLIP 8-98203-246-0 01 1 1206- ●
398 02.698 SWITCH; REV LAMP
CONGO EQUIPMENT(CDF) 		8-98254-591-0 01 1 1503- ●
398 02.698 SWITCH; REV LAMP 8-98254-591-0 01 1 1503- ●
398 02.698 SWITCH; REV LAMP 8-98208-758-0 01 1 1206- ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1206-1301 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1302-1502 ● ● ● ●
398 02.698 SWITCH; REV LAMP 8-98103-750-0 01 1 1503- ● ●
398 02.698 SWITCH; REV LAMP
EXC. CONGO EQUIPMENT(CDF) 		8-98103-750-0 01 1 1503- ●
411 02.698 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 04.054 		8-98210-376-0 01 1 1206- ●
411 02.698 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1206- ●
637 04.105 BOLT; BRACKET 8-98203-256-0 01 1 1206- ●

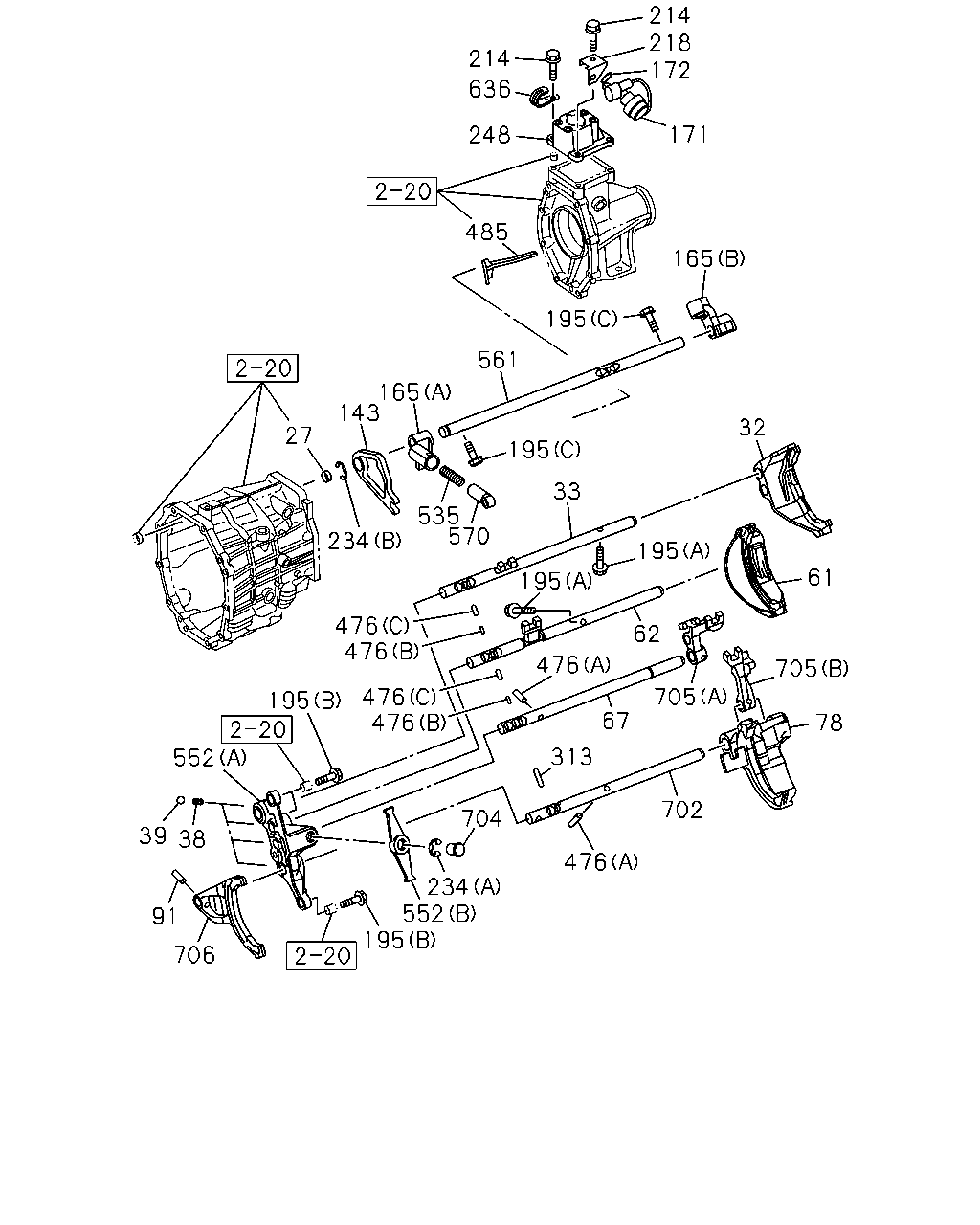

çizim 283636
214 214 172 218 171 165 32 561 165 143 27 234 535 195 33 195 195 61 705 78 702 476 313 705 62 476 476 476 476 476 704 234 552 195 706 91 38 39 552 195 485 195 248 636 67 570
BalonParca AdiParca NoAdetTipApplied Date A B C D E
27 04.302 BUSHING; SHIFT ROD
04.317 		8-89048-304-0 01 1 1206- ●
32 04.303 ARM; SHIFT,1ST & 2ND 8-98203-153-0 01 1 1206- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-98203-156-0 01 1 1206- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1206-1301 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1302- ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97213-047-0 01 1 1206- ●
38 04.311 SPRING; DETENT 8-98203-171-0 04 1 1206- ●
39 04.307 BALL; DETENT 8-97165-089-0 04 1 1206- ●
61 04.303 ARM; SHIFT,3RD & 4TH 8-98203-150-0 01 1 1206- ●
62 04.309 ROD; SHIFT,3RD & 4TH 8-98203-157-0 01 1 1206- ●
67 04.309 ROD; SHIFT,5TH & 6TH 8-98203-158-0 01 1 1206- ●
78 04.302 ARM; SHIFT,REV 8-98203-149-0 01 1 1206- ●
91 04.302 PIN; SPR,SHIFT ARM 8-97164-994-0 01 1 1206- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1206-1301 ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1302- ● ● ● ●
143 04.030 CAM; STOPPER,REV INHIBITOR 8-98203-148-0 01 1 1206- ●
165 04.302 LEVER; SHIFT
4X2(TFB***) (B) 		8-98203-142-0 01 1 1206- ●
165 04.302 LEVER; SHIFT
(A) 		8-98203-160-0 01 1 1206- ●
165 04.302 LEVER; SHIFT
4X4(TFS***) (C) 		8-98203-141-0 01 1 1206- ●
171 04.054 SWITCH; NEUTRAL 8-98203-248-0 01 1 1206- ●
171 04.054 SWITCH; NEUTRAL 8-98103-743-0 01 1 1206- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		8-98210-376-0 01 1 1206- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1206-1301 ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1302- ● ● ●
195 04.105 BOLT
(A) 		8-97164-962-0 02 1 1206- ●
195 04.105 BOLT
(B) 		8-98203-146-0 04 1 1206- ●
195 04.105 BOLT
(C) 		8-98203-167-0 02 1 1206- ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 		8-98203-146-0 04 1 1206- ●
218 04.057 BRACKET; HARNESS CLIP,QUAD BOX 8-98203-245-0 01 1 1206- ●
234 04.311 RING; SNAP
(A) 		8-98203-175-0 01 1 1206- ●
234 04.311 RING; SNAP
(B) 		8-98203-176-0 01 1 1206- ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1206-1301 ● ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1302- ● ● ● ●
248 04.105 RETAINER; CONT BOX 8-98203-143-0 01 1 1206- ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 1206-1206 ●
313 04.309 ROLLER; SHAFT 8-98203-168-0 01 1 1206- ●
476 04.311 PIN; SHIFT ROD
04.303 (A) 		8-97164-925-0 02 1 1206- ●
476 04.311 PIN; SHIFT ROD
(B) 		8-98203-172-0 02 1 1206- ●
476 04.311 PIN; SHIFT ROD
(C) 		8-98203-173-0 02 1 1206- ●
485 04.105 TROUGH; OIL
4X2(TFB***) 		8-98203-178-0 01 1 1206- ●
535 04.302 SPRING; LEVER 8-98203-170-0 01 1 1206- ●
552 04.105 BRACKET
(A) 		8-98203-147-0 01 1 1206- ●
552 04.105 BRACKET
(B) 		8-98203-151-0 01 1 1206- ●
561 04.309 ROD; SHIFT
4X2(TFB***) 		8-98203-163-0 01 1 1206- ●
561 04.309 ROD; SHIFT
4X4(TFS***) 		8-98203-162-0 01 1 1206- ●
570 04.311 PIN; SHIFT LEVER 8-98203-166-0 01 1 1206- ●
636 04.057 BRACKET; CLIP
02.343 ID=22 L=35 		8-97375-643-0 01 1 1206- ●
702 04.309 ROD; REVERSE 8-98203-159-0 01 1 1206- ●
704 04.105 PIVOT 8-98203-152-0 01 1 1206- ●
705 04.309 HEAD; GEAR SHIFT
(A) 		8-98236-473-0 01 1 1206- ●
705 04.309 HEAD; GEAR SHIFT
(B) 		8-98203-155-0 01 1 1206- ●
706 04.309 FORK; GEAR SHIFT 8-98203-161-0 01 1 1206- ●

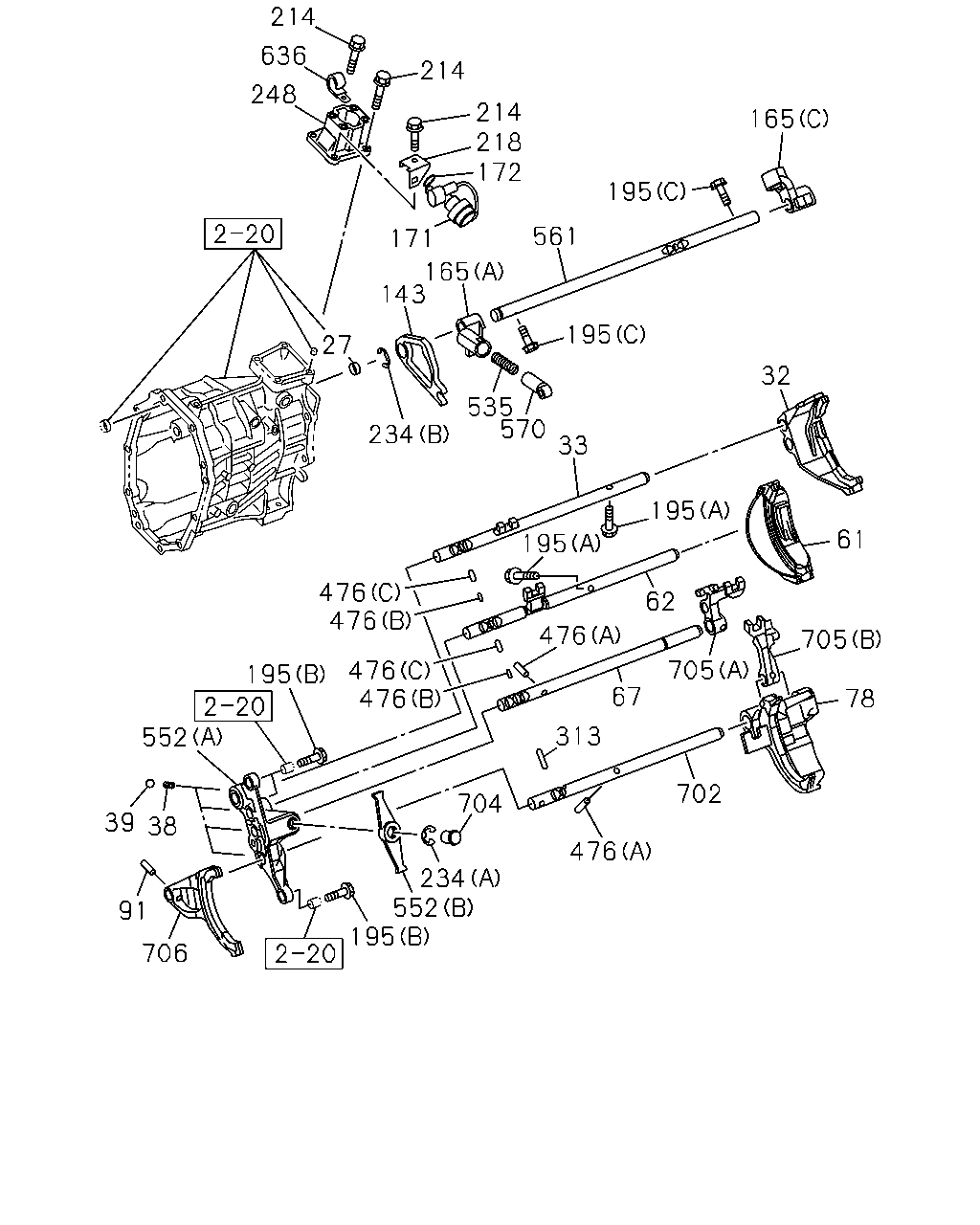

çizim 283645
214 636 248 214 214 218 172 561 195 165 165 171 143 27 234 535 570 33 195 32 61 705 78 705 702 476 234 552 195 706 91 38 39 552 195 476 476 476 476 704 313 67 476 62 195 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E
27 04.302 BUSHING; SHIFT ROD
04.317 		8-89048-304-0 01 1 1206- ●
32 04.303 ARM; SHIFT,1ST & 2ND 8-98203-153-0 01 1 1206- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-98203-156-0 01 1 1206- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1206-1301 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1302- ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97213-047-0 01 1 1206- ●
38 04.311 SPRING; DETENT 8-98203-171-0 04 1 1206- ●
39 04.307 BALL; DETENT 8-97165-089-0 04 1 1206- ●
61 04.303 ARM; SHIFT,3RD & 4TH 8-98203-150-0 01 1 1206- ●
62 04.309 ROD; SHIFT,3RD & 4TH 8-98203-157-0 01 1 1206- ●
67 04.309 ROD; SHIFT,5TH & 6TH 8-98203-158-0 01 1 1206- ●
78 04.302 ARM; SHIFT,REV 8-98203-149-0 01 1 1206- ●
91 04.302 PIN; SPR,SHIFT ARM 8-97164-994-0 01 1 1206- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1206-1301 ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1302- ● ● ● ●
143 04.030 CAM; STOPPER,REV INHIBITOR 8-98203-148-0 01 1 1206- ●
165 04.302 LEVER; SHIFT
4X2(TFB***) (B) 		8-98203-142-0 01 1 1206- ●
165 04.302 LEVER; SHIFT
(A) 		8-98203-160-0 01 1 1206- ●
165 04.302 LEVER; SHIFT
4X4(TFS***) (C) 		8-98203-141-0 01 1 1206- ●
171 04.054 SWITCH; NEUTRAL 8-98203-248-0 01 1 1206- ●
171 04.054 SWITCH; NEUTRAL 8-98103-743-0 01 1 1206- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		8-98210-376-0 01 1 1206- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1206-1301 ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1302- ● ● ●
195 04.105 BOLT
(A) 		8-97164-962-0 02 1 1206- ●
195 04.105 BOLT
(B) 		8-98203-146-0 04 1 1206- ●
195 04.105 BOLT
(C) 		8-98203-167-0 02 1 1206- ●
214 04.510 BOLT; CONT BOX,SUB TRANS
04.105 		8-98203-146-0 04 1 1206- ●
218 04.057 BRACKET; HARNESS CLIP,QUAD BOX 8-98203-245-0 01 1 1206- ●
234 04.311 RING; SNAP
(A) 		8-98203-175-0 01 1 1206- ●
234 04.311 RING; SNAP
(B) 		8-98203-176-0 01 1 1206- ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1206-1301 ● ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1302- ● ● ● ●
248 04.105 RETAINER; CONT BOX 8-98203-143-0 01 1 1206- ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 1206-1206 ●
313 04.309 ROLLER; SHAFT 8-98203-168-0 01 1 1206- ●
476 04.311 PIN; SHIFT ROD
04.303 (A) 		8-97164-925-0 02 1 1206- ●
476 04.311 PIN; SHIFT ROD
(B) 		8-98203-172-0 02 1 1206- ●
476 04.311 PIN; SHIFT ROD
(C) 		8-98203-173-0 02 1 1206- ●
535 04.302 SPRING; LEVER 8-98203-170-0 01 1 1206- ●
552 04.105 BRACKET
(A) 		8-98203-147-0 01 1 1206- ●
552 04.105 BRACKET
(B) 		8-98203-151-0 01 1 1206- ●
561 04.309 ROD; SHIFT
4X2(TFB***) 		8-98203-163-0 01 1 1206- ●
561 04.309 ROD; SHIFT
4X4(TFS***) 		8-98203-162-0 01 1 1206- ●
570 04.311 PIN; SHIFT LEVER 8-98203-166-0 01 1 1206- ●
636 04.057 BRACKET; CLIP
02.343 ID=22 L=35 		8-97375-643-0 01 1 1206- ●
702 04.309 ROD; REVERSE 8-98203-159-0 01 1 1206- ●
704 04.105 PIVOT 8-98203-152-0 01 1 1206- ●
705 04.309 HEAD; GEAR SHIFT
(A) 		8-98236-473-0 01 1 1206- ●
705 04.309 HEAD; GEAR SHIFT
(B) 		8-98203-155-0 01 1 1206- ●
706 04.309 FORK; GEAR SHIFT 8-98203-161-0 01 1 1206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
