Sayfa 2-20 - Isuzu EPC

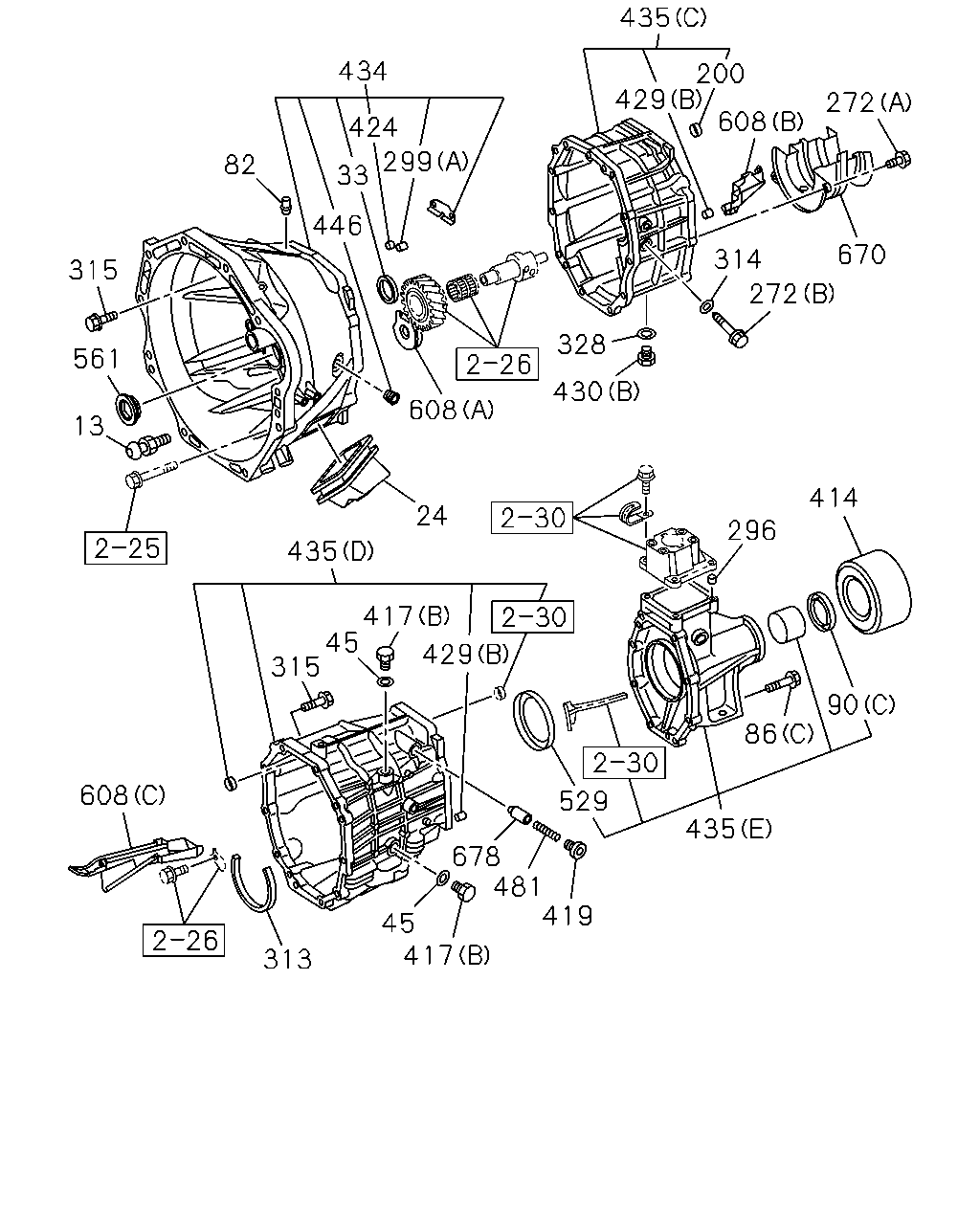

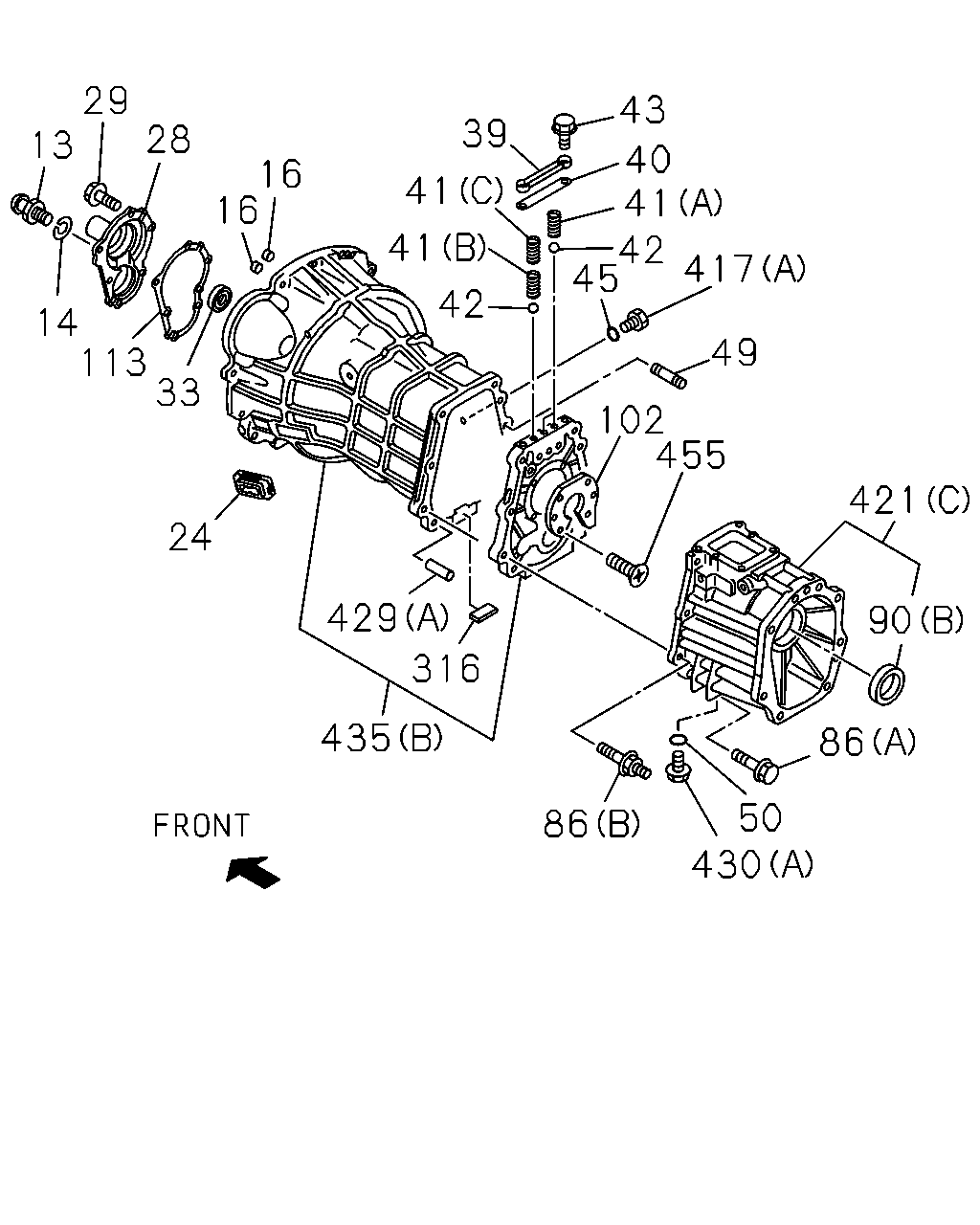

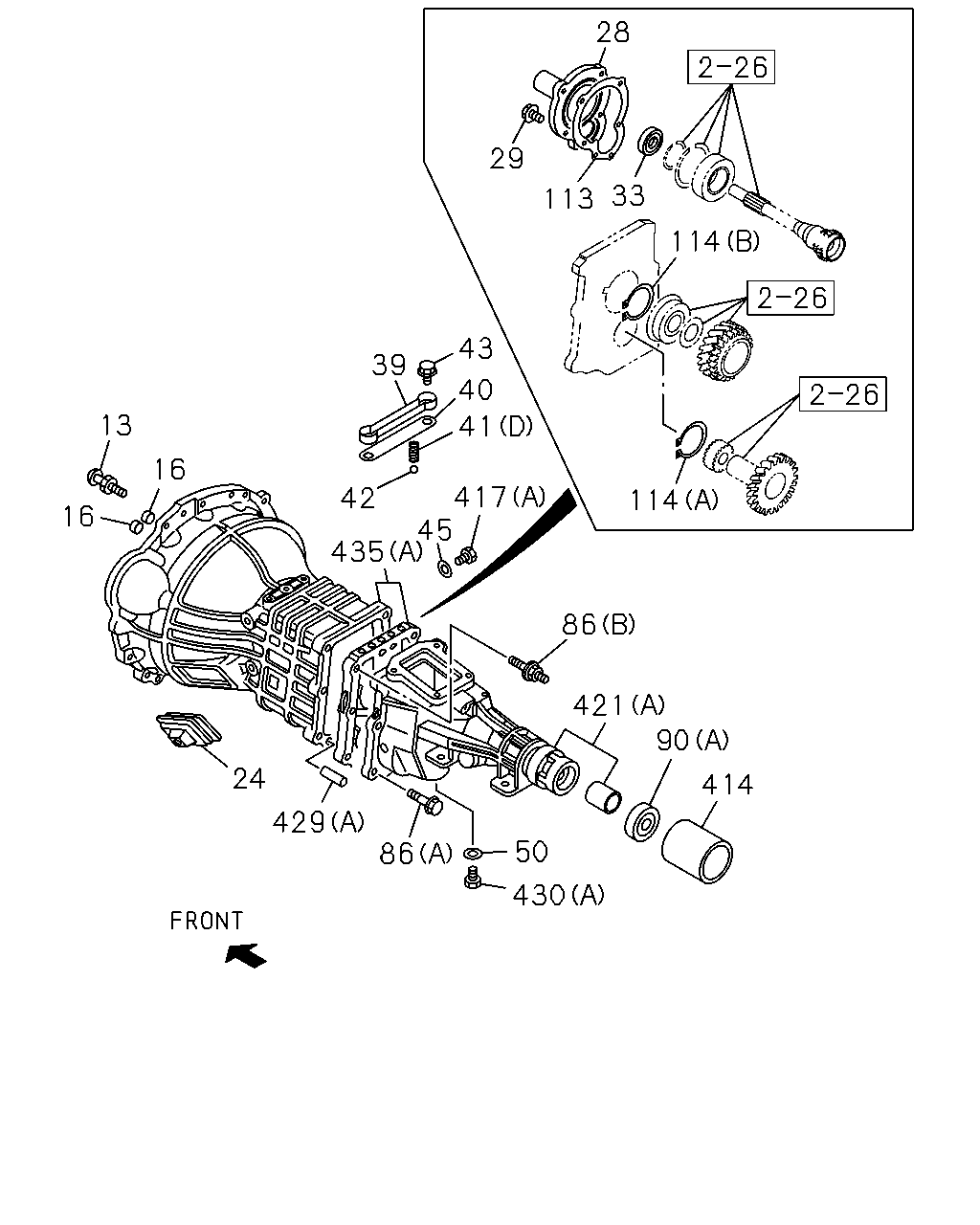

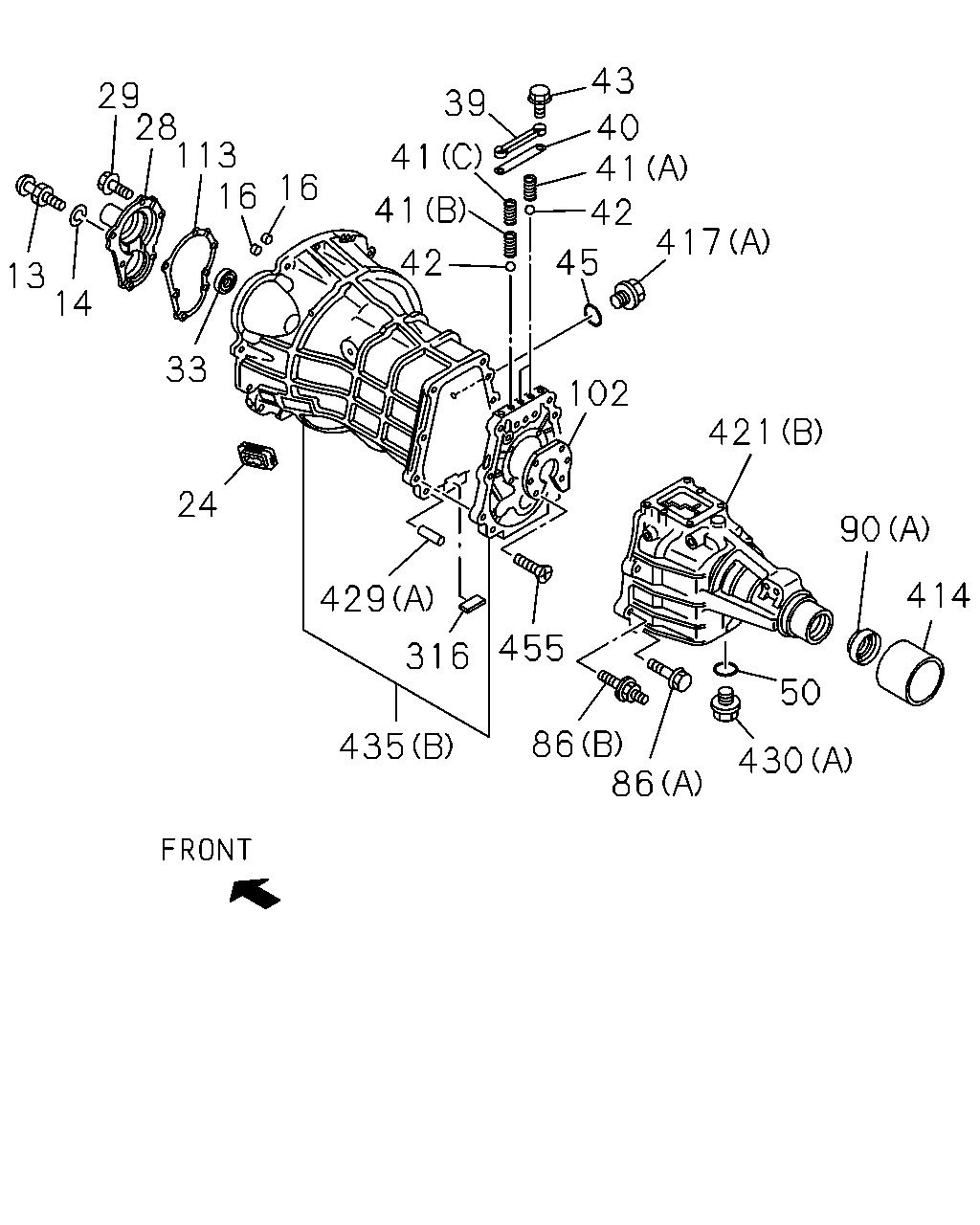

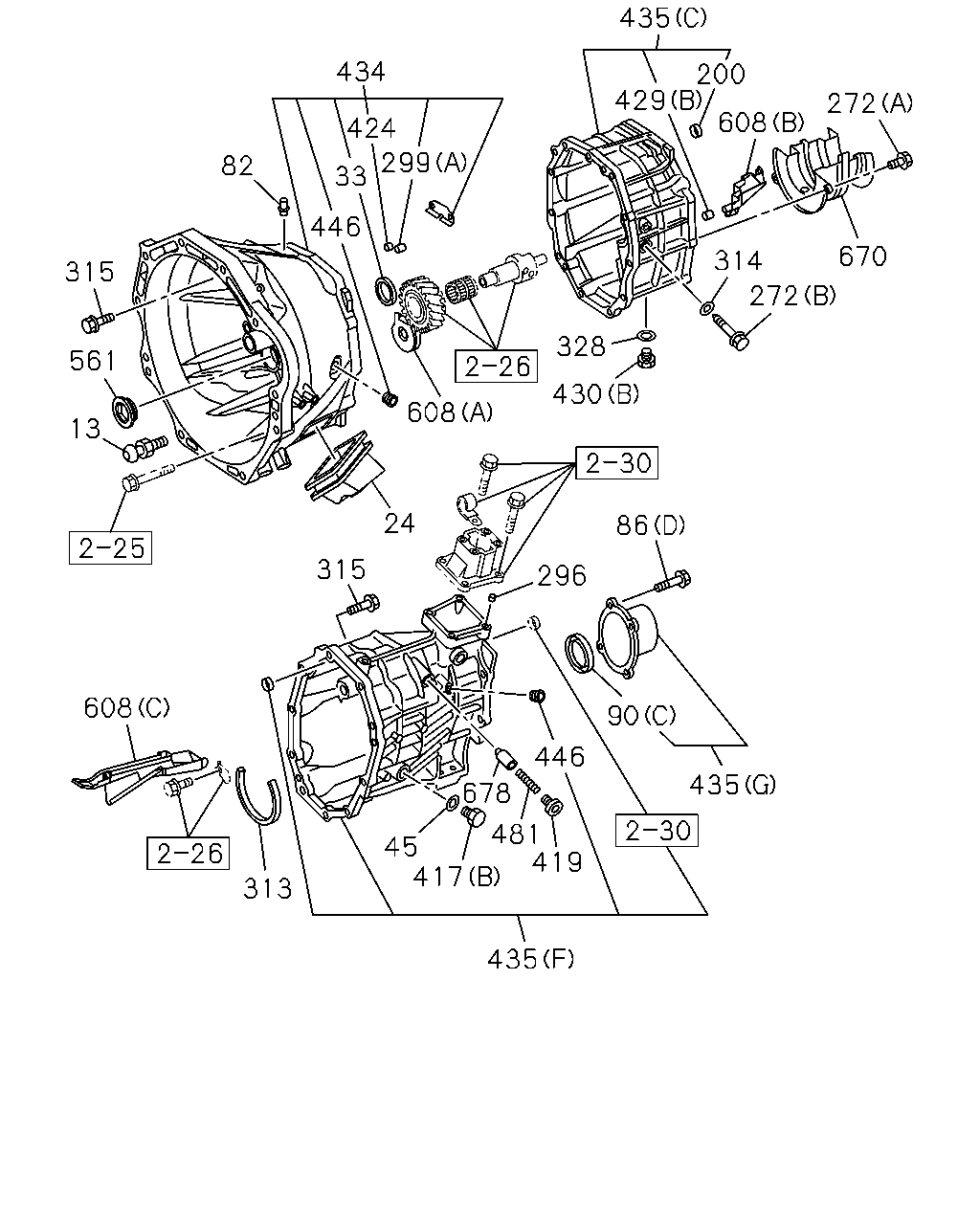

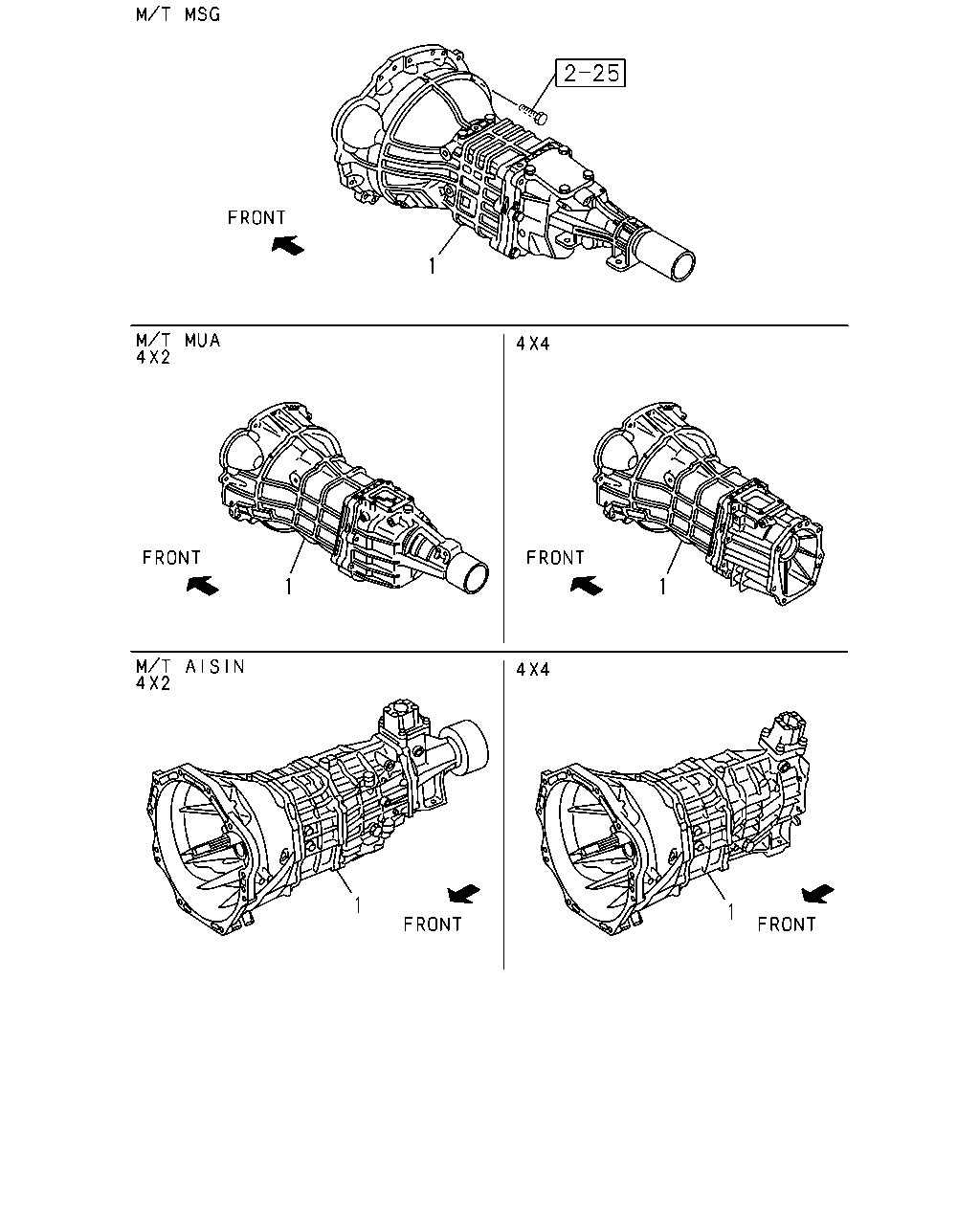

2-20 — MANUAL TRANSMISSION ASM AND CASE (#91062) — 870 parça

13 29 16 16 28 14 24 33 113 429 435 316 86 430 86 90 421 455 102 49 45 417 42 41 40 43 39 41 41 42 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1206-1301	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1302-	●	●	●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1206-1301		●		●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1302-		●		●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1206-1301	●	●		●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1302-	●	●		●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1206-1301	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-1301		●		●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1302-	●				●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1302-		●		●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-		●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1206-			●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1206-1301		●		●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1302-		●		●
28	04.356 COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1302-					●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1206-		●		●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1206-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1206-1301	●	●		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1302-	●	●		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1209-1301		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1302-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1302-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1206-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	1206-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1209-	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1206-1301	●	●		●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1302-	●	●		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1206-1301		●		●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1302-		●		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1206-	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1206-1301		●		●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1302-		●		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1206-1301		●		●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1302-		●		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1206-1301		●		●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1302-		●		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1206-	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1206-1301	●	●		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1302-	●	●		●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1206-1301		●		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1302-		●		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1206-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1206-1301	●	●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-	●	●		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1206-		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1206-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1206-1301	●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1206-1301		●	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1302-1303	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1302-1303		●	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JA1-T ENG(LP0) ID=17	8-97115-712-0	01	1	1304-1306	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-1306		●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1304-1306		●				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-1306			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1307-	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1307-		●	●			●
86	04.317 BOLT; RR COVER 4X2(TFB***) (C)	8-98203-180-0	08	1	1206-			●
86	04.317 BOLT; RR COVER 4X4(TFS***) (D)	8-98203-112-0	04	1	1206-			●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1206-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1206-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1206-1303		●	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306		●				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-1301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1302-	●				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	8-98203-102-0	01	1	1206-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) TKK	8-97046-700-0	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) NOK	8-97046-701-2	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1206-1208	●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1206-1208			●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1209-1301		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1302-1303		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1302-1303					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306						●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1307-					●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1206-1301		●		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1302-		●		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1206-1301		●		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1302-		●		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1206-	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1206-1301		●		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-		●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1206-1301	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1206-1301		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1302-1303	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1302-1303		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-373-0	01	1	1304-1306	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-1306		●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1304-1306		●				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-1306			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1307-	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1307-		●	●			●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-				●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-238-0	01	1	1209-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS (B)	8-98191-921-0	01	1	1206-1301				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98191-921-0	01	1	1206-1301		●
421	04.317 COVER; RR,TRANS (B)	8-98191-921-0	01	1	1302-1405				●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98191-921-0	01	1	1302-1405		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1206-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98121-716-0	01	1	1206-1208		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98121-716-0	01	1	1209-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1410-		●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1206-		●	●			●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1206-1301	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1302-	●	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1206-			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1206-1301	●	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1206-1301		●	●			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1302-1303	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1302-1303		●	●			●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-374-0	01	1	1304-1306	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-1306		●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1304-1306		●				●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-1306			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1307-	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1307-		●	●			●
435	04.103 CASE; TRANS 4X2(TFB***) (D)	8-98203-111-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-177-0	01	1	1206-			●
435	04.103 CASE; TRANS (C)	8-98203-088-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-101-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (F)	8-98203-108-0	01	1	1206-			●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1206-1301		●		●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1302-		●		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1206-	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1206-1301		●		●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1302-		●		●	●

1 1 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-98211-725-0	01	1	1305-1407		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-97978-027-0	01	1	1408-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-98211-727-0	01	1	1305-1407		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-97978-029-0	01	1	1408-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98212-290-0	01	1	1302-1304					●
1	04.003 TRANSMISSION ASM; MANUAL	8-98212-291-0	01	1	1305-1407					●
1	04.003 TRANSMISSION ASM; MANUAL	8-97978-028-0	01	1	1408-					●
1	04.003 TRANSMISSION ASM; MANUAL IDENTIFICATION LABEL FOR KD<6UT>	8-98211-726-0	01	1	1206-1301				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98211-726-0	01	1	1302-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT>	8-98172-462-0	01	1	1206-1301		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98172-462-0	01	1	1302-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT>	8-98172-959-0	01	1	1206-1301		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98172-959-0	01	1	1302-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-178-0	01	1	1206-1301		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98150-178-0	01	1	1302-1304		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCS ENG(LKZ) CONGO EQUIPMENT(CDF) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-178-0	01	1	1302-1304		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98150-178-0	01	1	1305-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98103-188-0	01	1	1206-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98145-931-0	01	1	1206-	●
1	04.003 TRANSMISSION ASM; MANUAL EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98161-475-0	01	1	1206-1301				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98161-475-0	01	1	1302-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98172-464-0	01	1	1206-1301		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98172-464-0	01	1	1302-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98147-061-2	01	1	1206-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98103-196-0	01	1	1206-1301		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98103-196-0	01	1	1302-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98172-465-0	01	1	1206-1301		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JK1-TCX ENG(LR0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT>	8-98172-465-0	01	1	1302-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98147-062-3	01	1	1206-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT>	8-98150-180-0	01	1	1206-1304		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF)	8-98150-180-0	01	1	1305-		●

272 670 608 200 435 429 272 314 328 430 299 424 434 33 446 82 315 561 13 608 24 435 414 296 90 86 435 529 419 481 678 429 417 45 315 417 45 313 608

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1206-1301	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1302-	●	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1206-1301	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-1301		●		●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1302-	●				●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1302-		●		●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-		●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1206-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1209-1301		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1302-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1302-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1206-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	1206-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1209-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1206-1301	●	●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-	●	●		●	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1206-			●
86	04.317 BOLT; RR COVER 4X2(TFB***) (C)	8-98203-180-0	08	1	1206-			●
86	04.317 BOLT; RR COVER 4X4(TFS***) (D)	8-98203-112-0	04	1	1206-			●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1206-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1206-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1206-1303		●	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306		●				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-1301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1302-	●				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	8-98203-102-0	01	1	1206-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) TKK	8-97046-700-0	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) NOK	8-97046-701-2	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1206-1208	●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1206-1208			●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1209-1301		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1302-1303		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1302-1303					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306						●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1307-					●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1206-			●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1206-			●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1206-			●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1206-			●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1206-			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1206-1303		●	●			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306		●				●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1307-		●	●			●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1206-			●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1206-			●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1206-			●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1206-			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98203-251-0	01	1	1206-			●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1206-1301	●			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1206-1301		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1302-	●			●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1302-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1206-1301	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1206-1301		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1302-1303	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1302-1303		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-373-0	01	1	1304-1306	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-1306		●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1304-1306		●				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-1306			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1307-	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1307-		●	●			●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1206-			●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1206-			●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1206-		●	●			●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1206-1301	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1302-	●	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1206-			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1206-1301	●	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1206-1301		●	●			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1302-1303	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1302-1303		●	●			●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-374-0	01	1	1304-1306	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-1306		●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1304-1306		●				●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-1306			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1307-	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1307-		●	●			●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X2(TFB***) (D)	8-98203-111-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-177-0	01	1	1206-			●
435	04.103 CASE; TRANS (C)	8-98203-088-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-101-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (F)	8-98203-108-0	01	1	1206-			●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1206-1301		●		●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1302-		●		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1206-	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***)	8-98203-100-0	01	1	1206-			●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***)	8-98203-100-0	02	1	1206-			●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1206-			●
529	04.083 BRACKET; MISSION CASE 4X2(TFB***)	8-98203-179-0	01	1	1206-			●
561	04.104 PLUG	8-98203-114-0	01	1	1206-			●
608	04.317 GUTTER; OIL (A)	8-98203-103-0	01	1	1206-			●
608	04.317 GUTTER; OIL (B)	8-98203-104-0	01	1	1206-			●
608	04.317 GUTTER; OIL (C)	8-98203-105-0	01	1	1206-			●
670	04.457 BAFFLE	8-98203-106-0	01	1	1206-			●
678	04.317 PIN	8-98203-165-0	01	1	1206-			●

435 86 86 430 50 414 90 421 455 316 429 24 33 14 13 29 102 417 45 42 41 40 43 39 41 41 42 16 16 113 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1206-1301	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1302-	●	●	●	●	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1206-1301		●		●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	1302-		●		●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1206-1301	●	●		●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1302-	●	●		●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1206-1301	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-1301		●		●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1302-	●				●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1302-		●		●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-		●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1206-			●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1206-1301		●		●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1302-		●		●
28	04.356 COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1302-					●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1206-		●		●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1206-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1206-1301	●	●		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1302-	●	●		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1209-1301		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1302-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1302-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1206-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	1206-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1209-	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1206-1301	●	●		●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1302-	●	●		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1206-1301		●		●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1302-		●		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1206-	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1206-1301		●		●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1302-		●		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1206-1301		●		●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1302-		●		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1206-1301		●		●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1302-		●		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1206-	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1206-1301	●	●		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1302-	●	●		●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1206-1301		●		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1302-		●		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1206-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1206-1301	●	●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1206-1301	●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1206-1301		●	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1302-1303	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1302-1303		●	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JA1-T ENG(LP0) ID=17	8-97115-712-0	01	1	1304-1306	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-1306		●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1304-1306		●				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-1306			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1307-	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1307-		●	●			●
86	04.317 BOLT; RR COVER 4X2(TFB***) (C)	8-98203-180-0	08	1	1206-			●
86	04.317 BOLT; RR COVER 4X4(TFS***) (D)	8-98203-112-0	04	1	1206-			●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1206-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1206-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1206-1303		●	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306		●				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-1301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1302-	●				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	8-98203-102-0	01	1	1206-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) TKK	8-97046-700-0	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) NOK	8-97046-701-2	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1206-1208	●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1206-1208			●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1209-1301		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1302-1303		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1302-1303					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306						●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1307-					●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1206-1301		●		●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1302-		●		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1206-1301		●		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1302-		●		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1206-	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1206-1301		●		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-		●		●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98203-251-0	01	1	1206-			●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1206-1301	●			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1206-1301		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1302-	●			●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1302-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1206-1301	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1206-1301		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1302-1303	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1302-1303		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-373-0	01	1	1304-1306	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-1306		●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1304-1306		●				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-1306			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1307-	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1307-		●	●			●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-				●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-238-0	01	1	1209-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS (B)	8-98191-921-0	01	1	1206-1301				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98191-921-0	01	1	1206-1301		●
421	04.317 COVER; RR,TRANS (B)	8-98191-921-0	01	1	1302-1405				●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98191-921-0	01	1	1302-1405		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1206-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98121-716-0	01	1	1206-1208		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98121-716-0	01	1	1209-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1410-		●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1206-		●	●			●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1206-1301	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1302-	●	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1206-			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1206-1301	●	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1206-1301		●	●			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1302-1303	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1302-1303		●	●			●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-374-0	01	1	1304-1306	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-1306		●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1304-1306		●				●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-1306			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1307-	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1307-		●	●			●
435	04.103 CASE; TRANS 4X2(TFB***) (D)	8-98203-111-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-177-0	01	1	1206-			●
435	04.103 CASE; TRANS (C)	8-98203-088-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-101-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (F)	8-98203-108-0	01	1	1206-			●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1206-1301		●		●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1302-		●		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1206-	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1206-1301		●		●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	1302-		●		●	●

90 80 49 429 79 76 86 299 417 47 430 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1206-1303		●	●			●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.105 ID=17	8-97115-712-0	01	1	1304-1306		●				●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1304-1306			●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	1307-		●	●			●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X27 L=43.5	8-98035-677-0	01	1	1206-		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> M10X30 L=45	8-98035-675-0	01	1	1206-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1206-1301	●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1206-1301		●	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1302-1303	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1302-1303		●	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JA1-T ENG(LP0) ID=17	8-97115-712-0	01	1	1304-1306	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-1306		●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1304-1306		●				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-1306			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1307-	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1307-		●	●			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1206-1303		●	●			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97238-999-0	01	1	1304-1306		●				●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1304-1306			●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1307-		●	●			●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 00.685 M10X45 FLANGE	0-28051-045-0	07	1	1206-						●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1206-		●	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1206-		●	●
86	04.317 BOLT; RR COVER 4X2(TFB***) (C)	8-98203-180-0	08	1	1206-			●
86	04.317 BOLT; RR COVER 4X4(TFS***) (D)	8-98203-112-0	04	1	1206-			●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1206-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1206-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1206-1303		●	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306		●				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-1301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1302-	●				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	8-98203-102-0	01	1	1206-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) TKK	8-97046-700-0	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) NOK	8-97046-701-2	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1206-1208	●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1206-1208			●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1209-1301		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1302-1303		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1302-1303					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306						●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1307-					●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1206-			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1206-1303		●	●			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306		●				●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1307-		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1206-1301	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1206-1301		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1302-1303	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1302-1303		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-373-0	01	1	1304-1306	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-1306		●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1304-1306		●				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-1306			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1307-	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1307-		●	●			●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1206-		●	●			●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1206-1301	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1302-	●	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1206-			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1206-1301	●	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1206-1301		●	●			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1302-1303	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1302-1303		●	●			●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-374-0	01	1	1304-1306	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-1306		●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1304-1306		●				●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-1306			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1307-	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1307-		●	●			●

430 414 90 421 86 50 86 429 24 16 13 16 42 435 417 41 40 43 39 114 114 113 33 28 29 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1206-1301	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1302-	●	●	●	●	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1206-1301	●	●		●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1302-	●	●		●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1206-1301	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-1301		●		●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1302-	●				●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1302-		●		●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-		●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1206-			●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1206-1301		●		●
28	04.356 COVER; FRT,TRANS CASE IDENTIFICATION LABEL FOR KD<6UT>	8-97381-406-0	01	1	1302-		●		●
28	04.356 COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1302-					●
28	04.356 COVER; FRT,TRANS CASE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97104-676-0	01	1	1206-		●		●
28	04.356 COVER; FRT,TRANS CASE	8-97116-796-0	01	1	1206-	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1206-1301	●	●		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1302-	●	●		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1209-1301		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1302-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1302-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1206-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	1206-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1209-	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1206-1301	●	●		●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	1302-	●	●		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1206-1301		●		●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1302-		●		●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	1206-	●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1206-1301		●		●
41	04.311 SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1302-		●		●	●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1206-1301		●		●
41	04.311 SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1302-		●		●	●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1206-1301		●		●
41	04.311 SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1302-		●		●	●
41	04.311 SPRING; DETENT BALL (D) L=25.6	8-94435-336-0	03	1	1206-	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1206-1301	●	●		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1302-	●	●		●	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1206-1301		●		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1302-		●		●	●
43	04.311 BOLT; PLATE TO PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1206-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1206-1301	●	●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1206-1301	●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1206-1301		●	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1302-1303	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1302-1303		●	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JA1-T ENG(LP0) ID=17	8-97115-712-0	01	1	1304-1306	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1304-1306		●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=17	8-97115-712-0	01	1	1304-1306		●				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1304-1306			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1307-	●	●		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1307-		●	●			●
86	04.317 BOLT; RR COVER 4X2(TFB***) (C)	8-98203-180-0	08	1	1206-			●
86	04.317 BOLT; RR COVER 4X4(TFS***) (D)	8-98203-112-0	04	1	1206-			●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1206-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1206-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1206-1303		●	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306		●				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-1301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1302-	●				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	8-98203-102-0	01	1	1206-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) TKK	8-97046-700-0	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) NOK	8-97046-701-2	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1206-1208	●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1206-1208			●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1209-1301		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1302-1303		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1302-1303					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306						●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1307-					●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1206-1301		●		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1302-		●		●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	1206-	●
114	04.105 RING; SNAP,BALL BRG 04.422 (A) ID=49.6	5-09589-004-0	01	1	1206-	●
114	04.105 RING; SNAP,BALL BRG 04.412 (B) ID=71.7	5-09589-005-0	01	1	1206-	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98203-251-0	01	1	1206-			●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1206-1301	●			●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1206-1301		●
414	04.317 COVER; DUST,RR COVER	8-98027-802-0	01	1	1302-	●			●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1302-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1206-1301	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1206-1301		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1302-1303	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1302-1303		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-373-0	01	1	1304-1306	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-1306		●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1304-1306		●				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-1306			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1307-	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1307-		●	●			●
421	04.317 COVER; RR,TRANS IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-				●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-97978-059-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-238-0	01	1	1209-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97978-061-0	01	1	1410-		●
421	04.317 COVER; RR,TRANS (B)	8-98191-921-0	01	1	1206-1301				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98191-921-0	01	1	1206-1301		●
421	04.317 COVER; RR,TRANS (B)	8-98191-921-0	01	1	1302-1405				●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (B)	8-98191-921-0	01	1	1302-1405		●
421	04.317 COVER; RR,TRANS EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-				●
421	04.317 COVER; RR,TRANS 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98191-921-0	01	1	1406-		●
421	04.317 COVER; RR,TRANS (A)	8-98193-595-0	01	1	1206-	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (C)	8-98121-716-0	01	1	1206-1208		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98121-716-0	01	1	1209-1409		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98277-853-0	01	1	1410-		●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1206-		●	●			●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1206-1301	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1302-	●	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1206-			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1206-1301	●	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1206-1301		●	●			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1302-1303	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1302-1303		●	●			●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-374-0	01	1	1304-1306	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-1306		●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1304-1306		●				●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-1306			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1307-	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1307-		●	●			●
435	04.103 CASE; TRANS 4X2(TFB***) (D)	8-98203-111-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-177-0	01	1	1206-			●
435	04.103 CASE; TRANS (C)	8-98203-088-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-101-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (F)	8-98203-108-0	01	1	1206-			●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1206-1301		●		●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1302-		●		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1206-	●

272 670 272 314 608 200 435 429 328 430 299 424 434 33 446 82 315 561 13 608 24 315 86 296 90 435 446 419 481 678 45 417 435 313 608

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1206-1301	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1302-	●	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1206-1301	●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-1301		●		●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	1302-	●				●
24	00.797 COVER; CHECK HOLE,DUST IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1302-		●		●
24	00.797 COVER; CHECK HOLE,DUST EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.868	8-94156-700-0	01	1	1206-		●		●
24	00.797 COVER; CHECK HOLE,DUST	8-97500-668-0	01	1	1206-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97947-839-0	01	1	1209-1301		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT>. NOK	8-97947-839-0	01	1	1302-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1302-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-98203-098-0	01	1	1206-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> TKK	8-97046-698-0	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1206-1208		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> NOK	8-97046-699-3	01	1	1209-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 04.354 NOK	8-94326-441-0	01	1	1206-1208	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-838-0	01	1	1209-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***)	8-97164-900-0	02	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***)	8-97164-900-0	01	1	1206-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1206-1301	●	●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-	●	●		●	●
82	04.105 PLUG; SCREW,CASE	8-98203-115-0	01	1	1206-			●
86	04.317 BOLT; RR COVER 4X2(TFB***) (C)	8-98203-180-0	08	1	1206-			●
86	04.317 BOLT; RR COVER 4X4(TFS***) (D)	8-98203-112-0	04	1	1206-			●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1206-1301		●		●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1302-		●		●	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1206-	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	1206-	●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1206-1303		●	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306		●				●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1304-1306			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (E) M8X45 FLANGE	0-28050-845-0	16	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-1301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1302-	●				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97947-840-0	01	1	1302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> (B) NOK	8-97947-841-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	8-98203-102-0	01	1	1206-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) TKK	8-97046-700-0	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) TKK	8-97046-700-0	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (B) NOK	8-97046-701-2	01	1	1206-1208		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.510 (B) NOK	8-97046-701-2	01	1	1209-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	1206-1208	●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1206-1208			●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1209-1301		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1209-1301		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1302-1303		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1302-1303		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1302-1303					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1304-1306			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) NOK	8-97046-705-3	01	1	1304-1306						●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). (A) NOK	8-97046-705-3	01	1	1307-		●	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT>. (A) NOK	8-97046-705-3	01	1	1307-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-705-3	01	1	1307-					●
200	04.317 BUSHING; SHIFT FORK SHAFT	8-89048-304-0	01	1	1206-			●
272	00.683 BOLT (A)	8-89048-559-0	02	1	1206-			●
272	00.683 BOLT (B)	8-98203-117-0	01	1	1206-			●
296	04.510 PIN; QUAD BOX TO CASE	8-98203-099-0	02	1	1206-			●
299	04.317 PLUG; SHIFTER ROD (A)	8-98203-096-0	02	1	1206-			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1206-1303		●	●			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306		●				●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1304-1306			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 00.034 (B) OD=15.6	8-94173-641-0	02	1	1307-		●	●			●
313	04.318 SEAL; OIL	8-98203-113-0	01	1	1206-			●
314	04.318 GASKET; CASE	8-98203-119-0	01	1	1206-			●
315	04.104 BOLT; CASE	8-98203-120-0	16	1	1206-			●
328	04.105 GASKET; PLUG	8-97164-900-0	01	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) (B)	8-98203-118-0	02	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (B)	8-98203-118-0	01	1	1206-			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1206-1301	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1206-1301		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1302-1303	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1302-1303		●	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-373-0	01	1	1304-1306	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1304-1306		●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-373-0	01	1	1304-1306		●				●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1304-1306			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1307-	●	●		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1307-		●	●			●
419	04.317 PLUG; RR COVER 04.105	8-97164-926-0	01	1	1206-			●
424	04.384 RING; INSERT 04.510	8-98203-099-0	02	1	1206-			●
429	04.105 PIN; STRAIGHT 4X2(TFB***) 04.317 (B)	8-98203-096-0	04	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.317 (B)	8-98203-096-0	02	1	1206-			●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (C) OD=10 L=20	8-97135-423-0	02	1	1206-		●	●			●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1206-1301	●	●		●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1302-	●	●		●	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	1206-			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1206-1301	●	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1206-1301		●	●			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1302-1303	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1302-1303		●	●			●
430	04.105 PLUG; OIL DRAIN 4X2(TFB***) 4JA1-T ENG(LP0) (A)	8-97365-374-0	01	1	1304-1306	●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1304-1306		●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97365-374-0	01	1	1304-1306		●				●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1304-1306			●
430	04.105 PLUG; OIL DRAIN (A)	8-97365-374-0	01	1	1307-	●	●		●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) (A)	8-97365-374-0	01	1	1307-		●	●			●
434	00.683 HOUSING; CLU	8-98203-097-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X2(TFB***) (D)	8-98203-111-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X2(TFB***) (E)	8-98203-177-0	01	1	1206-			●
435	04.103 CASE; TRANS (C)	8-98203-088-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (G)	8-98203-101-0	01	1	1206-			●
435	04.103 CASE; TRANS 4X4(TFS***) (F)	8-98203-108-0	01	1	1206-			●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1206-1301		●		●
435	04.103 CASE; TRANS (B)	8-98047-230-0	01	1	1302-		●		●	●
435	04.103 CASE; TRANS (A)	8-97330-878-0	01	1	1206-	●
446	04.105 PLUG; CASE,TRANS 4X2(TFB***)	8-98203-100-0	01	1	1206-			●
446	04.105 PLUG; CASE,TRANS 4X4(TFS***)	8-98203-100-0	02	1	1206-			●
481	04.317 SPRING; SHIFTER ROD,OIL PUMP	8-98203-169-0	01	1	1206-			●
561	04.104 PLUG	8-98203-114-0	01	1	1206-			●
608	04.317 GUTTER; OIL (A)	8-98203-103-0	01	1	1206-			●
608	04.317 GUTTER; OIL (B)	8-98203-104-0	01	1	1206-			●
608	04.317 GUTTER; OIL (C)	8-98203-105-0	01	1	1206-			●
670	04.457 BAFFLE	8-98203-106-0	01	1	1206-			●
678	04.317 PIN	8-98203-165-0	01	1	1206-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
