2-03 — CLUTCH PEDAL AND CONTROL (#91057) — 51 parça

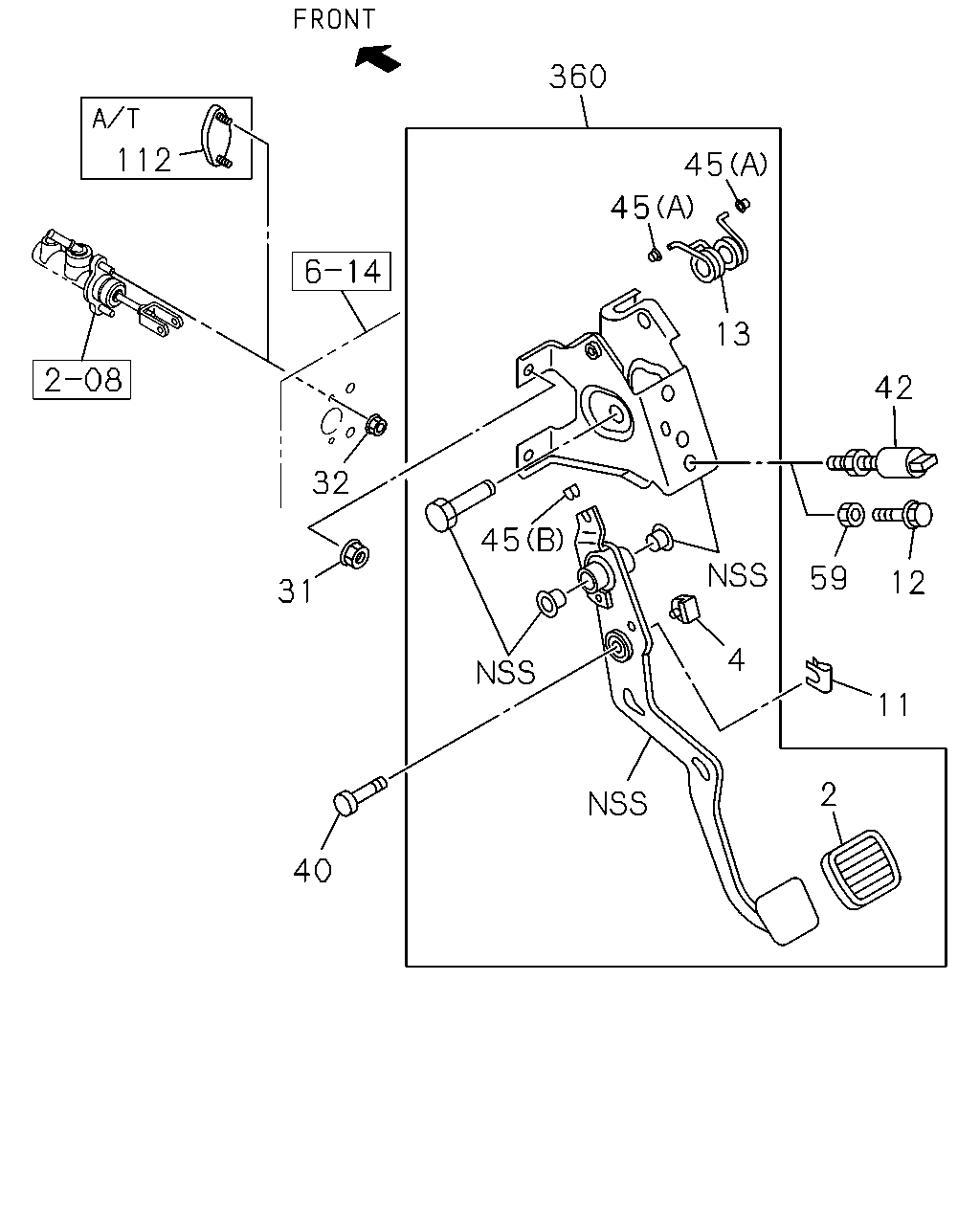

çizim 283159
2 11 12 42 59 4 13 45 45 360 45 40 31 32 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 04.630 COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) 		8-97318-799-0 01 1 1206-1301 ● ● ● ● ●
2 04.630 COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97318-799-0 01 1 1302- ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-97853-534-1 01 1 1206-1206 ● ●
4 00.829 STOPPER; CLU PEDAL
4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 		8-97853-534-1 01 1 1206-1206 ●
4 00.829 STOPPER; CLU PEDAL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 		8-97853-534-1 01 1 1206-1206 ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 		8-97947-783-0 01 1 1206-1206 ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) 		8-97947-783-0 01 1 1206-1301 ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97947-783-0 01 1 1302- ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) 		8-98007-161-0 01 1 1206-1301 ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98007-161-0 01 1 1302- ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) M10X35 		0-20851-035-0 01 1 1206-1301 ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10X35 		0-20851-035-0 01 1 1302-1408 ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10X35 		0-20851-035-0 01 1 1409- ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98207-852-0 01 1 1206-1301 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98207-852-0 01 1 1302- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 		8-97942-312-0 01 1 1206- ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1206-1301 ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1302- ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
01.062 M8 FLANGE 		0-91180-108-0 02 1 1206- ● ● ● ● ●
40 00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) OD=7.9 L=27.5 		8-97312-338-0 01 1 1206-1301 ● ● ● ● ●
40 00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5 		8-97312-338-0 01 1 1302- ● ● ● ● ●
42 04.054 SWITCH; CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> 		8-98154-210-0 01 1 1206-1408 ● ● ● ● ●
42 04.054 SWITCH; CLU
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 		8-98154-210-0 01 1 1206-1408 ● ● ● ●
42 04.054 SWITCH; CLU
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98154-210-0 01 1 1206-1408 ● ● ●
42 04.054 SWITCH; CLU
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 		8-98154-210-0 01 1 1409- ● ● ● ● ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) (A) 		8-97942-313-0 02 1 1206-1301 ● ● ● ● ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) 		8-97942-313-0 02 1 1302- ● ● ● ● ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) (B) 		8-97942-314-0 01 1 1206-1301 ● ● ● ● ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B) 		8-97942-314-0 01 1 1302- ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) M10 		0-91110-510-0 01 1 1206-1301 ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10 		0-91110-510-0 01 1 1302-1408 ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10 		0-91110-510-0 01 1 1409- ● ● ● ● ●
112 00.785 PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1) 		8-97945-168-0 01 1 1206- ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 		8-97946-364-1 01 1 1206-1206 ●
360 00.830 PEDAL ASM; CLUTCH
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 		8-97946-364-1 01 1 1206-1206 ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 		8-97947-852-0 01 1 1206-1408 ●
360 00.830 PEDAL ASM; CLUTCH
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 		8-97947-852-0 01 1 1206-1408 ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 		8-97947-852-0 01 1 1409-1512 ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) 		8-98317-403-0 01 1 1601- ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98205-967-0 01 1 1206-1206 ● ●
360 00.830 PEDAL ASM; CLUTCH
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-97947-855-0 01 1 1206-1301 ● ●
360 00.830 PEDAL ASM; CLUTCH
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97947-855-0 01 1 1302-1512 ● ●
360 00.830 PEDAL ASM; CLUTCH
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98317-402-0 01 1 1601- ● ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 		8-97947-242-1 01 1 1206-1206 ● ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 		8-97947-853-0 01 1 1206-1408 ● ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97947-853-0 01 1 1409-1512 ● ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 		8-97947-853-0 01 1 1409-1512 ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-97947-853-0 01 1 1409-1512 ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98317-405-0 01 1 1601- ● ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 		8-98317-405-0 01 1 1601- ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98317-405-0 01 1 1601- ●
