1-50 — EXHAUST PIPE AND SILENCER (#91054) — 116 parça

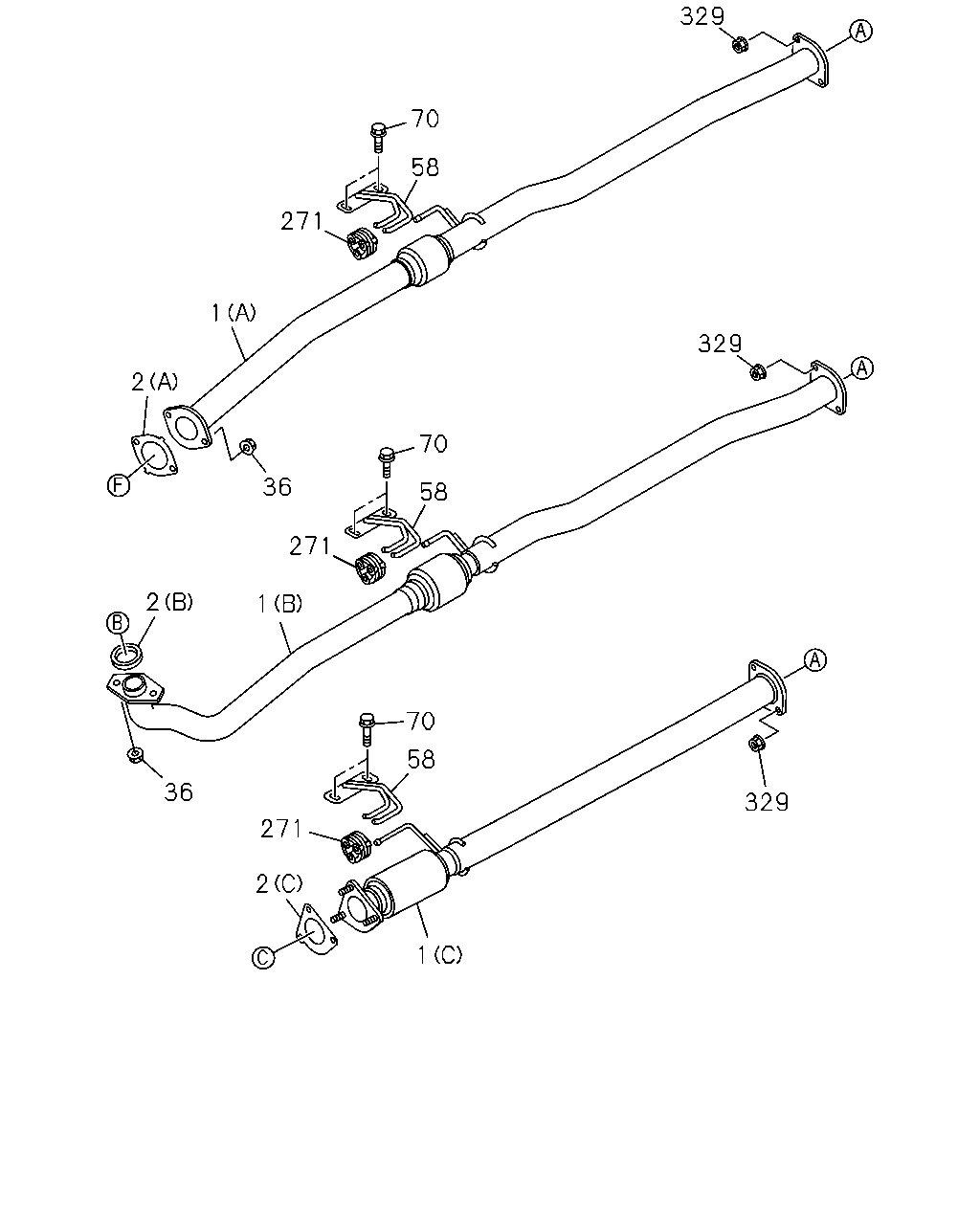

çizim 283147
329 329 329 1 58 70 271 2 1 271 58 70 36 1 271 70 58 2 2 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.609 PIPE; EXH
(C) 		8-98211-401-1 01 1 1206- ●
1 03.609 PIPE; EXH
(B) 		8-98065-530-1 01 1 1206- ● ●
1 03.609 PIPE; EXH
(B) 		8-98205-429-2 01 1 1206- ●
1 03.609 PIPE; EXH
(A) 		8-98140-583-1 01 1 1206- ●
2 03.611 GASKET; PIPE TO MANIF
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 		8-98017-270-0 01 1 1206- ● ● ●
2 03.611 GASKET; PIPE TO MANIF
(A) ID=65 		8-97263-052-0 01 1 1206-1303 ●
2 03.611 GASKET; PIPE TO MANIF
(A) ID=65 		8-97263-052-0 01 1 1304- ●
2 03.611 GASKET; PIPE TO MANIF
(C) 		8-98151-231-0 01 1 1206- ●
36 03.613 NUT; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10 FLANGE 		8-97096-192-1 02 1 1206-1303 ● ● ● ●
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 02 1 1304- ● ● ● ●
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 03 1 1206- ●
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 1206- ● ● ● ● ●
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1206- ● ● ● ● ●
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1206- ● ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1206- ● ● ● ● ●

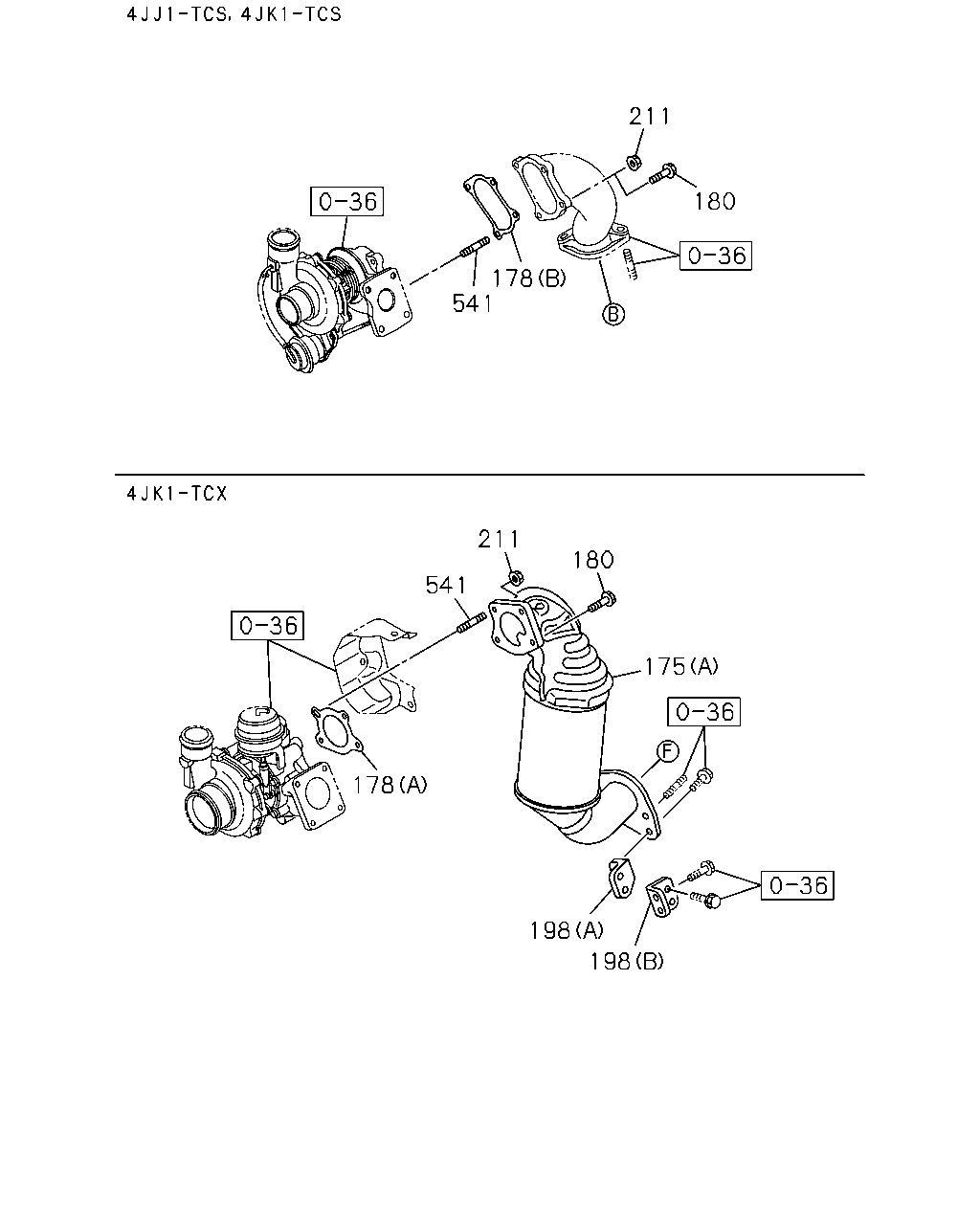

çizim 283149
211 180 178 541 211 541 180 175 198 198 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
175 03.685 CONVERTER; CATALYST
EURO2 SPECIFICATION<NT2> (B) 		8-98195-457-1 01 1 1206- ●
175 03.685 CONVERTER; CATALYST
(A) 		8-98132-074-2 01 1 1206- ●
175 03.685 CONVERTER; CATALYST
(C) 		8-98177-633-4 01 1 1206- ●
178 03.611 GASKET; CONV TO MANIF
(B) 		8-97312-284-1 01 1 1206- ● ●
178 03.611 GASKET; CONV TO MANIF
(A) 		8-98132-538-0 01 1 1206- ●
178 03.611 GASKET; CONV TO MANIF
(C) 		8-98151-218-0 01 1 1206- ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1206-1309 ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1310- ● ● ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 03 1 1206- ●
198 03.685 BRACKET; CONV MTG
(B) 		8-98196-696-1 01 1 1206- ● ●
198 03.685 BRACKET; CONV MTG
(A) 		8-98203-739-0 01 1 1206- ●
198 03.685 BRACKET; CONV MTG
(C) 		8-98196-697-1 01 1 1206- ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 1206-1309 ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1310- ● ● ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1206-1309 ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 1206-1309 ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1310- ● ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1206-1309 ● ●

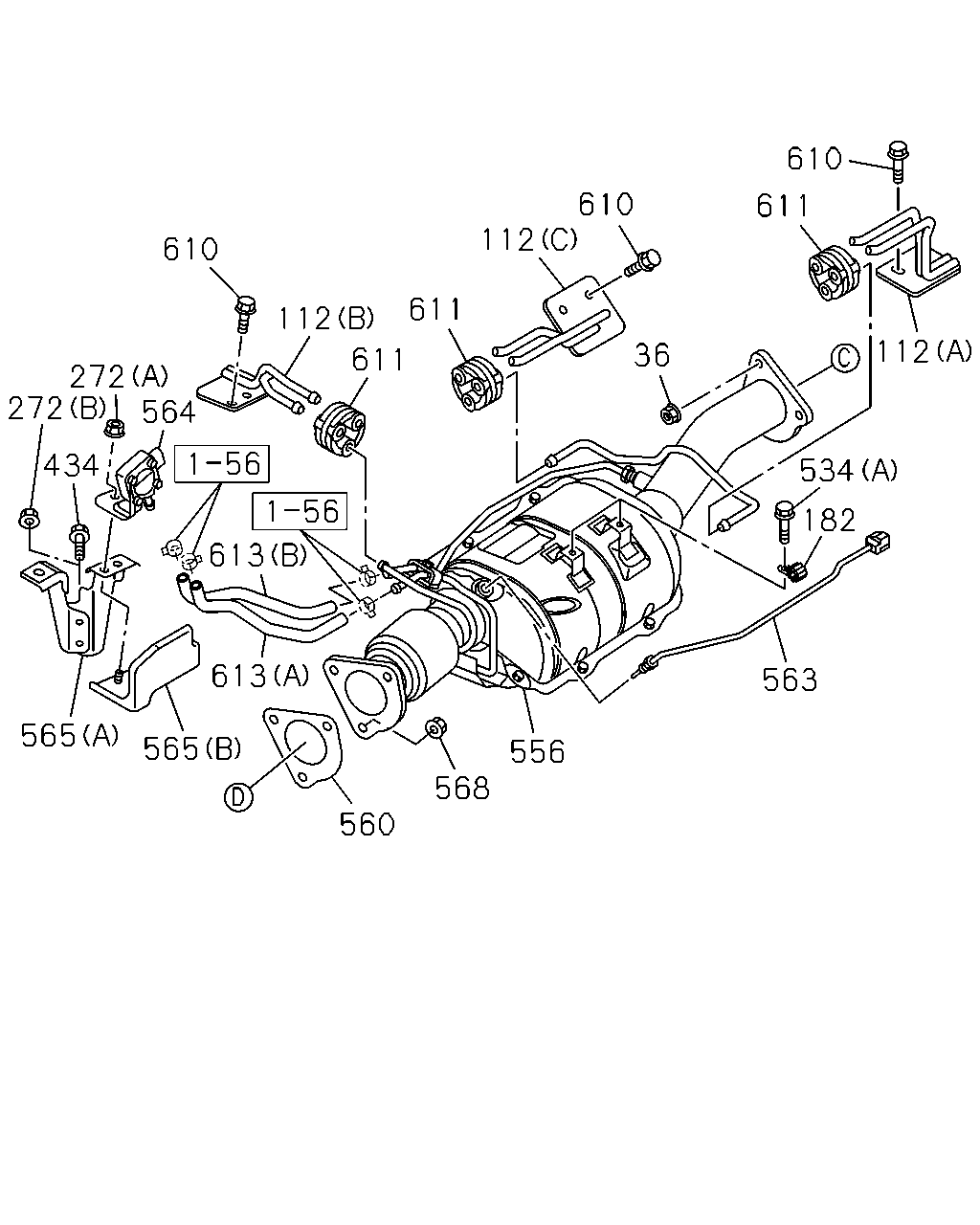

çizim 283150
610 611 610 112 611 112 611 610 272 272 434 613 613 565 565 560 556 568 563 182 534 112 36 564
BalonParca AdiParca NoAdetTipApplied Date A B C D E
36 03.613 NUT; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10 FLANGE 		8-97096-192-1 02 1 1206-1303 ● ● ● ●
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 02 1 1304- ● ● ● ●
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 03 1 1206- ●
112 03.706 BRACKET; HANGER
(C) 		8-98196-456-2 01 1 1206- ●
112 03.706 BRACKET; HANGER
4X2(TFB***) (A) 		8-98196-457-1 01 1 1206- ●
112 03.706 BRACKET; HANGER
(B) 		8-98196-455-1 01 1 1206- ●
112 03.706 BRACKET; HANGER
4X4(TFS***) (A) 		8-98196-458-1 01 1 1206- ●
182 03.682 CLIP; HARNESS
ID=7 		8-98002-767-0 02 1 1206- ●
272 03.685 NUT; FLANGE
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1206- ●
272 03.685 NUT; FLANGE
4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE 		0-91180-208-0 01 1 1206- ●
434 03.613 BOLT; BRKT
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1206-1301 ●
434 03.613 BOLT; BRKT
4X4(TFS***) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1206-1301 ●
434 03.613 BOLT; BRKT
4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1302- ●
434 03.613 BOLT; BRKT
4X4(TFS***) EURO5 SPECIFICATION<NT5> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1302- ●
534 03.704 BOLT; CLIP
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1206- ●
534 03.704 BOLT; CLIP
(B) 		8-98182-197-0 01 1 1206- ●
556 03.701 DPD ASM 8-98177-632-4 01 1 1206- ●
560 03.611 GASKET; DPD 8-98151-231-0 01 1 1206- ●
563 01.150 SENSOR; TEMPERATURE,DPD 8-98206-094-0 01 1 1206- ●
564 01.150 SENSOR; PRESSURE,DPD
4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98178-093-0 01 1 1206-1311 ●
564 01.150 SENSOR; PRESSURE,DPD
4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98260-259-0 01 1 1312- ●
564 01.150 SENSOR; PRESSURE,DPD
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) 		8-98178-090-0 01 1 1206-1301 ●
564 01.150 SENSOR; PRESSURE,DPD
4X4(TFS***) 		8-98178-090-0 01 1 1206-1301 ●
564 01.150 SENSOR; PRESSURE,DPD
4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) 		8-98178-090-0 01 1 1302-1311 ●
564 01.150 SENSOR; PRESSURE,DPD
4X4(TFS***) EURO5 SPECIFICATION<NT5> 		8-98178-090-0 01 1 1302-1311 ●
564 01.150 SENSOR; PRESSURE,DPD
4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) 		8-98260-258-0 01 1 1312- ●
564 01.150 SENSOR; PRESSURE,DPD
4X4(TFS***) EURO5 SPECIFICATION<NT5> 		8-98260-258-0 01 1 1312- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98178-092-0 01 1 1206- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X2(TFB***) EURO5 SPECIFICATION<NT5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98178-094-0 01 1 1206- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (A) 		8-98175-943-0 01 1 1206-1301 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X4(TFS***) (A) 		8-98175-943-0 01 1 1206-1301 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) (A) 		8-98175-943-0 01 1 1302- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X4(TFS***) EURO5 SPECIFICATION<NT5> (A) 		8-98175-943-0 01 1 1302- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X2(TFB***) HIGH RIDE SUSPENSION(7YC) (B) 		8-98178-091-0 01 1 1206-1301 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X4(TFS***) (B) 		8-98178-091-0 01 1 1206-1301 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X2(TFB***) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) (B) 		8-98178-091-0 01 1 1302- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4X4(TFS***) EURO5 SPECIFICATION<NT5> (B) 		8-98178-091-0 01 1 1302- ●
568 03.704 NUT; DPD
03.342 M10 FLANGE 		8-97309-942-0 03 1 1206- ●
610 03.704 BOLT; HANGER 8-98196-310-0 06 1 1206- ●
611 03.706 INSULATOR; HANGER 8-97289-169-0 03 1 1206- ●
613 03.603 HOSE; RUBBER
(A) 		8-98178-495-2 01 1 1206- ●
613 03.603 HOSE; RUBBER
(B) 		8-98178-496-2 01 1 1206- ●

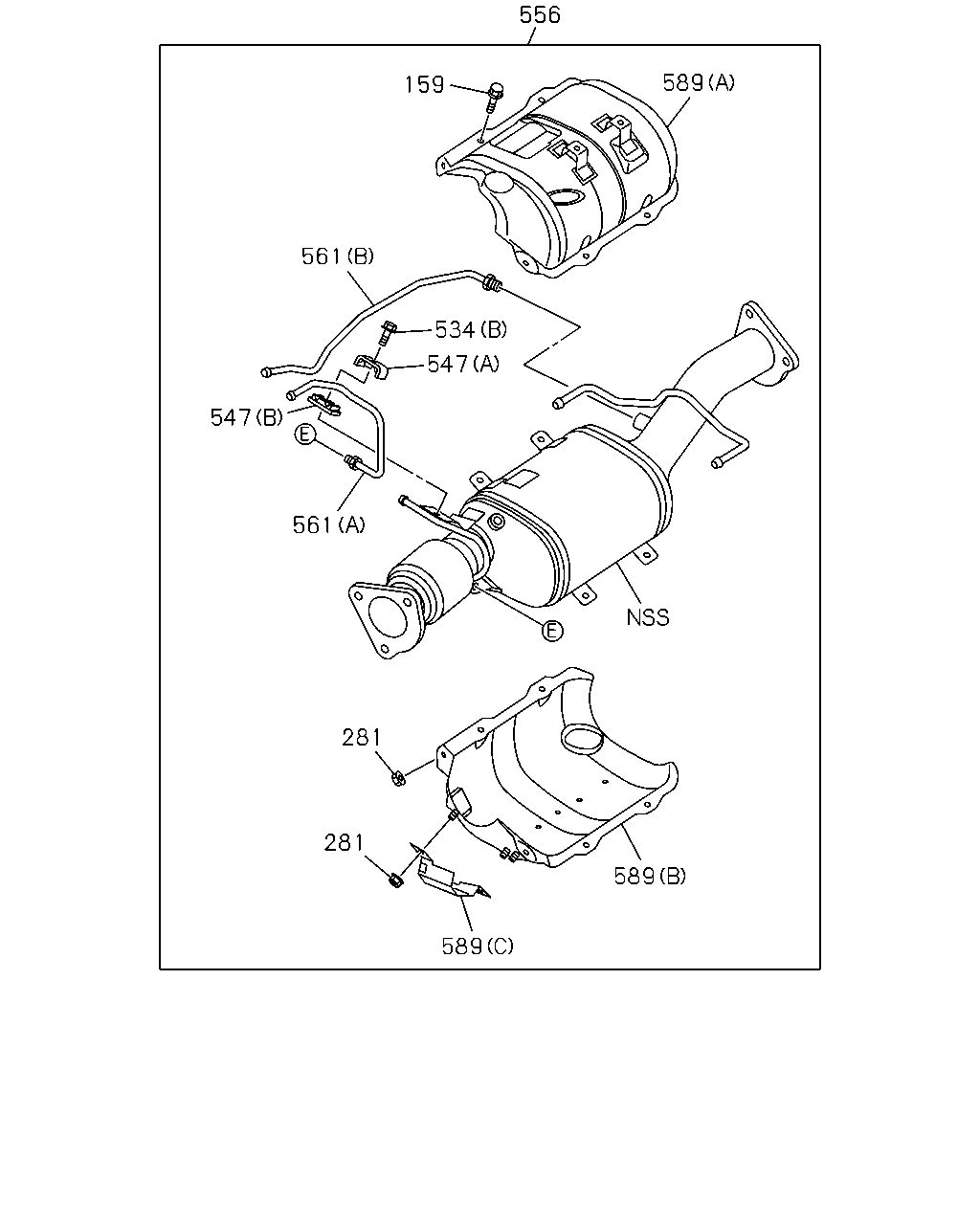

çizim 283151
556 159 589 561 534 547 547 561 281 281 589 589
BalonParca AdiParca NoAdetTipApplied Date A B C D E
159 03.690 BOLT; HEAT PROTECTOR 8-98182-198-0 06 1 1206- ●
281 03.685 NUT; HEAT PROTECTOR
M6 FLANGE 		8-98194-567-0 09 1 1206- ●
534 03.704 BOLT; CLIP
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1206- ●
534 03.704 BOLT; CLIP
(B) 		8-98182-197-0 01 1 1206- ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1206- ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1206- ●
556 03.701 DPD ASM 8-98177-632-4 01 1 1206- ●
561 03.609 PIPE; DPD
(A) 		8-98181-832-0 01 1 1206- ●
561 03.609 PIPE; DPD
(B) 		8-98181-833-0 01 1 1206- ●
589 03.609 PROTECTOR; HEAT,DPD
(A) 		8-98181-835-0 01 1 1206- ●
589 03.609 PROTECTOR; HEAT,DPD
(B) 		8-98181-836-0 01 1 1206- ●
589 03.609 PROTECTOR; HEAT,DPD
(C) 		8-98194-566-0 01 1 1206- ●

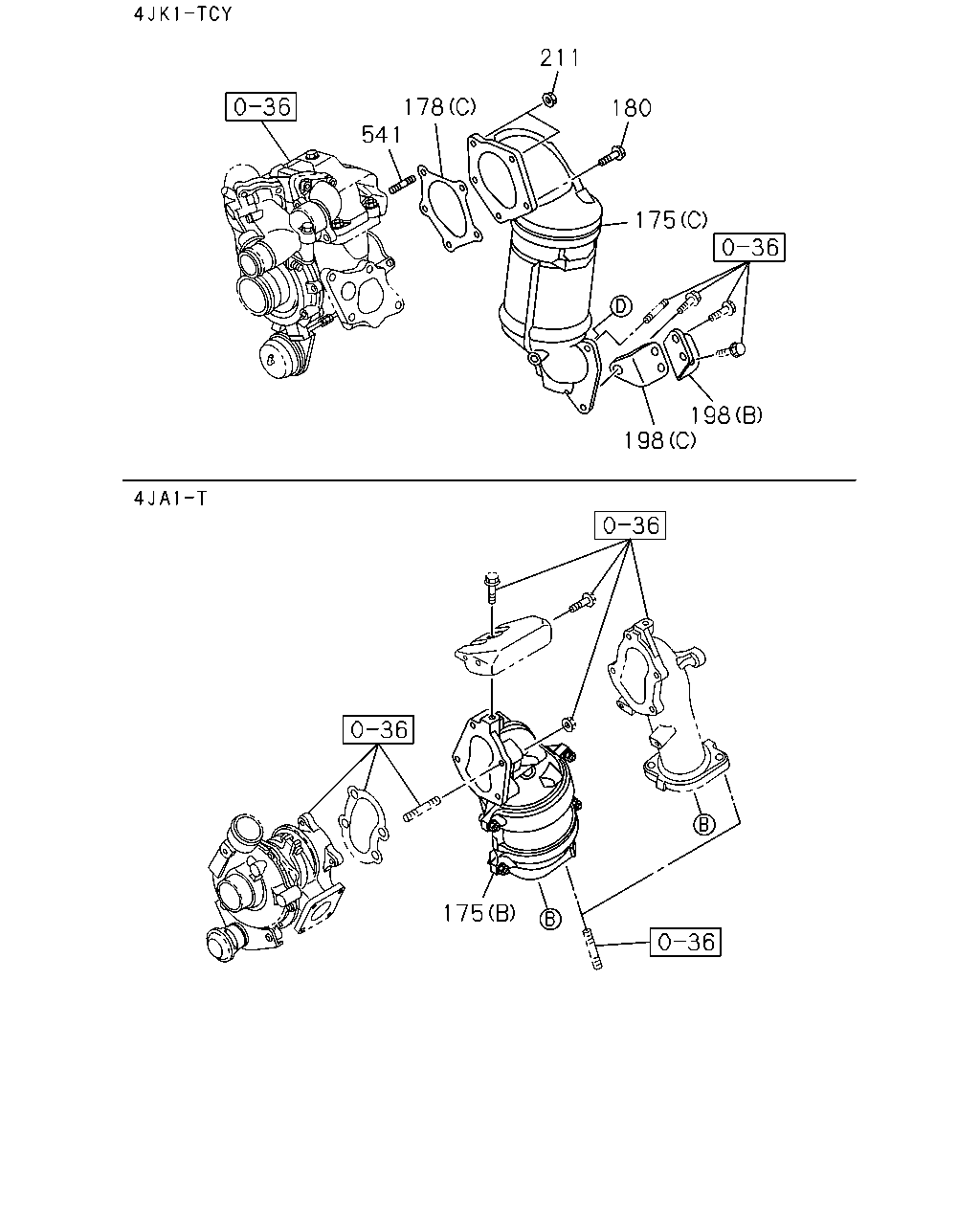

çizim 283154
211 180 175 198 198 541 178 175
BalonParca AdiParca NoAdetTipApplied Date A B C D E
175 03.685 CONVERTER; CATALYST
EURO2 SPECIFICATION<NT2> (B) 		8-98195-457-1 01 1 1206- ●
175 03.685 CONVERTER; CATALYST
(A) 		8-98132-074-2 01 1 1206- ●
175 03.685 CONVERTER; CATALYST
(C) 		8-98177-633-4 01 1 1206- ●
178 03.611 GASKET; CONV TO MANIF
(B) 		8-97312-284-1 01 1 1206- ● ●
178 03.611 GASKET; CONV TO MANIF
(A) 		8-98132-538-0 01 1 1206- ●
178 03.611 GASKET; CONV TO MANIF
(C) 		8-98151-218-0 01 1 1206- ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1206-1309 ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 1310- ● ● ●
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 03 1 1206- ●
198 03.685 BRACKET; CONV MTG
(B) 		8-98196-696-1 01 1 1206- ● ●
198 03.685 BRACKET; CONV MTG
(A) 		8-98203-739-0 01 1 1206- ●
198 03.685 BRACKET; CONV MTG
(C) 		8-98196-697-1 01 1 1206- ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 04 1 1206-1309 ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1310- ● ● ● ●
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1206-1309 ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 04 1 1206-1309 ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1310- ● ● ● ●
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1206-1309 ● ●
çizim 283597
428 12 84 115 337 59 115
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 03.701 SILENCER ASM; EXH 8-98125-376-3 01 1 1206- ● ●
12 03.701 SILENCER ASM; EXH 8-98065-538-3 01 1 1206- ●
12 03.701 SILENCER ASM; EXH 8-98140-589-2 01 1 1206- ●
12 03.701 SILENCER ASM; EXH 8-98140-590-2 01 1 1206- ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1206-1303 ● ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1304- ● ● ● ● ●
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1206- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
03.706 (A) 		8-97289-169-0 01 1 1206- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-98124-470-0 02 1 1206- ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1206- ● ● ● ● ●
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE 8-98124-470-0 01 1 1206- ● ● ● ● ●
