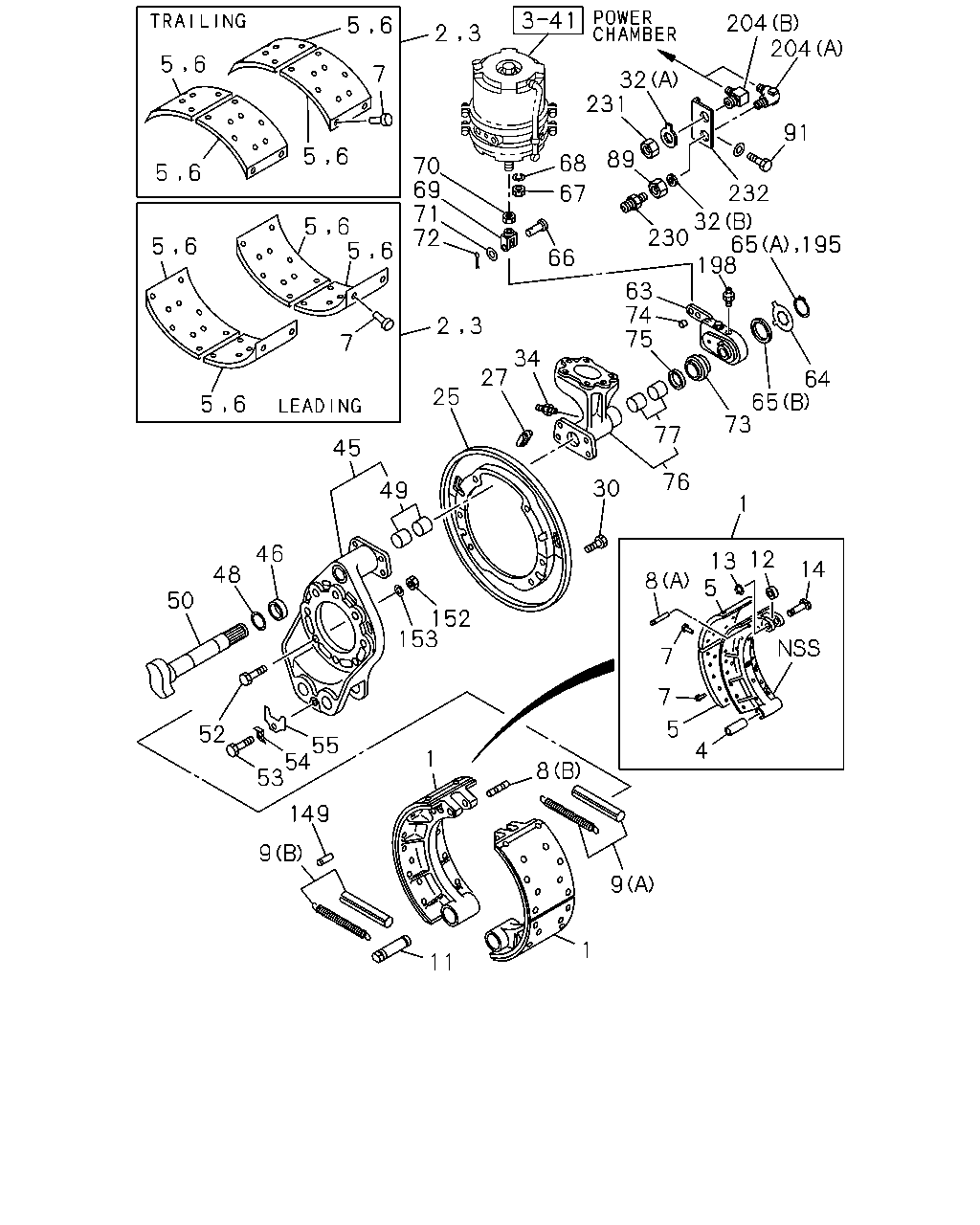

3-05 — REAR WHEEL BRAKE (#9105) — 82 parça
çizim 18559
204 204 5 6 2 3 5 6 7 32 231 91 89 5 6 68 70 69 71 72 5 6 232 32 230 65 198 67 5 6 5 195 5 6 6 66 63 74 75 3 2 7 34 27 64 65 73 25 5 6 77 45 76 30 49 1 46 12 13 5 14 48 8 50 152 153 7 7 5 52 55 54 53 4 1 8 149 9 9 1 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
LEADING 		1-47110-794-0 01 1 9606-0106 ● ●
1 SHOE; BRK,RR
LEADING 		1-47170-067-0 01 1 0107- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47110-795-0 01 1 9606-0106 ● ●
1 SHOE; BRK,RR
TRAILING 		1-47120-773-0 01 1 0107- ● ●
1 SHOE; BRK,RR
LEADING 		1-47110-792-0 01 1 9606-0106 ● ●
1 SHOE; BRK,RR
LEADING 		1-47170-066-0 01 1 0107- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47110-793-0 01 1 9606-0106 ● ●
1 SHOE; BRK,RR
TRAILING 		1-47120-771-0 01 1 0107- ● ●
2 LINING SET; RR BRK,STANDARD
T=16 LEADING 		1-88302-820-0 01 1 9606-0106 ● ●
2 LINING SET; RR BRK,STANDARD
LEADING T=16 		1-88310-577-0 01 1 0107- ● ●
2 LINING SET; RR BRK,STANDARD
T=16 TRAILING 		1-88302-822-0 01 1 9606-0106 ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING T=16 		1-88310-898-0 01 1 0107- ● ●
3 LINING SET; RR BRK,OVER SIZE
T=17 LEADING 		1-88302-821-0 01 1 9606-0106 ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING T=17 		1-88310-578-0 01 1 0107- ● ●
3 LINING SET; RR BRK,OVER SIZE
T=17 TRAILING 		1-88302-823-0 01 1 9606-0106 ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING T=17 		1-88310-899-0 01 1 0107- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 9606- ● ●
5 LINING; RR BRK SHOE,STANDARD
LEADING T=16 		1-47115-634-0 04 1 9606-0106 ● ●
5 LINING; RR BRK SHOE,STANDARD
LEADING T=16 T=16 		1-47125-907-0 04 1 0107- ● ●
5 LINING; RR BRK SHOE,STANDARD
TRAILING T=16 		1-47115-637-0 04 1 9606-0106 ● ●
5 LINING; RR BRK SHOE,STANDARD
TRAILING T=16 		1-47126-214-0 04 1 0107- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING T=17 		1-47115-635-0 04 1 9606-0106 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING T=17 T=17 		1-47125-908-0 04 1 0107- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING T=17 		1-47115-638-0 04 1 9606-0106 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING T=17 		1-47126-215-0 04 1 0107- ● ●
7 RIVET; LINING,RR BRK 1-09732-026-0 AR 1 9606-0106 ● ●
7 RIVET; LINING,RR BRK
L=19.5 		1-09732-035-0 AR 1 0107- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-09744-074-0 04 1 9606- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 04 1 9606- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 9606- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-210-0 02 1 9606- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 9606- ● ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 9606- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 9606- ● ●
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 9606- ● ●
25 COVER SET; RR BRK DRUM 1-47151-487-1 02 1 9606- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9606- ● ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 9606- ● ●
32 WASHER; LK
(A) 		1-48255-005-0 01 1 9606- ● ●
32 WASHER; LK
(B) ID=21 TOOTH LK INT 		9-09151-220-0 01 1 9606- ● ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9606- ● ●
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-120-2 02 1 9606- ● ●
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 9606- ● ●
48 SEAL; OIL,CM/SHF,RR BRK 1-09625-228-0 02 1 9606- ● ●
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 9606- ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 9606- ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 9606- ● ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 16 1 9606- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 9606- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 9606- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 9606- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 9606- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 9606- ● ●
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 02 1 9606- ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 9606- ● ●
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 01 1 9606- ● ●
66 PIN; JAW JOINT 1-09744-088-0 02 1 9606- ● ●
67 NUT; POWER CHAMBER FIX
M16 		9-99110-416-0 08 1 9606- ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		9-09150-516-0 08 1 9606- ● ●
69 JOINT; JAW 1-09768-060-1 02 1 9606- ● ●
70 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 9606- ● ●
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 9606- ● ●
72 PIN; SPLIT
OD=3.7 L=28 		9-08114-028-0 02 1 9606- ● ●
73 COLLAR; FELT RING,CM/SHF 1-47143-003-0 02 1 9606-9708 ● ●
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 02 1 9709- ● ●
74 BUSHING; SLACK ADJ 1-09330-041-0 02 1 9606- ● ●
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 9606- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 9606- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 9606- ● ●
77 BUSHING 1-47146-003-1 02 1 9606- ● ●
89 NUT; CHAMBER
M20 		9-99111-420-0 02 1 9606- ● ●
91 BOLT; CHAMBER
M8X12 W/LK WASHER 		0-50040-812-0 02 1 9606- ● ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 9606- ● ●
152 NUT; ANCHOR BRKT
M14 		9-99110-514-0 16 1 9606- ● ●
153 WASHER; LK,ANCHOR BRKT
ID=14.2 		9-09150-814-0 16 1 9606- ● ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 9606- ● ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9606- ● ●
204 CONNECTOR; SPR CHAMBER
(B) PT3/8 & M27 ELBOW 		1-09650-118-1 02 1 9606- ● ●
204 CONNECTOR; SPR CHAMBER
(A) M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 9606- ● ●
230 NIPPLE; SPR CHAMBER
M20 & PT1/4 		9-09902-386-0 01 1 9606- ● ●
231 NUT; CONNECTOR
M27 		9-09840-286-0 02 1 9606- ● ●
232 BRACKET; FLEX HOSE,CHAMBER 1-47465-696-1 01 1 9606- ● ●
