◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#91048) — 28 parça

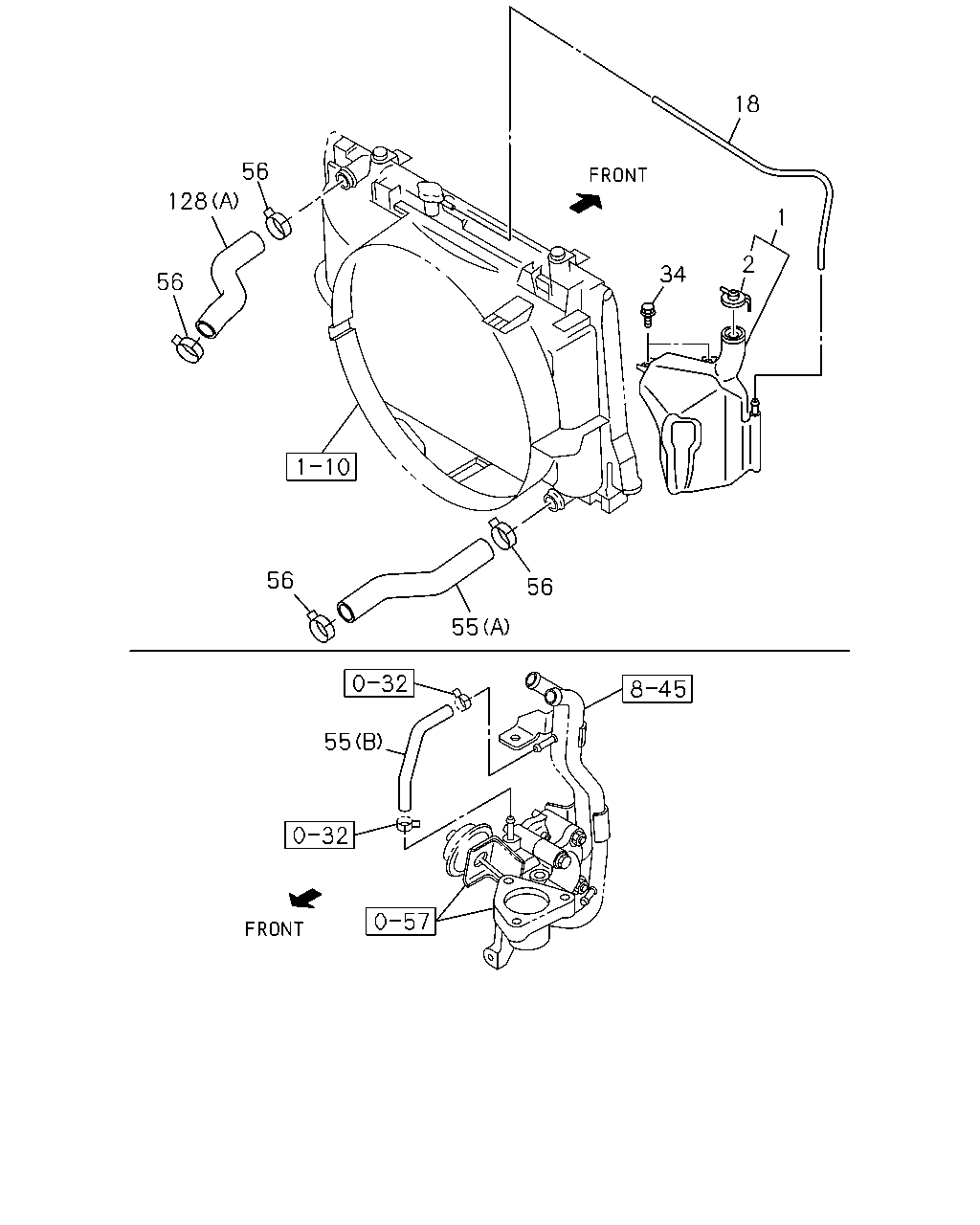

çizim 283128
56 128 56 56 55 56 55 34 2 1 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1206- ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1206- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1206- ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1206- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-325-1 01 1 1206- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-98093-327-1 01 1 1206- ●
55 01.173 HOSE; WATER,RAD OUTLET
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-324-2 01 1 1206- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-324-2 01 1 1206- ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-98179-012-1 01 1 1206- ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1206-1403 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1404- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1404- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1206- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-98093-326-0 01 1 1206- ●

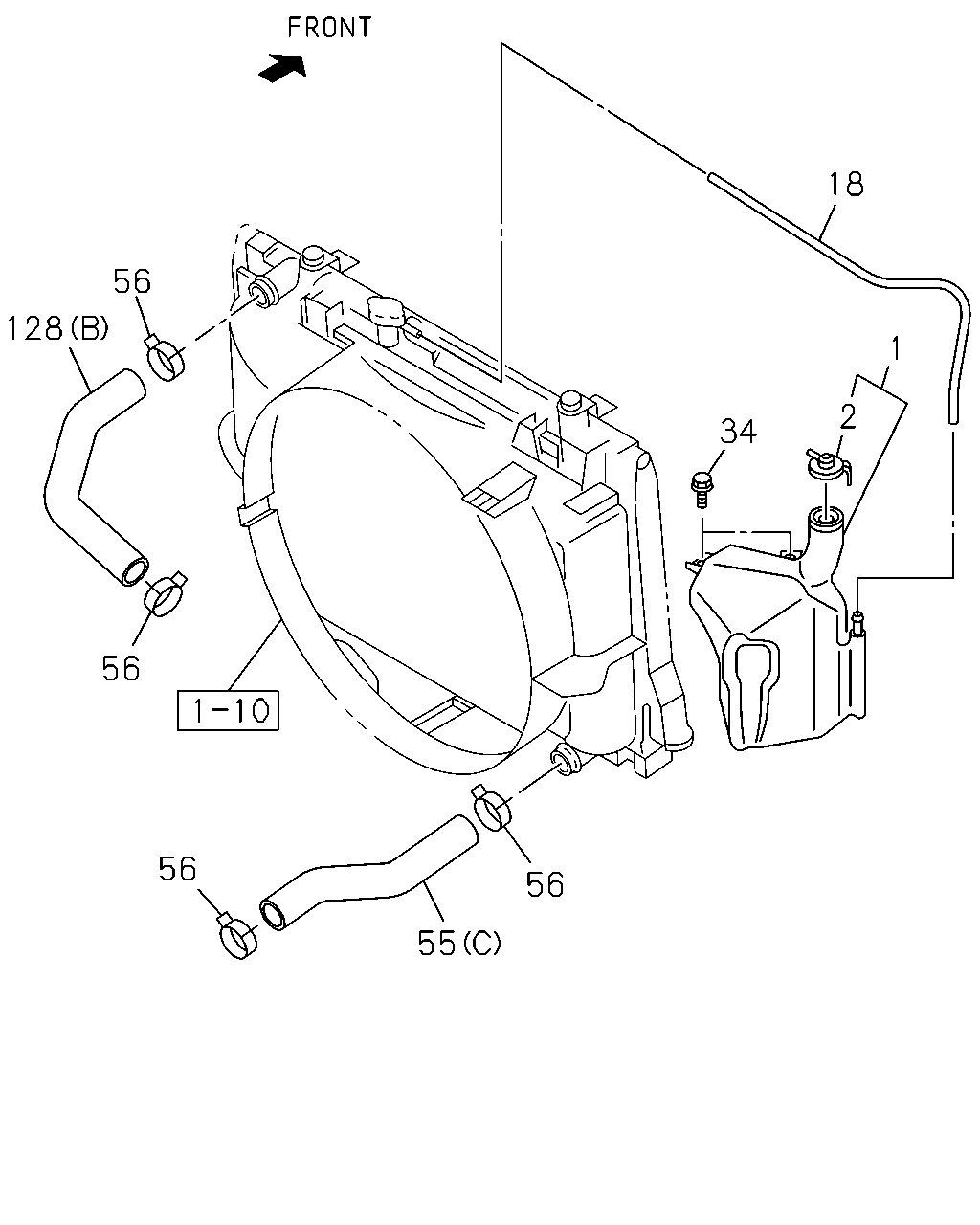

çizim 283130
56 128 56 56 55 56 34 2 1 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.219 TANK; SURGE,RAD 8-98095-701-2 01 1 1206- ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-98189-898-0 01 1 1206- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580 		8-98102-344-2 01 1 1206- ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 02 1 1206- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-325-1 01 1 1206- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-98093-327-1 01 1 1206- ●
55 01.173 HOSE; WATER,RAD OUTLET
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98093-324-2 01 1 1206- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98093-324-2 01 1 1206- ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-98179-012-1 01 1 1206- ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 04 1 1206-1403 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1404- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40.5 		8-97313-472-0 02 1 1404- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98090-629-2 01 1 1206- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-98093-326-0 01 1 1206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
