1-10 — RADIATOR (#91047) — 36 parça

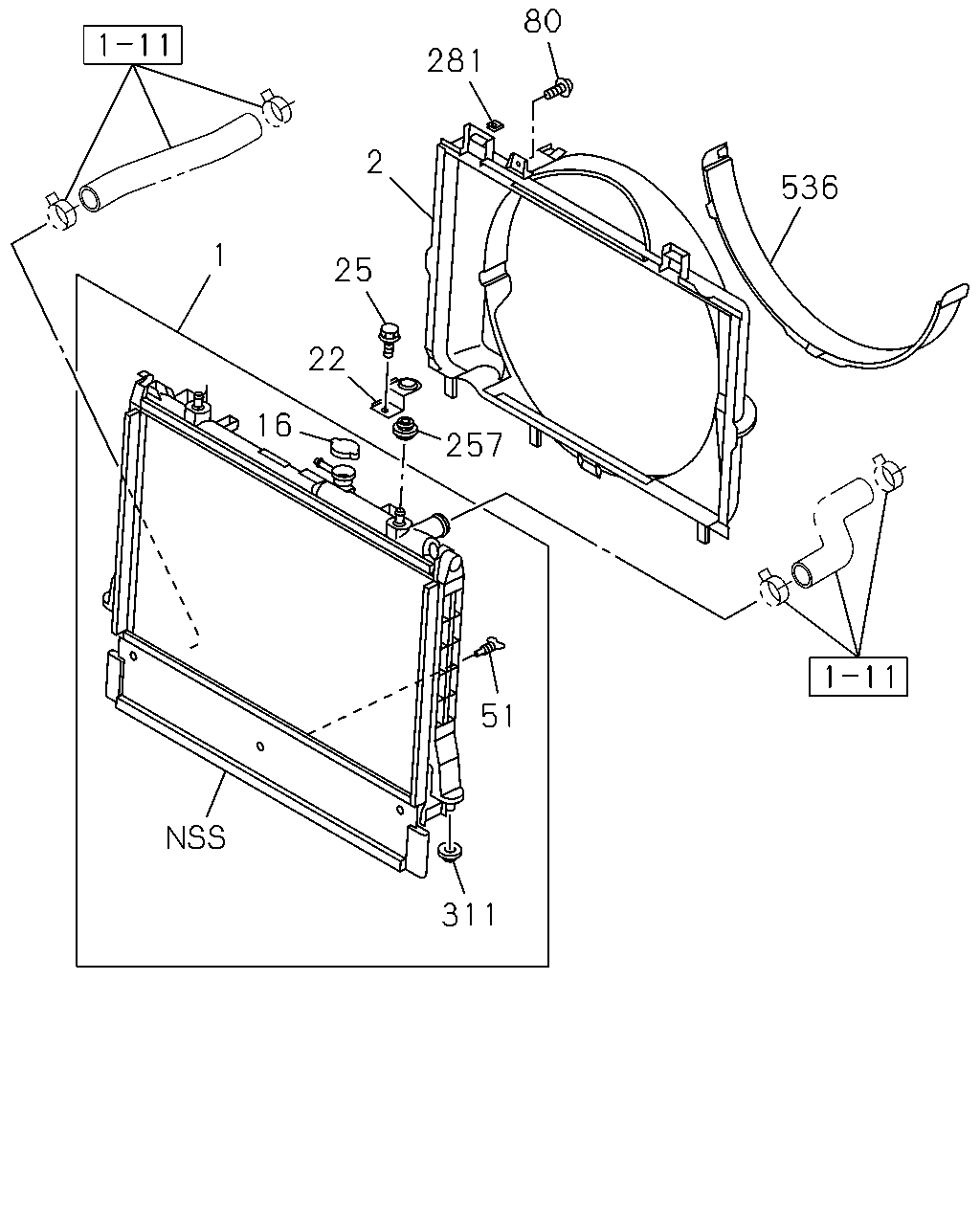

çizim 283125
1 16 22 25 2 281 80 536 257 51 311
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98206-424-1 01 1 1206- ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98206-452-1 01 1 1206- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98137-277-5 01 1 1206- ● ●
1 01.219 RADIATOR ASM
EXC. RUSSIA EQUIPMENT(B12) 		8-98137-278-3 01 1 1206- ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISI N 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) RUSSIA EQUIPMENT(B12) 		8-98137-273-3 01 1 1206- ● ● ● ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ISRAEL EQUIPMENT(2G1) 		8-98137-273-3 01 1 1206- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ISRAEL EQUIPMENT(2G1) 		8-98194-394-2 01 1 1206- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) EXC. RUSSIA EQUIPMENT(B12) 		8-98194-394-2 01 1 1206- ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98137-276-4 01 1 1206-1403 ● ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98137-276-5 01 1 1404- ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) ISRAEL EQUIPMENT(2G1) 		8-98137-272-3 01 1 1206-1403 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) ISRAEL EQUIPMENT(2G1) 		8-98194-393-1 01 1 1206-1403 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) EXC. RUSSIA EQUIPMENT(B12) 		8-98194-393-1 01 1 1206-1403 ●
1 01.219 RADIATOR ASM
A/T 5 SPEED-AISIN(MA1) ISRAEL EQUIPMENT(2G1) 		8-98194-393-2 01 1 1404- ●
2 01.277 GUIDE; FAN
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISI N 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98189-876-0 01 1 1206- ● ●
2 01.277 GUIDE; FAN
EXC. RUSSIA EQUIPMENT(B12) 		8-98189-878-0 01 1 1206- ●
2 01.277 GUIDE; FAN
RUSSIA EQUIPMENT(B12) 		8-98189-874-0 01 1 1206-1403 ● ●
2 01.277 GUIDE; FAN
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98189-874-0 01 1 1206-1403 ●
2 01.277 GUIDE; FAN 8-98189-874-0 01 1 1206-1403 ● ●
2 01.277 GUIDE; FAN
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98189-874-0 01 1 1404- ●
2 01.277 GUIDE; FAN 8-98189-874-0 01 1 1404- ● ●
16 01.203 CAP; RAD 8-97942-268-1 01 1 1206- ● ● ● ● ●
22 01.270 BRACKET; RAD MTG 8-98102-383-2 02 1 1206- ● ● ● ● ●
25 01.271 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206- ● ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1206- ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE 8-98189-890-0 01 1 1206- ● ● ● ● ●
257 01.270 MOUNTING; RAD STAY 8-97249-541-1 02 1 1206- ● ● ● ● ●
281 01.277 NUT; FAN GUIDE 8-98189-891-0 02 1 1206- ● ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97942-297-0 02 1 1206- ● ● ● ● ●
536 01.020 SHROUD; FAN 8-97372-866-1 01 1 1206- ● ● ● ● ●

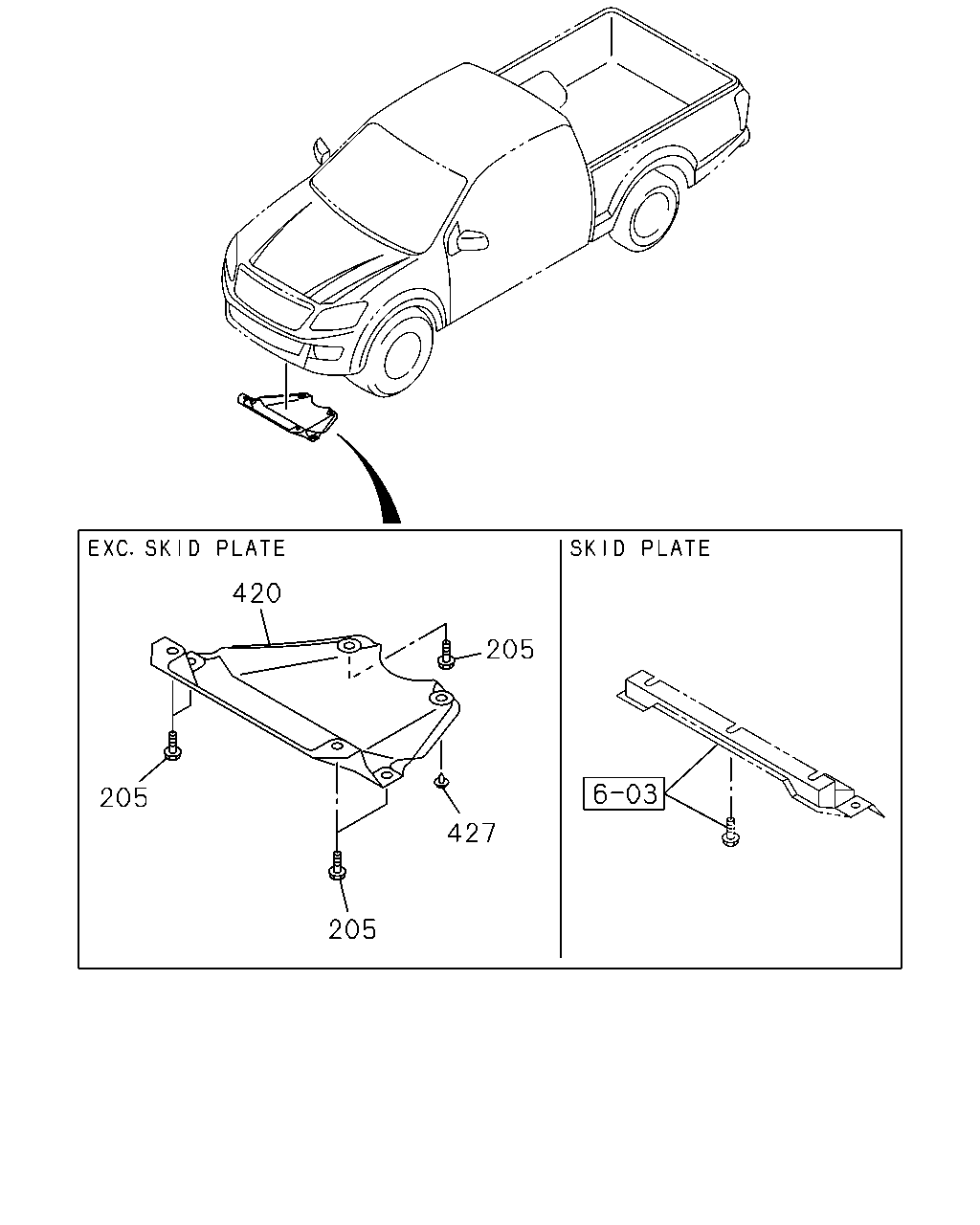

çizim 283586
420 205 205 205 427
BalonParca AdiParca NoAdetTipApplied Date A B C D E
205 01.267 BOLT; AIR GUIDE
4X2 CREW CAB(TFB*W*) EXC. SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 05 1 1206- ●
205 01.267 BOLT; AIR GUIDE
4X2(TFB***) EXC. SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 05 1 1206- ● ● ●
420 01.267 GUIDE; AIR,RAD
4X2 CREW CAB(TFB*W*) EXC. SKID PLATE<7WE> 01.266 		8-98176-508-1 01 1 1206- ●
420 01.267 GUIDE; AIR,RAD
4X2(TFB***) EXC. SKID PLATE<7WE> 01.266 		8-98176-508-1 01 1 1206- ● ● ●
427 01.240 CLIP; FAN GUIDE
4X2 CREW CAB(TFB*W*) EXC. SKID PLATE<7WE> 01.269 		8-98178-267-0 01 1 1206- ●
427 01.240 CLIP; FAN GUIDE
4X2(TFB***) EXC. SKID PLATE<7WE> 01.269 		8-98178-267-0 01 1 1206- ● ● ●
