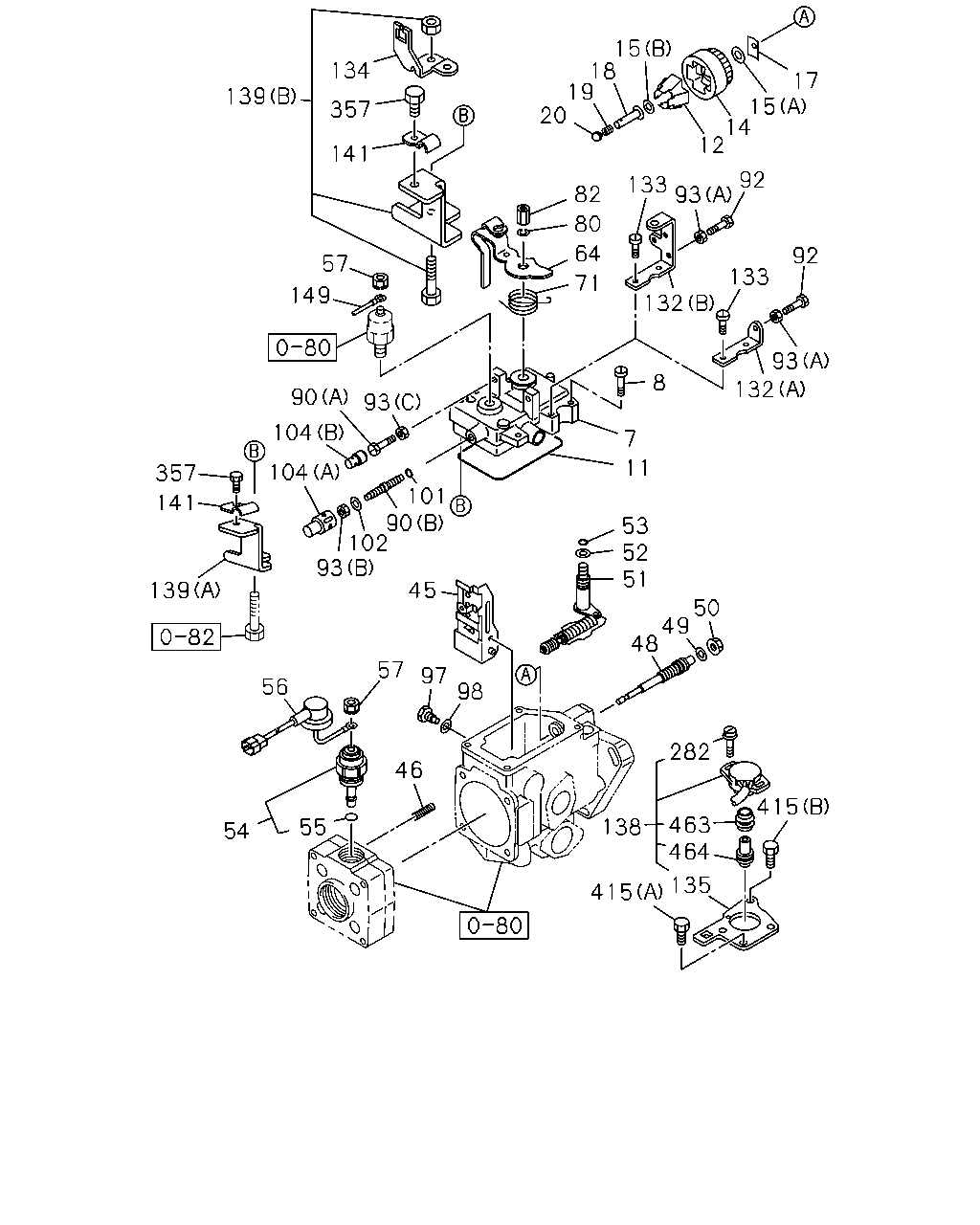

7 |
03.308 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394
|
8-97228-602-0 |
01 |
1 |
- |
| |
7 |
03.308 COVER; GOV HSG,INJ PUMP
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97368-267-0 |
01 |
1 |
- |
| |
8 |
01.531 BOLT; GOV COVER,INJ PUMP
03.330
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-636-0 |
04 |
1 |
- |
| |
11 |
03.308 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97136-413-0 |
01 |
1 |
- |
| |
12 |
03.308 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97328-711-0 |
01 |
1 |
- |
| |
14 |
03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP
03.318
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-613-0 |
01 |
1 |
- |
| |
15 |
03.308 WASHER; LK,FLYWEIGHT FIX,GOV
03.318, (A)
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-612-0 |
01 |
1 |
- |
| |
15 |
03.308 WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-517-0 |
01 |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.05
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-607-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.25
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-608-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.45
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-609-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.65
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-610-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.85
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-611-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.15
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94231-123-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.35
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94231-124-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.55
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94231-125-0 |
AR |
1 |
- |
| |
17 |
03.308 SHIM; FLYWEIGHT SLEEVE,GOV
03.318, T=1.75
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94231-126-0 |
AR |
1 |
- |
| |
18 |
03.308 SLEEVE; GOV
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97214-475-0 |
01 |
1 |
- |
| |
19 |
03.308 CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-519-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.20
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94372-499-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.30
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94372-500-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.40
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94372-501-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.50
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94372-502-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=2.10
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-520-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=2.30
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-521-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=2.50
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-522-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=2.70
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-523-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=2.90
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-524-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.10
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-525-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.30
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-526-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.50
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-527-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.70
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-528-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.90
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-529-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.10
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-530-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.30
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-531-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.50
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-532-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.70
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-533-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.90
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-534-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.10
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94408-535-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=2.20
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-868-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=2.40
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-869-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=2.60
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-870-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=2.80
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-871-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.00
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-872-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.20
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-873-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.40
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-874-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.60
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-875-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=3.80
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-876-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.00
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-877-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.20
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-878-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.40
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-879-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.60
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-880-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=4.80
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-881-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.00
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94428-882-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.60
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97163-167-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.70
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97163-168-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.80
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97163-169-0 |
01 |
1 |
- |
| |
20 |
03.308 PLUG; CLOSING,GOV SLEEVE
L=5.90
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97163-170-0 |
01 |
1 |
- |
| |
45 |
03.308 LEVER ASM; GOV,INJ PUMP
ASM PART: B = 8-97350-394-3, 97350394, D = 8-97350-398-3, 97350398,
F = 8-98002-138-0, 98002138
|
8-97096-689-0 |
01 |
1 |
- |
| |
45 |
03.308 LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-97350-393-4, 97350393, C = 8-97350-396-4, 97350396,
E = 8-98002-137-1, 98002137
|
8-97332-036-0 |
01 |
1 |
- |
| |
46 |
03.308 SPRING; GOV,INJ PUMP
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94473-128-0 |
02 |
1 |
- |
| |
48 |
03.308 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94248-002-0 |
01 |
1 |
- |
| |
49 |
03.308 GASKET; GOV SHAFT,INJ PUMP
03.318
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-606-0 |
01 |
1 |
- |
| |
50 |
03.308 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94473-129-0 |
01 |
1 |
- |
| |
51 |
03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: B = 8-97350-394-3, 97350394
|
8-97322-856-0 |
01 |
1 |
- |
| |
51 |
03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: D = 8-97350-398-3, 97350398, F = 8-98002-138-0, 98002138
|
8-97328-706-0 |
01 |
1 |
- |
| |
51 |
03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: C = 8-97350-396-4, 97350396, E = 8-98002-137-1, 98002137
|
8-98050-923-0 |
01 |
1 |
- |
| |
51 |
03.308 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97350-393-4, 97350393
|
8-98114-845-0 |
01 |
1 |
- |
| |
52 |
03.308 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-590-0 |
01 |
1 |
- |
| |
53 |
03.308 GASKET; CONT SHAFT,GOV
03.306
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-585-0 |
01 |
1 |
- |
| |
54 |
03.308 VALVE; MAG,ENG STOP,INJ PUMP
03.314
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94242-275-0 |
01 |
1 |
- |
| |
55 |
03.308 GASKET; MAG VLV,INJ PUMP
03.318
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94239-373-0 |
01 |
1 |
- |
| |
56 |
03.308 WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94470-582-0 |
01 |
1 |
- |
| |
57 |
03.318 NUT; VLV
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97138-042-1 |
02 |
1 |
- |
| |
64 |
03.308 LEVER; LOAD CONT,GOV
STAMP 118
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97119-200-0 |
01 |
1 |
- |
| |
64 |
03.308 LEVER; LOAD CONT,GOV
STAMP 119
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97119-201-0 |
01 |
1 |
- |
| |
64 |
03.308 LEVER; LOAD CONT,GOV
STAMP 280
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97328-707-0 |
01 |
1 |
- |
| |
64 |
03.308 LEVER; LOAD CONT,GOV
STAMP 279
ASM PART: A = 8-97350-393-4, 97350393, C = 8-97350-396-4, 97350396,
E = 8-98002-137-1, 98002137
|
8-98050-935-0 |
01 |
1 |
- |
| |
71 |
03.306 SPRING; CONT LEVER,GOV
03.308
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94313-218-0 |
01 |
1 |
- |
| |
80 |
03.308 WASHER; LK,CONT LEVER,GOV
00.206, ID=6.1
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
9-09150-506-0 |
01 |
1 |
- |
| |
82 |
03.308 NUT; CONT LEVER FIX,GOV
03.318
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
1-15729-006-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=53.0
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-274-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=55.0
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-275-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
(B), L=57.0
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-276-0 |
01 |
1 |
- |
| |
90 |
03.308 SCREW; FULL LOAD ADJ,GOV
01.531, (A)
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94426-049-0 |
01 |
1 |
- |
| |
92 |
03.308 BOLT; FULL LOAD STOPPER,GOV
01.531
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94426-049-0 |
01 |
1 |
- |
| |
93 |
03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.318, (A)
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
1-15729-006-0 |
01 |
1 |
- |
| |
93 |
03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.308, (B)
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-277-0 |
01 |
1 |
- |
| |
93 |
03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94426-047-1 |
01 |
1 |
- |
| |
97 |
03.308 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-601-0 |
02 |
1 |
- |
| |
98 |
03.308 GASKET; PIVOT BOLT,GOV LEVER
03.306
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-602-0 |
02 |
1 |
- |
| |
101 |
03.308 GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-598-0 |
01 |
1 |
- |
| |
102 |
03.308 WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94227-593-0 |
01 |
1 |
- |
| |
104 |
03.308 CAP; LOCK NUT,ADJ SCREW
(A), L=16.5
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-262-0 |
01 |
1 |
- |
| |
104 |
03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=18.0
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-263-0 |
01 |
1 |
- |
| |
104 |
03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=21.0
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-264-0 |
01 |
1 |
- |
| |
104 |
03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=24.0
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-265-0 |
01 |
1 |
- |
| |
104 |
03.308 CAP; LOCK NUT,ADJ SCREW
(B), L=27.0
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-266-0 |
01 |
1 |
- |
| |
132 |
03.308 BRACKET; ADJ SCREW,GOV
(A) ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394
|
8-94457-165-1 |
01 |
1 |
- |
| |
132 |
03.308 BRACKET; ADJ SCREW,GOV
(B) ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97328-705-0 |
01 |
1 |
- |
| |
133 |
03.308 BOLT; BRKT FIX,GOV
M6X12
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94313-267-0 |
02 |
1 |
- |
| |
134 |
03.308 BRACKET; CONT CABLE,GOV
ASM PART: B = 8-97350-394-3, 97350394, D = 8-97350-398-3, 97350398,
F = 8-98002-138-0, 98002138
|
8-97322-854-0 |
01 |
1 |
- |
| |
135 |
03.330 BRACKET; POTENTIO METER
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97368-270-0 |
01 |
1 |
- |
| |
138 |
03.330 POTENTIO METER
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97368-269-0 |
01 |
1 |
- |
| |
139 |
03.485 BRACKET; INJ PUMP
(B) ASM PART: A = 8-97350-393-4, 97350393, C = 8-97350-396-4, 97350396,
E = 8-98002-137-1, 98002137
|
8-97263-483-0 |
01 |
1 |
- |
| |
139 |
03.485 BRACKET; INJ PUMP
(A) ASM PART: B = 8-97350-394-3, 97350394, D = 8-97350-398-3, 97350398,
F = 8-98002-138-0, 98002138
|
8-97368-179-0 |
01 |
1 |
- |
| |
141 |
03.308 PLATE ASM; PIPE BRKT
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97182-233-0 |
01 |
1 |
- |
| |
149 |
03.330 WIRE; VLV
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94316-278-0 |
01 |
1 |
- |
| |
282 |
03.308 SCREW; POTENTIO METER
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97148-143-0 |
02 |
1 |
- |
| |
357 |
03.308 BOLT; PLATE,GOV
ASM PART: A = 8-97350-393-4, 97350393, B = 8-97350-394-3, 97350394,
C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94174-987-0 |
01 |
1 |
- |
| |
415 |
03.306 BOLT; BRKT TO HOUSING
(A) ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-94313-203-0 |
02 |
1 |
- |
| |
415 |
03.306 BOLT; BRKT TO HOUSING
(B) ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97020-720-0 |
01 |
1 |
- |
| |
463 |
03.308 BOOT; POTENTIO METER
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97148-144-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=15 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97168-229-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=30 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97168-230-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=45 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97168-231-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=60 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97168-232-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=75 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97168-233-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=52.5 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97168-234-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=48.5 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97168-235-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=37.5 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97168-236-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=90 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97214-514-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=105 DEGREES
ASM PART: D = 8-97350-398-3, 97350398, F = 8-98002-138-0, 98002138
|
8-97214-515-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=120 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97214-516-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=135 DEGREES
ASM PART: D = 8-97350-398-3, 97350398, F = 8-98002-138-0, 98002138
|
8-97214-517-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=150 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97214-518-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=165 DEGREES
ASM PART: D = 8-97350-398-3, 97350398, F = 8-98002-138-0, 98002138
|
8-97214-519-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=0 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97214-520-0 |
01 |
1 |
- |
| |
464 |
03.308 JOINT; POTENTIO METER
ANGLE=7.5 DEGREES
ASM PART: C = 8-97350-396-4, 97350396, D = 8-97350-398-3, 97350398,
E = 8-98002-137-1, 98002137, F = 8-98002-138-0, 98002138
|
8-97368-271-0 |
01 |
1 |
- |
