0-66 — GENERATOR (#91040) — 69 parça

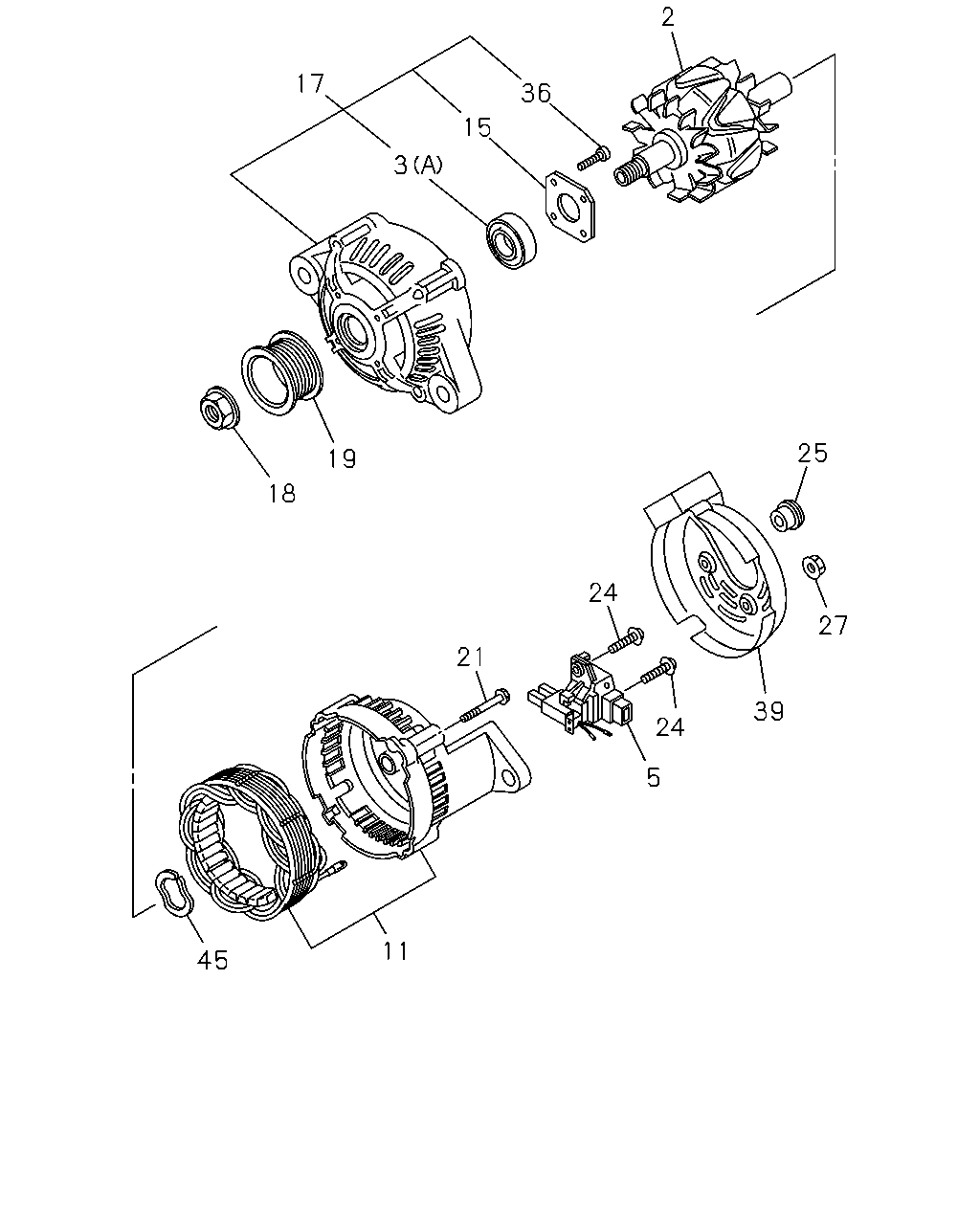

17 3 15 36 2 25 24 21 24 27 5 11 45 19 18 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-607-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97062-744-0	01	1	1210-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97248-128-0	01	1	-1209
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-98196-585-0, 98196585	8-98159-188-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97245-850-2, 97245850	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-97378-926-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: C = 8-98229-071-1, 98229071	8-98159-086-0	01	1	-1303
11	02.305 COVER; RR,GEN ASM PART: B = 8-98196-585-0, 98196585	8-98159-086-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: C = 8-98229-071-1, 98229071	8-98242-367-0	01	1	1304-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-94406-982-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98196-585-0, 98196585	8-98159-085-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-94123-043-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-612-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-97319-752-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97941-562-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-98196-584-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-97319-772-0	03	1	-
36	02.277 SCREW; FRT COVER ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-97142-562-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-97378-928-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: B = 8-98196-585-0, 98196585	8-97142-570-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: C = 8-98229-071-1, 98229071	8-97142-570-0	01	1	-1303

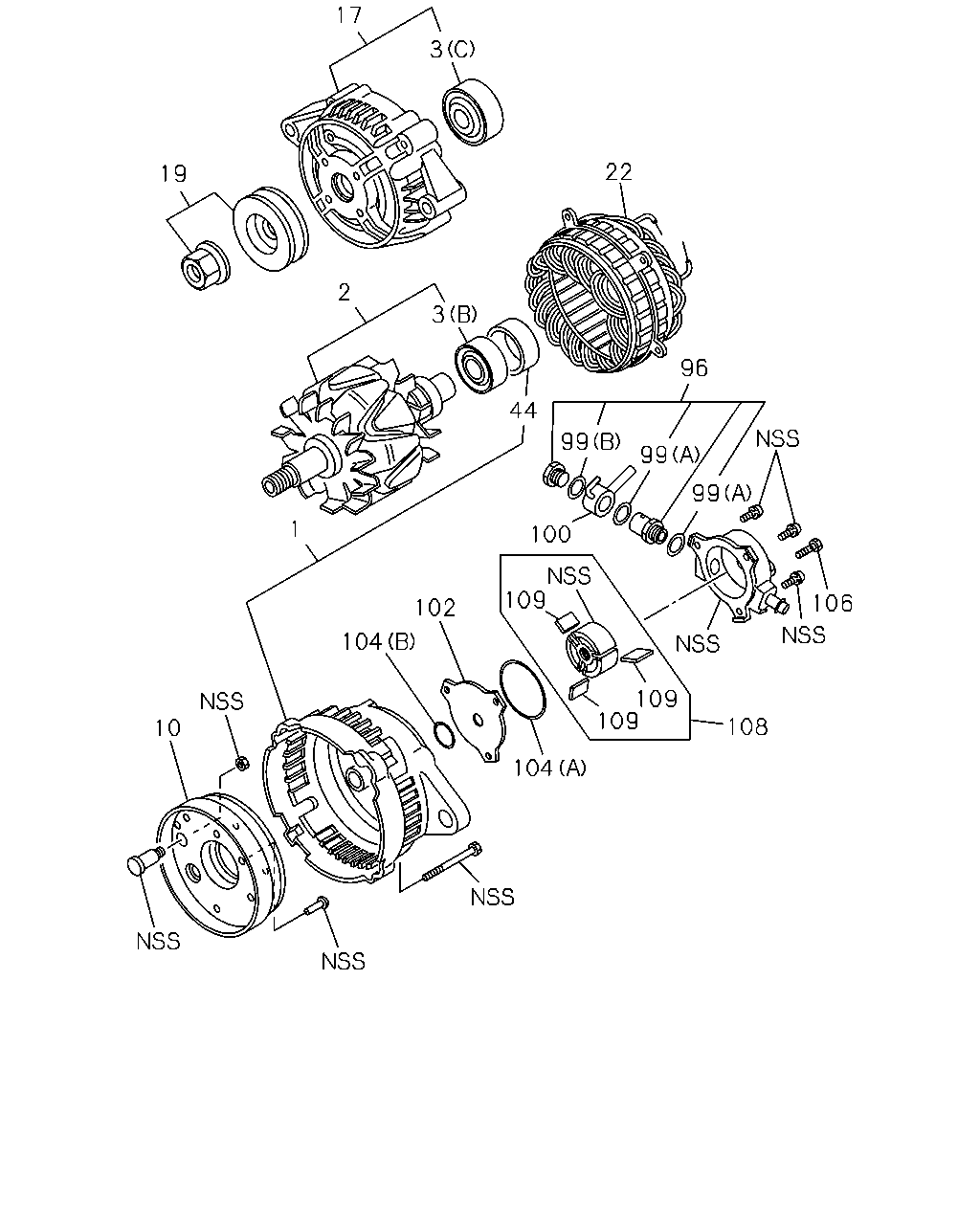

19 2 3 17 3 44 22 96 99 99 99 106 108 109 109 109 100 1 102 104 10 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97245-850-2, 97245850	8-98014-274-0	01	1	-1209
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97245-850-2, 97245850	8-98232-047-0	01	1	1210-
2	02.279 ROTOR; GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-97378-924-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-607-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97062-744-0	01	1	1210-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97245-850-2, 97245850	8-97248-128-0	01	1	-1209
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-98196-585-0, 98196585	8-98159-188-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97245-850-2, 97245850	8-98159-457-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-98229-071-1, 98229071	8-98228-965-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97245-850-2, 97245850	8-98014-279-0	01	1	-1209
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97245-850-2, 97245850	8-98232-051-0	01	1	1210-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-98196-585-0, 98196585	8-98159-085-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-98229-071-1, 98229071	8-98229-789-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-612-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-98000-022-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97245-850-2, 97245850	8-97313-437-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97941-674-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-948-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-003-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97381-615-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-936-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97245-850-2, 97245850	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97245-850-2, 97245850	8-97941-675-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97381-614-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-935-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-94462-883-0	03	1	-

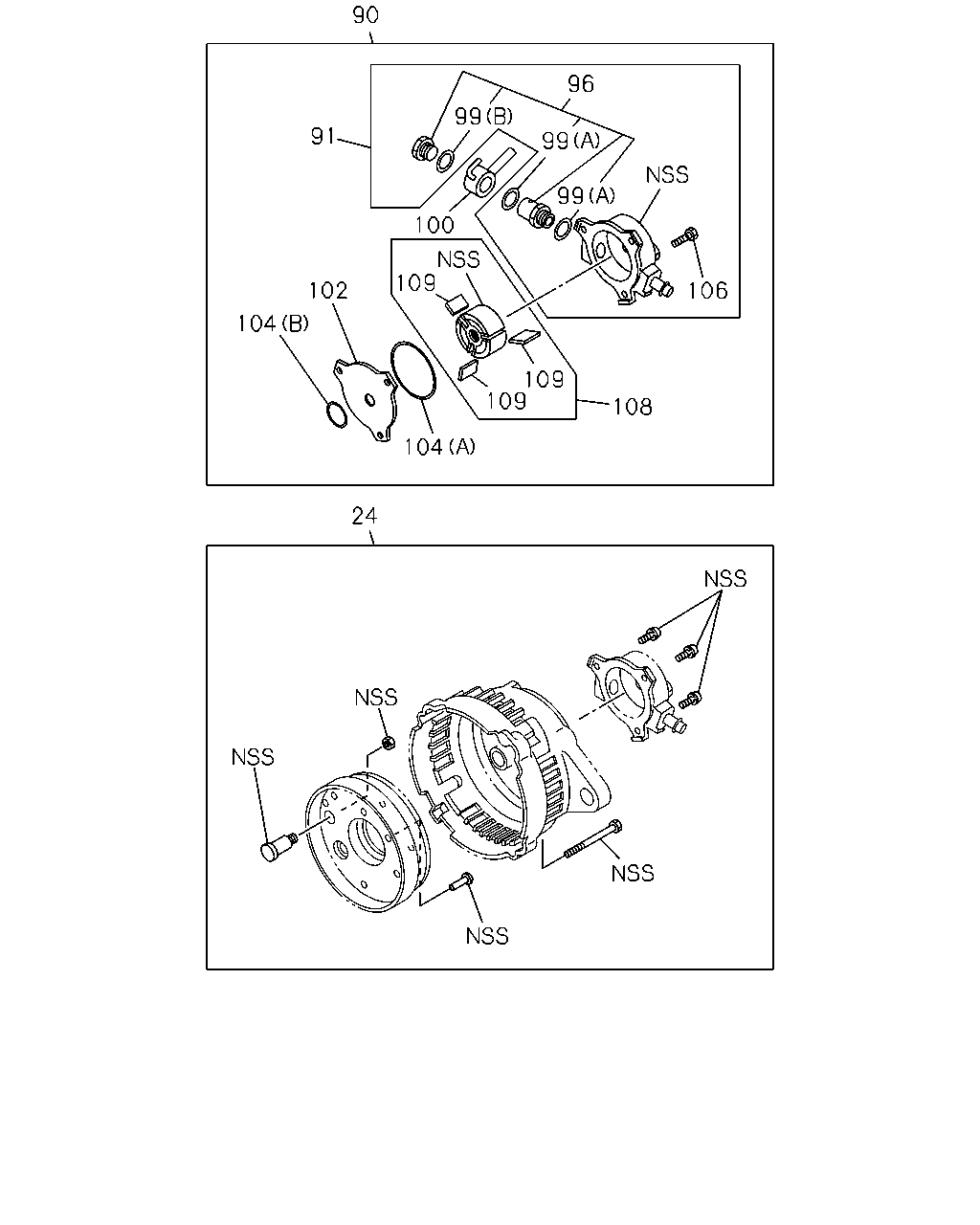

90 96 99 99 99 91 100 106 109 102 104 104 109 109 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-98196-585-0, 98196585, C = 8-98229-071-1, 98229071	8-97032-313-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97941-562-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97245-850-2, 97245850	8-97381-613-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-937-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-948-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2, 97245850	5-19679-003-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97381-615-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-936-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97245-850-2, 97245850	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97245-850-2, 97245850	8-97941-675-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97381-614-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-97330-935-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97245-850-2, 97245850	8-94462-883-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
