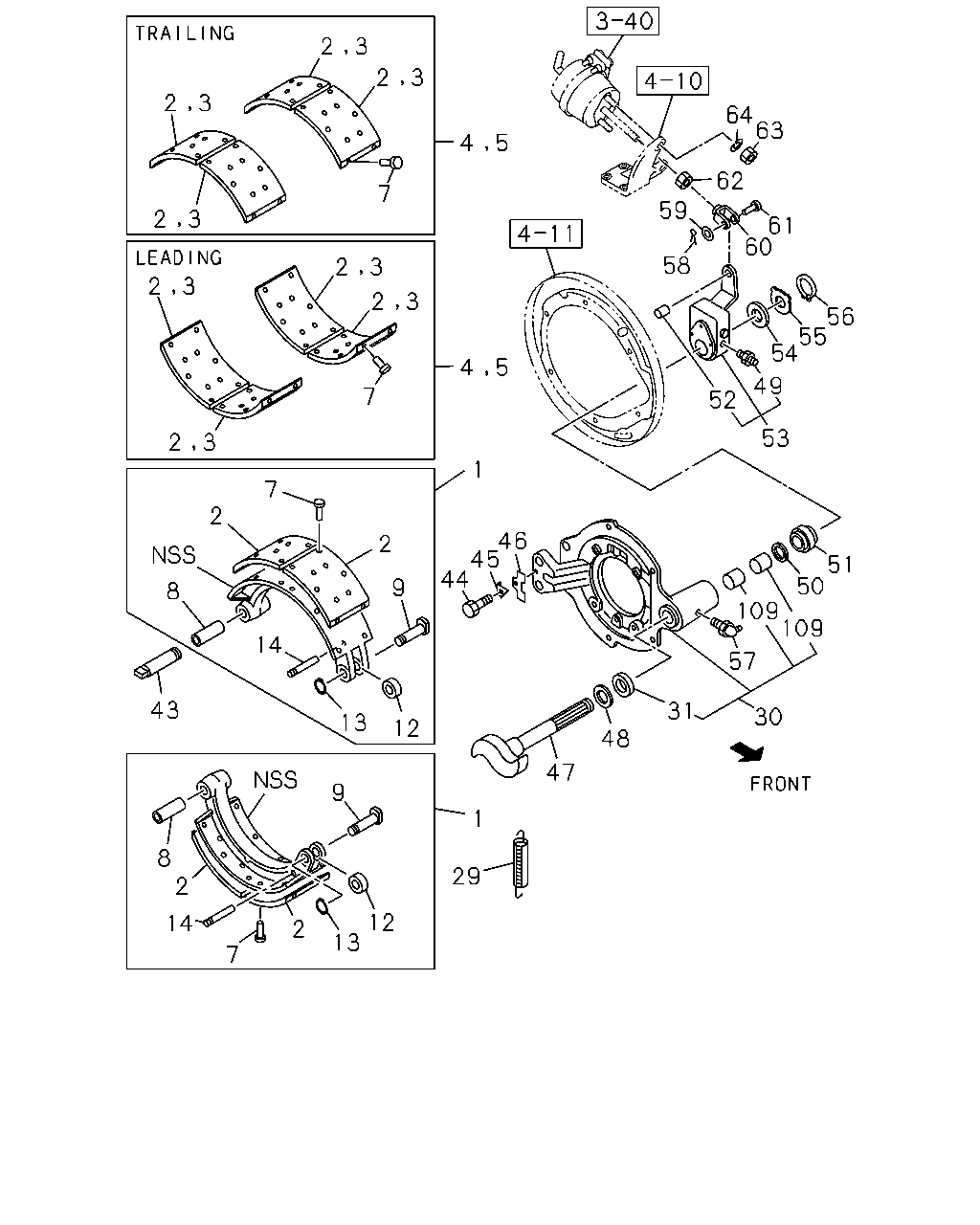

3-01 — FRONT WHEEL BRAKE (#9104) — 64 parça

2 3 2 3 3 2 64 63 4 62 59 7 2 3 61 60 58 3 2 2 3 2 3 56 55 54 5 4 49 7 52 53 2 3 1 7 2 46 45 44 2 51 50 9 8 109 109 14 57 43 31 30 13 1 48 47 9 1 8 2 29 12 14 2 13 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT LEADING	1-47110-698-0	01	1	9606-0106	●	●
1	SHOE; BRK,FRT LEADING	1-47120-711-0	01	1	0107-	●	●
1	SHOE; BRK,FRT TRAILING	1-47110-699-0	01	1	9606-0106	●	●
1	SHOE; BRK,FRT TRAILING	1-47120-712-0	01	1	0107-	●	●
1	SHOE; BRK,FRT LEADING	1-47110-696-0	01	1	9606-0106	●	●
1	SHOE; BRK,FRT LEADING	1-47120-709-0	01	1	0107-	●	●
1	SHOE; BRK,FRT TRAILING	1-47110-697-0	01	1	9606-0106	●	●
1	SHOE; BRK,FRT TRAILING	1-47120-710-0	01	1	0107-	●	●
2	LINING; FRT BRK SHOE,STANDARD LEADING T=16(D1050)	1-47115-397-0	04	1	9606-0106	●	●
2	LINING; FRT BRK SHOE,STANDARD LEADING T=16	1-47125-793-0	04	1	0107-	●	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING T=16	1-47115-418-0	04	1	9606-0106	●	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING T=16	1-47125-795-0	04	1	0107-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING T=17	1-47115-398-0	04	1	9606-0106	●	●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING T=17	1-47125-794-0	04	1	0107-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING T=17	1-47115-419-0	04	1	9606-0106	●	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING T=17	1-47125-796-0	04	1	0107-	●	●
4	LINING SET; FRT BRK,STANDARD LEADING T=16	1-88302-771-0	01	1	9606-0106	●	●
4	LINING SET; FRT BRK,STANDARD LEADING T=16	1-88310-497-0	01	1	0107-	●	●
4	LINING SET; FRT BRK,STANDARD TRAILNGG T=16	1-88302-891-0	01	1	9606-0106	●	●
4	LINING SET; FRT BRK,STANDARD TRAILING T=16	1-88310-499-0	01	1	0107-	●	●
5	LINING SET; FRT BRK,OVER SIZE LEADING T=17	1-88302-775-0	01	1	9606-0106	●	●
5	LINING SET; FRT BRK,OVER SIZE LEADING T=17	1-88310-498-0	01	1	0107-	●	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING T=17	1-88302-892-0	01	1	9606-0106	●	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING T=17	1-88310-500-0	01	1	0107-	●	●
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9606-	●	●
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9606-	●	●
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	9606-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	9606-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9606-	●	●
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9606-	●	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	9606-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-119-3	01	1	9606-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-118-3	01	1	9606-	●	●
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	9606-	●	●
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9606-	●	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9606-	●	●
45	WASHER; LK	1-47133-011-0	02	1	9606-	●	●
46	PLATE; LOCK	1-47133-005-0	02	1	9606-	●	●
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	9606-	●	●
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	9606-	●	●
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	9606-	●	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	02	1	9606-0106	●	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0107-	●	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0107-	●	●
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	9606-	●	●
51	COLLAR; RING,CM/SHF	1-47143-003-0	02	1	9606-9708	●	●
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	9709-	●	●
52	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9606-	●	●
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	9606-	●	●
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	9606-	●	●
54	SPACER; CM/SHF	1-47143-004-0	02	1	9606-	●	●
55	PLATE; STOPPER,CM/SHF	1-47149-021-0	02	1	9606-	●	●
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	9606-	●	●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 STRAIGHT	9-09031-010-0	01	1	9606-0106	●	●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	0107-	●	●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9606-0106	●	●
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	9606-	●	●
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9606-	●	●
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	9606-	●	●
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	9606-	●	●
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9606-	●	●
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9606-	●	●
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	9606-	●	●
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	9606-	●	●
