◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#91038) — 46 parça

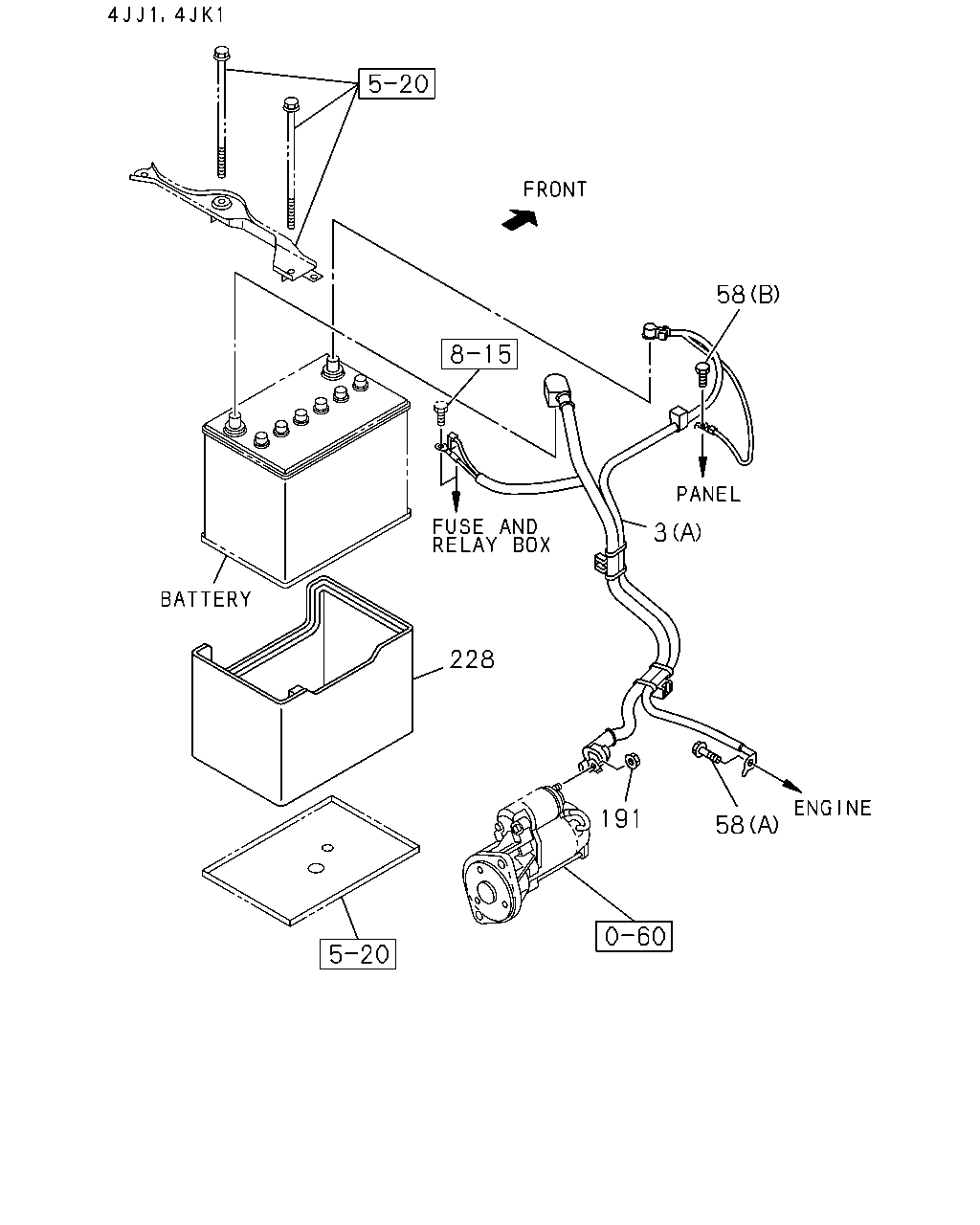

çizim 283110
3 228 191 58 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B) 		8-98230-233-1 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) 		8-98160-809-3 01 1 1206- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) 		8-98160-808-2 01 1 1206-1209 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98160-808-3 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (D) 		8-98129-414-1 01 1 1206- ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) 		8-98160-807-4 01 1 1206- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1206- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1206-1501 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1206-1501 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ● ● ● ● ●
228 03.602 SHIELD; BATTERY
EURO5 SPECIFICATION<NT5> BATTERY 80D26L(TM1) 		8-98154-328-0 01 1 1206- ●
228 03.602 SHIELD; BATTERY
EURO5 SPECIFICATION<NT5> BATTERY 95D31L(TQ8) 		8-98154-327-0 01 1 1206- ●
228 03.602 SHIELD; BATTERY
EURO5 SPECIFICATION<NT5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98154-328-0 02 1 1206- ●

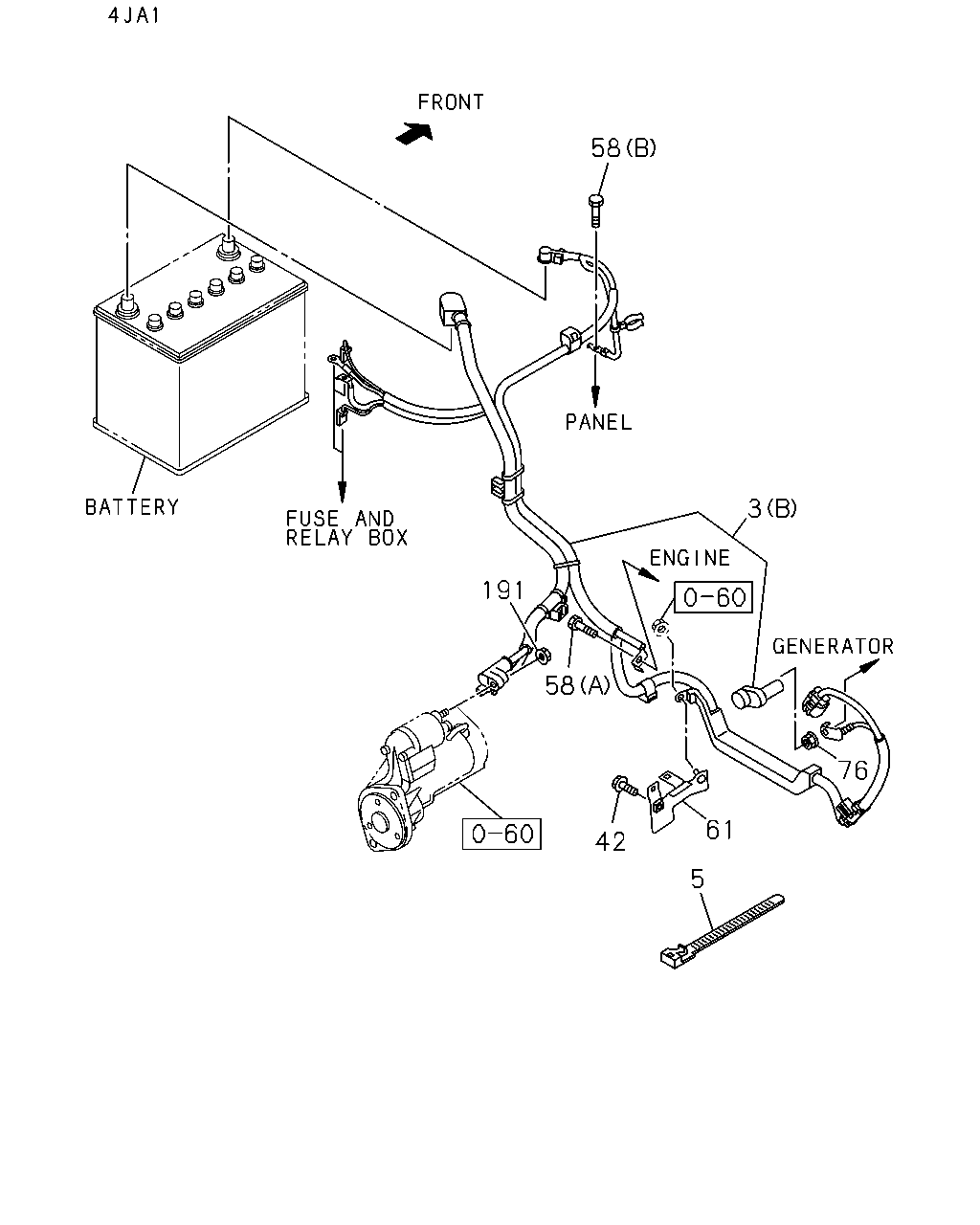

çizim 283111
3 191 58 58 42 61 5 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B) 		8-98230-233-1 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) 		8-98160-809-3 01 1 1206- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) 		8-98160-808-2 01 1 1206-1209 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98160-808-3 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (D) 		8-98129-414-1 01 1 1206- ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) 		8-98160-807-4 01 1 1206- ● ● ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
HIGH RIDE SUSPENSION(7YC) 03.162 L=140 		5-09707-031-1 01 1 1210- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1206- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1206- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1206-1501 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1206-1501 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE 8-97260-935-2 01 1 1206- ● ● ● ● ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ● ● ● ● ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ● ● ● ● ●

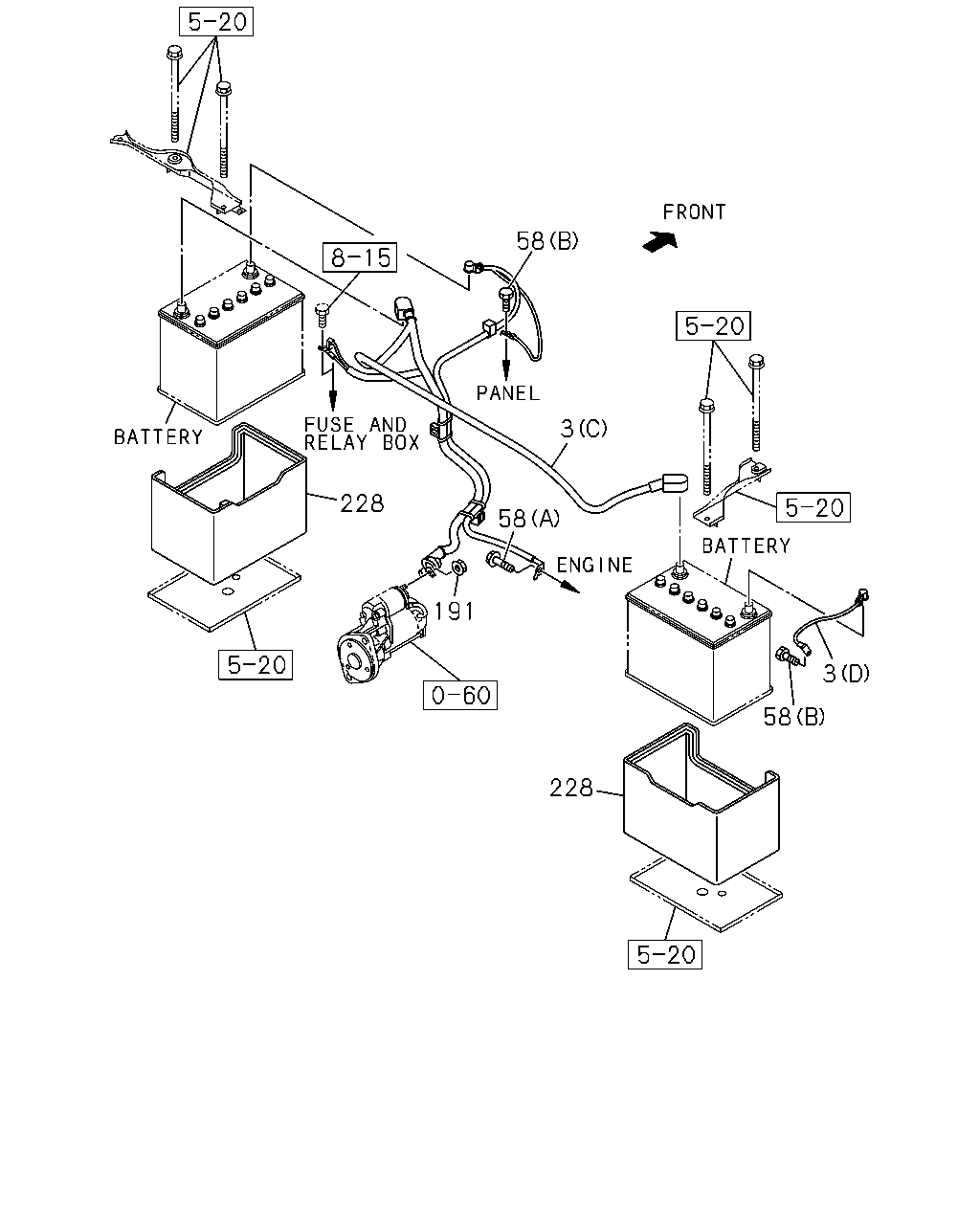

çizim 283113
228 58 3 3 58 191 228 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (B) 		8-98230-233-1 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) 		8-98160-809-3 01 1 1206- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) 		8-98160-808-2 01 1 1206-1209 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98160-808-3 01 1 1210- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (D) 		8-98129-414-1 01 1 1206- ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C) 		8-98160-807-4 01 1 1206- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1206- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1206-1501 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1206-1501 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.559 (B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ●
191 08.155 NUT; STARTER
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1206- ● ● ● ● ●
228 03.602 SHIELD; BATTERY
EURO5 SPECIFICATION<NT5> BATTERY 80D26L(TM1) 		8-98154-328-0 01 1 1206- ●
228 03.602 SHIELD; BATTERY
EURO5 SPECIFICATION<NT5> BATTERY 95D31L(TQ8) 		8-98154-327-0 01 1 1206- ●
228 03.602 SHIELD; BATTERY
EURO5 SPECIFICATION<NT5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98154-328-0 02 1 1206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
