Sayfa 0-57 - Isuzu EPC

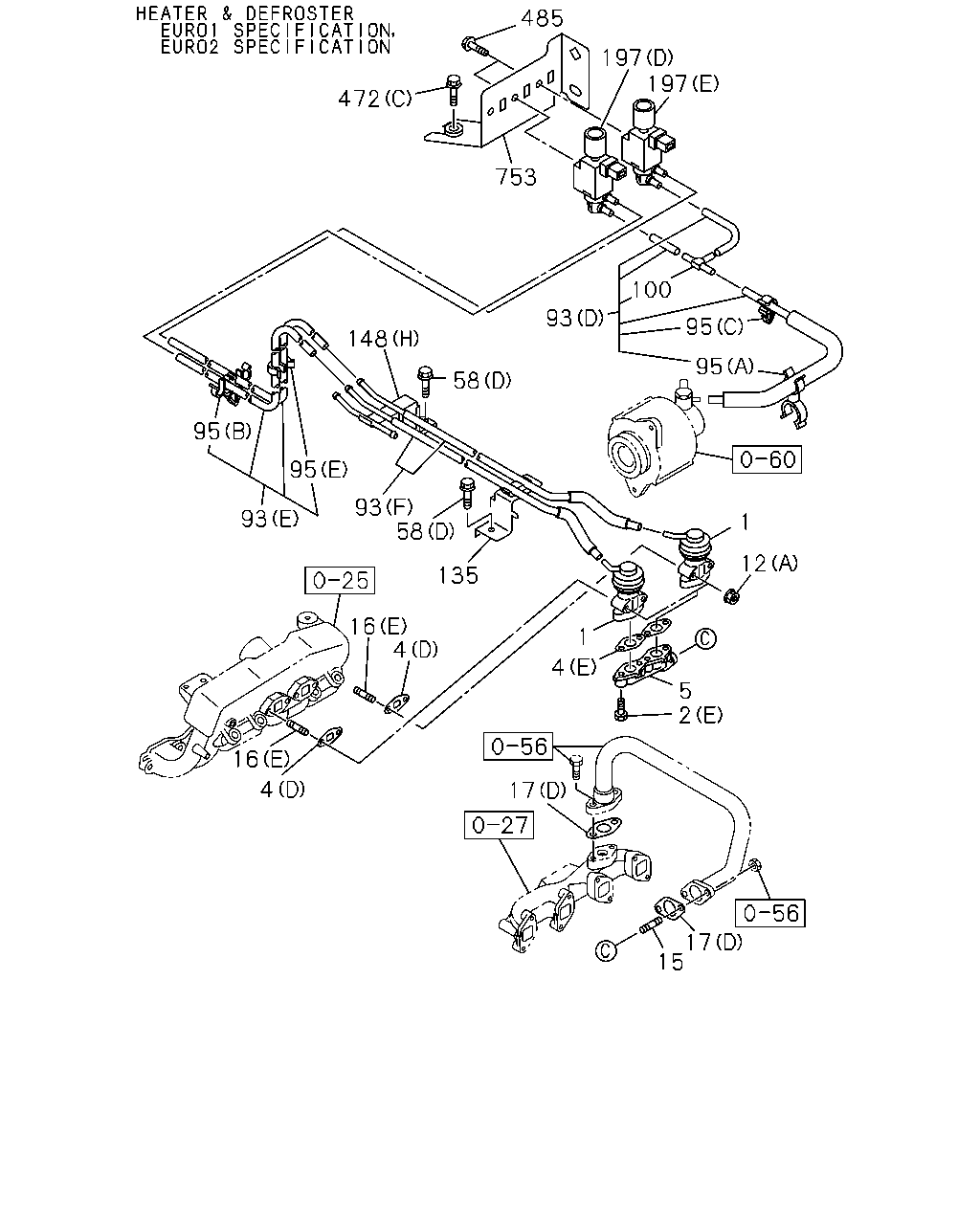

0-57 — EMISSION PIPING (#91036) — 514 parça

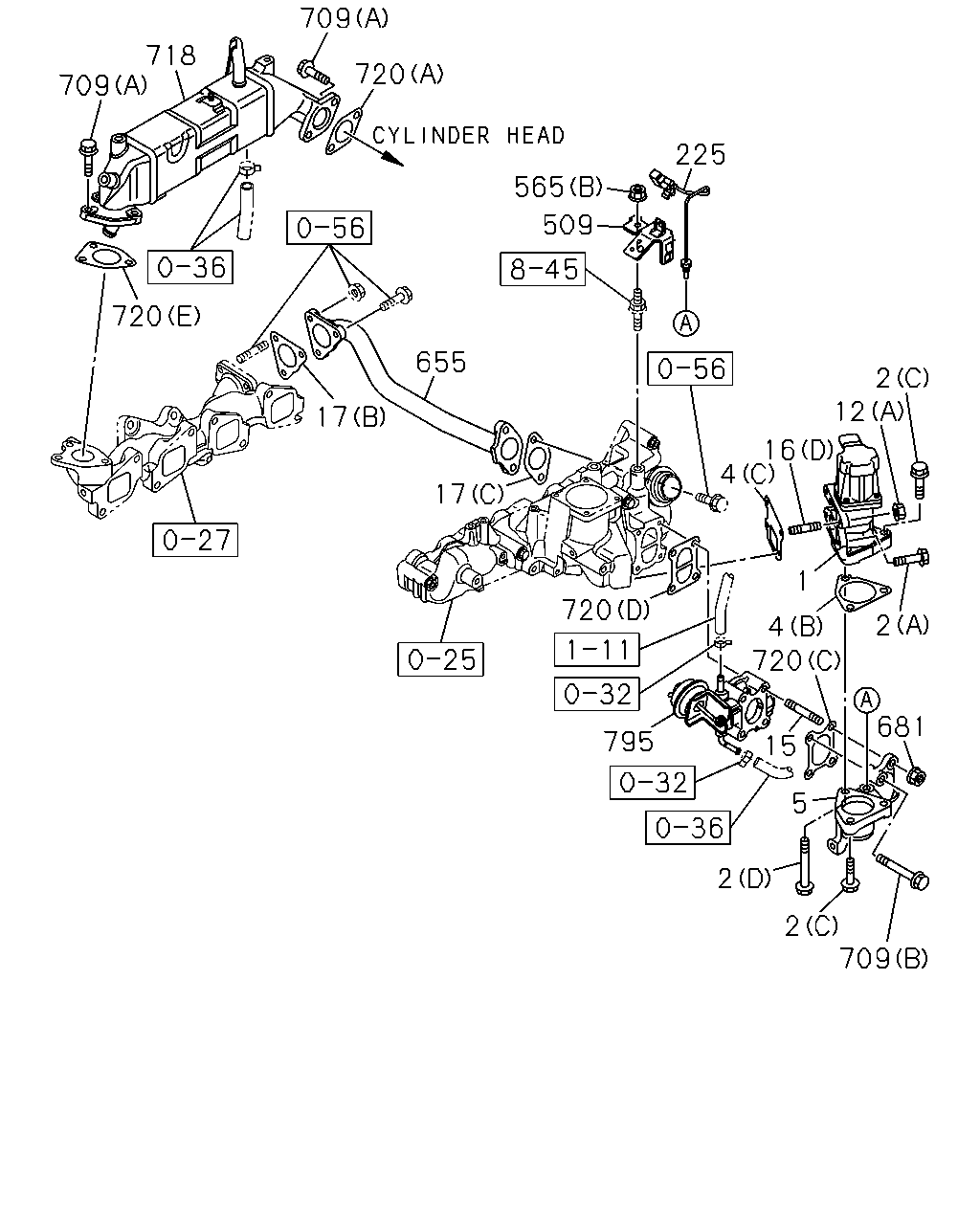

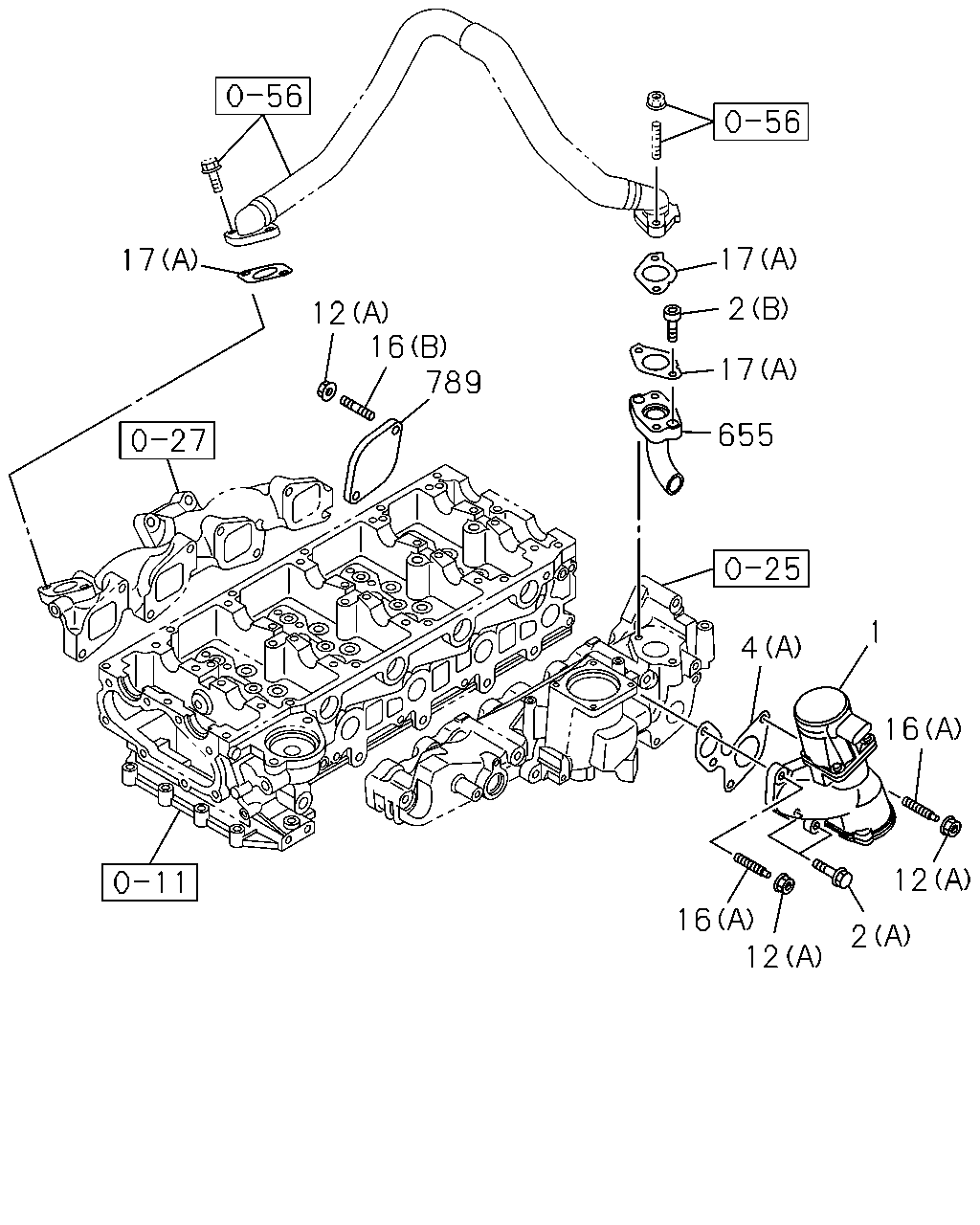

17 2 17 655 789 16 12 17 1 16 4 12 2 12 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	1206-	●
1	03.670 VALVE; EGR	8-98164-786-1	01	1	1206-		●
1	03.670 VALVE; EGR M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●	●
1	03.670 VALVE; EGR A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●
1	03.670 VALVE; EGR	8-98133-202-3	01	1	1206-					●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (E) M8X40 FLANGE	0-28050-840-0	04	1	1206-	●
2	03.670 BOLT; EGR VLV 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1206-		●
2	03.670 BOLT; EGR VLV 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1206-		●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-		●			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-94334-338-1	02	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E)	8-94379-754-0	01	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98167-347-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98167-348-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97356-711-3	01	1	1206-					●
12	03.671 NUT; EGR VLV 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1206-	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310		●	●	●	●
12	03.671 NUT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310					●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-		●	●	●	●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-					●
16	03.275 STUD; EGR VLV 03.342 (B) M8X22 L=33	8-94257-319-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (E) M8X49 L=63	8-97019-478-0	04	1	1206-	●
16	03.275 STUD; EGR VLV 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	1206-					●
16	03.275 STUD; EGR VLV (D) M8X25 L=37	0-41010-825-0	02	1	1206-		●
16	03.275 STUD; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●
16	03.275 STUD; EGR VLV 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-94340-670-0	02	1	1206-1206	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A)	8-97357-684-3	03	1	1206-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-97357-684-3	03	1	1206-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (C)	8-98150-745-0	01	1	1206-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98191-943-0	01	1	1206-		●
655	03.675 PIPE; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>	8-98132-053-0	01	1	1206-			●	●
655	03.675 PIPE; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98132-053-0	01	1	1206-			●
655	03.675 PIPE; EGR VLV 01.540	8-98151-211-0	01	1	1206-		●
789	03.670 COVER; COOLER,EGR	8-98105-261-0	01	1	1206-			●	●
795	03.670 VALVE; EGR COOLER BYPASS	8-98151-207-0	01	1	1206-		●

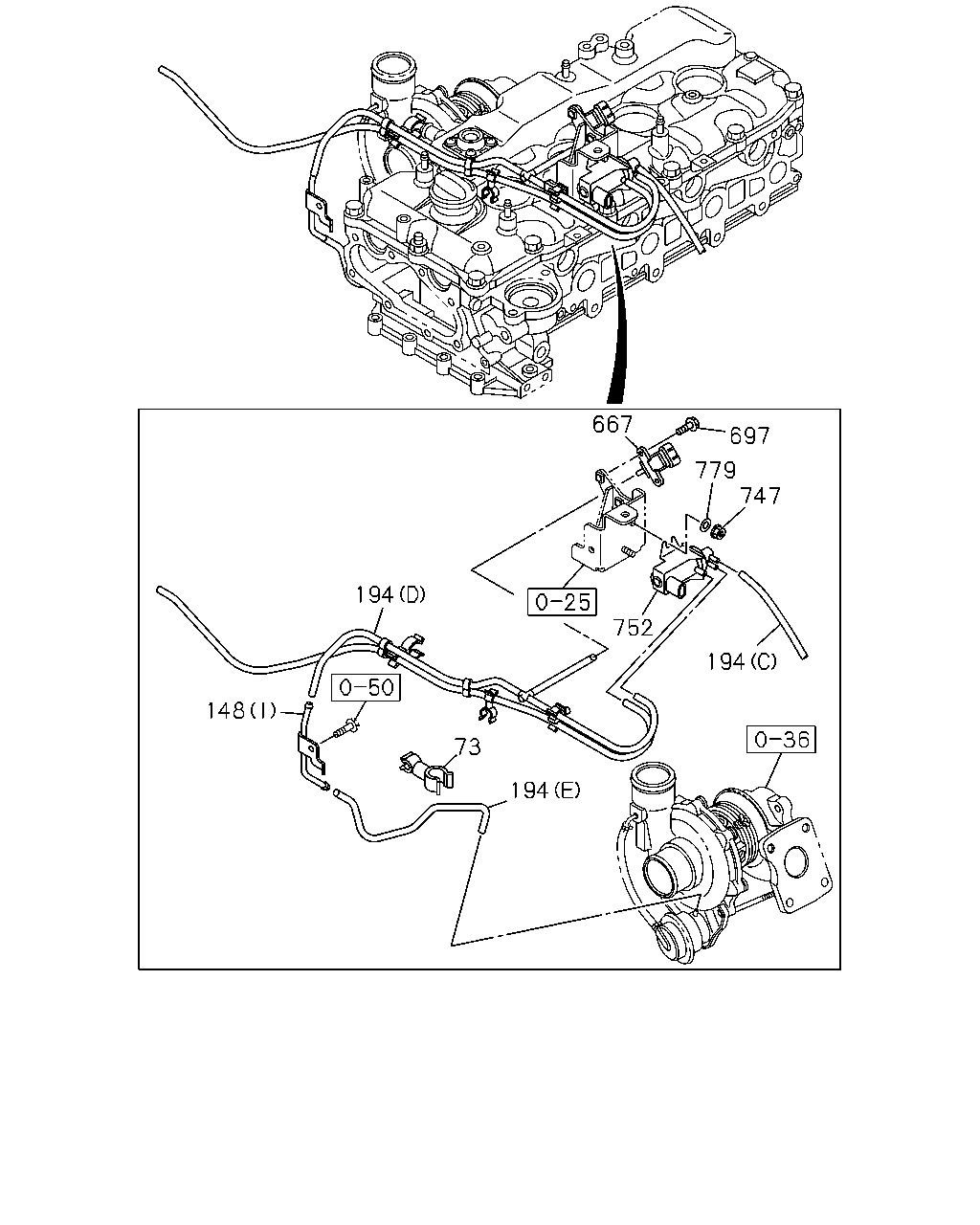

697 779 667 747 194 752 194 73 194 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E
73	03.680 CLIP; VAC HOSE HIGH ALTITUDE COMPENSATOR<EE2> 01.240 ID=8.3 & 12	8-94155-469-0	01	1	1206-			●
148	03.675 PIPE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (I)	8-98219-831-0	01	1	1206-			●
148	03.675 PIPE; VAC AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G)	8-98194-786-3	01	1	1206-	●
148	03.675 PIPE; VAC EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H)	8-98194-788-3	01	1	1206-	●
148	03.675 PIPE; VAC (A)	8-98132-082-0	01	1	1206-				●
148	03.675 PIPE; VAC (F)	8-98162-920-0	01	1	1206-		●
148	03.675 PIPE; VAC (B)	8-98162-921-1	01	1	1206-		●
148	03.675 PIPE; VAC (C)	8-98164-735-1	01	1	1206-		●
148	03.675 PIPE; VAC (D)	8-98178-322-0	01	1	1206-		●
148	03.675 PIPE; VAC (E)	8-98178-323-1	01	1	1206-		●
194	03.675 HOSE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98219-860-1	01	1	1206-			●
194	03.675 HOSE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (E)	8-98219-861-0	01	1	1206-			●
194	03.675 HOSE; VAC (A)	0-14040-110-0	01	1	1206-				●
194	03.675 HOSE; VAC (B)	8-98132-500-0	01	1	1206-				●
194	03.675 HOSE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (C)	8-98158-205-1	01	1	1206-			●
194	03.675 HOSE; VAC (C)	8-98158-205-1	01	1	1206-				●
667	03.670 SENSOR; VAC HIGH ALTITUDE COMPENSATOR<EE2>	8-98044-520-0	01	1	1206-			●
697	03.680 BOLT; SENSOR HIGH ALTITUDE COMPENSATOR<EE2> 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1206-			●
747	03.671 NUT; VAC REG VALVE HIGH ALTITUDE COMPENSATOR<EE2> 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-			●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-				●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	04	1	1206-		●
752	03.670 VALVE; EVRV HIGH ALTITUDE COMPENSATOR<EE2>	8-98116-260-0	01	1	1206-			●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	1206-				●
752	03.670 VALVE; EVRV	8-98116-260-0	02	1	1206-		●
779	03.671 WASHER; VALVE HIGH ALTITUDE COMPENSATOR<EE2> 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1206-			●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1206-				●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	04	1	1206-		●
795	03.670 VALVE; EGR COOLER BYPASS	8-98151-207-0	01	1	1206-		●

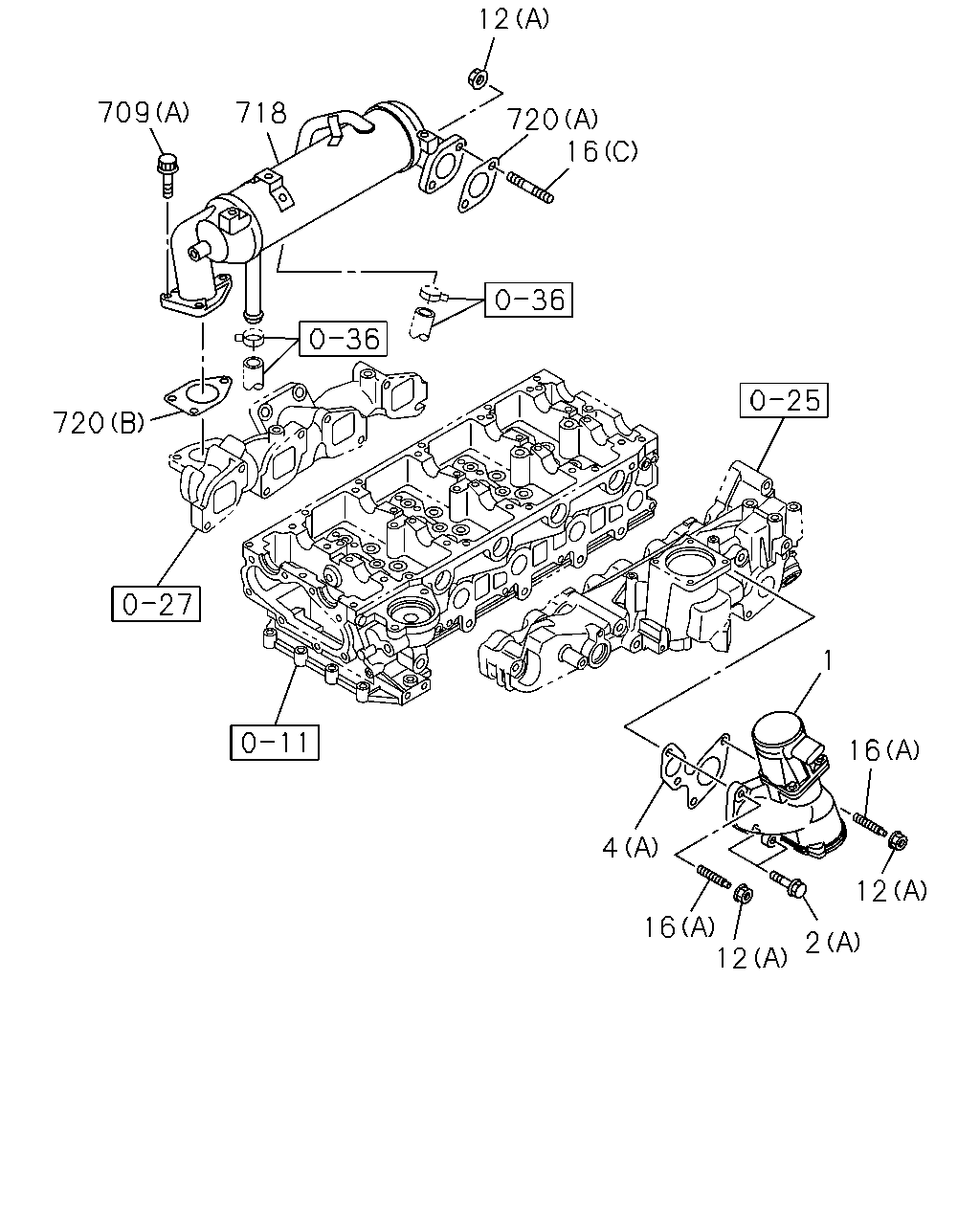

709 718 12 720 16 720 1 16 12 2 12 16 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	1206-	●
1	03.670 VALVE; EGR	8-98164-786-1	01	1	1206-		●
1	03.670 VALVE; EGR M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●	●
1	03.670 VALVE; EGR A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●
1	03.670 VALVE; EGR	8-98133-202-3	01	1	1206-					●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (E) M8X40 FLANGE	0-28050-840-0	04	1	1206-	●
2	03.670 BOLT; EGR VLV 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1206-		●
2	03.670 BOLT; EGR VLV 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1206-		●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-		●			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-94334-338-1	02	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E)	8-94379-754-0	01	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98167-347-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98167-348-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97356-711-3	01	1	1206-					●
12	03.671 NUT; EGR VLV 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1206-	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310		●	●	●	●
12	03.671 NUT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310					●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-		●	●	●	●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-					●
16	03.275 STUD; EGR VLV 03.342 (B) M8X22 L=33	8-94257-319-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (E) M8X49 L=63	8-97019-478-0	04	1	1206-	●
16	03.275 STUD; EGR VLV 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	1206-					●
16	03.275 STUD; EGR VLV (D) M8X25 L=37	0-41010-825-0	02	1	1206-		●
16	03.275 STUD; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●
16	03.275 STUD; EGR VLV 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-					●
709	03.670 BOLT; EGR COOLER 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	1206-					●
709	03.670 BOLT; EGR COOLER 01.252 (B) M8X80 FLANGE	0-28050-880-0	02	1	1206-		●
709	03.670 BOLT; EGR COOLER 03.417 (A) M8X23 FLANGE	8-97378-077-0	05	1	1206-		●
718	03.337 COOLER; EGR	8-98193-967-3	01	1	1206-					●
718	03.337 COOLER; EGR	8-98151-206-1	01	1	1206-		●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A)	8-97357-684-3	01	1	1206-		●			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98017-551-0	01	1	1206-					●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (E)	8-98063-284-1	01	1	1206-		●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98165-072-0	01	1	1206-		●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98165-073-0	01	1	1206-		●
795	03.670 VALVE; EGR COOLER BYPASS	8-98151-207-0	01	1	1206-		●

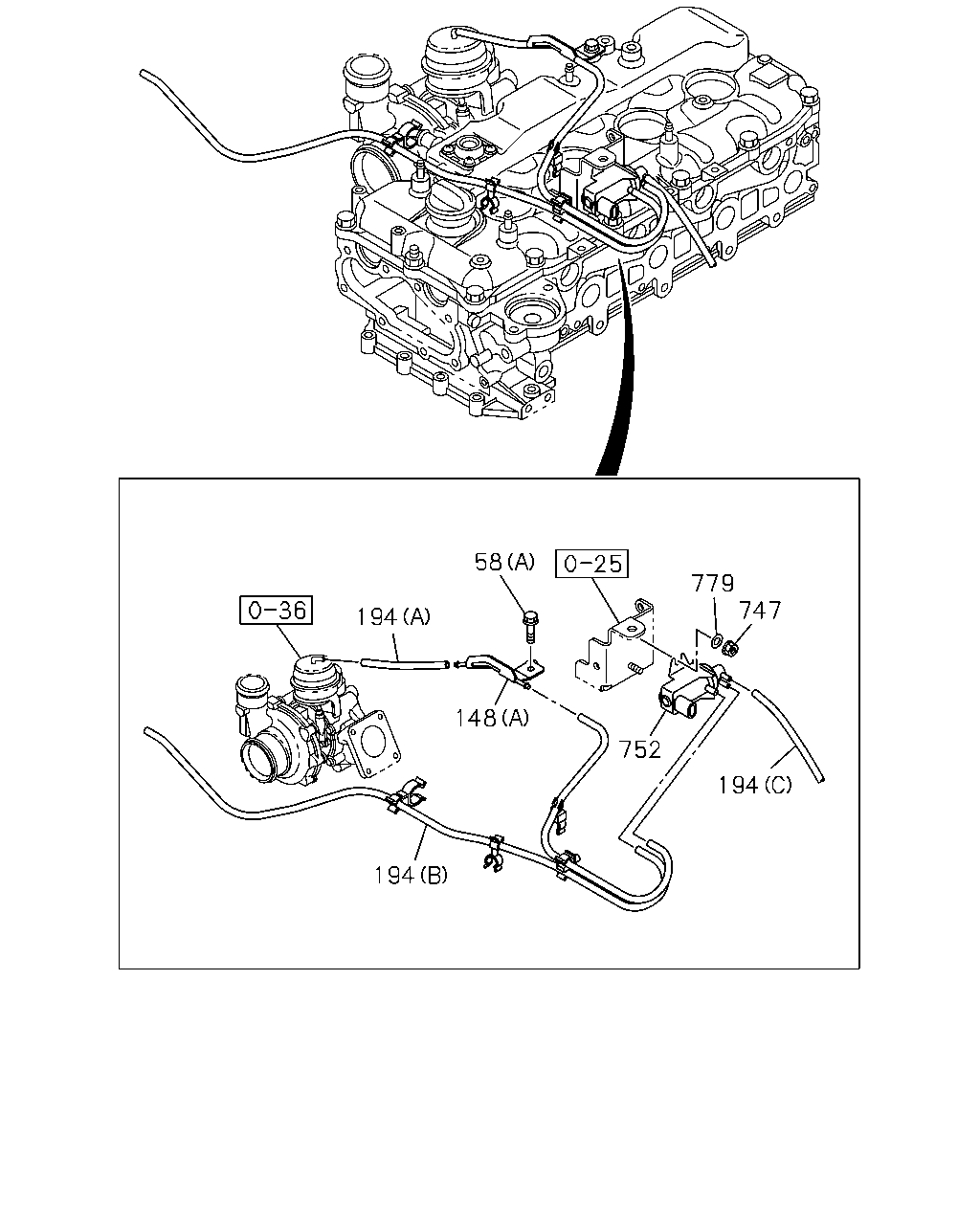

58 194 194 148 752 194 747 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E
58	03.417 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (D) M8X12 FLANGE	0-28050-812-0	01	1	1206-	●
58	03.417 BOLT; PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1206-	●
58	03.417 BOLT; PIPE 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1206-		●
58	03.417 BOLT; PIPE 03.275 (C) M8X25 FLANGE	0-28050-825-0	01	1	1206-		●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●		●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●
148	03.675 PIPE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (I)	8-98219-831-0	01	1	1206-			●
148	03.675 PIPE; VAC AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G)	8-98194-786-3	01	1	1206-	●
148	03.675 PIPE; VAC EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H)	8-98194-788-3	01	1	1206-	●
148	03.675 PIPE; VAC (A)	8-98132-082-0	01	1	1206-				●
148	03.675 PIPE; VAC (F)	8-98162-920-0	01	1	1206-		●
148	03.675 PIPE; VAC (B)	8-98162-921-1	01	1	1206-		●
148	03.675 PIPE; VAC (C)	8-98164-735-1	01	1	1206-		●
148	03.675 PIPE; VAC (D)	8-98178-322-0	01	1	1206-		●
148	03.675 PIPE; VAC (E)	8-98178-323-1	01	1	1206-		●
194	03.675 HOSE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98219-860-1	01	1	1206-			●
194	03.675 HOSE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (E)	8-98219-861-0	01	1	1206-			●
194	03.675 HOSE; VAC (A)	0-14040-110-0	01	1	1206-				●
194	03.675 HOSE; VAC (B)	8-98132-500-0	01	1	1206-				●
194	03.675 HOSE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (C)	8-98158-205-1	01	1	1206-			●
194	03.675 HOSE; VAC (C)	8-98158-205-1	01	1	1206-				●
747	03.671 NUT; VAC REG VALVE HIGH ALTITUDE COMPENSATOR<EE2> 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-			●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-				●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	04	1	1206-		●
752	03.670 VALVE; EVRV HIGH ALTITUDE COMPENSATOR<EE2>	8-98116-260-0	01	1	1206-			●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	1206-				●
752	03.670 VALVE; EVRV	8-98116-260-0	02	1	1206-		●
779	03.671 WASHER; VALVE HIGH ALTITUDE COMPENSATOR<EE2> 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1206-			●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1206-				●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	04	1	1206-		●
795	03.670 VALVE; EGR COOLER BYPASS	8-98151-207-0	01	1	1206-		●

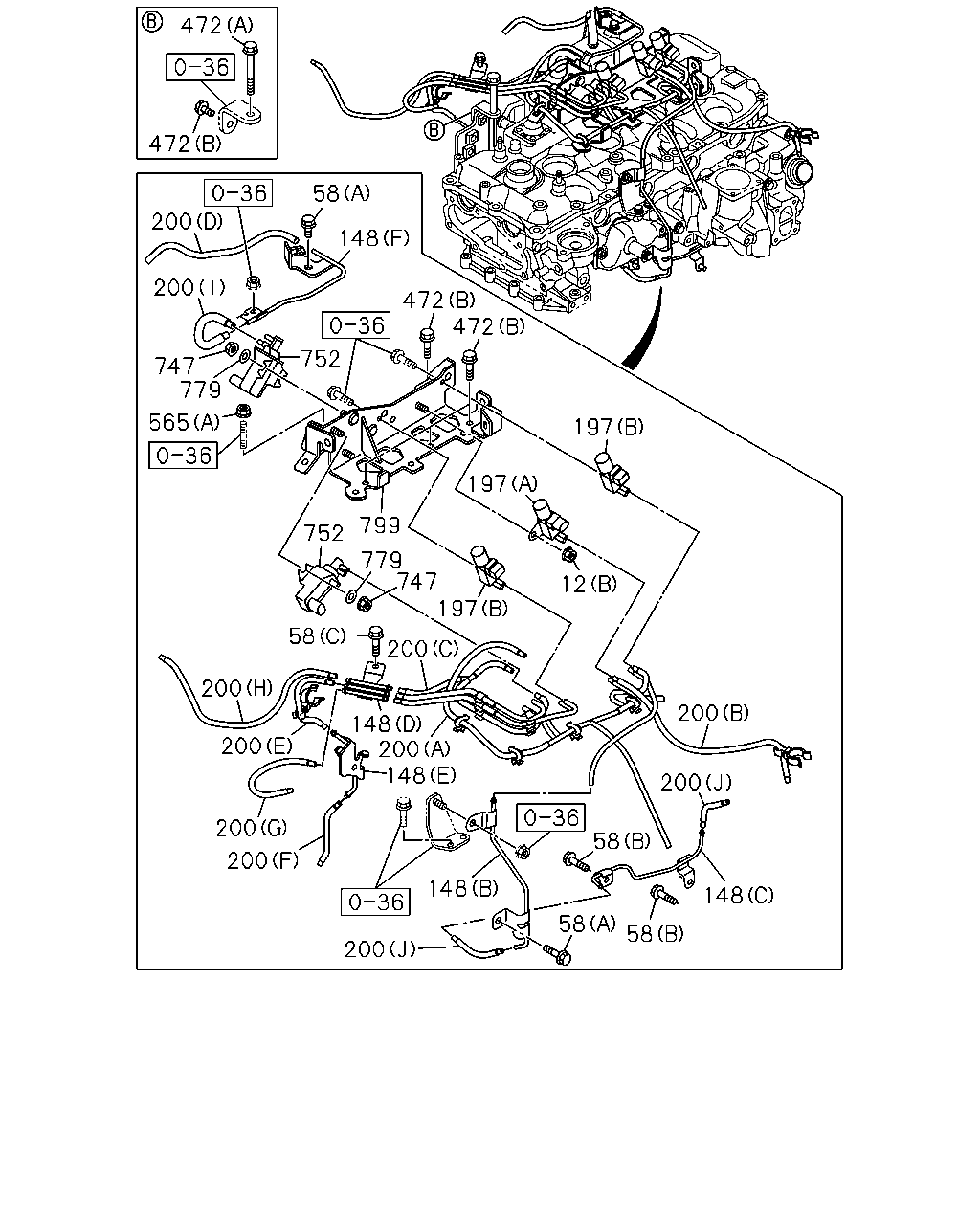

472 472 58 200 200 148 472 752 779 747 472 565 197 197 799 752 12 197 747 779 58 200 148 200 148 200 200 200 200 200 148 200 200 148 58 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	03.671 NUT; EGR VLV 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1206-	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310		●	●	●	●
12	03.671 NUT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310					●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-		●	●	●	●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-					●
58	03.417 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (D) M8X12 FLANGE	0-28050-812-0	01	1	1206-	●
58	03.417 BOLT; PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1206-	●
58	03.417 BOLT; PIPE 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1206-		●
58	03.417 BOLT; PIPE 03.275 (C) M8X25 FLANGE	0-28050-825-0	01	1	1206-		●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●			●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●
148	03.675 PIPE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (I)	8-98219-831-0	01	1	1206-			●
148	03.675 PIPE; VAC AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G)	8-98194-786-3	01	1	1206-	●
148	03.675 PIPE; VAC EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H)	8-98194-788-3	01	1	1206-	●
148	03.675 PIPE; VAC (A)	8-98132-082-0	01	1	1206-					●
148	03.675 PIPE; VAC (F)	8-98162-920-0	01	1	1206-		●
148	03.675 PIPE; VAC (B)	8-98162-921-1	01	1	1206-		●
148	03.675 PIPE; VAC (C)	8-98164-735-1	01	1	1206-		●
148	03.675 PIPE; VAC (D)	8-98178-322-0	01	1	1206-		●
148	03.675 PIPE; VAC (E)	8-98178-323-1	01	1	1206-		●
197	03.670 VALVE; VAC SWITCHING (A)	8-94375-331-1	01	1	1206-		●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) 03.130 (C)	8-94384-336-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-97043-750-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (E)	8-97171-030-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING (B)	8-94384-335-0	02	1	1206-		●
200	03.675 HOSE; VAC (I)	8-98178-211-1	01	1	1206-		●
200	03.675 HOSE; VAC (J)	8-98178-378-0	02	1	1206-		●
200	03.675 HOSE; VAC (A)	8-98178-201-2	01	1	1206-		●
200	03.675 HOSE; VAC (B)	8-98178-202-3	01	1	1206-		●
200	03.675 HOSE; VAC (C)	8-98178-203-2	01	1	1206-		●
200	03.675 HOSE; VAC (D)	8-98178-206-1	01	1	1206-		●
200	03.675 HOSE; VAC (E)	8-98178-207-1	01	1	1206-		●
200	03.675 HOSE; VAC (F)	8-98178-208-1	01	1	1206-		●
200	03.675 HOSE; VAC (G)	8-98178-209-0	01	1	1206-		●
200	03.675 HOSE; VAC (H)	8-98178-210-0	01	1	1206-		●
472	03.671 BOLT; BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	02	1	1206-	●
472	03.671 BOLT; BRKT 04.338 (B) M8X20 FLANGE	0-28050-820-0	05	1	1206-		●
472	03.671 BOLT; BRKT 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	1206-		●
565	03.417 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1206-		●
565	03.417 NUT; BRKT 01.540 (B) M8 FLANGE	0-91180-208-0	02	1	1206-		●
747	03.671 NUT; VAC REG VALVE HIGH ALTITUDE COMPENSATOR<EE2> 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-			●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-					●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	04	1	1206-		●
752	03.670 VALVE; EVRV HIGH ALTITUDE COMPENSATOR<EE2>	8-98116-260-0	01	1	1206-			●
752	03.670 VALVE; EVRV	8-98116-260-0	01	1	1206-					●
752	03.670 VALVE; EVRV	8-98116-260-0	02	1	1206-		●
779	03.671 WASHER; VALVE HIGH ALTITUDE COMPENSATOR<EE2> 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1206-			●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1206-					●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	04	1	1206-		●
795	03.670 VALVE; EGR COOLER BYPASS	8-98151-207-0	01	1	1206-		●
799	03.670 BRACKET; VSV	8-98158-714-3	01	1	1206-		●

197 197 485 753 472 95 95 100 93 58 148 1 12 5 2 1 4 135 58 93 95 93 95 4 16 4 16 17 17 15

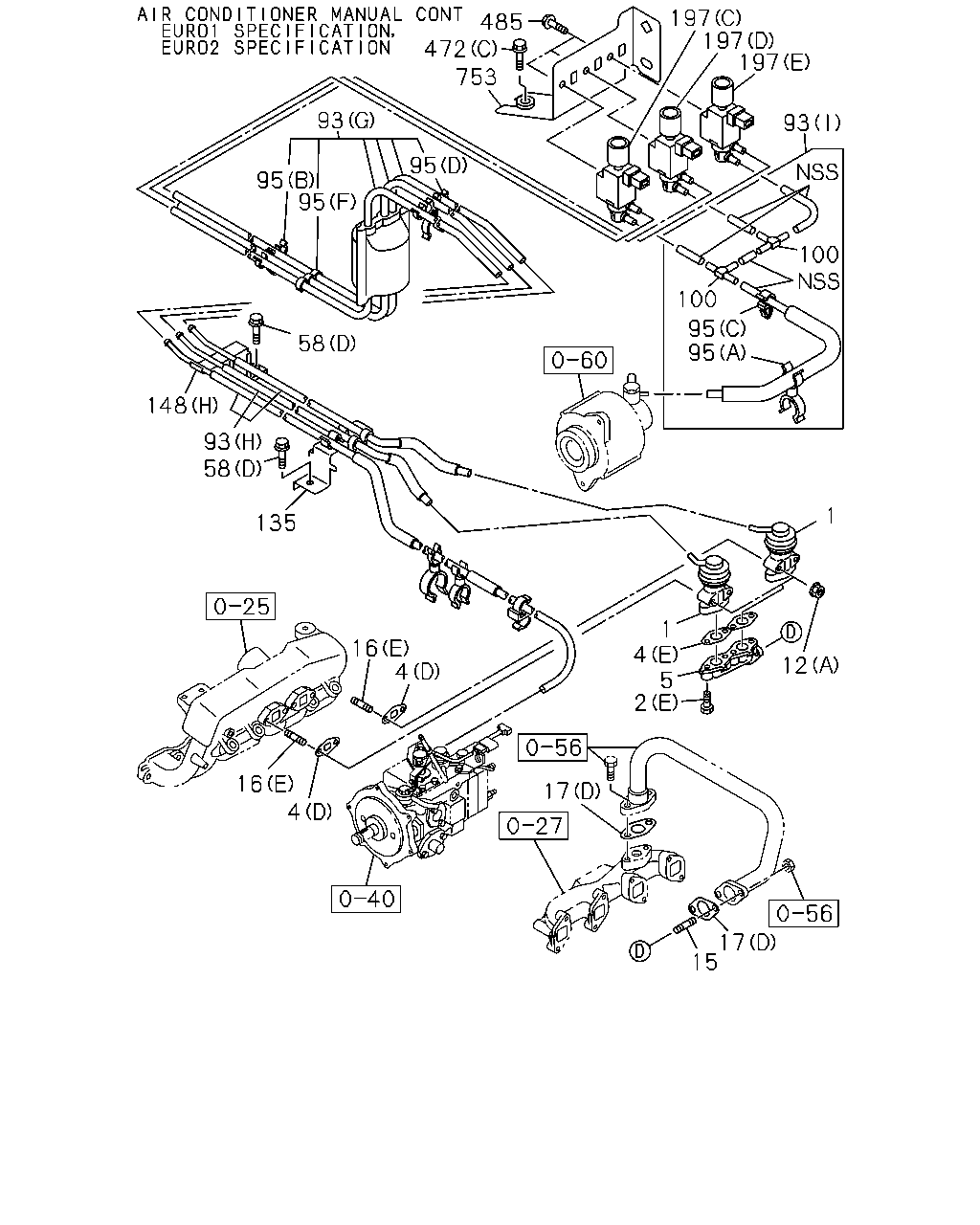

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	1206-	●
1	03.670 VALVE; EGR	8-98164-786-1	01	1	1206-		●
1	03.670 VALVE; EGR M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●	●
1	03.670 VALVE; EGR A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●
1	03.670 VALVE; EGR	8-98133-202-3	01	1	1206-					●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (E) M8X40 FLANGE	0-28050-840-0	04	1	1206-	●
2	03.670 BOLT; EGR VLV 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1206-		●
2	03.670 BOLT; EGR VLV 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1206-		●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-		●			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-94334-338-1	02	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E)	8-94379-754-0	01	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98167-347-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98167-348-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97356-711-3	01	1	1206-					●
5	03.670 ADAPTER ASM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-97306-490-0	01	1	1206-	●
5	03.670 ADAPTER ASM	8-98151-210-0	01	1	1206-		●
12	03.671 NUT; EGR VLV 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1206-	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310		●	●	●	●
12	03.671 NUT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310					●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-		●	●	●	●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-					●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37	0-41010-825-0	02	1	1206-	●
15	03.670 STUD; EGR PIPE 03.275 M8X60 L=72	8-94156-940-0	02	1	1206-		●
16	03.275 STUD; EGR VLV 03.342 (B) M8X22 L=33	8-94257-319-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (E) M8X49 L=63	8-97019-478-0	04	1	1206-	●
16	03.275 STUD; EGR VLV 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	1206-					●
16	03.275 STUD; EGR VLV (D) M8X25 L=37	0-41010-825-0	02	1	1206-		●
16	03.275 STUD; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●
16	03.275 STUD; EGR VLV 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-94340-670-0	02	1	1206-1206	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A)	8-97357-684-3	03	1	1206-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-97357-684-3	03	1	1206-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (C)	8-98150-745-0	01	1	1206-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98191-943-0	01	1	1206-		●
58	03.417 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (D) M8X12 FLANGE	0-28050-812-0	01	1	1206-	●
58	03.417 BOLT; PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1206-	●
58	03.417 BOLT; PIPE 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1206-		●
58	03.417 BOLT; PIPE 03.275 (C) M8X25 FLANGE	0-28050-825-0	01	1	1206-		●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●			●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-98192-326-0	01	1	1206-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E)	8-98194-796-1	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (C)	8-98192-325-0	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (B)	8-98194-795-1	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (I)	8-98192-324-0	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (G)	8-98194-947-1	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (A)	8-98194-794-2	01	1	1206-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F)	8-98194-948-3	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H)	8-98194-949-3	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.162 (E) ID=6.8X2	8-94126-636-0	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.589 (A) ID=13 & 16.5	8-94169-028-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.589 (A) ID=13 & 16.5	8-94169-028-0	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 4XID=6.7	8-94315-422-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (B) 4XID=6.7	8-94315-422-0	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 (C) ID=6.8	8-97134-154-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.559 (C) ID=6.8	8-97134-154-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) ID=14.5 & 7X4	8-94368-499-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1206-	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 3WAY	8-94210-631-0	01	1	1206-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 3WAY	8-94210-631-0	02	1	1206-	●
135	03.680 BRACKET; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98205-853-0	01	1	1206-	●
148	03.675 PIPE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (I)	8-98219-831-0	01	1	1206-			●
148	03.675 PIPE; VAC AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G)	8-98194-786-3	01	1	1206-	●
148	03.675 PIPE; VAC EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H)	8-98194-788-3	01	1	1206-	●
148	03.675 PIPE; VAC (A)	8-98132-082-0	01	1	1206-					●
148	03.675 PIPE; VAC (F)	8-98162-920-0	01	1	1206-		●
148	03.675 PIPE; VAC (B)	8-98162-921-1	01	1	1206-		●
148	03.675 PIPE; VAC (C)	8-98164-735-1	01	1	1206-		●
148	03.675 PIPE; VAC (D)	8-98178-322-0	01	1	1206-		●
148	03.675 PIPE; VAC (E)	8-98178-323-1	01	1	1206-		●
197	03.670 VALVE; VAC SWITCHING (A)	8-94375-331-1	01	1	1206-		●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) 03.130 (C)	8-94384-336-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-97043-750-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (E)	8-97171-030-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING (B)	8-94384-335-0	02	1	1206-		●
472	03.671 BOLT; BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	02	1	1206-	●
472	03.671 BOLT; BRKT 04.338 (B) M8X20 FLANGE	0-28050-820-0	05	1	1206-		●
472	03.671 BOLT; BRKT 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	1206-		●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60) M5X8 W/LK WASHER	0-36220-508-0	01	1	1206-	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M5X8 W/LK WASHER	0-36220-508-0	02	1	1206-	●
753	03.670 BRACKET; VALVE	8-98197-795-0	01	1	1206-	●
795	03.670 VALVE; EGR COOLER BYPASS	8-98151-207-0	01	1	1206-		●

197 485 472 753 93 95 95 58 148 93 95 95 93

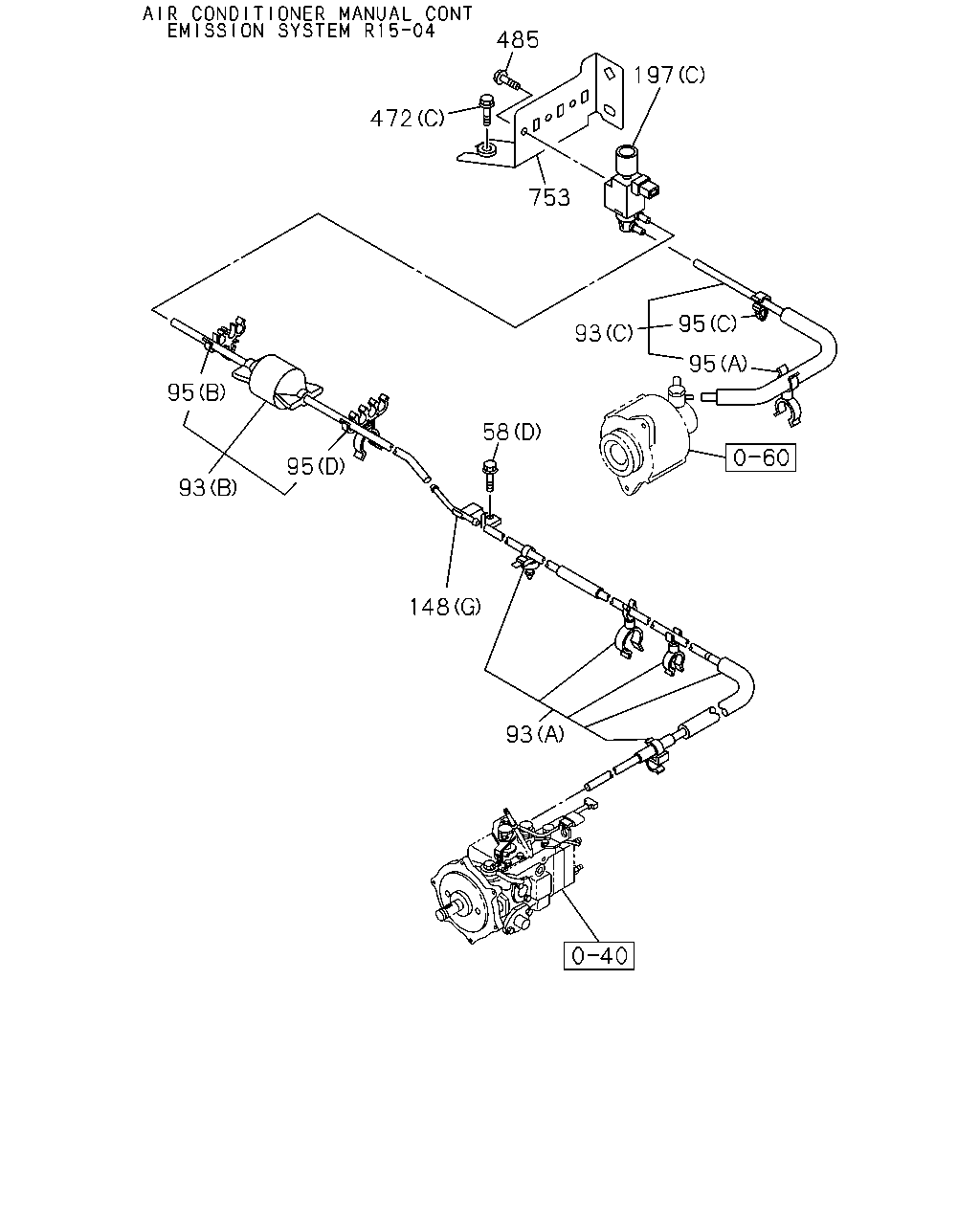

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E
58	03.417 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (D) M8X12 FLANGE	0-28050-812-0	01	1	1206-	●
58	03.417 BOLT; PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1206-	●
58	03.417 BOLT; PIPE 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1206-		●
58	03.417 BOLT; PIPE 03.275 (C) M8X25 FLANGE	0-28050-825-0	01	1	1206-		●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●		●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-98192-326-0	01	1	1206-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E)	8-98194-796-1	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (C)	8-98192-325-0	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (B)	8-98194-795-1	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (I)	8-98192-324-0	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (G)	8-98194-947-1	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (A)	8-98194-794-2	01	1	1206-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F)	8-98194-948-3	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H)	8-98194-949-3	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.162 (E) ID=6.8X2	8-94126-636-0	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.589 (A) ID=13 & 16.5	8-94169-028-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.589 (A) ID=13 & 16.5	8-94169-028-0	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 4XID=6.7	8-94315-422-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (B) 4XID=6.7	8-94315-422-0	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 (C) ID=6.8	8-97134-154-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.559 (C) ID=6.8	8-97134-154-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) ID=14.5 & 7X4	8-94368-499-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1206-	●
148	03.675 PIPE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (I)	8-98219-831-0	01	1	1206-			●
148	03.675 PIPE; VAC AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G)	8-98194-786-3	01	1	1206-	●
148	03.675 PIPE; VAC EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H)	8-98194-788-3	01	1	1206-	●
148	03.675 PIPE; VAC (A)	8-98132-082-0	01	1	1206-				●
148	03.675 PIPE; VAC (F)	8-98162-920-0	01	1	1206-		●
148	03.675 PIPE; VAC (B)	8-98162-921-1	01	1	1206-		●
148	03.675 PIPE; VAC (C)	8-98164-735-1	01	1	1206-		●
148	03.675 PIPE; VAC (D)	8-98178-322-0	01	1	1206-		●
148	03.675 PIPE; VAC (E)	8-98178-323-1	01	1	1206-		●
197	03.670 VALVE; VAC SWITCHING (A)	8-94375-331-1	01	1	1206-		●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) 03.130 (C)	8-94384-336-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-97043-750-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (E)	8-97171-030-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING (B)	8-94384-335-0	02	1	1206-		●
472	03.671 BOLT; BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	02	1	1206-	●
472	03.671 BOLT; BRKT 04.338 (B) M8X20 FLANGE	0-28050-820-0	05	1	1206-		●
472	03.671 BOLT; BRKT 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	1206-		●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60) M5X8 W/LK WASHER	0-36220-508-0	01	1	1206-	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M5X8 W/LK WASHER	0-36220-508-0	02	1	1206-	●
753	03.670 BRACKET; VALVE	8-98197-795-0	01	1	1206-	●
795	03.670 VALVE; EGR COOLER BYPASS	8-98151-207-0	01	1	1206-		●

709 718 709 720 17 17 720 2 2 709 5 15 681 720 4 1 2 4 16 12 2 655 509 565 225 720

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	1206-	●
1	03.670 VALVE; EGR	8-98164-786-1	01	1	1206-		●
1	03.670 VALVE; EGR M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●	●
1	03.670 VALVE; EGR A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●
1	03.670 VALVE; EGR	8-98133-202-3	01	1	1206-					●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (E) M8X40 FLANGE	0-28050-840-0	04	1	1206-	●
2	03.670 BOLT; EGR VLV 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1206-		●
2	03.670 BOLT; EGR VLV 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1206-		●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-		●			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-94334-338-1	02	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E)	8-94379-754-0	01	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98167-347-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98167-348-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97356-711-3	01	1	1206-					●
5	03.670 ADAPTER ASM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-97306-490-0	01	1	1206-	●
5	03.670 ADAPTER ASM	8-98151-210-0	01	1	1206-		●
12	03.671 NUT; EGR VLV 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1206-	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310		●	●	●	●
12	03.671 NUT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310					●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-		●	●	●	●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-					●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37	0-41010-825-0	02	1	1206-	●
15	03.670 STUD; EGR PIPE 03.275 M8X60 L=72	8-94156-940-0	02	1	1206-		●
16	03.275 STUD; EGR VLV 03.342 (B) M8X22 L=33	8-94257-319-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (E) M8X49 L=63	8-97019-478-0	04	1	1206-	●
16	03.275 STUD; EGR VLV 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	1206-					●
16	03.275 STUD; EGR VLV (D) M8X25 L=37	0-41010-825-0	02	1	1206-		●
16	03.275 STUD; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●
16	03.275 STUD; EGR VLV 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-94340-670-0	02	1	1206-1206	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A)	8-97357-684-3	03	1	1206-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-97357-684-3	03	1	1206-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (C)	8-98150-745-0	01	1	1206-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98191-943-0	01	1	1206-		●
225	03.670 SENSOR; THERMO,EGR IDENTIFICATION LABEL FOR KD<6UT>	8-98238-241-0	01	1	1311-		●
225	03.670 SENSOR; THERMO,EGR	8-98028-398-0	01	1	1206-1310		●
225	03.670 SENSOR; THERMO,EGR EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98028-398-0	01	1	1311-		●
509	03.671 BRACKET; HARNESS	8-98166-378-2	01	1	1206-		●
565	03.417 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1206-		●
565	03.417 NUT; BRKT 01.540 (B) M8 FLANGE	0-91180-208-0	02	1	1206-		●
655	03.675 PIPE; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>	8-98132-053-0	01	1	1206-			●	●
655	03.675 PIPE; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98132-053-0	01	1	1206-			●
655	03.675 PIPE; EGR VLV 01.540	8-98151-211-0	01	1	1206-		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-		●
709	03.670 BOLT; EGR COOLER 03.417 (A) M8X23 FLANGE	8-97378-077-0	03	1	1206-					●
709	03.670 BOLT; EGR COOLER 01.252 (B) M8X80 FLANGE	0-28050-880-0	02	1	1206-		●
709	03.670 BOLT; EGR COOLER 03.417 (A) M8X23 FLANGE	8-97378-077-0	05	1	1206-		●
718	03.337 COOLER; EGR	8-98193-967-3	01	1	1206-					●
718	03.337 COOLER; EGR	8-98151-206-1	01	1	1206-		●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A)	8-97357-684-3	01	1	1206-		●			●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (B)	8-98017-551-0	01	1	1206-					●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (E)	8-98063-284-1	01	1	1206-		●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98165-072-0	01	1	1206-		●
720	03.680 GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98165-073-0	01	1	1206-		●
795	03.670 VALVE; EGR COOLER BYPASS	8-98151-207-0	01	1	1206-		●

485 472 753 95 93 95 95 58 197 197 197 93 100 95 95 100 1 12 1 4 5 2 17 15 17 4 16 4 16 135 58 93 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-97132-802-5	02	1	1206-	●
1	03.670 VALVE; EGR	8-98164-786-1	01	1	1206-		●
1	03.670 VALVE; EGR M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●	●
1	03.670 VALVE; EGR A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98133-202-3	01	1	1206-			●
1	03.670 VALVE; EGR	8-98133-202-3	01	1	1206-					●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.277 (E) M8X40 FLANGE	0-28050-840-0	04	1	1206-	●
2	03.670 BOLT; EGR VLV 00.206 (D) M8X70 FLANGE	0-28050-870-0	01	1	1206-		●
2	03.670 BOLT; EGR VLV 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1206-		●
2	03.670 BOLT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●	●
2	03.670 BOLT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●
2	03.670 BOLT; EGR VLV 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1206-		●			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-94334-338-1	02	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E)	8-94379-754-0	01	1	1206-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98167-347-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98167-348-0	01	1	1206-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>. (A)	8-97356-711-3	01	1	1206-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97356-711-3	01	1	1206-					●
5	03.670 ADAPTER ASM EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-97306-490-0	01	1	1206-	●
5	03.670 ADAPTER ASM	8-98151-210-0	01	1	1206-		●
12	03.671 NUT; EGR VLV 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	04	1	1206-	●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310		●	●	●	●
12	03.671 NUT; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1206-1310					●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-		●	●	●	●
12	03.671 NUT; EGR VLV EURO2 SPECIFICATION<NT2> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●	●
12	03.671 NUT; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-			●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1311-					●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.275 M8X25 L=37	0-41010-825-0	02	1	1206-	●
15	03.670 STUD; EGR PIPE 03.275 M8X60 L=72	8-94156-940-0	02	1	1206-		●
16	03.275 STUD; EGR VLV 03.342 (B) M8X22 L=33	8-94257-319-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.342 (E) M8X49 L=63	8-97019-478-0	04	1	1206-	●
16	03.275 STUD; EGR VLV 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	1206-					●
16	03.275 STUD; EGR VLV (D) M8X25 L=37	0-41010-825-0	02	1	1206-		●
16	03.275 STUD; EGR VLV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●	●
16	03.275 STUD; EGR VLV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-			●
16	03.275 STUD; EGR VLV 01.073 (A) M8X22 L=40	0-49140-822-0	02	1	1206-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-94340-670-0	02	1	1206-1206	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (A)	8-97357-684-3	03	1	1206-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-97357-684-3	03	1	1206-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.670 (C)	8-98150-745-0	01	1	1206-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98191-943-0	01	1	1206-		●
58	03.417 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.343 (D) M8X12 FLANGE	0-28050-812-0	01	1	1206-	●
58	03.417 BOLT; PIPE EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1206-	●
58	03.417 BOLT; PIPE 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1206-		●
58	03.417 BOLT; PIPE 03.275 (C) M8X25 FLANGE	0-28050-825-0	01	1	1206-		●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●			●
58	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-98192-326-0	01	1	1206-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (E)	8-98194-796-1	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (C)	8-98192-325-0	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (B)	8-98194-795-1	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (I)	8-98192-324-0	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (G)	8-98194-947-1	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (A)	8-98194-794-2	01	1	1206-	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F)	8-98194-948-3	01	1	1206-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H)	8-98194-949-3	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.162 (E) ID=6.8X2	8-94126-636-0	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.589 (A) ID=13 & 16.5	8-94169-028-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.589 (A) ID=13 & 16.5	8-94169-028-0	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B) 4XID=6.7	8-94315-422-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (B) 4XID=6.7	8-94315-422-0	01	1	1206-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 (C) ID=6.8	8-97134-154-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> 02.559 (C) ID=6.8	8-97134-154-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) ID=14.5 & 7X4	8-94368-499-0	01	1	1206-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1206-	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 3WAY	8-94210-631-0	01	1	1206-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 3WAY	8-94210-631-0	02	1	1206-	●
135	03.680 BRACKET; EGR EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98205-853-0	01	1	1206-	●
148	03.675 PIPE; VAC HIGH ALTITUDE COMPENSATOR<EE2> (I)	8-98219-831-0	01	1	1206-			●
148	03.675 PIPE; VAC AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75> (G)	8-98194-786-3	01	1	1206-	●
148	03.675 PIPE; VAC EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (H)	8-98194-788-3	01	1	1206-	●
148	03.675 PIPE; VAC (A)	8-98132-082-0	01	1	1206-					●
148	03.675 PIPE; VAC (F)	8-98162-920-0	01	1	1206-		●
148	03.675 PIPE; VAC (B)	8-98162-921-1	01	1	1206-		●
148	03.675 PIPE; VAC (C)	8-98164-735-1	01	1	1206-		●
148	03.675 PIPE; VAC (D)	8-98178-322-0	01	1	1206-		●
148	03.675 PIPE; VAC (E)	8-98178-323-1	01	1	1206-		●
197	03.670 VALVE; VAC SWITCHING (A)	8-94375-331-1	01	1	1206-		●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) 03.130 (C)	8-94384-336-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D)	8-97043-750-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (E)	8-97171-030-0	01	1	1206-	●
197	03.670 VALVE; VAC SWITCHING (B)	8-94384-335-0	02	1	1206-		●
472	03.671 BOLT; BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	02	1	1206-	●
472	03.671 BOLT; BRKT 04.338 (B) M8X20 FLANGE	0-28050-820-0	05	1	1206-		●
472	03.671 BOLT; BRKT 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	1206-		●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60) M5X8 W/LK WASHER	0-36220-508-0	01	1	1206-	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M5X8 W/LK WASHER	0-36220-508-0	02	1	1206-	●
753	03.670 BRACKET; VALVE	8-98197-795-0	01	1	1206-	●
795	03.670 VALVE; EGR COOLER BYPASS	8-98151-207-0	01	1	1206-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
