Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#91034) — 276 parça

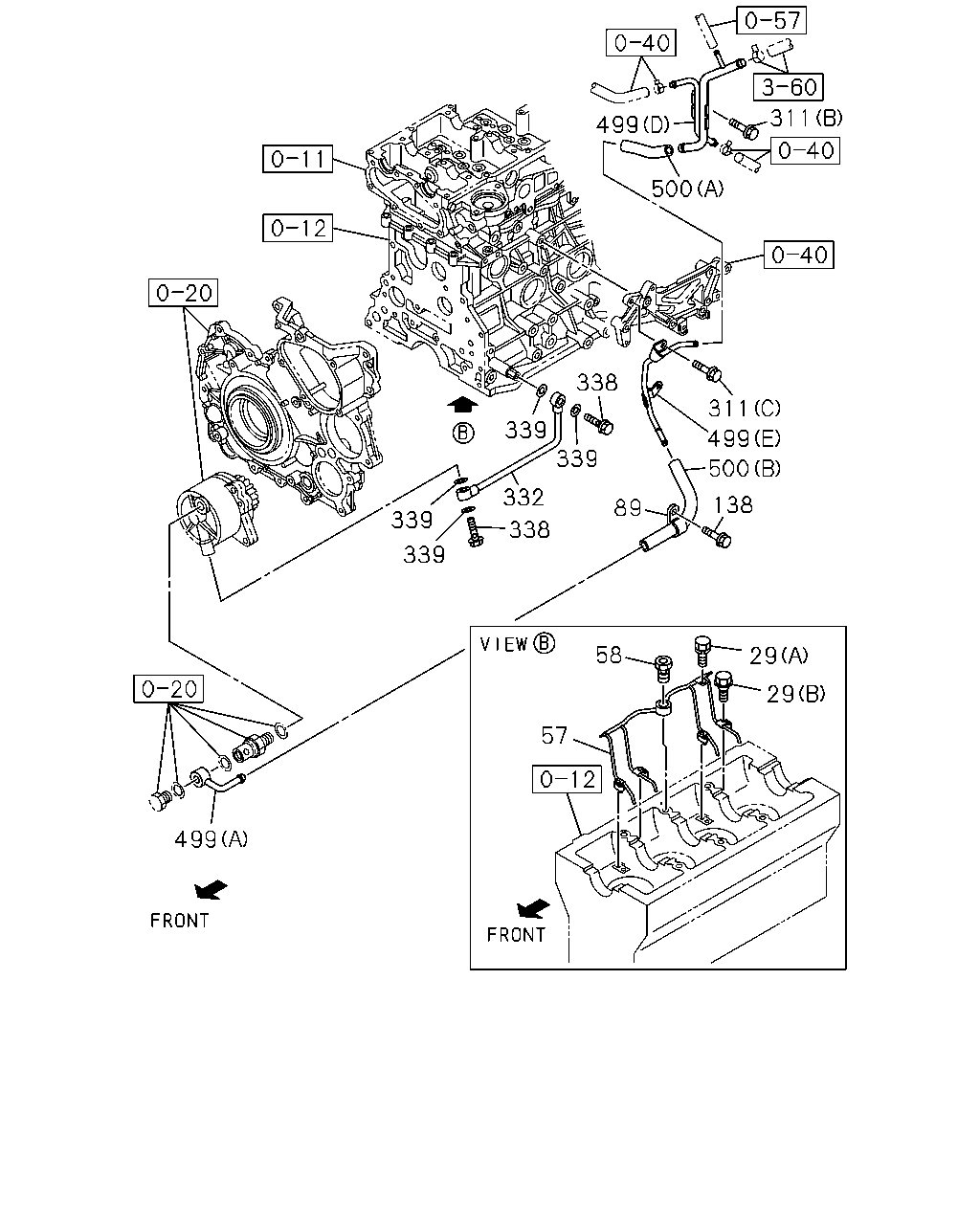

499 57 58 29 29 500 544 580 138 311 499 500 338 332 339 339 339 338 339 500 544 518 500 311 89 499 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1206-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1206-	●	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1206-		●	●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1206-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1206-		●	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1206-1407	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1206-		●	●	●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1206-		●	●	●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1206-		●	●	●	●
311	01.531 BOLT; PIPE FIX 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1206-	●
311	01.531 BOLT; PIPE FIX 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1206-					●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●	●	●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-					●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1206-		●	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1206-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1206-		●	●	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1206-		●	●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1206-		●	●	●	●
499	04.681 PIPE; VACUUM M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98187-442-0	01	1	1206-		●	●
499	04.681 PIPE; VACUUM A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> (B)	8-98187-442-0	01	1	1206-		●
499	04.681 PIPE; VACUUM (C)	8-98132-059-2	01	1	1206-1207		●	●
499	04.681 PIPE; VACUUM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (C)	8-98132-059-3	01	1	1208-		●	●
499	04.681 PIPE; VACUUM (D)	8-98132-058-1	01	1	1206-1207				●	●
499	04.681 PIPE; VACUUM HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98132-058-2	01	1	1208-		●
499	04.681 PIPE; VACUUM (D)	8-98132-058-2	01	1	1208-				●	●
499	04.681 PIPE; VACUUM (E)	8-98172-379-0	01	1	1206-					●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1206-		●	●	●	●
499	04.681 PIPE; VACUUM M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (B)	8-98132-057-0	01	1	1206-		●	●
499	04.681 PIPE; VACUUM A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98132-057-0	01	1	1206-		●
499	04.681 PIPE; VACUUM (B)	8-98132-057-0	01	1	1206-				●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1206-		●	●	●	●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1206-		●	●	●	●
500	04.681 HOSE; VACUUM M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 03.675 (D)	8-97369-589-0	01	1	1206-		●	●
500	04.681 HOSE; VACUUM A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (D)	8-97369-589-0	01	1	1206-		●
500	04.681 HOSE; VACUUM 03.675 (D)	8-97369-589-0	01	1	1206-				●
500	04.681 HOSE; VACUUM M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (C)	8-98136-853-0	01	1	1206-		●	●
500	04.681 HOSE; VACUUM A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-98136-853-0	01	1	1206-		●
500	04.681 HOSE; VACUUM (C)	8-98136-853-0	01	1	1206-				●
518	01.531 BRACKET; VSV M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2>	8-98132-061-1	01	1	1206-		●	●
518	01.531 BRACKET; VSV A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98132-061-1	01	1	1206-		●
518	01.531 BRACKET; VSV	8-98132-061-1	01	1	1206-				●
544	01.540 NUT; BRKT M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-		●	●
544	01.540 NUT; BRKT A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-		●
544	01.540 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-				●
580	01.531 VALVE; VAC SW M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 03.670	8-97352-145-0	01	1	1206-		●	●
580	01.531 VALVE; VAC SW A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.670	8-97352-145-0	01	1	1206-		●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	1206-				●

458 567 47 46 47 44 47 332 47 47 330 331 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1206-	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 FLANGE	8-98137-710-0	01	1	1206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1206-	●
330	03.278 HOSE; VAC PUMP,RETURN	8-98189-794-0	01	1	1206-	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	1206-	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	1206-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1206-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1206-		●	●	●	●
458	01.426 CAP; RUBBER HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 01.780 ID=4	8-94217-809-0	01	1	1206-	●
567	01.531 CLIP; PIPE HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 03.145 ID=8	8-94107-762-0	01	1	1206-	●

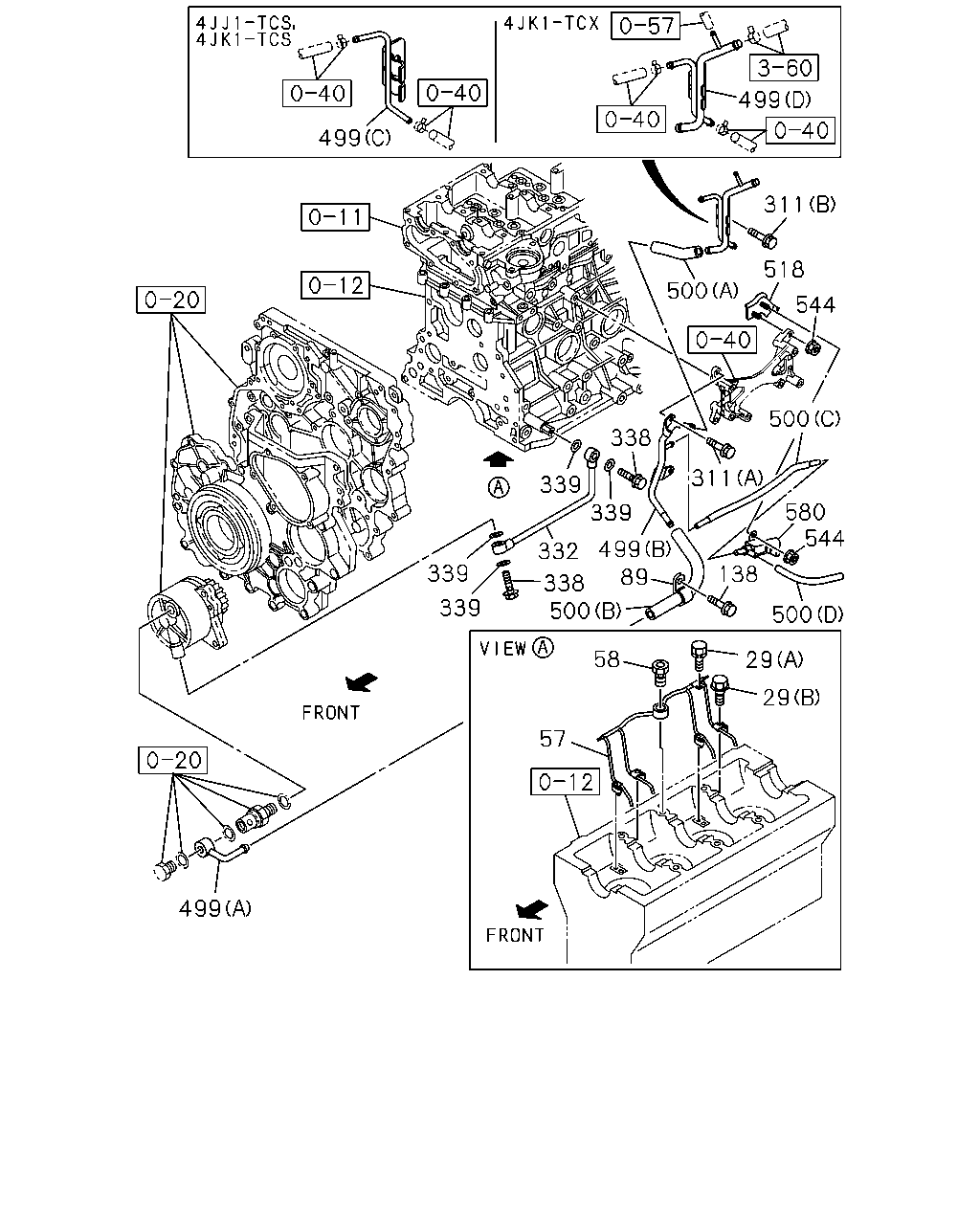

499 339 339 338 339 332 339 338 311 500 499 138 89 500 311 499 29 29 58 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1206-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1206-	●	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1206-		●	●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1206-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1206-		●	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1206-1407	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1206-		●	●	●	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	1206-		●	●	●	●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1206-		●	●	●	●
311	01.531 BOLT; PIPE FIX 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1206-	●
311	01.531 BOLT; PIPE FIX 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1206-					●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●	●	●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-					●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1206-		●	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	1206-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	1206-		●	●	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	1206-		●	●	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1206-		●	●	●	●
499	04.681 PIPE; VACUUM M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (B)	8-98187-442-0	01	1	1206-		●	●
499	04.681 PIPE; VACUUM A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> (B)	8-98187-442-0	01	1	1206-		●
499	04.681 PIPE; VACUUM (C)	8-98132-059-2	01	1	1206-1207		●	●
499	04.681 PIPE; VACUUM EXC. HIGH ALTITUDE COMPENSATOR<EE2> (C)	8-98132-059-3	01	1	1208-		●	●
499	04.681 PIPE; VACUUM (D)	8-98132-058-1	01	1	1206-1207				●	●
499	04.681 PIPE; VACUUM HIGH ALTITUDE COMPENSATOR<EE2> (D)	8-98132-058-2	01	1	1208-		●
499	04.681 PIPE; VACUUM (D)	8-98132-058-2	01	1	1208-				●	●
499	04.681 PIPE; VACUUM (E)	8-98172-379-0	01	1	1206-					●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	1206-		●	●	●	●
499	04.681 PIPE; VACUUM M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (B)	8-98132-057-0	01	1	1206-		●	●
499	04.681 PIPE; VACUUM A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98132-057-0	01	1	1206-		●
499	04.681 PIPE; VACUUM (B)	8-98132-057-0	01	1	1206-				●
500	04.681 HOSE; VACUUM (A)	0-08508-090-0	01	1	1206-		●	●	●	●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	1206-		●	●	●	●
500	04.681 HOSE; VACUUM M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> 03.675 (D)	8-97369-589-0	01	1	1206-		●	●
500	04.681 HOSE; VACUUM A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.675 (D)	8-97369-589-0	01	1	1206-		●
500	04.681 HOSE; VACUUM 03.675 (D)	8-97369-589-0	01	1	1206-				●
500	04.681 HOSE; VACUUM M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> (C)	8-98136-853-0	01	1	1206-		●	●
500	04.681 HOSE; VACUUM A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-98136-853-0	01	1	1206-		●
500	04.681 HOSE; VACUUM (C)	8-98136-853-0	01	1	1206-				●

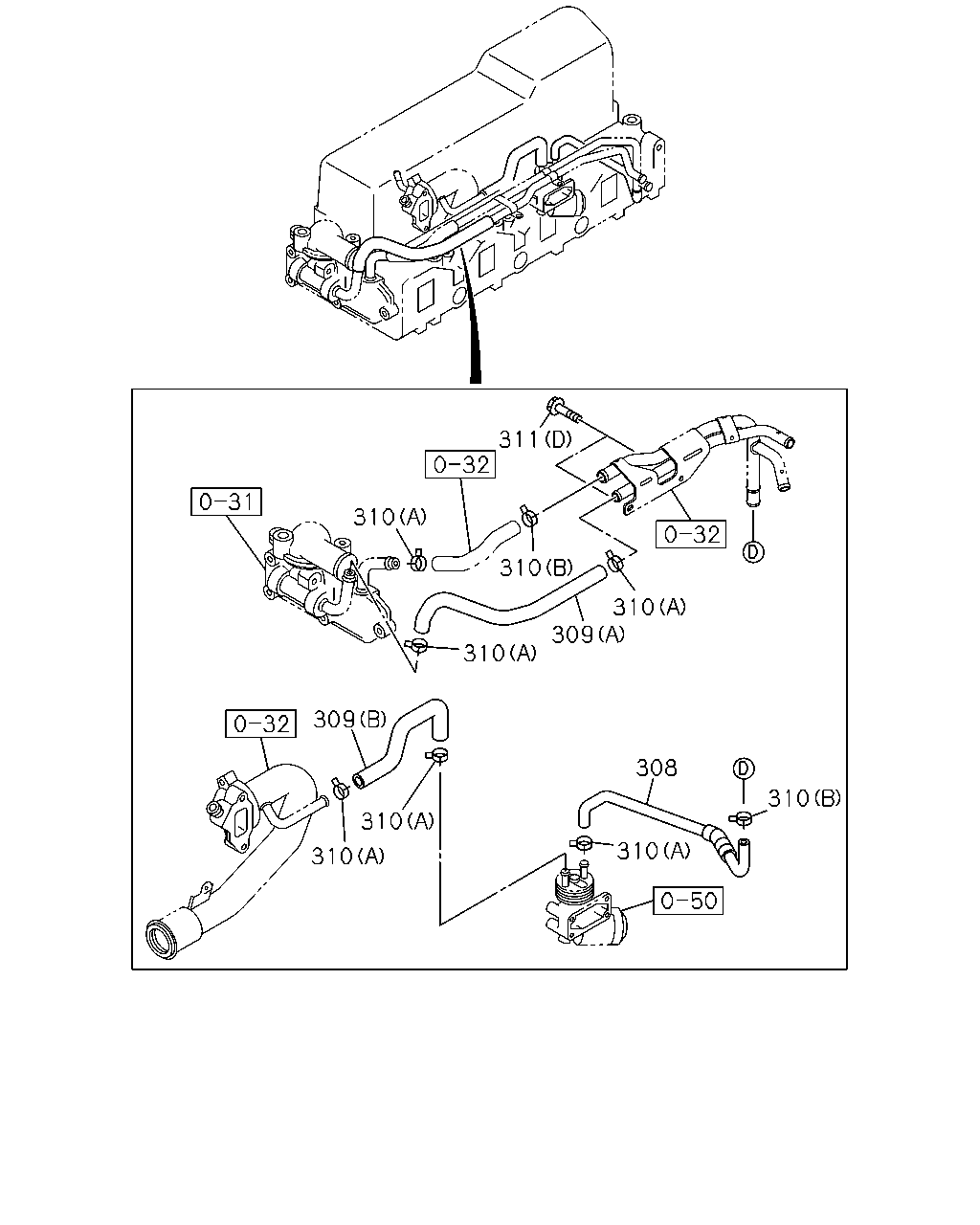

310 311 310 310 310 310 310 310 310 308 309 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
308	01.540 HOSE; OIL COOLER FEED	8-97362-329-3	01	1	1206-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97213-919-2	01	1	1206-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97256-047-1	01	1	1206-	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	1206-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	1206-	●
311	01.531 BOLT; PIPE FIX 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1206-	●
311	01.531 BOLT; PIPE FIX 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1206-					●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●	●	●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-					●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1206-		●	●	●

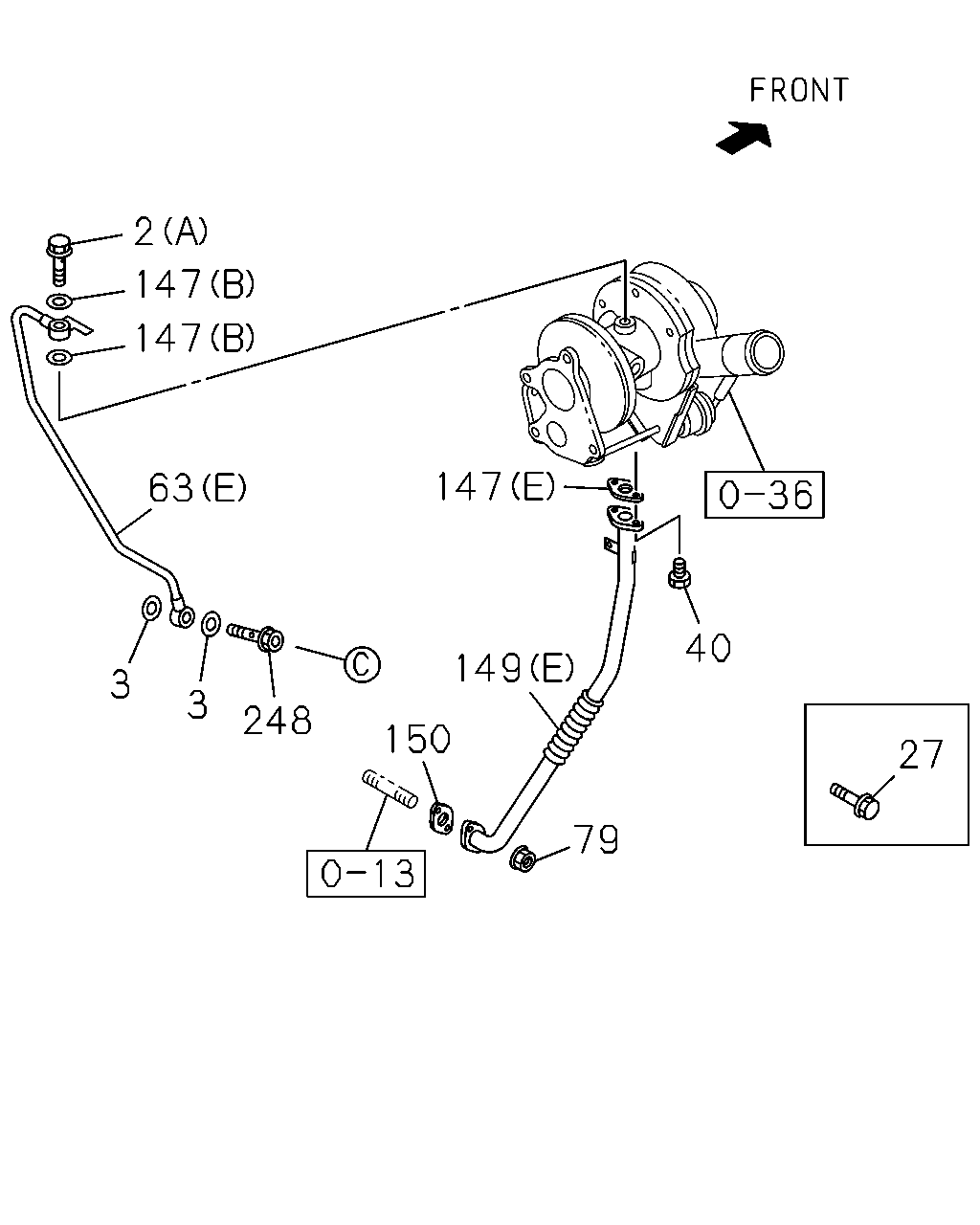

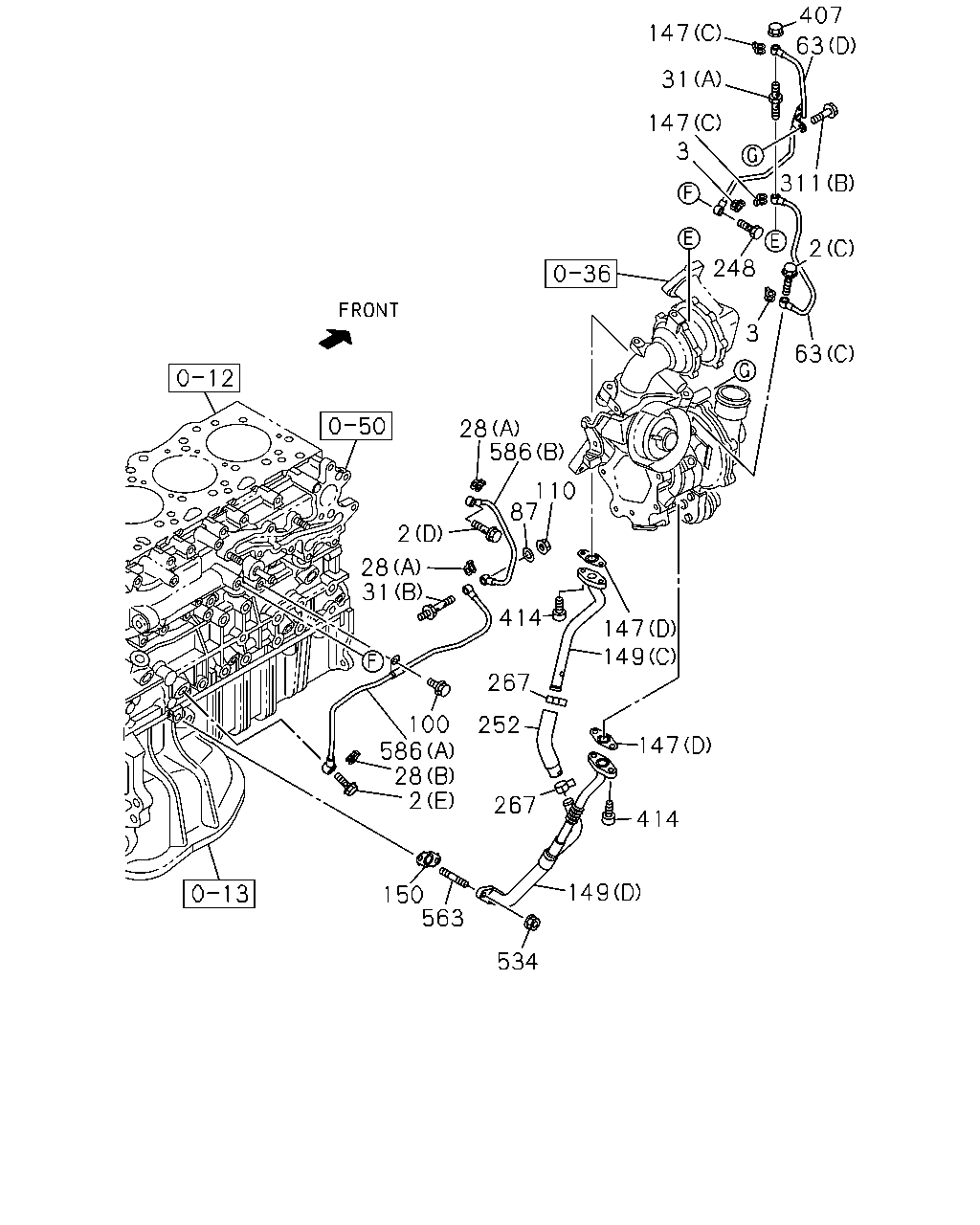

63 534 150 563 149 147 414 3 147 248 147 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1206-				●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-98186-729-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1206-	●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1206-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1206-					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1206-		●	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1206-		●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (E)	8-97350-308-0	01	1	1206-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1206-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (D)	8-98178-927-1	01	1	1206-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98178-928-0	01	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (E)	8-94362-672-1	01	1	1206-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16	8-98029-475-0	02	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1206-	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1206-		●	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER HIGH ALTITUDE COMPENSATOR<EE2> (A)	8-98219-824-0	01	1	1206-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. HIGH ALTITUDE COMPENSATOR<EE2> (A)	8-98189-782-0	01	1	1206-		●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (E)	8-97333-749-1	01	1	1206-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1206-				●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (D)	8-98151-189-0	01	1	1206-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98151-190-2	01	1	1206-					●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1206-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1206-		●	●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1206-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M10X24	8-98178-353-1	01	1	1206-					●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1206-		●	●	●
414	01.531 BOLT; OIL PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	04	1	1206-					●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1206-		●	●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-		●	●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1206-		●	●	●	●

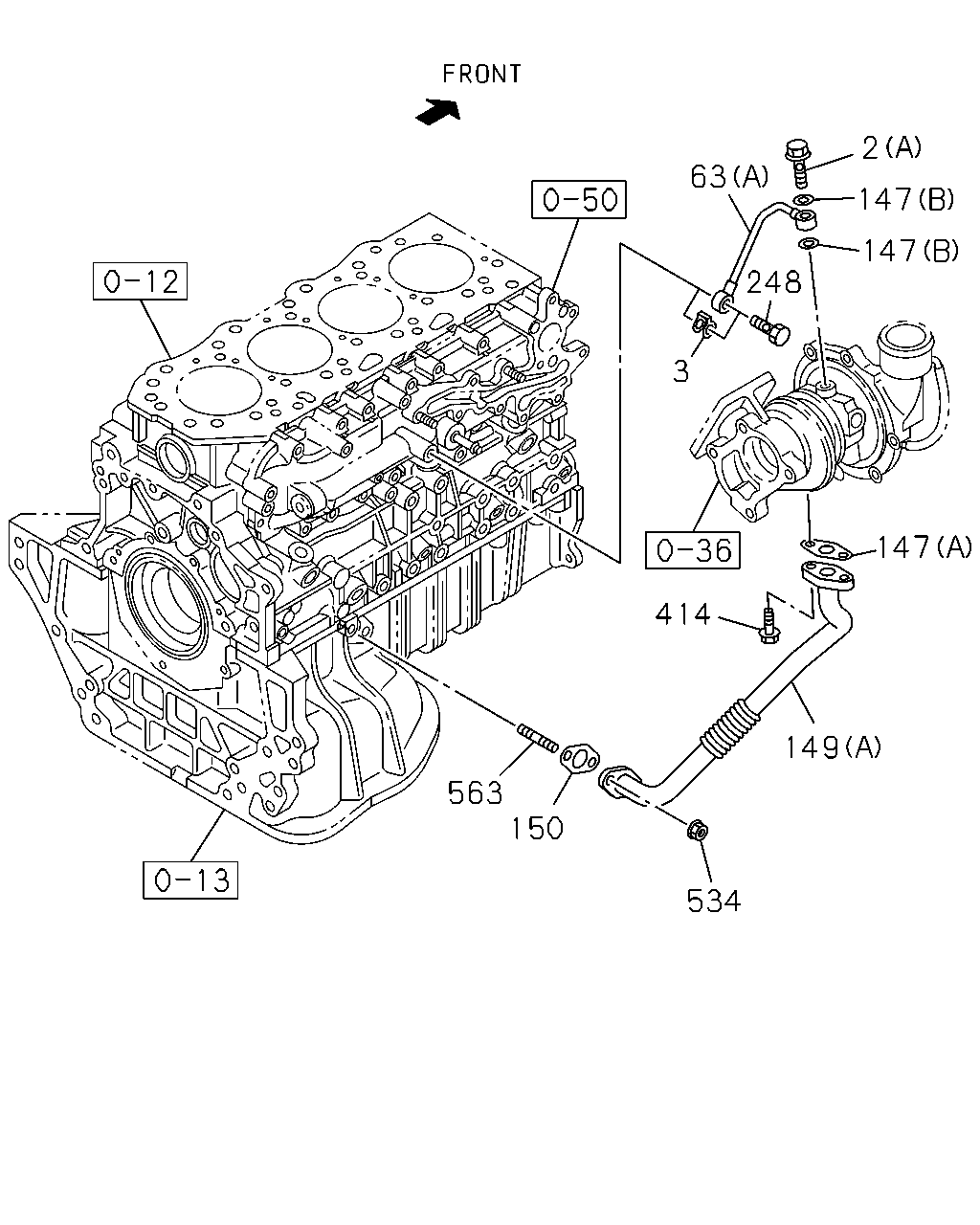

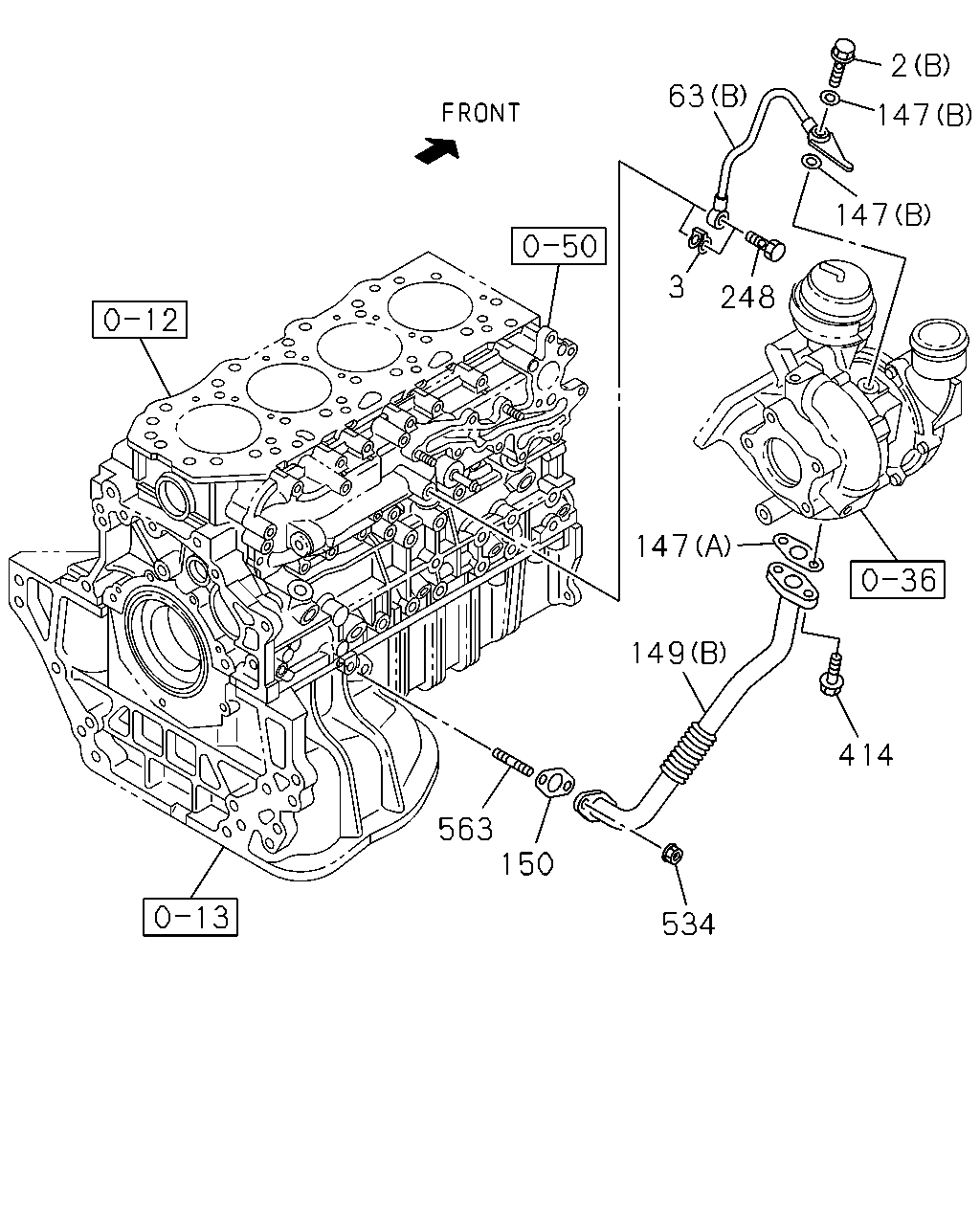

563 150 534 149 414 147 147 147 2 3 248 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1206-				●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-98186-729-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1206-	●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1206-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1206-					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1206-		●	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1206-		●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (E)	8-97350-308-0	01	1	1206-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1206-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (D)	8-98178-927-1	01	1	1206-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98178-928-0	01	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (E)	8-94362-672-1	01	1	1206-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16	8-98029-475-0	02	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1206-	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1206-		●	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER HIGH ALTITUDE COMPENSATOR<EE2> (A)	8-98219-824-0	01	1	1206-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. HIGH ALTITUDE COMPENSATOR<EE2> (A)	8-98189-782-0	01	1	1206-		●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (E)	8-97333-749-1	01	1	1206-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1206-				●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (D)	8-98151-189-0	01	1	1206-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98151-190-2	01	1	1206-					●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1206-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1206-		●	●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1206-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M10X24	8-98178-353-1	01	1	1206-					●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1206-		●	●	●
414	01.531 BOLT; OIL PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	04	1	1206-					●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1206-		●	●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-		●	●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1206-		●	●	●	●

2 147 147 147 149 150 79 248 3 3 40 27 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1206-				●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-98186-729-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1206-	●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1206-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1206-					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1206-		●	●	●
27	01.531 BOLT; OIL PIPE FIX 03.407 M8X10 FLANGE	0-28050-810-0	01	1	1206-	●
40	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1206-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1206-		●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (E)	8-97350-308-0	01	1	1206-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1206-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (D)	8-98178-927-1	01	1	1206-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98178-928-0	01	1	1206-					●
79	01.531 NUT; OIL DRAIN PIPE 04.634 M8 FLANGE	8-97581-233-0	02	1	1206-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (E)	8-94362-672-1	01	1	1206-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16	8-98029-475-0	02	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1206-	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1206-		●	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER HIGH ALTITUDE COMPENSATOR<EE2> (A)	8-98219-824-0	01	1	1206-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. HIGH ALTITUDE COMPENSATOR<EE2> (A)	8-98189-782-0	01	1	1206-		●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (E)	8-97333-749-1	01	1	1206-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1206-				●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (D)	8-98151-189-0	01	1	1206-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98151-190-2	01	1	1206-					●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1206-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1206-		●	●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1206-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M10X24	8-98178-353-1	01	1	1206-					●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1206-		●	●	●

29 58 29 57 26 28 28 118 313 219 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	1206-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (C) ID=11	5-09623-002-0	02	1	1206-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (A) ID=8.3 OD=15.0	8-98065-992-0	02	1	1206-					●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1206-					●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	1206-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1206-	●	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	1206-		●	●	●	●
48	01.531 CLIP; OIL PIPE ID=7 & 9 L=25	1-09701-228-3	01	1	1206-	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	1206-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1206-		●	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1206-1407	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	1206-		●	●	●	●
118	01.531 BRACKET; CLIP,OIL PIPE	8-97350-307-2	01	1	1206-	●
219	01.531 BOLT; CLIP FIX,OIL PIPE 03.162 M6X35 FLANGE	0-28650-635-0	01	1	1206-	●
313	01.540 BOLT; PIPE BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1206-	●

534 563 150 414 267 2 586 252 414 267 147 149 87 110 147 31 2 28 3 2 311 63 3 586 147 31 147 407 149 28 63 248 100 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE (B) M10X25 FLANGE	8-98151-063-1	01	1	1206-				●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M14X27 FLANGE	1-09675-086-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (D) M8X23 FLANGE	8-98108-689-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27	8-98186-729-0	01	1	1206-					●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X27 FLANGE	8-94443-535-0	01	1	1206-	●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	1206-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	02	1	1206-					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	8-98136-142-0	01	1	1206-		●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (C) ID=11	5-09623-002-0	02	1	1206-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (A) ID=8.3 OD=15.0	8-98065-992-0	02	1	1206-					●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1206-					●
31	01.540 NIPPLE; OIL PIPE (A)	8-98178-328-2	01	1	1206-					●
31	01.540 NIPPLE; OIL PIPE (B)	8-98186-104-0	01	1	1206-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-98132-013-0	01	1	1206-		●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (E)	8-97350-308-0	01	1	1206-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-98132-014-1	01	1	1206-				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (D)	8-98178-927-1	01	1	1206-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (C)	8-98178-928-0	01	1	1206-					●
87	01.531 GASKET; JOINT BOLT 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	1206-					●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1206-					●
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	1206-1403					●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1404-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (E)	8-94362-672-1	01	1	1206-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16	8-98029-475-0	02	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0	8-98065-992-0	02	1	1206-					●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1206-	●	●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98132-017-0	01	1	1206-		●	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER HIGH ALTITUDE COMPENSATOR<EE2> (A)	8-98219-824-0	01	1	1206-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. HIGH ALTITUDE COMPENSATOR<EE2> (A)	8-98189-782-0	01	1	1206-		●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (E)	8-97333-749-1	01	1	1206-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (B)	8-98156-381-0	01	1	1206-				●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (D)	8-98151-189-0	01	1	1206-					●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (C)	8-98151-190-2	01	1	1206-					●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	1206-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1206-		●	●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	1206-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M10X24	8-98178-353-1	01	1	1206-					●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	1206-		●	●	●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-98177-334-2	01	1	1206-					●
267	01.531 CLIP; HOSE 01.540 ID=18.9	8-94478-875-0	02	1	1206-					●
311	01.531 BOLT; PIPE FIX 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	1206-	●
311	01.531 BOLT; PIPE FIX 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1206-					●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-		●	●	●	●
311	01.531 BOLT; PIPE FIX 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-					●
311	01.531 BOLT; PIPE FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1206-		●	●	●
407	01.531 NUT; CAP,TURBOCHARGER OIL FEED P 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	1206-1403					●
407	01.531 NUT; CAP,TURBOCHARGER OIL FEED P M8 CAP NUT FLANGE	8-98251-964-0	01	1	1404-					●
414	01.531 BOLT; OIL PIPE 00.724 M6X16 HEX SOCKET	0-58330-616-0	04	1	1206-					●
414	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1206-		●	●	●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-		●	●	●	●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	1206-		●	●	●	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98186-102-2	01	1	1206-					●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98186-103-2	01	1	1206-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
