0-50 — OIL COOLER AND OIL FILTER (#91032) — 58 parça

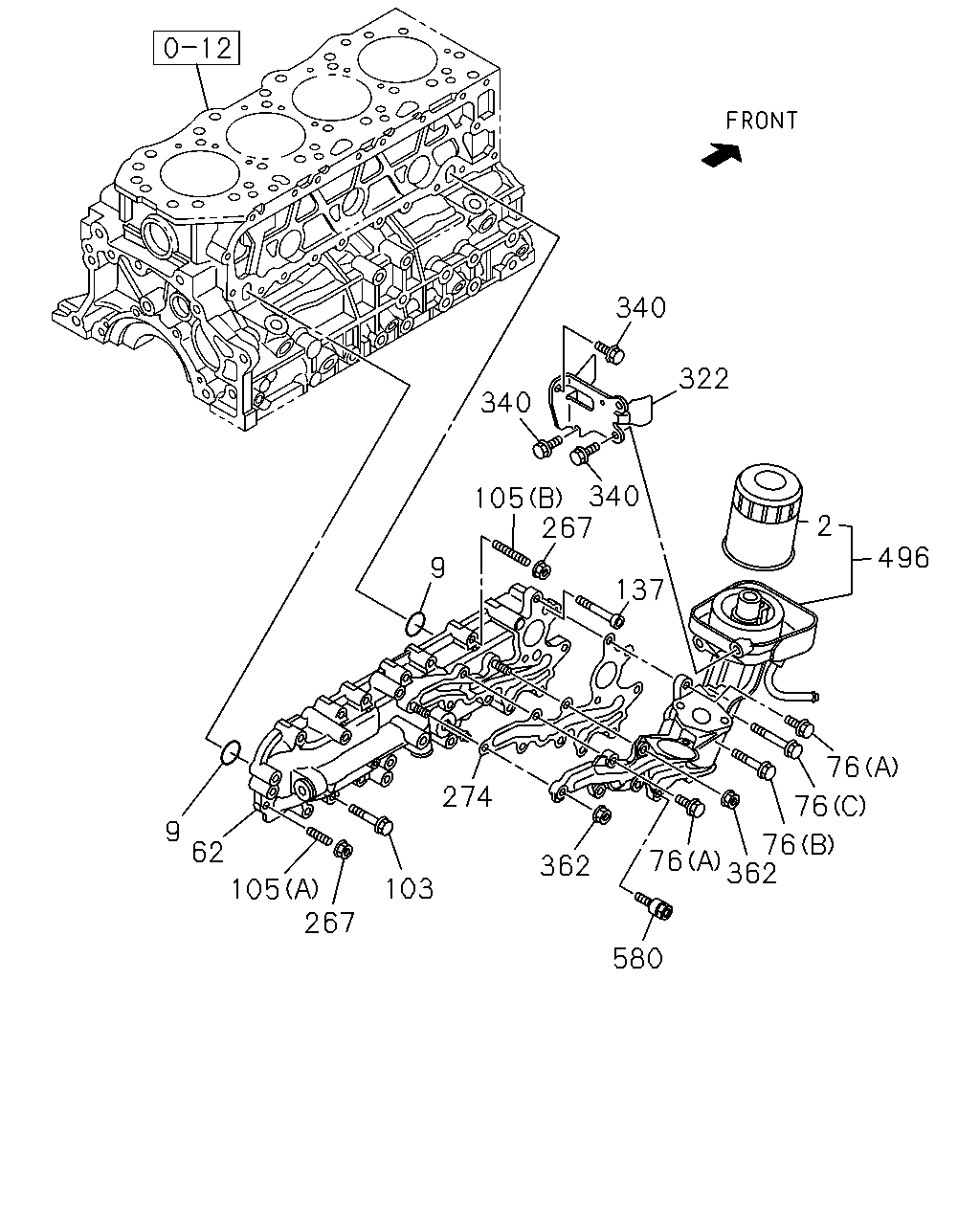

340 322 340 105 340 137 2 496 76 76 76 362 76 580 362 274 103 267 105 62 9 9 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	1206-	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1206-		●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97288-938-0	01	1	1206-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1206-		●	●	●	●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1206-		●	●
62	01.540 COOLER ASM; OIL	8-98185-691-0	01	1	1206-				●	●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	1206-	●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	06	1	1206-					●
76	01.840 BOLT; OIL FILTER 09.173 (B) M8X45 FLANGE	0-28050-845-0	01	1	1206-		●	●	●	●
76	01.840 BOLT; OIL FILTER 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	1206-		●	●	●	●
76	01.840 BOLT; OIL FILTER 03.275 (A) M8X25 FLANGE	0-28050-825-0	07	1	1206-		●	●	●
103	01.540 BOLT; OIL COOLER 09.173 M8X45 FLANGE	0-28050-845-0	15	1	1206-		●	●	●	●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	01	1	1206-		●	●	●	●
105	01.540 STUD; OIL COOLER 01.252 (B) M8X45 L=57	0-41010-845-0	01	1	1206-		●	●	●	●
137	01.840 BOLT 00.206 M8X60 HEX SOCKET	0-58330-860-0	03	1	1206-		●	●	●	●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-		●	●	●	●
274	01.844 GASKET; OIL FILTER	8-98124-080-1	01	1	1206-		●	●	●	●
322	01.840 BRACKET; OIL FILTER	8-98132-020-1	01	1	1206-		●	●	●	●
340	01.840 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1206-		●	●	●	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-		●	●	●	●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1206-		●	●	●	●
580	01.540 ADAPTER	8-98181-435-0	01	1	1206-					●

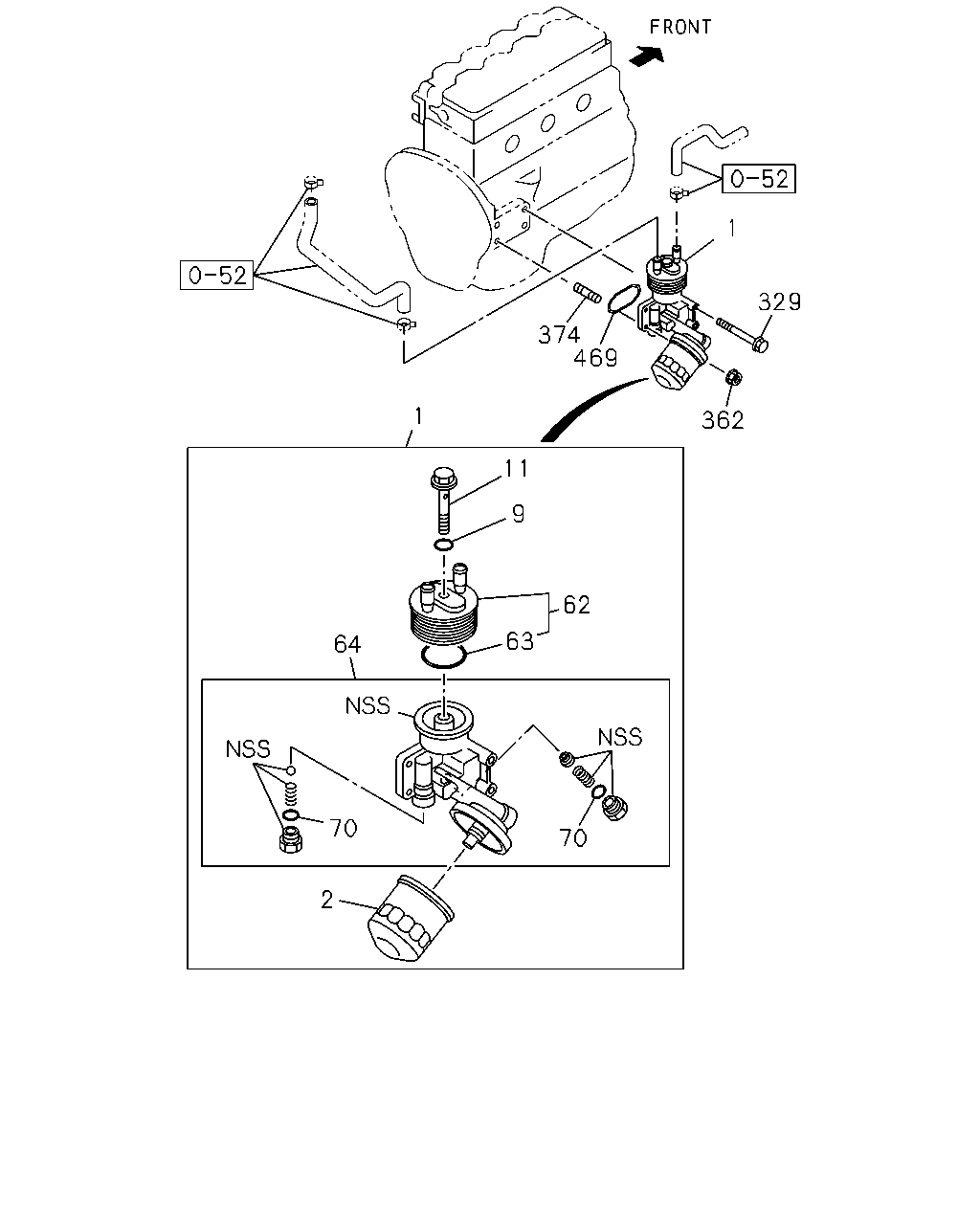

1 329 362 469 374 11 1 9 62 63 64 70 70 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-1	01	1	1206-	●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	1206-	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1206-		●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97288-938-0	01	1	1206-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1206-		●	●	●	●
11	01.840 BOLT; CENTER	8-97288-935-0	01	1	1206-	●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1206-		●	●
62	01.540 COOLER ASM; OIL	8-98185-691-0	01	1	1206-				●	●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	1206-	●
63	01.550 GASKET; COOLER TO BRKT	8-94450-917-0	01	1	1206-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	1206-	●
70	01.844 GASKET; PLUG,OIL FILTER	8-97914-706-0	02	1	1206-	●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	1206-	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1206-		●	●	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	1206-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98087-965-0	01	1	1206-	●

496 343 343 343 343 278 201 278 342 462 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
201	01.540 PIPE; VINYL,OIL DRAIN	8-98199-904-0	01	1	1206-	●	●	●
278	01.540 CLAMP; RUBBER HOSE 03.162 ID=14	8-97173-221-0	02	1	1206-	●	●	●
342	03.675 HOSE; OIL DRAIN (A)	8-98199-910-0	01	1	1206-	●	●	●
342	03.675 HOSE; OIL DRAIN (B)	8-98200-230-1	01	1	1206-	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN 02.559 (A) ID=16	8-97040-812-0	01	1	1206-1208	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN 02.559 (A) ID=16	8-97040-812-0	01	1	1209-1210	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN IDENTIFICATION LABEL FOR KD<6UT> 02.559 (A) ID=16	8-97040-812-0	01	1	1209-1210	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN 02.559 (A) ID=16	8-97040-812-0	01	1	1211-	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN (B)	8-98074-648-0	02	1	1206-1208	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN (B)	8-98074-648-0	02	1	1209-1210	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98074-648-0	02	1	1209-1210	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN (B)	8-98074-648-0	02	1	1211-	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN (C)	8-98074-650-0	01	1	1206-1208	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN (C)	8-98074-650-0	01	1	1209-1210	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98074-650-0	01	1	1209-1210	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN (C)	8-98074-650-0	01	1	1211-	●	●	●
462	01.540 CLIP; HOSE,DRAIN 04.681	8-97025-737-1	01	1	1206-	●	●	●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1206-	●	●	●	●
