Isuzu WW
▶
PICKUP
▶
TFR
▶
51411 - TFR/TFS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#91026) — 33 parça
Tümü
A - 4JA1-T ENG
B - 4JJ1-TCS ENG
C - 4JK1-TCS ENG
D - 4JK1-TCX ENG
E - 4JK1-TCY ENG
◀
[032A] 4JK1-TCY(NO.1) (9 parça)
[032A] 4JK1-TCY(NO.2) (3 parça)
[032A] 4JA1(NO.1) (7 parça)
[032A] 4JJ1,4JK1-TCS,4JK1-TCX (12 parça)
[032A] 4JA1(NO.2) (2 parça)
▶

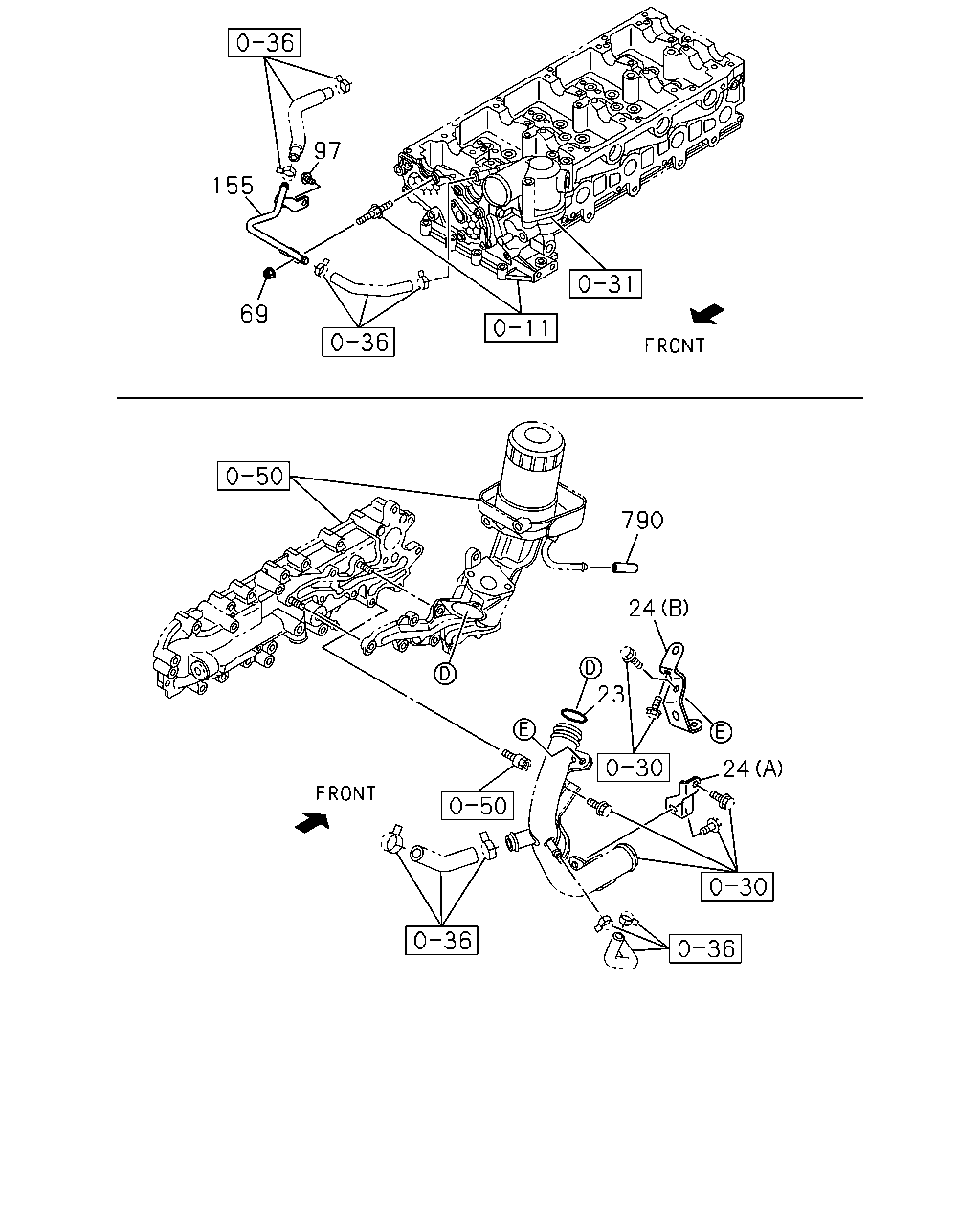

24
23
24
790
69
155
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1206-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
0-95690-338-0
01
1
1206-
●
●
●
●
24
01.166 BRACKET; WATER PIPE
(A)
8-97375-053-2
01
1
1206-
●
●
●
●
24
01.166 BRACKET; WATER PIPE
(B)
8-98132-031-0
01
1
1206-
●
●
●
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
01
1
1206-
●
●
●
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE
0-28050-612-0
01
1
1206-
●
●
●
●
155
01.153 PIPE ASM; WATER
8-98151-199-1
01
1
1206-
●
155
01.153 PIPE ASM; WATER
8-98132-032-0
01
1
1206-
●
●
●
790
01.097 CAP
8-98158-433-0
01
1
1206-
●

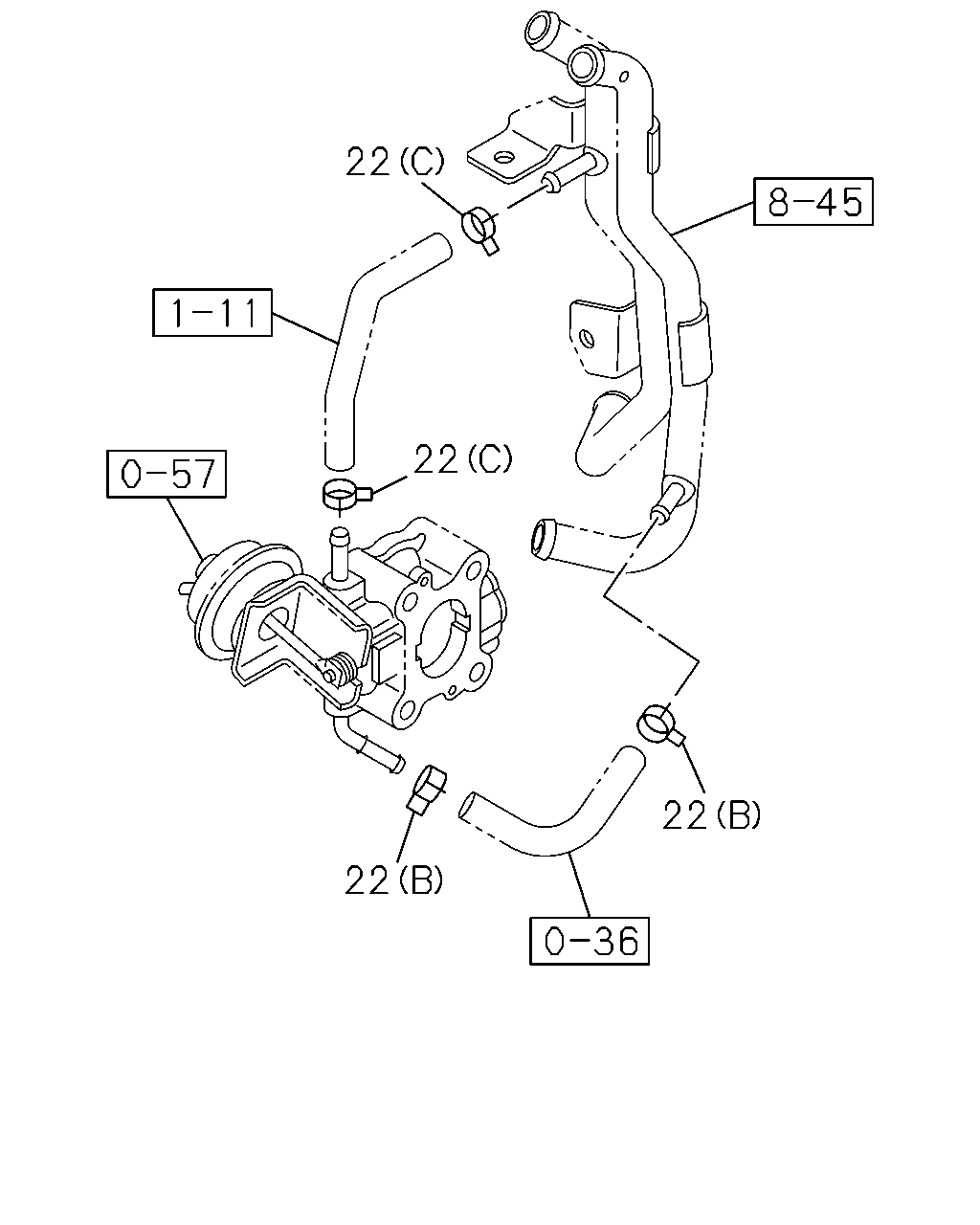

22
22
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
22
01.153 CLIP; WATER HOSE
03.342 (A) ID=15.1
8-98179-581-0
02
1
1206-
●
●
22
01.153 CLIP; WATER HOSE
03.342 (C) ID=12.8
8-97944-125-0
02
1
1206-
●
22
01.153 CLIP; WATER HOSE
03.330 (B) ID=11.5
8-98051-892-0
02
1
1206-
●

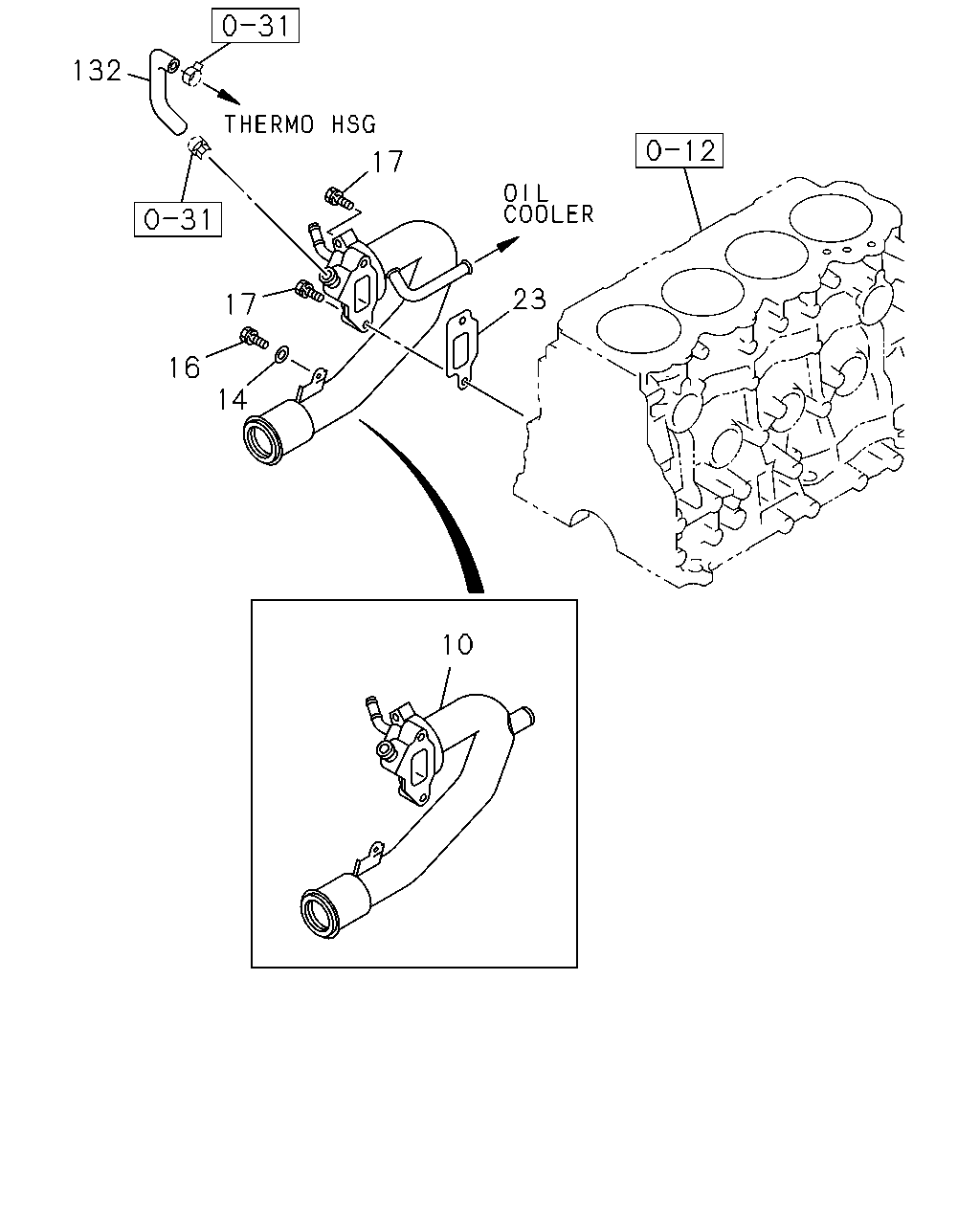

10
17
16
17
132
23
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
10
01.153 PIPE; SUCTION
8-97381-633-0
01
1
1206-
●
14
01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3
8-94174-537-0
01
1
1206-
●
16
01.097 BOLT; INL PIPE
00.206 M8X20 W/LK WASHER
0-50540-820-0
01
1
1206-
●
17
01.153 BOLT; SUCTION PIPE
00.206 M8X50 W/LK WASHER
0-50540-850-0
02
1
1206-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1206-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
0-95690-338-0
01
1
1206-
●
●
●
●
132
01.153 HOSE; WATER PIPE
01.097
8-94382-246-0
01
1
1206-
●

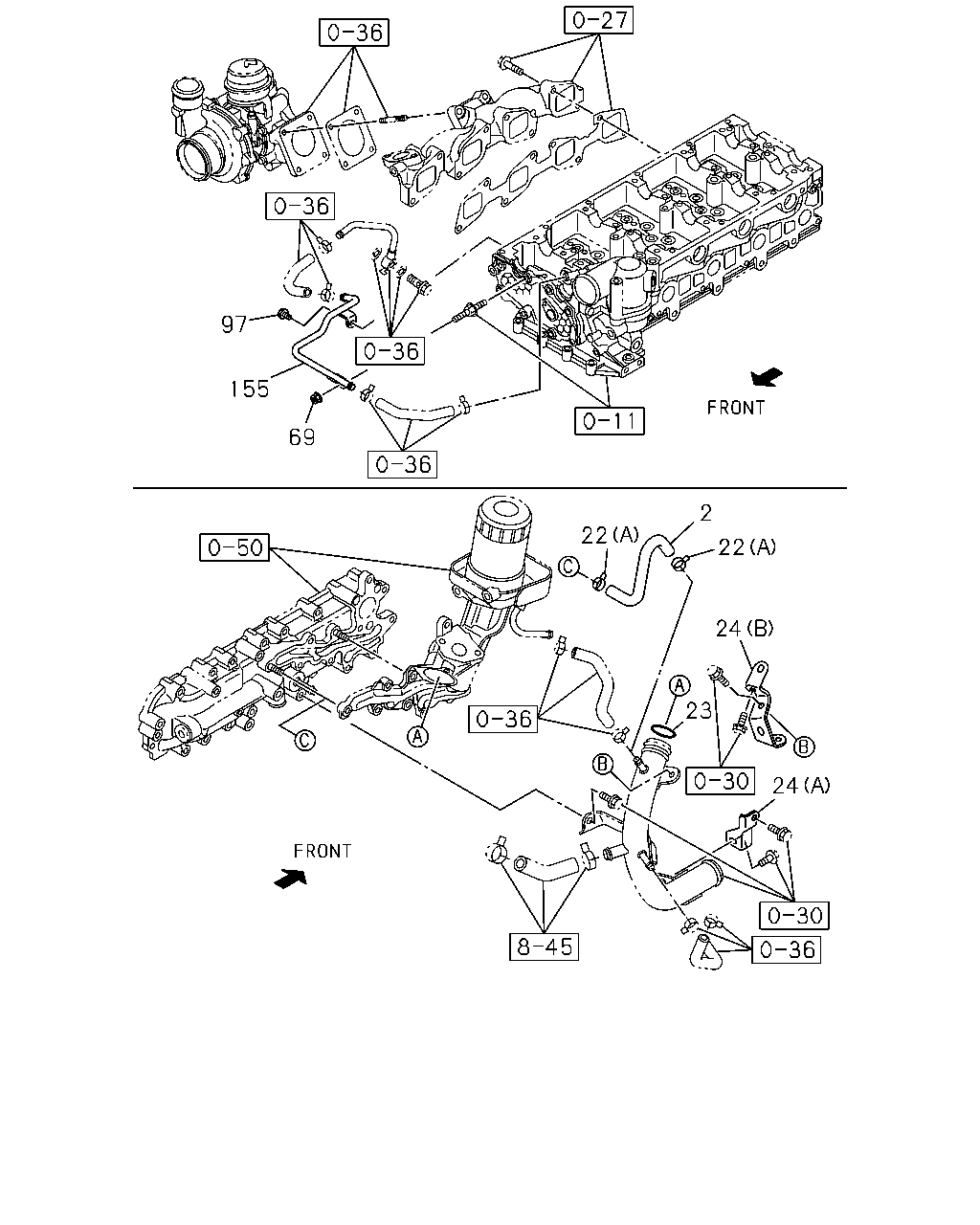

97
155
69
22
2
24
22
23
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
2
01.097 HOSE; WATER,BY-PASS
8-98168-393-1
01
1
1206-
●
●
22
01.153 CLIP; WATER HOSE
03.342 (A) ID=15.1
8-98179-581-0
02
1
1206-
●
●
22
01.153 CLIP; WATER HOSE
03.342 (C) ID=12.8
8-97944-125-0
02
1
1206-
●
22
01.153 CLIP; WATER HOSE
03.330 (B) ID=11.5
8-98051-892-0
02
1
1206-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1206-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
0-95690-338-0
01
1
1206-
●
●
●
●
24
01.166 BRACKET; WATER PIPE
(A)
8-97375-053-2
01
1
1206-
●
●
●
●
24
01.166 BRACKET; WATER PIPE
(B)
8-98132-031-0
01
1
1206-
●
●
●
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
01
1
1206-
●
●
●
●
97
04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE
0-28050-612-0
01
1
1206-
●
●
●
●
155
01.153 PIPE ASM; WATER
8-98151-199-1
01
1
1206-
●
155
01.153 PIPE ASM; WATER
8-98132-032-0
01
1
1206-
●
●
●

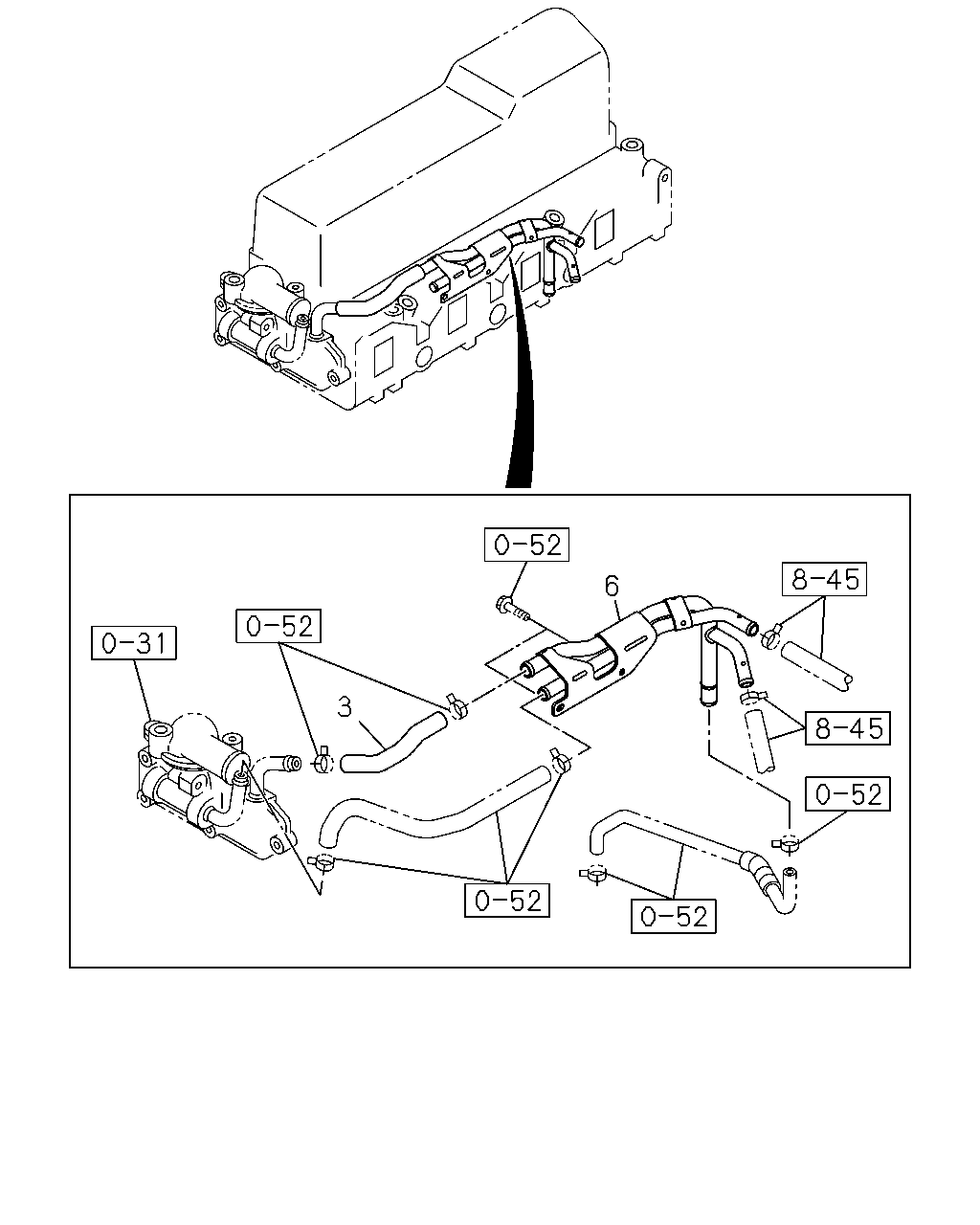

6
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
3
01.540 HOSE; WATER,OIL COOLER
8-97354-155-1
01
1
1206-
●
6
09.190 CONNECTOR; HTR & COOLER HOSE
8-98200-080-2
01
1
1206-
●
