0-22 — ENGINE MOUNTING (#91020) — 82 parça

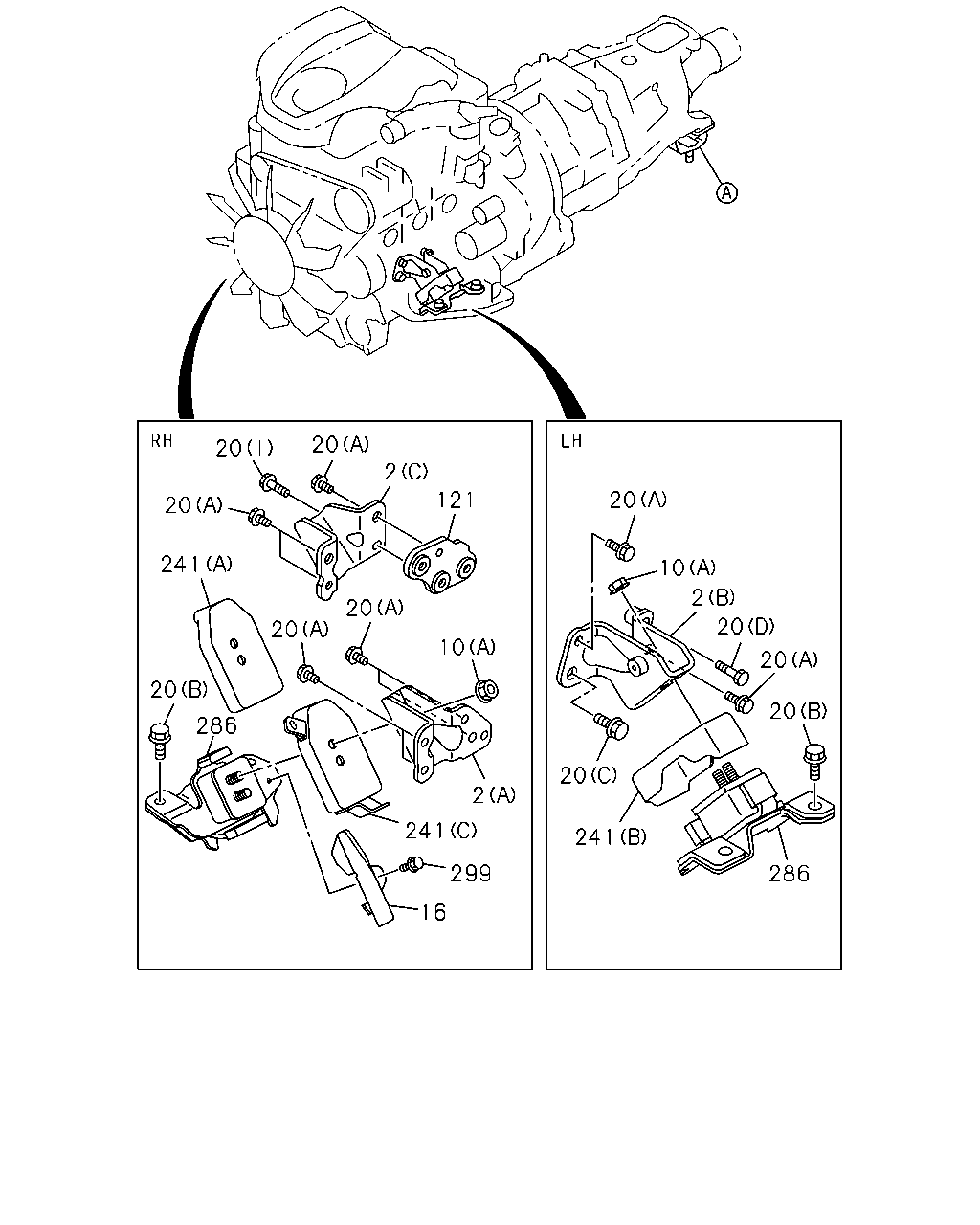

çizim 283038
20 20 121 2 20 20 10 20 241 2 241 299 16 286 20 20 10 2 20 20 20 286 241 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 00.029 FOOT; ENG
(C) 		8-98208-226-0 01 1 1206- ●
2 00.029 FOOT; ENG
(A) 		8-98132-100-0 01 1 1206- ● ● ● ●
2 00.029 FOOT; ENG
(B) 		8-98132-101-0 01 1 1206- ● ● ● ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) (A) M10 FLANGE 		0-91180-210-0 02 1 1206- ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1206- ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1206- ● ● ● ● ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1206- ● ● ● ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98215-263-0 01 1 1206- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98182-916-1 01 1 1206- ● ● ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 07 1 1206- ●
20 00.029 BOLT; ENG FOOT
00.685 (I) M10X40 FLANGE 		0-28051-040-0 01 1 1206- ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1206- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1206-1409 ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1410- ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS> (H) M10X25 FLANGE 		0-28651-025-0 04 1 1410- ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1206-1409 ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1410- ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS> 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1410- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1206- ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1206- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1206- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T AISIN 6 SPEED(RNU) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1206- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1206- ● ● ● ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1206- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1206- ● ● ● ● ●
121 00.029 BRACKET; ENG FOOT,FRT 8-98208-227-0 01 1 1206- ●
241 00.027 COVER; ENG MTG
(C) 		8-98193-431-0 01 1 1206- ●
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (A) 		8-98194-507-1 01 1 1206- ● ●
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (B) 		8-98194-508-1 01 1 1206- ● ●
241 00.027 COVER; ENG MTG
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98101-957-1 01 1 1206- ● ● ●
241 00.027 COVER; ENG MTG
(B) 		8-98101-957-1 01 1 1206- ● ●
241 00.027 COVER; ENG MTG
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98101-956-2 01 1 1206- ● ● ●
241 00.027 COVER; ENG MTG
(A) 		8-98101-956-2 01 1 1206- ●
286 00.027 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1307-1308 ● ● ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1309- ● ● ● ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98075-376-2 01 1 1206- ● ● ● ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98183-242-0 01 1 1206-1306 ● ● ● ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98183-242-0 01 1 1307-1308 ●
299 00.029 BOLT
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1206- ● ● ● ● ●
çizim 283567
52 20 10 10 52 10 52 20 10 20 52 10 20 78
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) (A) M10 FLANGE 		0-91180-210-0 02 1 1206- ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1206- ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1206- ● ● ● ● ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1206- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 07 1 1206- ●
20 00.029 BOLT; ENG FOOT
00.685 (I) M10X40 FLANGE 		0-28051-040-0 01 1 1206- ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1206- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1206-1409 ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1410- ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS> (H) M10X25 FLANGE 		0-28651-025-0 04 1 1410- ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1206-1409 ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1410- ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS> 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1410- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1206- ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1206- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1206- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T AISIN 6 SPEED(RNU) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1206- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1206- ● ● ● ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1206- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1206- ● ● ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EQUIPMENT IMPACT<EPS> (A) 		8-98270-984-0 01 1 1410- ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EQUIPMENT IMPACT<EPS> (D) 		8-98270-987-0 01 1 1410- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) M/T MUA 5 SPEED 5H(MWQ) EQUIPMENT IMPACT<EPS> (B) 		8-98270-985-0 01 1 1410- ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 5 SPEED-AISIN(MA1) EQUIPMENT IMPACT<EPS> (B) 		8-98238-913-0 01 1 1410- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98193-626-0 01 1 1206-1409 ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
(A) 		8-98193-626-0 01 1 1206-1409 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98193-626-0 01 1 1410- ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
(A) 		8-98193-626-0 01 1 1410- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T AISIN 6 SPEED(RNU) (A) 		8-98178-330-2 01 1 1206- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) (D) 		8-98193-342-0 01 1 1206-1409 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS> (D) 		8-98193-342-0 01 1 1410- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (D) 		8-98181-069-1 01 1 1206- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98193-344-0 01 1 1206-1409 ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 EXTENDED CAB LONG(TFS6CF) 4X4 REGULAR CAB LONG(TFS6SF) M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98193-344-0 01 1 1410- ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) M/T MUA 5 SPEED 5H(MWQ) EXC. EQUIPMENT IMPACT<EPS> (B) 		8-98193-344-0 01 1 1410- ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (B) 		8-98193-346-0 01 1 1206-1409 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
EXTENDED CAB(TF**C*) A/T 5 SPEED-AISIN(MA1) (B) 		8-98193-346-0 01 1 1410- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS> (B) 		8-98193-346-0 01 1 1410- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T AISIN 6 SPEED(RNU) (C) 		8-98181-072-2 01 1 1206- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (B) 		8-98181-071-1 01 1 1206- ●
78 00.029 BRACKET; ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) 		8-98164-580-2 01 1 1206-1409 ● ● ●
78 00.029 BRACKET; ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) 		8-98164-580-2 01 1 1410- ● ●
78 00.029 BRACKET; ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS> 		8-98164-580-2 01 1 1410- ●
