2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#9102) — 64 parça

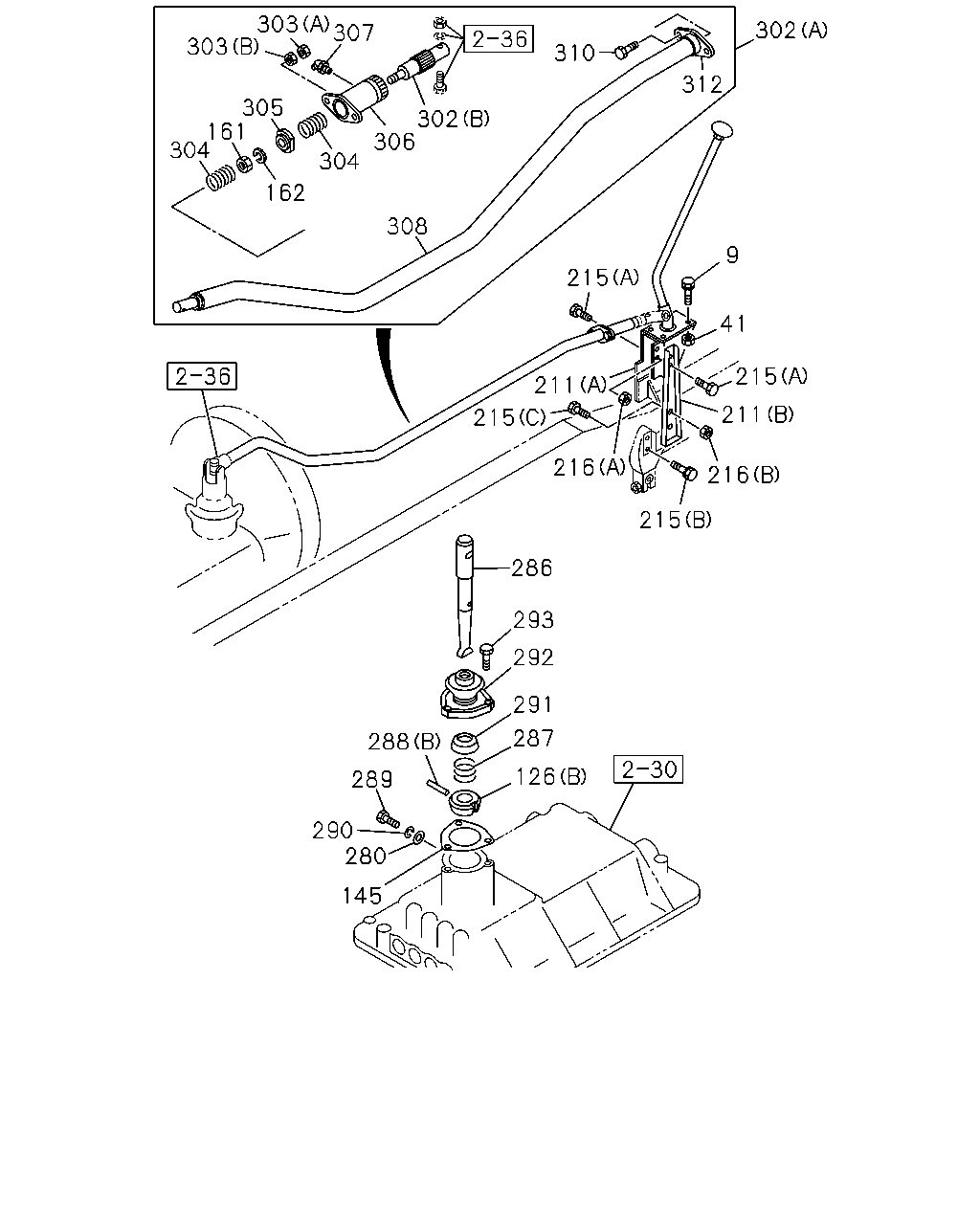

çizim 18815
303 303 307 302 310 312 305 161 304 302 306 304 162 308 9 215 41 215 211 211 215 216 216 215 286 293 292 291 287 288 126 289 290 280 145
BalonParca AdiParca NoAdetTipApplied Date
9 BOLT; CHANGE LEVER
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9606-
41 NUT; CHANGE LEVER
M8 		9-09110-408-0 04 1 9606-
126 BOSS; CHANGE LEVER
(A) 		1-33615-027-0 01 1 9606-
126 BOSS; CHANGE LEVER
(B) 		9-33615-041-0 01 1 9606-
145 GASKET; CHANGE LEVER TO TRANS
ALSO INCLUDED IN GASKET SET(M/T). 		9-33619-089-0 01 1 9606-
161 NUT; CONT ROD TO RELAY LEVER
M14 		9-99110-414-0 01 1 9606-
162 WASHER; LK,CONT ROD
ID=14.2 		9-09150-514-0 01 1 9606-
211 BRACKET; CHANGE LEVER
RIGHT HAND DRIVE(MVR5FB) (A) 		1-33619-164-1 01 1 9606-
211 BRACKET; CHANGE LEVER
RIGHT HAND DRIVE(MVR5FB) (B) 		1-33657-248-0 01 1 9606-
211 BRACKET; CHANGE LEVER
LEFT HAND DRIVE(MVR6FB) (A) 		1-33657-309-0 01 1 9606-
211 BRACKET; CHANGE LEVER
LEFT HAND DRIVE(MVR6FB) (B) 		1-33657-310-0 01 1 9606-
215 BOLT; BRKT,CHANGE LEVER
(A) M8X20 W/LK WASHER 		0-50040-820-0 06 1 9606-
215 BOLT; BRKT,CHANGE LEVER
(B) M12X28 W/LK WASHER 		0-50041-228-0 01 1 9606-
215 BOLT; BRKT,CHANGE LEVER
(C) M12X35 W/LK WASHER 		0-50041-235-0 02 1 9606-
216 NUT; BRKT,CHANGE LEVER
(A) M8 		9-09110-408-0 06 1 9606-
216 NUT; BRKT,CHANGE LEVER
(B) M12 		9-99110-512-0 02 1 9606-
280 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 9606-
286 LEVER; CHANGE,TRANS
RIGHT HAND DRIVE(MVR5FB) 		1-33613-140-0 01 1 9606-
286 LEVER; CHANGE,TRANS
LEFT HAND DRIVE(MVR6FB) 		1-33613-156-0 01 1 9606-
287 SPRING; COIL,CHANGE LEVER 9-09940-012-0 01 1 9606-
288 PIN; KNOCK,CHANGE LEVER
(B) 		9-09878-110-0 01 1 9606-
288 PIN; KNOCK,CHANGE LEVER
(A) 		9-09878-594-0 01 1 9606-
289 SCREW; BOSS 9-06130-822-0 01 1 9606-
290 WASHER; LK,BOSS
ID=8.2 		9-09150-508-0 01 1 9606-
291 CAGE; CHANGE LEVER 9-33616-005-0 01 1 9606-
292 COVER; DUST,CAGE,CHANGE LEVER 1-33614-091-0 01 1 9606-
293 BOLT; COVER,QUAD BOX
M8X20 		0-20800-820-0 03 1 9606-
302 ROD ASM; TRANS CONT
(B) 		1-33652-169-1 01 1 9606-
302 ROD ASM; TRANS CONT
RIGHT HAND DRIVE(MVR5FB) (A) 		1-33650-943-0 01 1 9606-
302 ROD ASM; TRANS CONT
LEFT HAND DRIVE(MVR6FB) (A) 		1-33660-208-0 01 1 9606-
303 NUT; SLEEVE TO CONT
(B) M10 		9-09110-410-0 02 1 9606-
303 NUT; SLEEVE TO CONT
(A) M10 		9-09111-410-0 02 1 9606-
304 SPRING; TRANS CONT 9-09940-831-0 02 1 9606-
305 GUIDE; CONT ROD 9-33659-384-0 01 1 9606-
306 SLEEVE; TRANS CONT 9-33659-399-0 01 1 9606-
307 NIPPLE; GREASE,SLEEVE
PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9606-
308 ROD; LINK,CONT
RIGHT HAND DRIVE(MVR5FB) 		1-33652-403-0 01 1 9606-
308 ROD; LINK,CONT
LEFT HAND DRIVE(MVR6FB) 		1-33652-461-0 01 1 9606-
310 BOLT; SLEEVE TO CONT ROD
M10X28 		0-20801-028-0 02 1 9606-
312 FLANGE; CONT ROD 9-33659-407-0 01 1 9606-
çizim 74375
1 298 8 140 296 140 297 77 297 296 264 140 140 240 294 129 127 263 126 263 288 21
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 9-33611-070-0 01 1 9606-
8 LEVER; CHANGE
RIGHT HAND DRIVE(MVR5FB) 		1-33613-239-0 01 1 9606-
8 LEVER; CHANGE
LEFT HAND DRIVE(MVR6FB) 		1-33613-266-0 01 1 9606-
21 SEAT; CHANGE LEVER 1-33619-293-0 01 1 9606-
77 PIN; CHANGE LEVER 1-33659-091-0 01 1 9606-
126 BOSS; CHANGE LEVER
(A) 		1-33615-027-0 01 1 9606-
126 BOSS; CHANGE LEVER
(B) 		9-33615-041-0 01 1 9606-
127 SUPPORT; CHANGE LEVER 1-33619-112-0 01 1 9606-
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9606-
140 RING; SNAP
T=0.9 OD=19.5 		1-09587-068-0 AR 1 9606-
140 RING; SNAP
T=1.00 OD=19.5 		1-09587-069-0 AR 1 9606-
140 RING; SNAP
T=1.025 OD=19.5 		1-09587-070-0 AR 1 9606-
140 RING; SNAP
T=1.05 OD=19.5 		1-09587-071-0 AR 1 9606-
140 RING; SNAP
ID=14.7 		9-09180-416-0 02 1 9606-
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-049-0 01 1 9606-
263 SHIM
T=0.3 ID=25 		1-33612-004-0 01 1 9606-
263 SHIM
T=0.1 ID=25 		1-33612-005-0 01 1 9606-
264 PLATE; COVER 1-33619-026-0 01 1 9606-
288 PIN; KNOCK,CHANGE LEVER
(B) 		9-09878-110-0 01 1 9606-
288 PIN; KNOCK,CHANGE LEVER
(A) 		9-09878-594-0 01 1 9606-
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9606-
296 BEARING; NEEDLE ROLLER 1-09811-280-0 02 1 9606-
297 SEAL; DUST,CHANGE LEVER 1-33614-092-0 02 1 9606-
298 NUT; LK,KNOB 9-33619-043-0 01 1 9606-
