0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#91018) — 169 parça

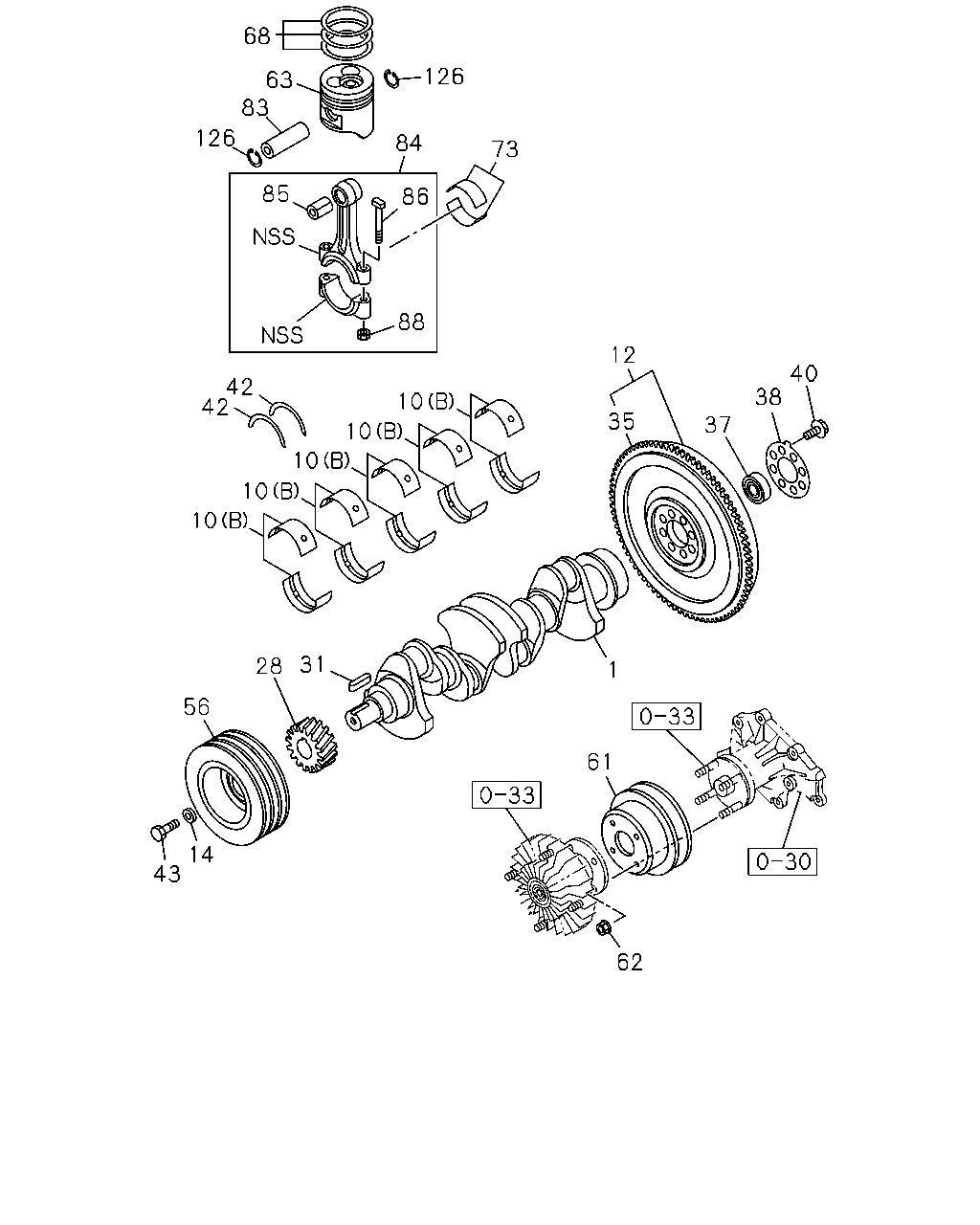

68 63 83 126 126 84 73 86 85 88 42 42 10 10 10 10 10 12 35 37 38 40 1 61 62 31 28 56 14 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1211-	●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	1206-	●
1	00.646 CRANKSHAFT	8-97190-927-1	01	1	1206-		●
1	00.646 CRANKSHAFT	8-98131-999-1	01	1	1206-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 5	8-97387-970-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 4	8-97387-971-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 3	8-97387-972-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 2	8-97387-973-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 1	8-97387-974-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) GREEN	8-97388-502-0	05	1	1206-	●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLACK	8-97388-503-0	05	1	1206-	●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLUE	8-97388-504-0	05	1	1206-	●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) YELLOW	8-97388-505-0	05	1	1206-	●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) RED	8-97388-506-0	05	1	1206-	●		●	●	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	1206-	●		●	●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	1206-		●
12	00.666 FLYWHEEL M/T AISIN 6 SPEED(RNU)	8-98186-653-1	01	1	1206-1409					●
12	00.666 FLYWHEEL M/T AISIN 6 SPEED(RNU)	8-98283-475-0	01	1	1410-					●
12	00.666 FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-505-0	01	1	1206-	●			●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1206-	●	●	●	●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	1206-		●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	1206-	●		●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	1206-1210		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	1211-	●	●	●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	1206-	●		●	●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED 5H(MWQ) Z=108	8-97912-516-1	01	1	1206-	●		●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	1206-		●
35	00.673 GEAR; RING A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) Z=122	8-94364-395-1	01	1	1206-	●			●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	1206-		●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1206-		●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98195-090-0	01	1	1206-	●			●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-506-0	01	1	1206-					●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.669	8-94133-970-1	01	1	1206-	●		●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1206-		●
40	00.669 BOLT; FLYWHEEL A/T 5 SPEED-AISIN(MA1) M13X78	8-97080-561-1	08	1	1206-	●			●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) M13X36	8-97941-069-0	08	1	1206-	●		●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	1206-		●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	1206-	●		●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1206-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	1206-	●		●	●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97306-533-5	01	1	1206-		●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1206-	●		●	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	1206-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1206-	●		●	●	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	1206-		●
63	00.629 PISTON GRADE=A	8-98028-116-0	04	1	1206-	●
63	00.629 PISTON GRADE=B	8-98028-117-0	04	1	1206-	●
63	00.629 PISTON GRADE=C	8-98028-118-0	04	1	1206-	●
63	00.629 PISTON GRADE=A	8-98132-548-1	04	1	1206-			●	●
63	00.629 PISTON GRADE=B	8-98132-549-1	04	1	1206-			●	●
63	00.629 PISTON GRADE=C	8-98132-550-1	04	1	1206-			●	●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	1206-		●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	1206-		●
63	00.629 PISTON GRADE=A	8-98180-017-1	04	1	1206-					●
63	00.629 PISTON GRADE=B	8-98180-018-1	04	1	1206-					●
63	00.629 PISTON GRADE=C	8-98180-019-1	04	1	1206-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	1206-		●
68	00.643 RING SET; PISTON,STANDARD	8-98171-040-0	04	1	1206-	●		●	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-98188-893-0	04	1	1507-					●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1206-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1206-1506	●		●	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1507-	●		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	1206-		●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	1206-	●		●	●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1211-	●		●	●	●
84	00.603 ROD ASM; CONN	8-98012-611-2	04	1	1206-		●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	1206-	●		●	●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	1206-		●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1206-1406	●		●	●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.ALSO INCLUDED IN LINER SET.	8-97383-066-0	08	1	1407-	●		●	●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	1206-		●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1206-1406	●		●	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	16	1	1407-	●		●	●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	1206-		●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	1206-		●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1206-	●		●	●	●

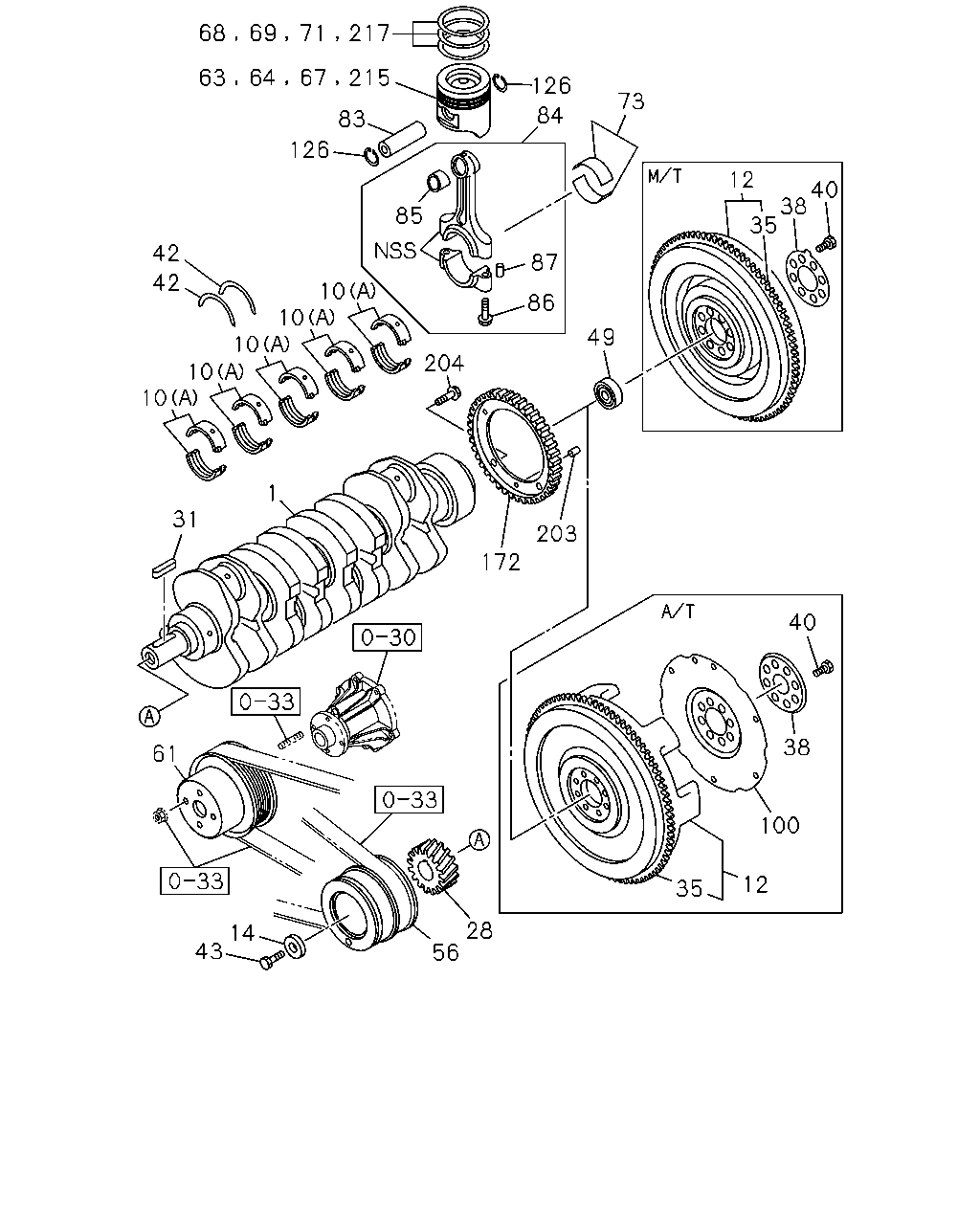

40 38 35 12 49 40 38 100 12 35 28 56 43 61 14 172 203 31 1 204 86 87 73 84 85 10 10 10 10 10 42 42 126 83 215 67 64 63 217 71 69 68 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1211-	●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	1206-	●
1	00.646 CRANKSHAFT	8-97190-927-1	01	1	1206-		●
1	00.646 CRANKSHAFT	8-98131-999-1	01	1	1206-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 5	8-97387-970-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 4	8-97387-971-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 3	8-97387-972-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 2	8-97387-973-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (B) GRADE 1	8-97387-974-0	05	1	1206-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) GREEN	8-97388-502-0	05	1	1206-	●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLACK	8-97388-503-0	05	1	1206-	●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) BLUE	8-97388-504-0	05	1	1206-	●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) YELLOW	8-97388-505-0	05	1	1206-	●		●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD (A) RED	8-97388-506-0	05	1	1206-	●		●	●	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	1206-	●		●	●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	1206-		●
12	00.666 FLYWHEEL M/T AISIN 6 SPEED(RNU)	8-98186-653-1	01	1	1206-1409					●
12	00.666 FLYWHEEL M/T AISIN 6 SPEED(RNU)	8-98283-475-0	01	1	1410-					●
12	00.666 FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-505-0	01	1	1206-	●			●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1206-	●	●	●	●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	1206-		●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	1206-	●		●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	1206-1210		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	1211-	●	●	●	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	1206-	●		●	●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED 5H(MWQ) Z=108	8-97912-516-1	01	1	1206-	●		●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	1206-		●
35	00.673 GEAR; RING A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) Z=122	8-94364-395-1	01	1	1206-	●			●	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1206-		●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98195-090-0	01	1	1206-	●			●
38	00.862 WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-506-0	01	1	1206-					●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.669	8-94133-970-1	01	1	1206-	●		●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1206-		●
40	00.669 BOLT; FLYWHEEL A/T 5 SPEED-AISIN(MA1) M13X78	8-97080-561-1	08	1	1206-	●			●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) M13X36	8-97941-069-0	08	1	1206-	●		●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	1206-		●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	1206-	●		●	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1206-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	1206-	●		●	●	●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) 00.096 NSK	8-97920-344-2	01	1	1206-	●		●	●	●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) NACHI	8-97922-552-1	01	1	1206-	●		●	●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97306-533-5	01	1	1206-		●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1206-	●		●	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	1206-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1206-	●		●	●	●
63	00.629 PISTON GRADE=A	8-98028-116-0	04	1	1206-	●
63	00.629 PISTON GRADE=B	8-98028-117-0	04	1	1206-	●
63	00.629 PISTON GRADE=C	8-98028-118-0	04	1	1206-	●
63	00.629 PISTON GRADE=A	8-98132-548-1	04	1	1206-			●	●
63	00.629 PISTON GRADE=B	8-98132-549-1	04	1	1206-			●	●
63	00.629 PISTON GRADE=C	8-98132-550-1	04	1	1206-			●	●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	1206-		●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	1206-		●
63	00.629 PISTON GRADE=A	8-98180-017-1	04	1	1206-					●
63	00.629 PISTON GRADE=B	8-98180-018-1	04	1	1206-					●
63	00.629 PISTON GRADE=C	8-98180-019-1	04	1	1206-					●
64	00.629 PISTON; O/S=0.50	8-98028-031-0	04	1	1206-	●
64	00.629 PISTON; O/S=0.50	8-98132-708-1	04	1	1206-			●	●
64	00.629 PISTON; O/S=0.50	8-98180-506-1	04	1	1206-					●
67	00.629 PISTON; O/S=0.25	8-98028-030-0	04	1	1206-	●
67	00.629 PISTON; O/S=0.25	8-98132-707-1	04	1	1206-			●	●
67	00.629 PISTON; O/S=0.25	8-98180-505-1	04	1	1206-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	1206-		●
68	00.643 RING SET; PISTON,STANDARD	8-98171-040-0	04	1	1206-	●		●	●	●
69	00.643 RING SET; PISTON,O/S=0.50	8-98171-042-0	04	1	1206-	●		●	●	●
71	00.643 RING SET; PISTON,O/S=0.25	8-98171-041-0	04	1	1206-	●		●	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-98188-893-0	04	1	1507-					●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1206-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1206-1506	●		●	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1507-	●		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	1206-		●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	1206-	●		●	●	●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1211-	●		●	●	●
84	00.603 ROD ASM; CONN	8-98012-611-2	04	1	1206-		●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	1206-	●		●	●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	1206-		●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1206-1406	●		●	●	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.ALSO INCLUDED IN LINER SET.	8-97383-066-0	08	1	1407-	●		●	●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	1206-		●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1206-1406	●		●	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	16	1	1407-	●		●	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1206-1406	●		●	●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	16	1	1407-	●		●	●	●
100	00.666 PLATE; FLEX A/T 5 SPEED-AISIN(MA1)	8-98192-379-0	01	1	1206-	●			●	●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	1206-		●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	1206-	●		●	●	●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	1206-	●		●	●	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	1206-	●		●	●	●
204	01.150 BOLT; ROTOR	8-97944-142-1	03	1	1206-	●		●	●	●
215	00.629 PISTON; O/S=0.75	8-98028-032-0	04	1	1206-	●
215	00.629 PISTON; O/S=0.75	8-98132-709-1	04	1	1206-			●	●
215	00.629 PISTON; O/S=0.75	8-98180-507-1	04	1	1206-					●
217	00.643 RING SET; PISTON,O/S=0.75	8-98171-043-0	04	1	1206-	●		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
