Sayfa 0-11 - Isuzu EPC

0-11 — CYLINDER HEAD (#91014) — 179 parça

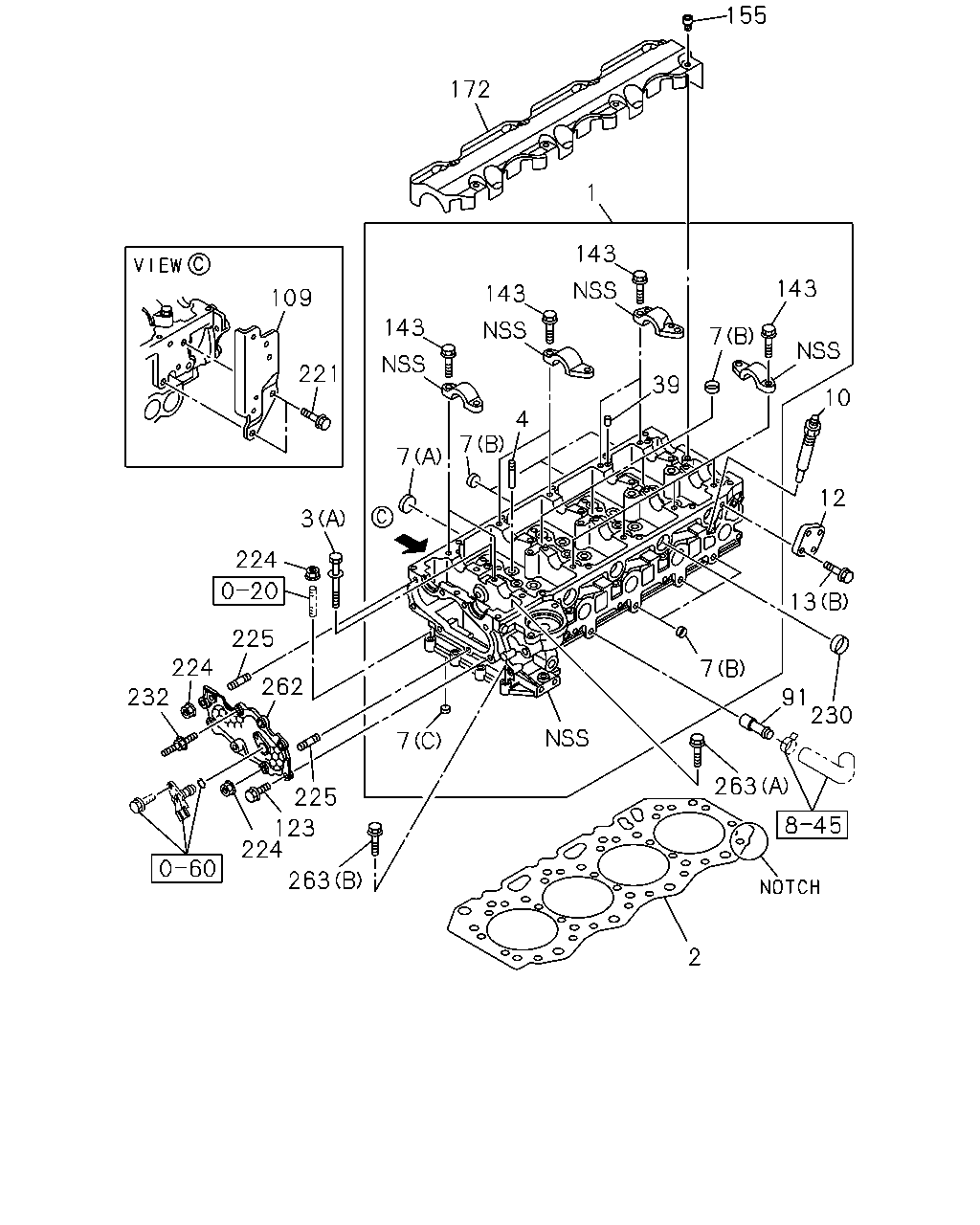

155 172 1 143 143 143 143 7 39 10 12 13 91 230 7 263 2 7 263 123 224 225 262 225 224 232 224 7 3 7 4 221 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.269 HEAD ASM; CYL	8-94431-520-5	01	1	1206-	●
1	00.269 HEAD ASM; CYL	8-98151-182-1	01	1	1206-1210		●
1	00.269 HEAD ASM; CYL	8-98217-458-0	01	1	1211-		●
1	00.269 HEAD ASM; CYL	8-98088-371-4	01	1	1206-1210			●	●	●
1	00.269 HEAD ASM; CYL	8-98217-455-0	01	1	1211-			●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GRADE A T=1.60 1-NOTCH	8-97350-318-0	01	1	1206-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GRADE B T=1.65 2-NOTCH	8-97350-319-0	01	1	1206-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GRADE C T=1.70 3-NOTCH	8-97350-320-0	01	1	1206-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE A T=1.05 1-NOTCH	8-97328-866-2	01	1	1206-1307		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE A T=1.05 1-NOTCH	8-98241-037-0	01	1	1308-		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE B T=1.10 2-NOTCH	8-97328-867-2	01	1	1206-1307		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE B T=1.10 2-NOTCH	8-98241-038-0	01	1	1308-		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE C T=1.15 3-NOTCH	8-97328-868-2	01	1	1206-1307		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE C T=1.15 3-NOTCH	8-98241-039-0	01	1	1308-		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) OVER SIZE	8-97388-314-0	01	1	1206-		●	●	●	●
3	00.293 BOLT; CYL HD TO BLOCK (A) M11X114 W/WASHER	8-98201-019-0	18	1	1206-		●	●	●	●
3	00.293 BOLT; CYL HD TO BLOCK (B) M11X122	8-97133-416-1	18	1	1206-	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	32	1	1302-			●	●	●
4	00.283 GUIDE; VLV L=50	5-11721-016-0	08	1	1206-	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1206-1301		●	●	●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1302-		●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (A) OD=32	1-09600-012-2	04	1	1302-			●	●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=18	5-11219-008-0	26	1	1302-			●	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (C) OD=14	5-11219-011-0	14	1	1302-			●	●	●
7	00.253 CUP; SEALING,CYL HEAD (D) OD=45	1-09600-005-2	01	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD (E) OD=12.3	5-09600-013-0	05	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=16	5-11129-006-0	03	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD (G) OD=22	8-97209-609-0	07	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (A) OD=32	1-09600-012-2	02	1	1206-1301		●	●	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (A) OD=32	1-09600-012-2	02	1	1302-		●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=18	5-11219-008-0	13	1	1206-1301		●	●	●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=18	5-11219-008-0	13	1	1302-		●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (C) OD=14	5-11219-011-0	07	1	1206-1301		●	●	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (C) OD=14	5-11219-011-0	07	1	1302-		●
10	02.270 PLUG; GLOW BOSCH	8-94133-759-9	04	1	1206-	●
10	02.270 PLUG; GLOW NGK	8-94175-158-2	04	1	1206-	●
10	02.270 PLUG; GLOW BOSCH	8-98177-224-0	04	1	1206-		●
10	02.270 PLUG; GLOW NGK	8-98117-567-1	04	1	1206-			●	●	●
12	00.004 HANGER; ENG,RR EURO2 SPECIFICATION<NT2>	8-98131-998-0	01	1	1206-			●	●
12	00.004 HANGER; ENG,RR A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>	8-98131-998-0	01	1	1206-			●
12	00.004 HANGER; ENG,RR	8-98131-998-0	01	1	1206-		●
13	00.004 BOLT; HANGER 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1206-			●	●	●
13	00.004 BOLT; HANGER EURO2 SPECIFICATION<NT2> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●	●
13	00.004 BOLT; HANGER A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●
13	00.004 BOLT; HANGER 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-		●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	40	1	1302-			●	●	●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	20	1	1206-1301		●	●	●	●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	20	1	1302-		●
91	08.846 PIPE; HTR 01.251	8-94343-211-1	01	1	1206-		●	●	●	●
109	00.004 BRACKET; ENG HANGER	8-98151-184-3	01	1	1206-		●
123	00.206 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1206-		●	●	●	●
143	02.251 BOLT; FIX 00.685 M8X40 FLANGE	0-28650-840-0	40	1	1302-			●	●	●
143	02.251 BOLT; FIX 00.685 M8X40 FLANGE	0-28650-840-0	20	1	1206-1301		●	●	●	●
143	02.251 BOLT; FIX 00.685 M8X40 FLANGE	0-28650-840-0	20	1	1302-		●
155	00.349 BOLT; BAFFLE PLATE M6X10 HEX SOCKET	0-58330-610-0	08	1	1206-		●	●	●	●
172	00.207 PLATE; BAFFLE,CYL HD	8-98105-920-0	01	1	1206-		●	●	●	●
221	00.413 BOLT; BRKT 03.417 M10X20 FLANGE	0-28151-020-0	02	1	1206-		●
224	00.349 NUT; COVER 01.540 M8 FLANGE	0-91180-208-0	04	1	1206-		●	●	●	●
225	00.349 STUD; COVER M8X20 L=31	8-97945-022-0	02	1	1206-		●	●	●	●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97943-955-0	04	1	1206-		●	●	●	●
232	00.413 STUD; CAM,CARRIER M6X12 M8X17 L=37	8-97375-460-0	01	1	1206-		●	●	●	●
262	00.206 COVER; CYL HEAD	8-98131-992-1	01	1	1206-		●	●	●	●
263	00.293 BOLT; CYL HD 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1206-		●	●	●	●
263	00.293 BOLT; CYL HD 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1206-		●	●	●	●

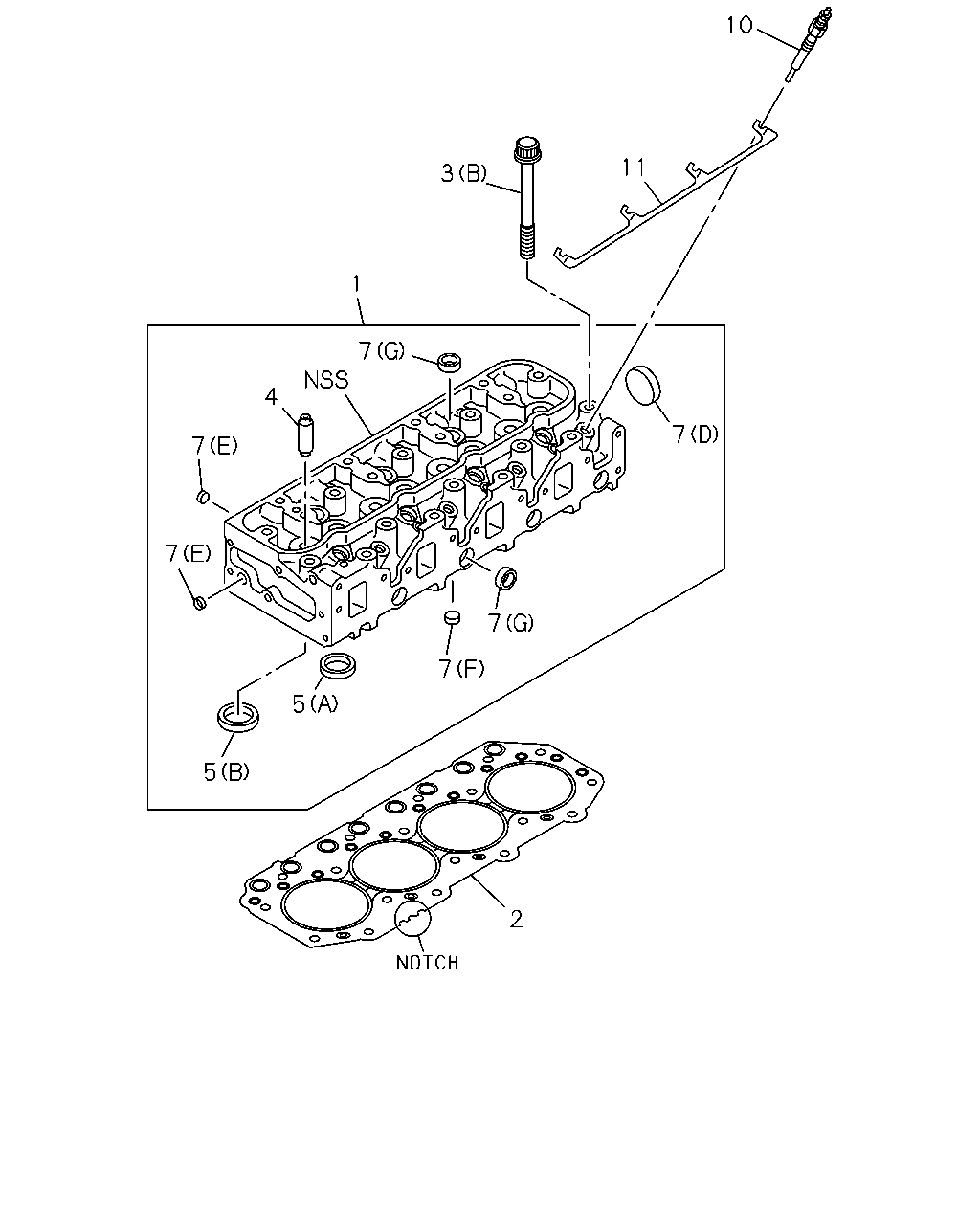

2 7 7 5 5 7 7 4 1 7 7 11 3 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.269 HEAD ASM; CYL	8-94431-520-5	01	1	1206-	●
1	00.269 HEAD ASM; CYL	8-98151-182-1	01	1	1206-1210		●
1	00.269 HEAD ASM; CYL	8-98217-458-0	01	1	1211-		●
1	00.269 HEAD ASM; CYL	8-98088-371-4	01	1	1206-1210			●	●	●
1	00.269 HEAD ASM; CYL	8-98217-455-0	01	1	1211-			●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GRADE A T=1.60 1-NOTCH	8-97350-318-0	01	1	1206-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GRADE B T=1.65 2-NOTCH	8-97350-319-0	01	1	1206-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GRADE C T=1.70 3-NOTCH	8-97350-320-0	01	1	1206-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE A T=1.05 1-NOTCH	8-97328-866-2	01	1	1206-1307		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE A T=1.05 1-NOTCH	8-98241-037-0	01	1	1308-		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE B T=1.10 2-NOTCH	8-97328-867-2	01	1	1206-1307		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE B T=1.10 2-NOTCH	8-98241-038-0	01	1	1308-		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE C T=1.15 3-NOTCH	8-97328-868-2	01	1	1206-1307		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE C T=1.15 3-NOTCH	8-98241-039-0	01	1	1308-		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) OVER SIZE	8-97388-314-0	01	1	1206-		●	●	●	●
3	00.293 BOLT; CYL HD TO BLOCK (A) M11X114 W/WASHER	8-98201-019-0	18	1	1206-		●	●	●	●
3	00.293 BOLT; CYL HD TO BLOCK (B) M11X122	8-97133-416-1	18	1	1206-	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	32	1	1302-			●	●	●
4	00.283 GUIDE; VLV L=50	5-11721-016-0	08	1	1206-	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1206-1301		●	●	●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1302-		●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1302-			●	●	●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1302-			●	●	●
5	00.253 SEAT; VLV INSERT (B) INLET OD=41.2	8-97231-228-0	04	1	1206-	●
5	00.253 SEAT; VLV INSERT (A) EXHAUST OD=36.7	8-97231-229-0	04	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (A) OD=32	1-09600-012-2	04	1	1302-			●	●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=18	5-11219-008-0	26	1	1302-			●	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (C) OD=14	5-11219-011-0	14	1	1302-			●	●	●
7	00.253 CUP; SEALING,CYL HEAD (D) OD=45	1-09600-005-2	01	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD (E) OD=12.3	5-09600-013-0	05	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=16	5-11129-006-0	03	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD (G) OD=22	8-97209-609-0	07	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (A) OD=32	1-09600-012-2	02	1	1206-1301		●	●	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (A) OD=32	1-09600-012-2	02	1	1302-		●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=18	5-11219-008-0	13	1	1206-1301		●	●	●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=18	5-11219-008-0	13	1	1302-		●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (C) OD=14	5-11219-011-0	07	1	1206-1301		●	●	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (C) OD=14	5-11219-011-0	07	1	1302-		●
10	02.270 PLUG; GLOW BOSCH	8-94133-759-9	04	1	1206-	●
10	02.270 PLUG; GLOW NGK	8-94175-158-2	04	1	1206-	●
10	02.270 PLUG; GLOW BOSCH	8-98177-224-0	04	1	1206-		●
10	02.270 PLUG; GLOW NGK	8-98117-567-1	04	1	1206-			●	●	●
11	02.251 CONNECTOR; GLOW PLUG	8-97146-517-0	01	1	1206-	●
11	02.251 CONNECTOR; GLOW PLUG	8-97326-045-3	01	1	1206-1303			●	●	●
11	02.251 CONNECTOR; GLOW PLUG	8-98209-370-0	01	1	1304-			●	●	●

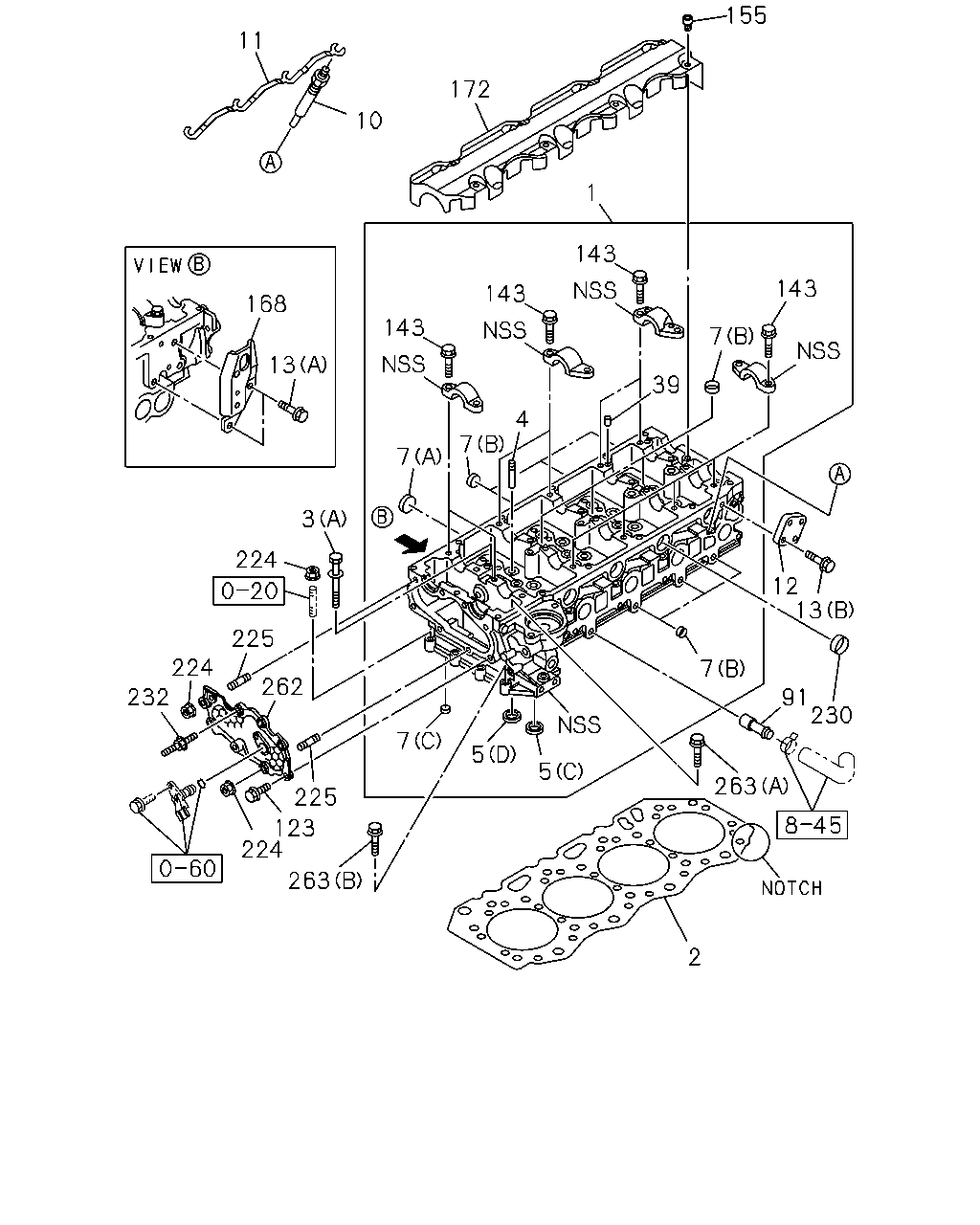

1 172 10 11 155 143 7 143 143 143 39 4 7 7 12 13 230 91 7 263 5 2 5 7 3 224 225 262 224 232 225 123 224 263 13 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.269 HEAD ASM; CYL	8-94431-520-5	01	1	1206-	●
1	00.269 HEAD ASM; CYL	8-98151-182-1	01	1	1206-1210		●
1	00.269 HEAD ASM; CYL	8-98217-458-0	01	1	1211-		●
1	00.269 HEAD ASM; CYL	8-98088-371-4	01	1	1206-1210			●	●	●
1	00.269 HEAD ASM; CYL	8-98217-455-0	01	1	1211-			●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GRADE A T=1.60 1-NOTCH	8-97350-318-0	01	1	1206-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GRADE B T=1.65 2-NOTCH	8-97350-319-0	01	1	1206-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) GRADE C T=1.70 3-NOTCH	8-97350-320-0	01	1	1206-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE A T=1.05 1-NOTCH	8-97328-866-2	01	1	1206-1307		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE A T=1.05 1-NOTCH	8-98241-037-0	01	1	1308-		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE B T=1.10 2-NOTCH	8-97328-867-2	01	1	1206-1307		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE B T=1.10 2-NOTCH	8-98241-038-0	01	1	1308-		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE C T=1.15 3-NOTCH	8-97328-868-2	01	1	1206-1307		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) STD GRADE C T=1.15 3-NOTCH	8-98241-039-0	01	1	1308-		●	●	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D) OVER SIZE	8-97388-314-0	01	1	1206-		●	●	●	●
3	00.293 BOLT; CYL HD TO BLOCK (A) M11X114 W/WASHER	8-98201-019-0	18	1	1206-		●	●	●	●
3	00.293 BOLT; CYL HD TO BLOCK (B) M11X122	8-97133-416-1	18	1	1206-	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	32	1	1302-			●	●	●
4	00.283 GUIDE; VLV L=50	5-11721-016-0	08	1	1206-	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1206-1301		●	●	●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	1302-		●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1302-			●	●	●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1302-			●	●	●
5	00.253 SEAT; VLV INSERT (B) INLET OD=41.2	8-97231-228-0	04	1	1206-	●
5	00.253 SEAT; VLV INSERT (A) EXHAUST OD=36.7	8-97231-229-0	04	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (A) OD=32	1-09600-012-2	04	1	1302-			●	●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=18	5-11219-008-0	26	1	1302-			●	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (C) OD=14	5-11219-011-0	14	1	1302-			●	●	●
7	00.253 CUP; SEALING,CYL HEAD (D) OD=45	1-09600-005-2	01	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD (E) OD=12.3	5-09600-013-0	05	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=16	5-11129-006-0	03	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD (G) OD=22	8-97209-609-0	07	1	1206-	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (A) OD=32	1-09600-012-2	02	1	1206-1301		●	●	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (A) OD=32	1-09600-012-2	02	1	1302-		●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=18	5-11219-008-0	13	1	1206-1301		●	●	●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=18	5-11219-008-0	13	1	1302-		●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (C) OD=14	5-11219-011-0	07	1	1206-1301		●	●	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (C) OD=14	5-11219-011-0	07	1	1302-		●
10	02.270 PLUG; GLOW BOSCH	8-94133-759-9	04	1	1206-	●
10	02.270 PLUG; GLOW NGK	8-94175-158-2	04	1	1206-	●
10	02.270 PLUG; GLOW BOSCH	8-98177-224-0	04	1	1206-		●
10	02.270 PLUG; GLOW NGK	8-98117-567-1	04	1	1206-			●	●	●
11	02.251 CONNECTOR; GLOW PLUG	8-97146-517-0	01	1	1206-	●
11	02.251 CONNECTOR; GLOW PLUG	8-97326-045-3	01	1	1206-1303			●	●	●
11	02.251 CONNECTOR; GLOW PLUG	8-98209-370-0	01	1	1304-			●	●	●
12	00.004 HANGER; ENG,RR EURO2 SPECIFICATION<NT2>	8-98131-998-0	01	1	1206-			●	●
12	00.004 HANGER; ENG,RR A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>	8-98131-998-0	01	1	1206-			●
12	00.004 HANGER; ENG,RR	8-98131-998-0	01	1	1206-		●
13	00.004 BOLT; HANGER 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1206-			●	●	●
13	00.004 BOLT; HANGER EURO2 SPECIFICATION<NT2> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●	●
13	00.004 BOLT; HANGER A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-			●
13	00.004 BOLT; HANGER 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1206-		●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	40	1	1302-			●	●	●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	20	1	1206-1301		●	●	●	●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	20	1	1302-		●
91	08.846 PIPE; HTR 01.251	8-94343-211-1	01	1	1206-		●	●	●	●
123	00.206 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1206-		●	●	●	●
143	02.251 BOLT; FIX 00.685 M8X40 FLANGE	0-28650-840-0	40	1	1302-			●	●	●
143	02.251 BOLT; FIX 00.685 M8X40 FLANGE	0-28650-840-0	20	1	1206-1301		●	●	●	●
143	02.251 BOLT; FIX 00.685 M8X40 FLANGE	0-28650-840-0	20	1	1302-		●
155	00.349 BOLT; BAFFLE PLATE M6X10 HEX SOCKET	0-58330-610-0	08	1	1206-		●	●	●	●
168	00.004 HANGER; ENG,FRT	8-98131-997-1	01	1	1206-			●	●	●
172	00.207 PLATE; BAFFLE,CYL HD	8-98105-920-0	01	1	1206-		●	●	●	●
224	00.349 NUT; COVER 01.540 M8 FLANGE	0-91180-208-0	04	1	1206-		●	●	●	●
225	00.349 STUD; COVER M8X20 L=31	8-97945-022-0	02	1	1206-		●	●	●	●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97943-955-0	04	1	1206-		●	●	●	●
232	00.413 STUD; CAM,CARRIER M6X12 M8X17 L=37	8-97375-460-0	01	1	1206-		●	●	●	●
262	00.206 COVER; CYL HEAD	8-98131-992-1	01	1	1206-		●	●	●	●
263	00.293 BOLT; CYL HD 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1206-		●	●	●	●
263	00.293 BOLT; CYL HD 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	1206-		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
