10857 - MV118
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶

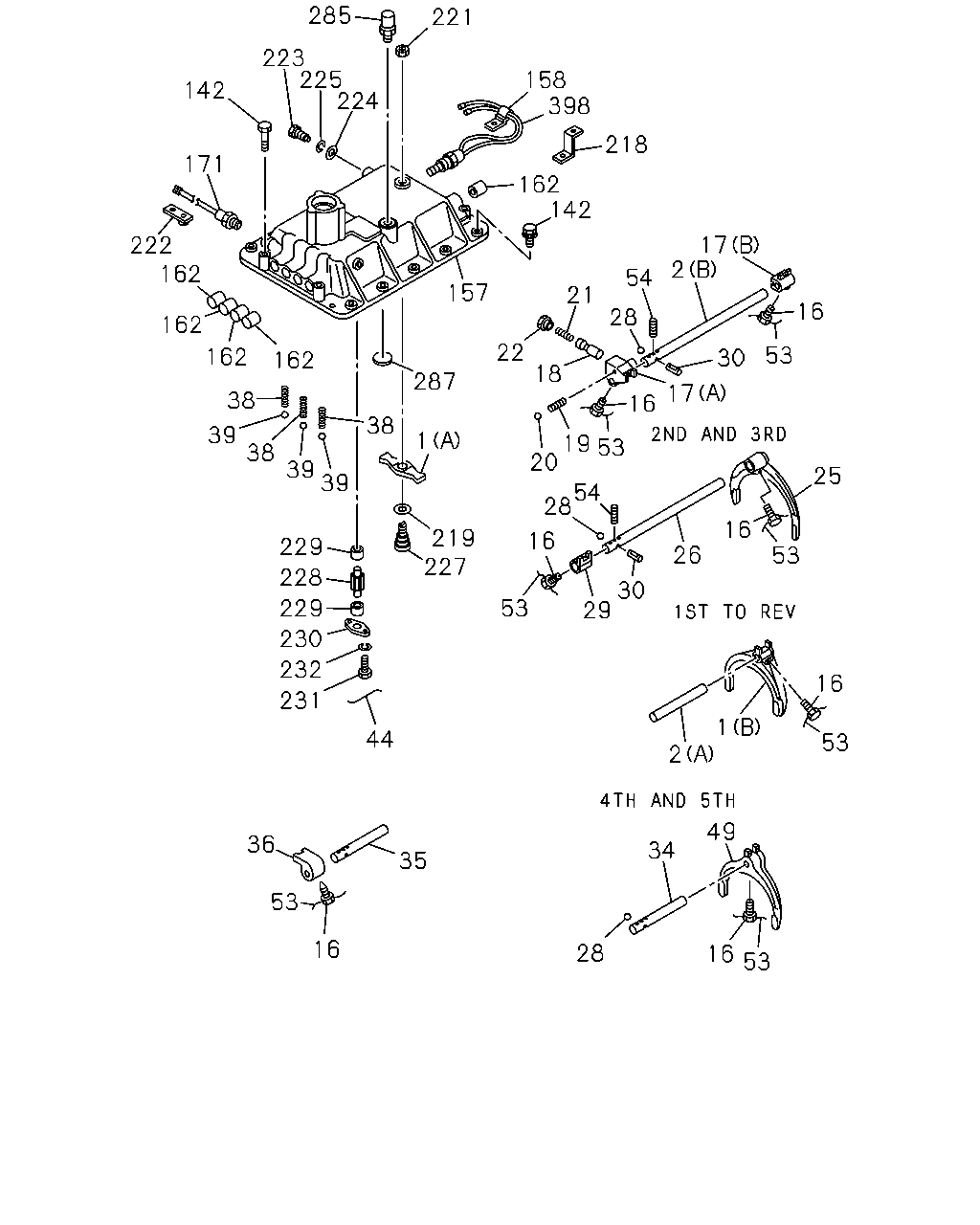

2-30 — GEAR SHIFTER AND QUADRANT BOX
(#9101) — 53 parça
285
221
223
225
224
158
398
142
218
171
162
142
17
2
222
162
54
157
21
16
28
162
22
53
162
30
162
18
287
17
38
16
38
39
1
19
53
20
38
39
39
25
54
28
16
219
227
16
229
26
53
228
30
29
229
53
230
232
16
231
1
44
53
2
49
36
34
35
53
16
28
16
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; SHIFT,1ST & REV
(A)
1-33511-082-0
01
1
9606-
1
ARM; SHIFT,1ST & REV
(B)
1-33511-166-2
01
1
9606-
2
ROD; SHIFT,1ST & REV
(A)
1-33531-400-1
01
1
9606-
2
ROD; SHIFT,1ST & REV
(B)
1-33531-415-1
01
1
9606-
16
BOLT; SHIFT ARM & BLOCK SET
M12X20
1-09052-039-0
07
1
9606-9803
16
BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE
1-09052-038-0
07
1
9804-
17
BLOCK; SHIFT,1ST & REV
(B)
1-33511-038-2
01
1
9606-
17
BLOCK; SHIFT,1ST & REV
(A)
1-33511-304-2
01
1
9606-
18
SLEEVE; 1ST & REV,SHIFT BLOCK
L=49.5
1-33516-024-0
01
1
9606-
19
SPRING; COIL COMP
1-09580-438-0
01
1
9606-
20
BALL; DETENT SLEEVE
9-00097-509-0
01
1
9606-
21
SPRING; COIL COMP SLEEVE
9-09940-411-0
01
1
9606-
22
CAP; RETURN SPR,SHIFT BLOCK
1-33516-003-1
01
1
9606-
25
ARM; SHIFT,2ND & 3RD
1-33511-481-0
01
1
9606-
26
ROD; SHIFT,2ND & 3RD
1-33531-416-1
01
1
9606-
28
BALL; INTER LK
9-00097-501-0
03
1
9606-
29
BLOCK; SHIFT,2ND & 3RD
1-33511-346-1
01
1
9606-
30
PIN; INTER LK
9-33534-003-0
02
1
9606-
34
ROD; SHIFT,4TH & 5TH ARM
L=158 W/RACK
1-33531-299-0
01
1
9606-
35
ROD; SHIFT,4TH & 5TH BLOCK
1-33531-404-1
01
1
9606-
36
BLOCK; SHIFT,4TH & 5TH
1-33511-050-0
01
1
9606-
38
SPRING; DETENT
1-09580-379-0
03
1
9606-
39
BALL; DETENT
1-09843-012-0
03
1
9606-
44
WIRE; LK
L=200
9-08351-020-0
01
1
9606-
49
ARM; SHIFT,4TH & 5TH
1-33511-194-1
01
1
9606-
53
WIRE; BOLT
L=180
1-09780-024-0
05
1
9804-
53
WIRE; BOLT
L=200
9-08351-020-0
02
1
9804-
54
PIN; SPR,SHIFT BLOCK
1-09748-014-0
02
1
9606-
142
BOLT; QUAD BOX
M10X28 FLANGE
0-28181-028-0
10
1
9606-
142
BOLT; QUAD BOX
M10X45 FLANGE
0-28181-045-0
01
1
9606-
142
BOLT; QUAD BOX
M10X55 FLANGE
8-94399-863-1
03
1
9606-
157
BOX; QUAD,TRANS
1-33541-292-2
01
1
9606-
158
CLIP; HARNESS
ID=6
9-09917-391-0
02
1
9606-
162
COVER; SHIFT ROD,QUAD BOX
OD=24 L=31
9-33545-011-1
05
1
9606-
171
SWITCH; NEUTRAL
1-82440-067-1
01
1
9606-
218
BRACKET; HARNESS CLIP,QUAD BOX
1-82699-058-0
01
1
9606-
219
WASHER; PL,SPINDLE
ID=16.5
9-09857-042-0
01
1
9606-
221
NUT; SPINDLE
M12 FLANGE
0-91150-212-0
01
1
9606-
222
BRACKET; CLIP
L=65
1-47465-485-0
02
1
9606-9801
222
BRACKET; CLIP
L=65
1-47476-513-0
02
1
9802-
223
SCREW; SET,QUAD BOX
M14X45
9-09816-057-1
01
1
9606-
224
WASHER; PL,QUAD BOX
ID=15
9-09160-514-0
01
1
9606-
225
WASHER; LK,QUAD BOX
ID=14.2
9-09150-514-0
01
1
9606-
227
SPINDLE; 1ST & REV
1-33519-012-0
01
1
9606-
228
PINION; 4TH & 5TH SHIFT
1-33539-019-0
01
1
9606-
229
BEARING; NEEDLE,PINION
1-09811-202-0
02
1
9606-
230
COVER; BRG,PINION
1-33539-018-0
01
1
9606-
231
BOLT; BRG COVER,PINION
1-09050-013-0
02
1
9606-9706
231
BOLT; BRG COVER,PINION
M8X20
1-09050-005-1
02
1
9707-
232
WASHER; LK,BRG COVER
ID=8.2
9-09150-508-0
02
1
9606-
285
BREATHER; AIR,QUAD BOX
9-33547-010-0
01
1
9606-
287
COVER; AIR BREATHER
9-09860-030-0
01
1
9606-
398
SWITCH; REV LAMP
1-82440-054-0
01
1
9606-
