4-70 — AIR SUSPENSION VALVE AND CONTROL
(#91004) — 27 parça
◀

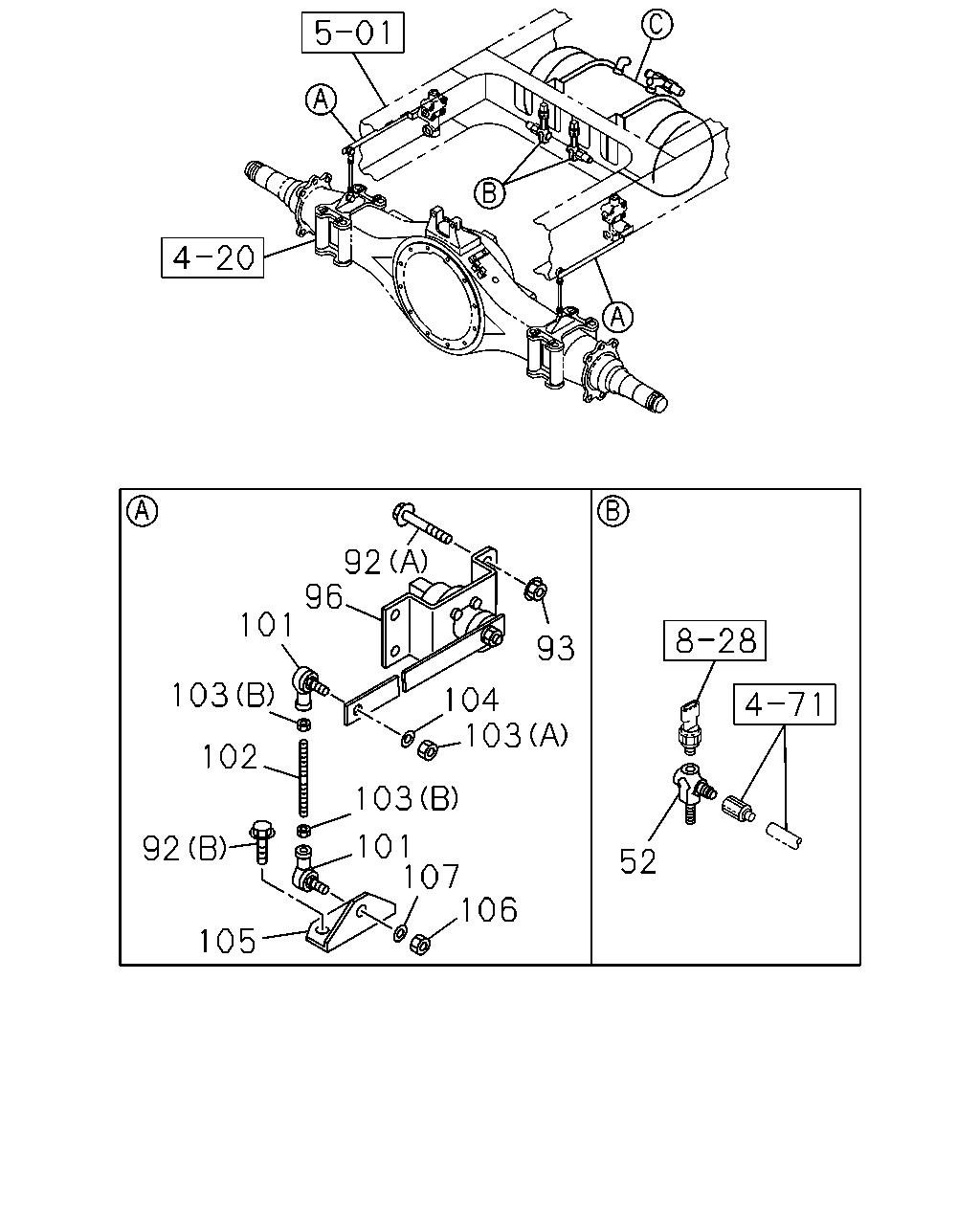

[470A] NO.1 (14 parça)

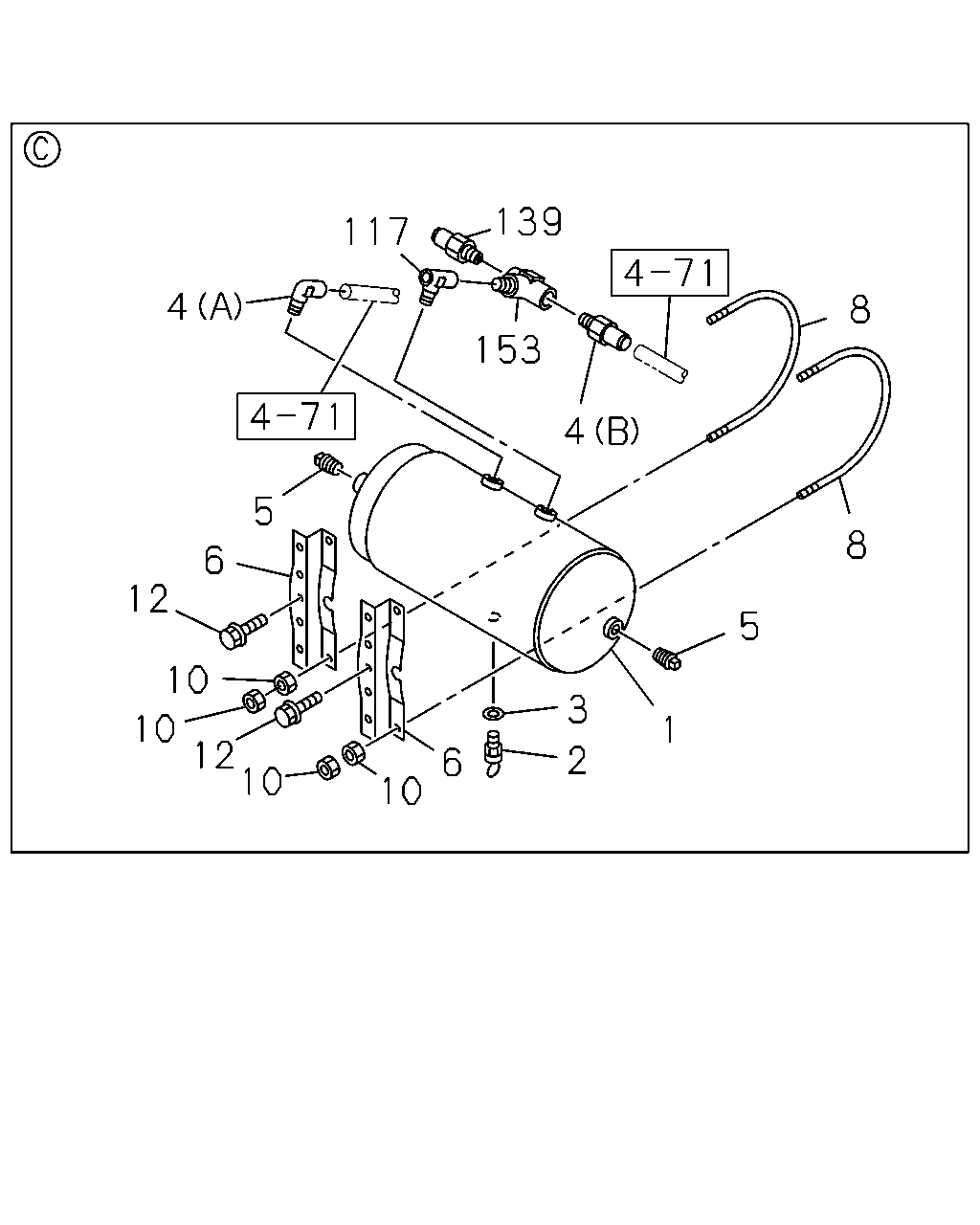

[470A] NO.2 (13 parça)
▶
92
96
101
93
103
104
103
102
103
101
107
106
92
52
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
CONNECTOR; ELBOW,UNION
1-09654-430-0
02
1
1205-
92
BOLT; SENSOR
(B) M8X10 FLANGE
0-28050-810-0
04
1
1205-
92
BOLT; SENSOR
(A) M8X30 FLANGE
0-28650-830-0
04
1
1205-
93
NUT; SENSOR
M8 FLANGE
0-91180-108-0
04
1
1205-
96
SENSOR; HEIGHT
1-81549-115-0
01
1
1205-
96
SENSOR; HEIGHT
1-81549-116-0
01
1
1205-
101
JOINT ASM; BALL
L=45.5
1-09760-118-1
04
1
1205-
102
ROD; LINK
L=150
0-84000-815-0
02
1
1205-
103
NUT; LINK ROD
(B) M8
0-91111-508-0
04
1
1205-
103
NUT; LINK ROD
(A) M8 FLANGE
0-91180-108-0
02
1
1205-
104
WASHER; LINK ROD
ID=8.2
8-98019-967-0
02
1
1205-
105
BRACKET; AXLE LINK ROD
1-42129-238-0
02
1
1205-
106
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1205-
107
WASHER; BRKT
ID=8.2
8-98019-967-0
02
1
1205-
139
117
4
8
153
4
5
8
6
12
5
10
3
10
1
12
10
2
6
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
8-98056-186-2
01
1
1205-
2
COCK ASM; DRAIN
1-48312-015-0
01
1
1205-
3
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1205-
4
CONNECTOR; AIR TANK
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1205-
4
CONNECTOR; AIR TANK
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1205-
5
PLUG; AIR TANK
PT3/8
9-09204-517-0
02
1
1205-
6
BRACKET; AIR TANK
1-48317-904-0
02
1
1205-
8
U-BOLT; AIR TANK
L=303
1-48317-087-2
02
1
1205-
10
NUT; U-BOLT
M8
0-91110-508-0
08
1
1205-
12
BOLT; AIR TANK
M10X25 FLANGE
0-28651-025-0
04
1
1205-
117
VALVE; CHECK
1-48320-031-1
01
1
1205-
139
SWITCH; LOW PRESSURE
STAMP 6.5
8-97609-252-0
01
1
1205-
153
CONNECTOR; 3WAY
8-98166-127-0
01
1
1205-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
