2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#910) — 77 parça

392 393 221 3 386 278 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT L=3060	1-33670-311-0	01	1	9202-	●
1	CABLE; SHIFT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=2900	1-33670-309-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> L=2900	1-33670-309-0	01	1	9202-			●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) ASSISTER SHIFT CONTROL<WX8> L=2960	1-33670-310-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) EXC. ASSISTER SHIFT CONTROL<WX8> L=3040	1-33670-307-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO(SV1),ASSISTER SHIFT CONTROL<WX8> L=2980	1-33670-306-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT EXC. ASSISTER SHIFT CONTROL<WX8> L=2980	1-33670-306-0	01	1	9202-			●
3	CABLE; SELECT,TRANS CONT L=3036	1-33670-335-0	01	1	9202-	●
3	CABLE; SELECT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3020	1-33670-333-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-333-0	01	1	9202-			●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) ASSISTER SHIFT CONTROL<WX8> L=3080	1-33670-334-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) EXC. ASSISTER SHIFT CONTROL<WX8> L=3080	1-33670-332-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO(SV1),ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-331-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT EXC. ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-331-0	01	1	9202-			●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9202-	●
221	NUT; SHIFT WIRE TO LEVER M10	9-09110-410-0	01	1	9202-		●	●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9202-	●
278	WASHER; LK,SHIFT WIRE ID=10.2	9-09150-510-0	01	1	9202-		●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-0	02	1	9202-	●	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9202-	●
392	WASHER; LK,SELECT CABLE,CAB ID=6.1	9-09150-506-0	01	1	9202-		●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9202-	●
393	NUT; SELECT CABLE,CAB M6	9-09111-406-0	01	1	9202-		●	●

284 199 392 393 221 3 386 278 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT L=3060	1-33670-311-0	01	1	9202-	●
1	CABLE; SHIFT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=2900	1-33670-309-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> L=2900	1-33670-309-0	01	1	9202-			●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) ASSISTER SHIFT CONTROL<WX8> L=2960	1-33670-310-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) EXC. ASSISTER SHIFT CONTROL<WX8> L=3040	1-33670-307-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO(SV1),ASSISTER SHIFT CONTROL<WX8> L=2980	1-33670-306-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT EXC. ASSISTER SHIFT CONTROL<WX8> L=2980	1-33670-306-0	01	1	9202-			●
3	CABLE; SELECT,TRANS CONT L=3036	1-33670-335-0	01	1	9202-	●
3	CABLE; SELECT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3020	1-33670-333-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-333-0	01	1	9202-			●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) ASSISTER SHIFT CONTROL<WX8> L=3080	1-33670-334-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) EXC. ASSISTER SHIFT CONTROL<WX8> L=3080	1-33670-332-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO(SV1),ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-331-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT EXC. ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-331-0	01	1	9202-			●
199	WASHER; PL,SELECT ID=6.4 OD=14	9-09164-606-0	01	1	9202-		●	●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9202-	●
221	NUT; SHIFT WIRE TO LEVER M10	9-09110-410-0	01	1	9202-		●	●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9202-	●
278	WASHER; LK,SHIFT WIRE ID=10.2	9-09150-510-0	01	1	9202-		●	●
284	WASHER; WAVE,SELECT CABLE,CAB	8-94242-854-0	01	1	9202-		●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-0	02	1	9202-	●	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9202-	●
392	WASHER; LK,SELECT CABLE,CAB ID=6.1	9-09150-506-0	01	1	9202-		●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9202-	●
393	NUT; SELECT CABLE,CAB M6	9-09111-406-0	01	1	9202-		●	●

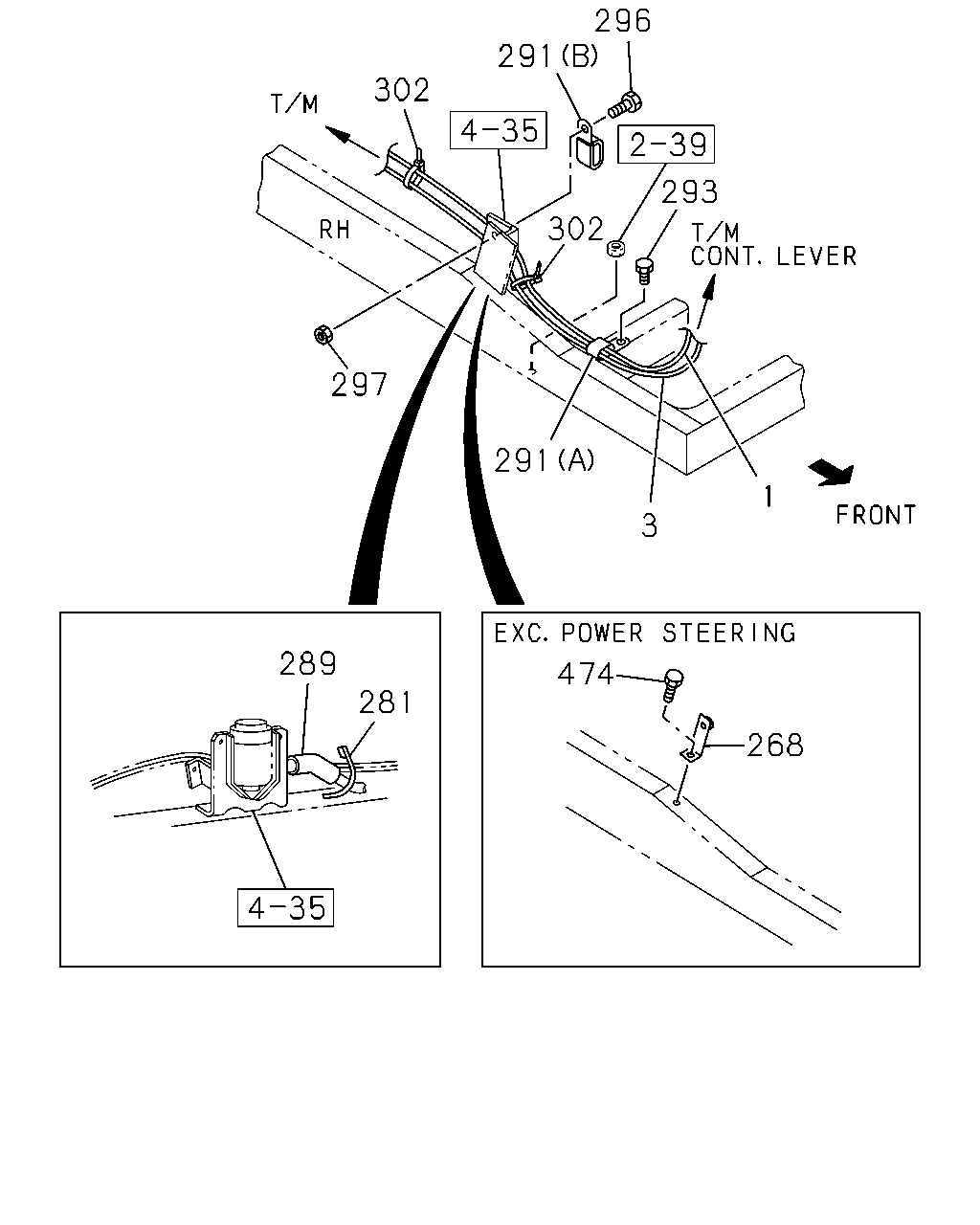

296 291 302 293 302 297 291 1 3 289 474 281 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT L=3060	1-33670-311-0	01	1	9202-	●
1	CABLE; SHIFT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=2900	1-33670-309-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> L=2900	1-33670-309-0	01	1	9202-			●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) ASSISTER SHIFT CONTROL<WX8> L=2960	1-33670-310-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) EXC. ASSISTER SHIFT CONTROL<WX8> L=3040	1-33670-307-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO(SV1),ASSISTER SHIFT CONTROL<WX8> L=2980	1-33670-306-0	01	1	9202-		●
1	CABLE; SHIFT,TRANS CONT EXC. ASSISTER SHIFT CONTROL<WX8> L=2980	1-33670-306-0	01	1	9202-			●
3	CABLE; SELECT,TRANS CONT L=3036	1-33670-335-0	01	1	9202-	●
3	CABLE; SELECT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3020	1-33670-333-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-333-0	01	1	9202-			●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) ASSISTER SHIFT CONTROL<WX8> L=3080	1-33670-334-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) EXC. ASSISTER SHIFT CONTROL<WX8> L=3080	1-33670-332-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO(SV1),ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-331-0	01	1	9202-		●
3	CABLE; SELECT,TRANS CONT EXC. ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-331-0	01	1	9202-			●
268	BRACKET; LINK ROD EXC. POWER STEERING(N40)	1-46147-082-0	01	1	9305-	●	●	●
281	CLIP; BAND L=250	5-09707-030-0	01	1	9202-	●	●	●
289	SLEEVE; RUBBER ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A)	1-09701-100-3	01	1	9202-	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B)	9-09535-026-0	01	1	9202-	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X18	0-28010-818-0	01	1	9202-9204	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X18	0-28010-818-0	01	1	9202-9204	●	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●
297	NUT; CLIP M8	9-09110-408-0	01	1	9202-9304	●	●	●
297	NUT; CLIP POWER STEERING(N40) M8	9-09110-408-0	01	1	9305-	●	●	●
302	CLIP; BAND L=250	5-09707-030-0	01	1	9202-	●	●	●
302	CLIP; BAND L=140	5-09707-031-0	01	1	9202-	●	●	●
302	CLIP; BAND L=140	5-09707-031-0	04	1	9202-	●	●	●
474	BOLT; BRKT EXC. POWER STEERING(N40) M10X25 W/LK WASHER	0-50041-025-0	01	1	9305-	●	●	●
