2-20 — MANUAL TRANSMISSION ASM AND CASE (#9098) — 34 parça

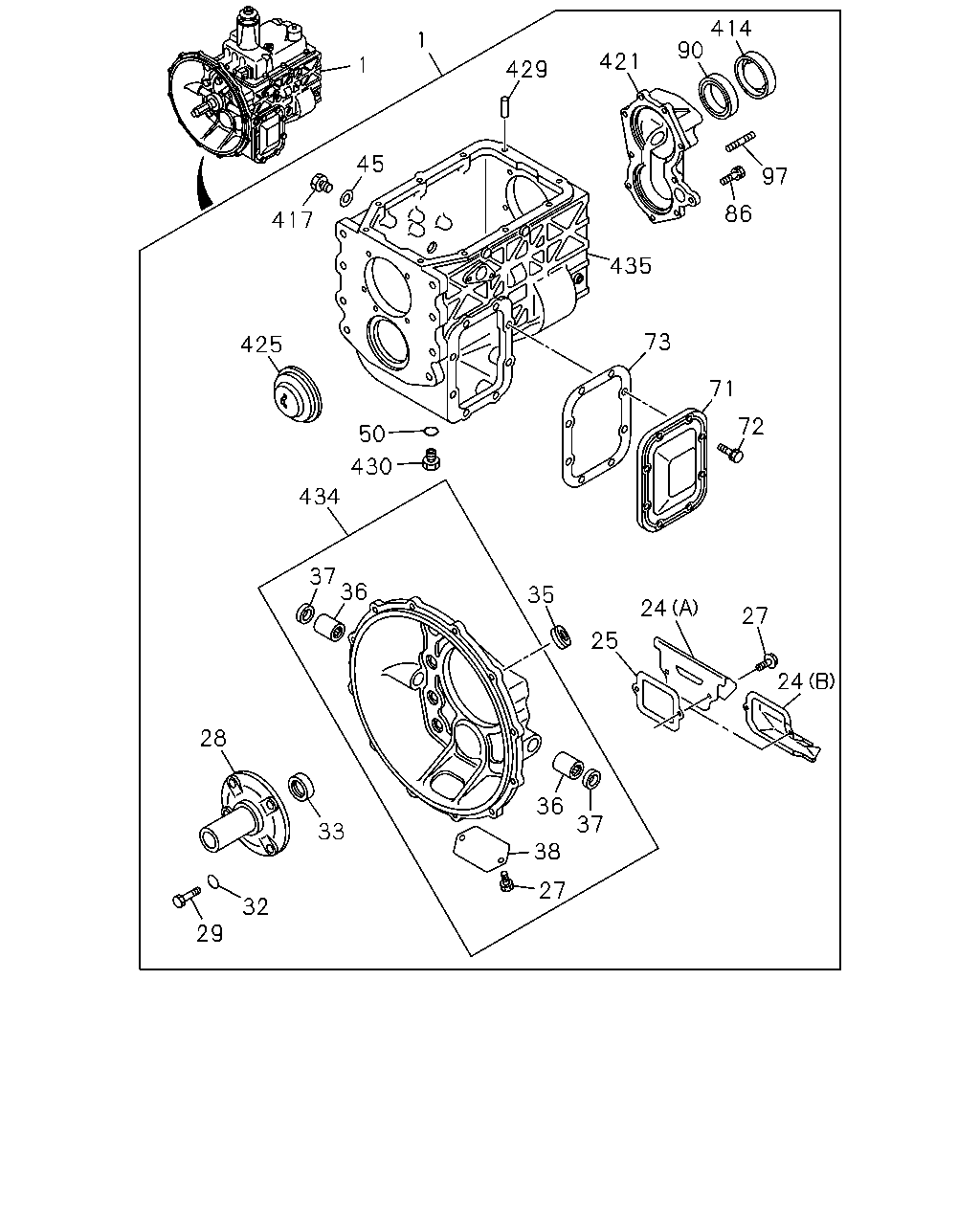

çizim 73136
414 90 1 421 1 429 45 97 86 417 435 73 425 71 72 50 430 434 37 36 35 24 27 25 24 28 36 37 33 38 27 32 29
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
RIGHT HAND DRIVE(MVR5FB) 		1-33012-245-0 01 1 9606-
1 TRANSMISSION ASM; MANUAL
LEFT HAND DRIVE(MVR6FB) 		1-33012-245-0 01 1 9606-
24 COVER; CHECK HOLE,DUST
(A) 		1-31131-030-0 01 1 9606-9710
24 COVER; CHECK HOLE,DUST
(B) 		1-31131-037-0 01 1 9711-
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 9606-
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28080-812-0 04 1 9606-0104
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28080-816-0 04 1 0105-
28 COVER; FRT,TRANS CASE 1-33121-067-2 01 1 9606-
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		1-09040-089-1 05 1 9606-
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 05 1 9606-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-497-0 01 1 9606-
35 GROMMET; CLU HSG
OD=45 		9-31139-007-0 01 1 9606-
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 9606-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 9606-
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 9606-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9606-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9606-
71 COVER; SIDE,TRANS CASE 1-33141-030-1 01 1 9606-
72 BOLT; SIDE COVER
M10X16 FLANGE 		0-28181-016-0 08 1 9606-
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-043-0 01 1 9606-
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9606-
86 BOLT; RR COVER
M14X20 		1-09044-078-0 01 1 9606-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-579-1 01 1 9606-
97 STUD; PARKING BRK
M16X41 L=62 		1-09302-151-0 01 1 9606-
414 COVER; DUST,RR COVER 1-33139-004-0 01 1 9606-
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 9606-9802
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-064-1 01 1 9803-
421 COVER; RR,TRANS 1-33131-187-1 01 1 9606-
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33319-055-1 01 1 9606-9707
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33319-195-0 01 1 9708-
429 PIN; STRAIGHT
OD=8 L=16 		9-08150-816-0 02 1 9606-
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 9606-
434 HOUSING; CLU
STEEL 		1-31110-123-5 01 1 9606-
435 CASE; TRANS 1-33111-199-5 01 1 9606-
