◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10857 - MV118 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#9095) — 51 parça

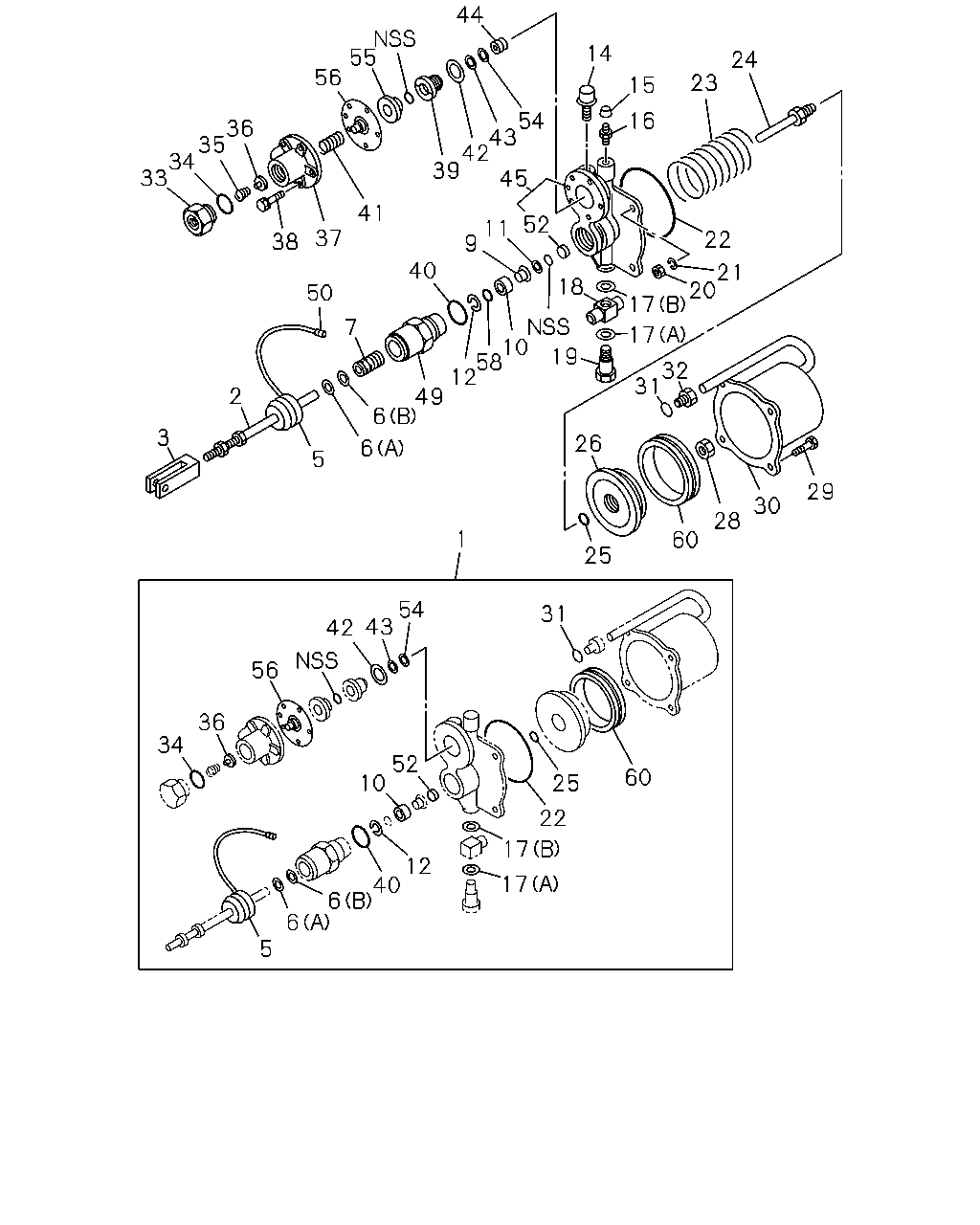

çizim 17282
44 55 56 14 24 23 15 16 54 43 42 39 36 35 34 33 45 41 52 11 9 37 22 38 40 21 20 17 18 50 10 58 12 7 17 19 32 31 2 49 6 3 26 6 5 29 30 28 1 60 25 54 43 31 42 56 36 34 52 10 60 25 22 17 12 40 6 17 6 5
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-87520-233-0 01 1 9606-
2 ROD; PUSH,CLU BOOSTER 1-31824-025-0 01 1 9606-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-075-0 01 1 9606-
5 GUARD; PISTON,CLU BOOSTER 1-31829-062-0 01 1 9606-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9606-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9606-
7 PISTON; CLU BOOSTER 1-31821-011-0 01 1 9606-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 9606-
10 RETAINER; PISTON,CLU BOOSTER 1-31829-034-0 01 1 9606-
11 WASHER; PISTON,CLU BOOSTER 1-31829-035-0 01 1 9606-
12 RING; RET,CLU BOOSTER 9-83325-024-0 01 1 9606-
14 COVER; EXH,CLU BOOSTER 1-31829-059-0 01 1 9606-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9606-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9606-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-83331-206-0 01 1 9606-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-83331-207-0 01 1 9606-
18 CONNECTOR; END PLATE,CLU BOOSTER 9-83335-084-0 01 1 9606-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9606-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-88510-051-0 04 1 9606-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER 9-48259-051-0 04 1 9606-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 9606-
23 SPRING; SHELL,CLU BOOSTER 1-31829-079-0 01 1 9606-
24 ROD; PUSH,CLU BOOSTER 1-31824-032-0 01 1 9606-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9606-
26 PISTON; SHELL,CLU BOOSTER 1-31821-007-0 01 1 9606-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9606-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9606-
30 SHELL; CYL,CLU BOOSTER 1-31811-010-0 01 1 9606-
31 GASKET; SHELL,CLU BOOSTER 1-31829-057-0 01 1 9606-
32 BUSHING; SHELL,CLU BOOSTER 9-83315-055-0 01 1 9606-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-017-0 01 1 9606-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9606-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9606-
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9606-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-012-0 01 1 9606-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 1-44519-022-0 05 1 9606-
39 FITTING; POPPET VLV,CLU BOOSTER 9-83315-101-0 01 1 9606-
40 GASKET; PISTON,CLU BOOSTER 9-83335-053-0 01 1 9606-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-078-0 01 1 9606-
42 GASKET; FITTING,CLU BOOSTER 1-31829-061-0 01 1 9606-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9606-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-009-0 01 1 9606-
45 PLATE; END,CLU BOOSTER 1-31829-074-0 01 1 9606-
49 CYLINDER; CLU BOOSTER 1-31822-001-0 01 1 9606-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 9606-
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 9606-
54 RING; RET,CLU BOOSTER 9-83315-102-0 01 1 9606-
55 PLATE; DIAPH TO FITTING 1-31829-076-0 01 1 9606-
56 DIAPHRAGM; CLU BOOSTER 1-31829-067-0 01 1 9606-
58 WASHER; PISTON,CLU BOOSTER 9-83331-604-0 01 1 9606-
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 9606-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
