2-05 — CLUTCH PIPING (#9094) — 87 parça

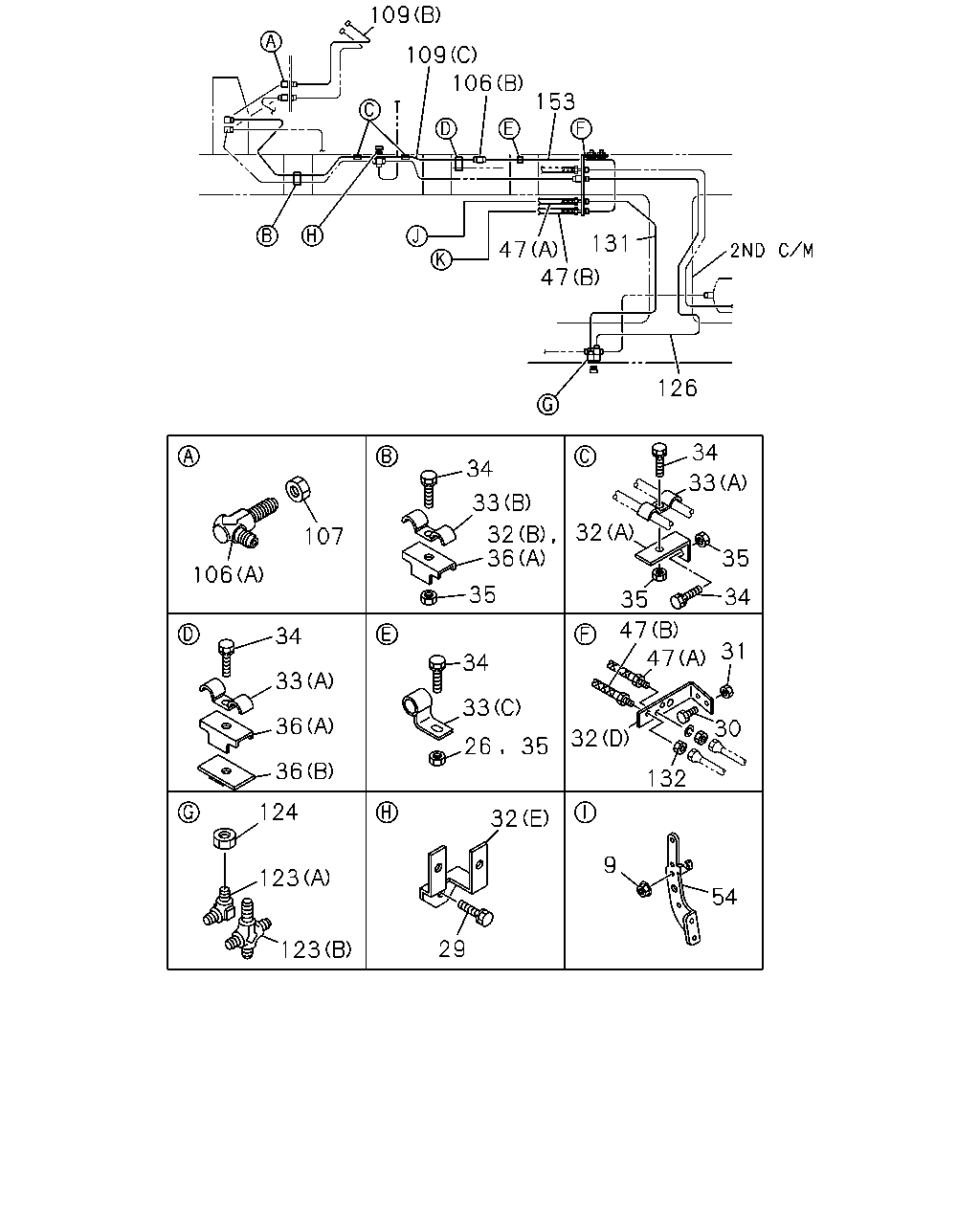

çizim 17279
109 109 106 153 131 47 47 126 34 34 33 33 32 32 36 107 35 106 35 34 35 47 47 34 31 34 33 33 36 30 32 26 35 36 132 124 32 9 123 54 29 123
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
M10 FLANGE 		0-91150-210-0 02 1 9606-
26 NUT; CLIP,OIL PIPE
RIGHT HAND DRIVE(MVR5FB) M8 		9-09110-408-0 01 1 9606-
29 BOLT; CLIP,OIL PIPE
RIGHT HAND DRIVE(MVR5FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9606-
30 BOLT; BRKT
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9606-
30 BOLT; BRKT
M10X35 W/LK WASHER 		0-50041-035-0 02 1 9606-
31 NUT; BRKT
M6 		9-09110-406-0 01 1 9606-
31 NUT; BRKT
M10 		9-09110-510-0 02 1 9606-
32 BRACKET; CLIP OIL PIPE
(C) 		1-47465-866-1 01 1 9606-
32 BRACKET; CLIP OIL PIPE
(D) 		1-47475-651-0 01 1 9606-
32 BRACKET; CLIP OIL PIPE
RIGHT HAND DRIVE(MVR5FB) (A) L=55 		1-47475-304-0 02 1 9606-
32 BRACKET; CLIP OIL PIPE
RIGHT HAND DRIVE(MVR5FB) (B) 		1-47475-427-1 01 1 9606-
32 BRACKET; CLIP OIL PIPE
LEFT HAND DRIVE(MVR6FB) (E) M8 W/NUT 		1-47475-439-2 02 1 9606-
33 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9606-
33 CLIP; OIL PIPE
RIGHT HAND DRIVE(MVR5FB) (C) ID=6 H=20 L=20 		1-09700-603-0 01 1 9606-
33 CLIP; OIL PIPE
RIGHT HAND DRIVE(MVR5FB) (A) ID=13 & 7 L=16 & 14 		1-09700-665-0 03 1 9606-
33 CLIP; OIL PIPE
LEFT HAND DRIVE(MVR6FB) (B) ID=7 & 7 L=15 & 15 		1-09700-652-0 01 1 9606-
33 CLIP; OIL PIPE
LEFT HAND DRIVE(MVR6FB) (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9606-
34 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9606-
34 BOLT; PIPE CLIP
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9606-
34 BOLT; PIPE CLIP
RIGHT HAND DRIVE(MVR5FB) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9606-
34 BOLT; PIPE CLIP
RIGHT HAND DRIVE(MVR5FB) M8X25 W/LK WASHER 		0-50040-825-0 04 1 9606-
34 BOLT; PIPE CLIP
LEFT HAND DRIVE(MVR6FB) M8X16 W/LK WASHER 		0-50040-816-0 03 1 9606-
34 BOLT; PIPE CLIP
LEFT HAND DRIVE(MVR6FB) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9606-
35 NUT; PIPE CLIP
RIGHT HAND DRIVE(MVR5FB) M8 		9-09110-408-0 05 1 9606-
35 NUT; PIPE CLIP
LEFT HAND DRIVE(MVR6FB) M8 		9-09110-408-0 03 1 9606-
36 BRACKET; CLIP
(A) 		1-47475-427-1 01 1 9606-
36 BRACKET; CLIP
LEFT HAND DRIVE(MVR6FB) (A) 		1-47475-427-1 01 1 9606-
36 BRACKET; CLIP
RIGHT HAND DRIVE(MVR5FB) (B) L=50 		1-47475-299-2 01 1 9606-
47 HOSE; FLEX,CLU CONT
(A) L=450 		0-07030-450-0 01 1 9606-
47 HOSE; FLEX,CLU CONT
(B) L=400 		1-09364-262-0 01 1 9606-
54 BRACKET; AIR,FLEX HOSE 1-47475-252-1 01 1 9606-
106 UNION; OIL PIPE
(B) M12 L=40 		9-09223-006-1 01 1 9606-
106 UNION; OIL PIPE
(A) M12 L=69 		9-09225-106-1 01 1 9606-
106 UNION; OIL PIPE
LEFT HAND DRIVE(MVR6FB) (A) M12 L=69 		9-09225-106-1 01 1 9606-
106 UNION; OIL PIPE
RIGHT HAND DRIVE(MVR5FB) (C) M12 L=63 		9-09225-006-1 01 1 9606-
107 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9606-
107 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
(A) SERVICED BY L=650 		9-47415-353-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
RIGHT HAND DRIVE(MVR5FB) (C) SERVICED BY L=1820 		1-47434-394-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
RIGHT HAND DRIVE(MVR5FB) (B) SERVICED BY L=500 		9-47415-350-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MVR6FB) (C) SERVICED BY L=1370 		1-47434-390-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MVR6FB) (B) SERVICED BY L=550 		9-47415-351-0 01 1 9606-
123 UNION; AIR PIPE
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9606-
123 UNION; AIR PIPE
LEFT HAND DRIVE(MVR6FB) (B) 		9-09228-206-1 01 1 9606-
124 NUT; PIPE UNION
LEFT HAND DRIVE(MVR6FB) M12 		9-99110-512-0 01 1 9606-
126 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MVR6FB) SERVICED BY L=1200 		1-47434-388-0 01 1 9606-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGHT HAND DRIVE(MVR5FB) SERVICED BY L=1100 		1-47434-387-0 01 1 9606-
131 PIPE; AIR,UNION TO FLEX HOSE
LEFT HAND DRIVE(MVR6FB) SERVICED BY L=460 		9-47415-349-0 01 1 9606-
132 NUT; UNION,AIR PIPE
RIGHT HAND DRIVE(MVR5FB) M12 		9-09840-280-0 01 1 9606-
153 PIPE ASM; CLU,UNION TO FLEX
RIGHT HAND DRIVE(MVR5FB) SERVICED BY L=900 		1-47434-385-0 01 1 9606-
153 PIPE ASM; CLU,UNION TO FLEX
LEFT HAND DRIVE(MVR6FB) SERVICED BY L=2200 		1-47434-396-0 01 1 9606-

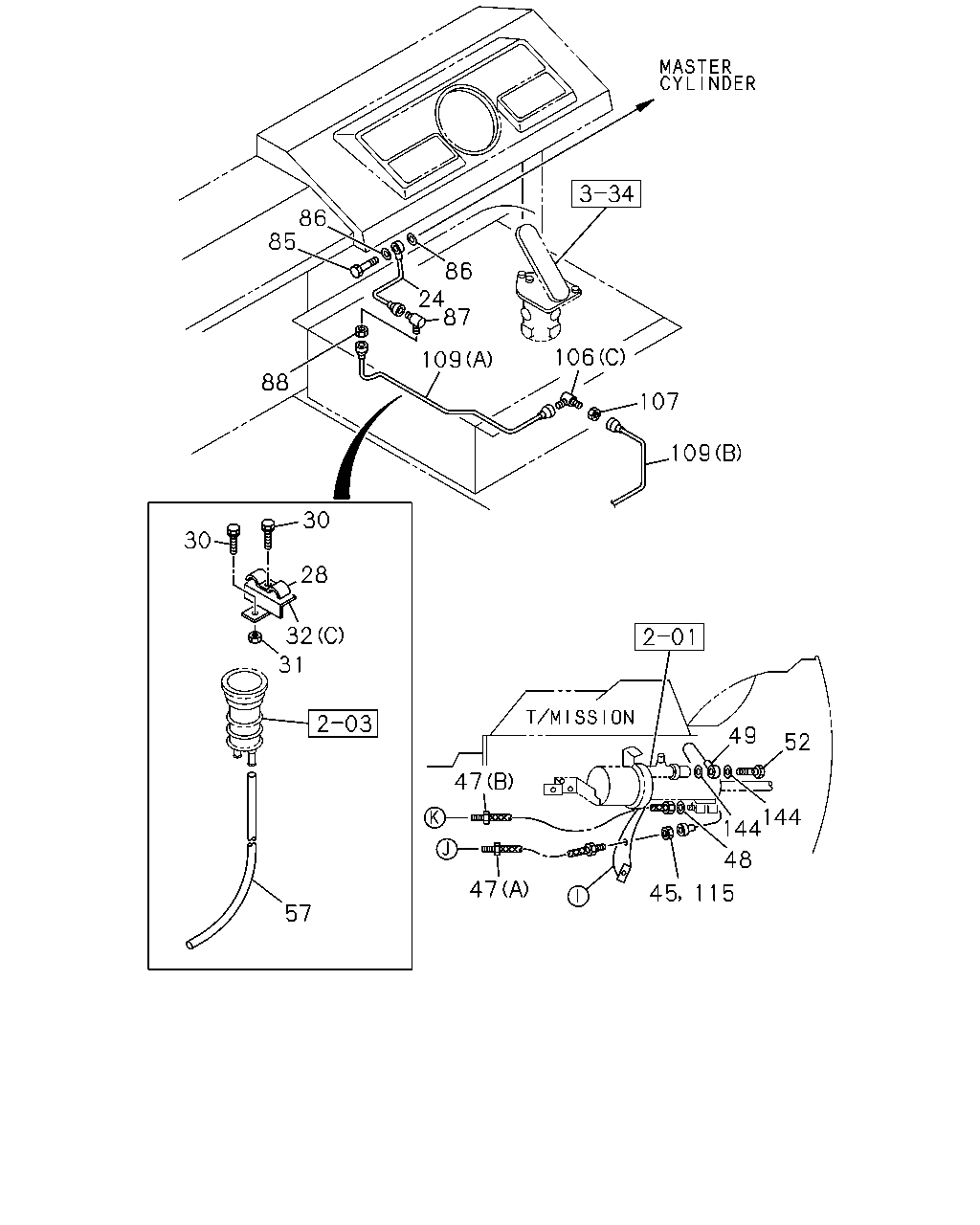

çizim 73169
86 85 86 24 87 106 109 88 107 109 30 30 28 32 31 49 52 47 144 144 48 47 45 115 57
BalonParca AdiParca NoAdetTipApplied Date
24 PIPE ASM; CLU,M/CYL TO UNION 1-47425-345-0 01 1 9606-
28 CLIP; OIL PIPE
ID=7 & 7 L=15 & 15 		1-09700-059-0 01 1 9606-
28 CLIP; OIL PIPE
RIGHT HAND DRIVE(MVR5FB) ID=13 & 7 L=20 & 17 		1-09700-692-0 01 1 9606-
30 BOLT; BRKT
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9606-
30 BOLT; BRKT
M10X35 W/LK WASHER 		0-50041-035-0 02 1 9606-
31 NUT; BRKT
M6 		9-09110-406-0 01 1 9606-
31 NUT; BRKT
M10 		9-09110-510-0 02 1 9606-
32 BRACKET; CLIP OIL PIPE
(C) 		1-47465-866-1 01 1 9606-
32 BRACKET; CLIP OIL PIPE
(D) 		1-47475-651-0 01 1 9606-
32 BRACKET; CLIP OIL PIPE
RIGHT HAND DRIVE(MVR5FB) (A) L=55 		1-47475-304-0 02 1 9606-
32 BRACKET; CLIP OIL PIPE
RIGHT HAND DRIVE(MVR5FB) (B) 		1-47475-427-1 01 1 9606-
32 BRACKET; CLIP OIL PIPE
LEFT HAND DRIVE(MVR6FB) (E) M8 W/NUT 		1-47475-439-2 02 1 9606-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 03 1 9606-
47 HOSE; FLEX,CLU CONT
(A) L=450 		0-07030-450-0 01 1 9606-
47 HOSE; FLEX,CLU CONT
(B) L=400 		1-09364-262-0 01 1 9606-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9606-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47436-649-0 01 1 9606-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 9606-
57 HOSE; CLU M/CYL TO OIL TANK
L=920 SERVICED BY L=1800 		1-09360-320-0 01 1 9606-
85 BOLT; EYE JOINT,CLU M/CYL
M14X29 EYE BOLT 		9-09906-325-1 01 1 9606-
86 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=20.0 		9-09571-414-0 02 1 9606-
87 UNION; OIL PIPE
M14 & M12 ELBOW 		1-09654-105-1 01 1 9606-
88 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 9606-
106 UNION; OIL PIPE
(B) M12 L=40 		9-09223-006-1 01 1 9606-
106 UNION; OIL PIPE
(A) M12 L=69 		9-09225-106-1 01 1 9606-
106 UNION; OIL PIPE
LEFT HAND DRIVE(MVR6FB) (A) M12 L=69 		9-09225-106-1 01 1 9606-
106 UNION; OIL PIPE
RIGHT HAND DRIVE(MVR5FB) (C) M12 L=63 		9-09225-006-1 01 1 9606-
107 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9606-
107 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
(A) SERVICED BY L=650 		9-47415-353-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
RIGHT HAND DRIVE(MVR5FB) (C) SERVICED BY L=1820 		1-47434-394-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
RIGHT HAND DRIVE(MVR5FB) (B) SERVICED BY L=500 		9-47415-350-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MVR6FB) (C) SERVICED BY L=1370 		1-47434-390-0 01 1 9606-
109 PIPE; AIR,UNION TO UNION
LEFT HAND DRIVE(MVR6FB) (B) SERVICED BY L=550 		9-47415-351-0 01 1 9606-
115 NUT; FLEX HOSE,CLU CONT
LEFT HAND DRIVE(MVR6FB) M12 		9-09840-280-0 01 1 9606-
144 GASKET; AIR PIPE
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9606-
