1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

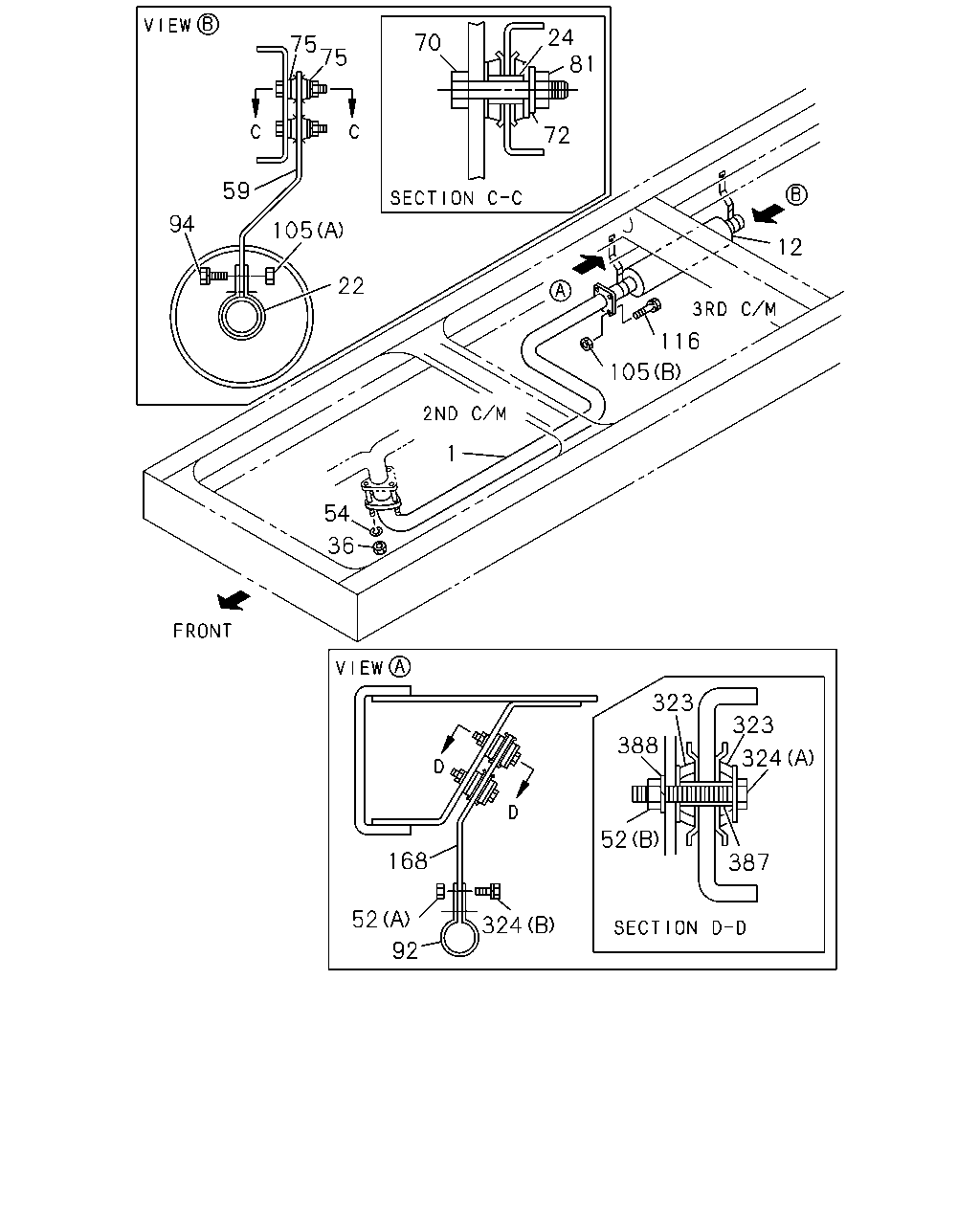

1-50 — EXHAUST PIPE AND SILENCER
(#9089) — 25 parça
24
81
70
75
75
72
59
94
105
12
22
116
105
1
54
36
323
323
388
324
52
168
387
52
324
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
1-22121-413-1
01
1
9606-
12
SILENCER ASM; EXH
1-22140-710-2
01
1
9606-0003
12
SILENCER ASM; EXH
1-22140-930-0
01
1
0004-
22
CLAMP; EXH PIPE
ID=97
1-22133-191-0
01
1
9606-
24
COLLAR; DIST,CLAMP
L=22
9-22159-024-0
04
1
9606-
36
NUT; EXH PIPE
M12
1-09400-010-0
03
1
9606-
52
NUT; BRKT
(A) M8
9-09110-408-0
02
1
9606-
52
NUT; BRKT
(B) M10
9-09110-510-0
02
1
9606-
54
WASHER; LK,BRKT
ID=13 OD=26 DISH
1-09556-002-0
03
1
9606-
59
BRACKET; EXH SILENCER,FRT
1-22151-223-1
02
1
9606-
70
BOLT; BRKT
M10X50
0-10806-050-0
04
1
9606-
72
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
04
1
9606-
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-094-0
08
1
9606-
81
NUT; BRKT
M10
9-09110-510-0
04
1
9606-
92
CLAMP
ID=97
1-22133-191-0
01
1
9606-
94
BOLT; CLAMP
M8X35 W/LK WASHER
0-50040-835-0
04
1
9606-
105
NUT; CLAMP
(A) M8
9-09110-408-0
04
1
9606-
105
NUT; CLAMP
(B) M12
9-99110-512-0
04
1
9606-
116
BOLT; BRKT
M12X35 W/LK WASHER
0-50041-235-0
04
1
9606-
168
BRACKET; EXH PIPE,FRT
1-22151-428-0
01
1
9606-
323
RUBBER; CUSHION,BRKT
OD=40
1-22159-094-0
04
1
9606-
324
BOLT; BRKT
(A) M10X50
0-10806-050-0
02
1
9606-
324
BOLT; BRKT
(B) M8X30 W/LK WASHER
0-50040-830-0
02
1
9606-
387
SPACER; BRKT
L=22
9-22159-024-0
02
1
9606-
388
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
02
1
9606-
