10857 - MV118
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

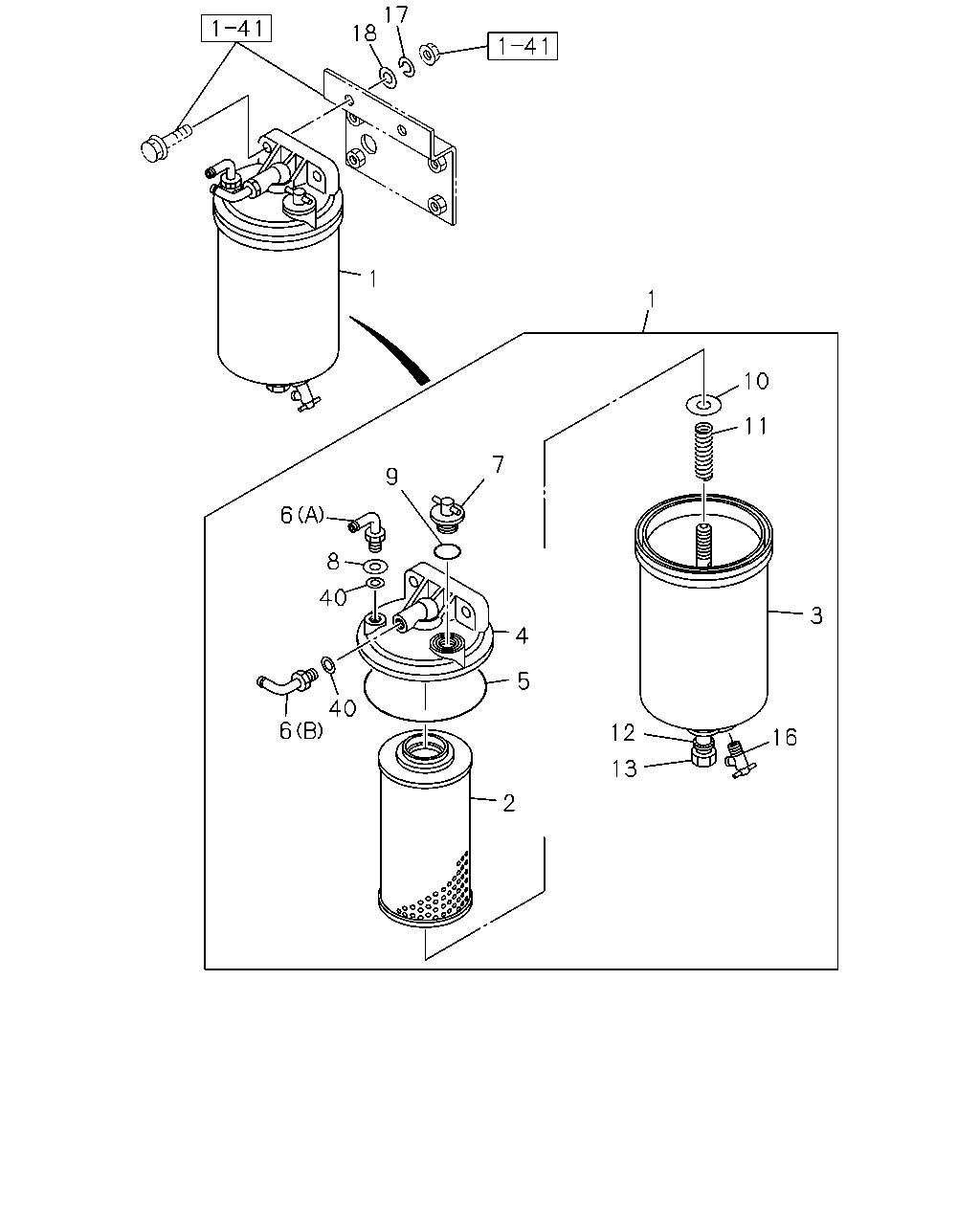

1-45 - WATER SEDIMENTER; FUEL
▶
1-45 — WATER SEDIMENTER; FUEL
(#9088) — 18 parça
17
18
1
1
10
11
7
9
6
8
4
3
4
5
40
6
12
16
13
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SEDIMENTER; FUEL
1-13200-309-1
01
1
9606-
2
ELEMENT; FUEL FILTER
1-13240-020-0
01
1
9606-
3
BODY ASM; SEDIMENTER
1-13211-069-0
01
1
9606-
4
COVER; UPR,SEDIMENTER ASM
1-13212-055-0
01
1
9606-
5
GASKET; UPR COVER,SEDIMENTER
1-09630-072-0
01
1
9606-
6
CONNECTOR ASM; SEDIMENTER
(A) INLET
1-13229-004-0
01
1
9606-
6
CONNECTOR ASM; SEDIMENTER
(B)
1-13229-005-0
01
1
9606-
7
PLUG; DRAIN,SEDIMENTER
1-13219-059-0
01
1
9606-
8
STOPPER; CONN,SEDIMENTER
1-13229-001-0
02
1
9606-
9
GASKET; DRAIN PLUG & CONNECTOR
1-13219-060-0
01
1
9606-
10
SEAT; ELEMENT,SEDIMENTER
1-13249-020-0
01
1
9606-
11
SPRING; SET,SCREEN
1-13249-019-0
01
1
9606-
12
GASKET; CENTER BOLT
1-13219-057-0
01
1
9606-
13
BOLT; CENTER,SEDIMENTER
1-13231-030-0
01
1
9606-
16
COCK ASM; DRAIN
1-13219-058-0
01
1
9606-
17
WASHER; LK,FUEL SEDIMENTER
ID=14.2
9-09150-514-0
02
1
9606-
18
WASHER; PL,FUEL SEDIMENTER
ID=15
9-09160-514-0
02
1
9606-
40
GASKET; CONNECTOR TO COVER
ID=14.2 OD=19.2
1-09630-085-0
02
1
9606-
