Isuzu WW
▶
BUSES
▶
MV
▶
10857 - MV118
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

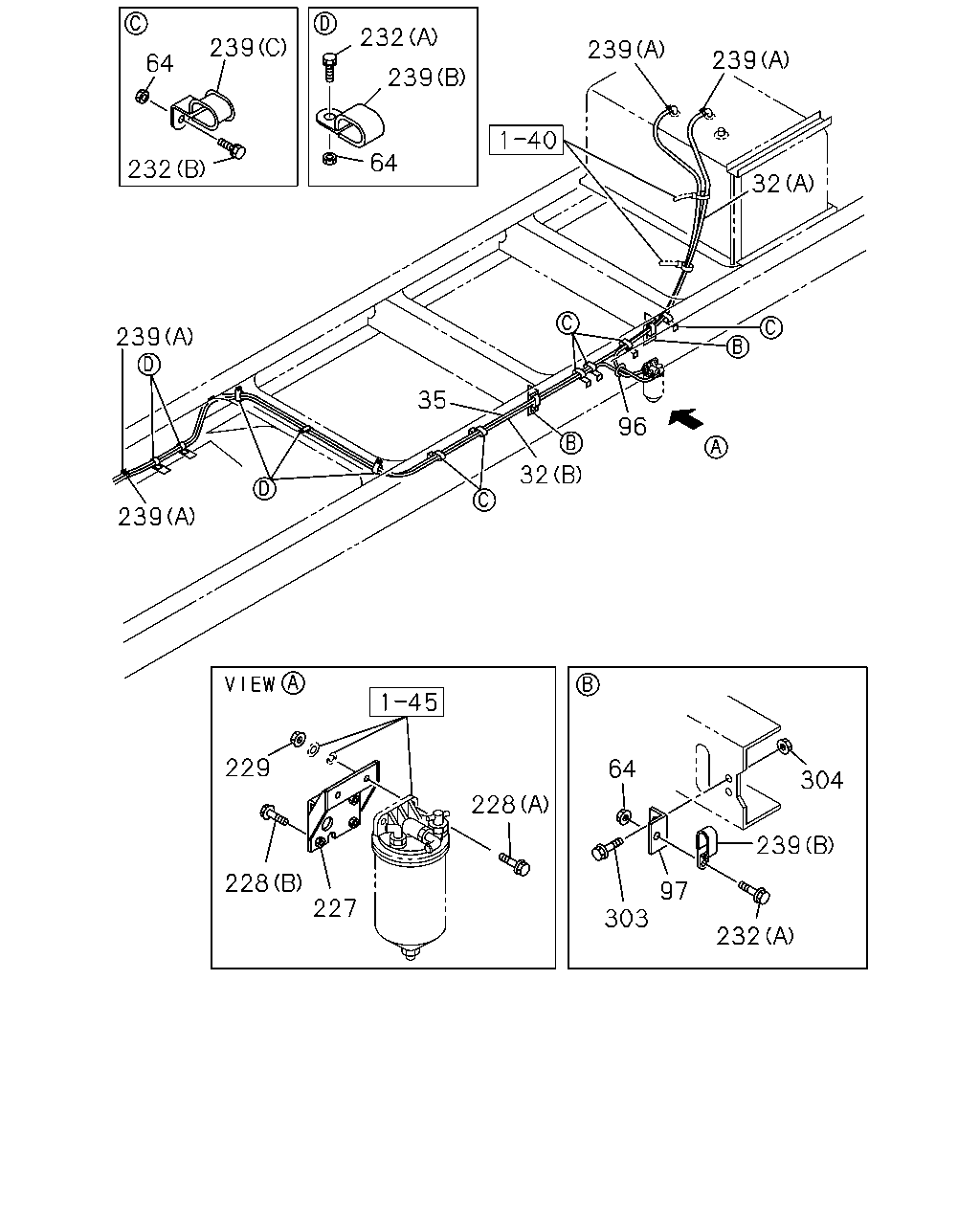

1-41 — FUEL PIPING; CHASSIS
(#9087) — 17 parça
232
239
239
239
64
239
64
232
32
239
35
96
32
239
229
64
304
228
239
228
227
97
303
232
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(B) L=3600 SERVICED BY L=8000
0-01260-800-0
01
1
9606-
32
PIPE; DELIVERY,FUEL TANK
(A) L=7000 SERVICED BY L=8000
0-01260-800-0
01
1
9606-
35
PIPE; FUEL TANK,RETURN
SERVICED BY L=10000
0-01260-000-0
01
1
9606-
64
NUT; CLIP
M6
9-09110-406-0
12
1
9606-
96
GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=17
9-09956-256-1
01
1
9606-
97
BRACKET; CLIP
L=40 WO/NUT
1-47465-932-0
02
1
9606-
227
BRACKET; FUEL SEDIMENTER
1-22518-079-1
01
1
9606-
228
BOLT; BRKT,SEDIMENTER
(A) M14X45
0-20801-445-0
02
1
9606-
228
BOLT; BRKT,SEDIMENTER
(B) M12X30 W/LK WASHER
0-50041-230-0
04
1
9606-
229
NUT; BRKT,FUEL FILTER
M14
9-99110-414-0
02
1
9606-
232
BOLT; CLIP,PIPE
(A) M6X16 W/LK WASHER
0-50040-616-0
06
1
9606-
232
BOLT; CLIP,PIPE
(B) M6X30 W/LK&PL WASHER
0-50140-630-0
06
1
9606-
239
CLIP; FUEL PIPE
(A) ID=14
1-09704-102-0
06
1
9606-
239
CLIP; FUEL PIPE
(C)
8-94107-544-0
06
1
9606-
239
CLIP; FUEL PIPE
(B) ID=16X2 L=20
9-09535-533-0
06
1
9606-
303
BOLT; BRKT
M6X16 W/LK WASHER
0-50040-616-0
04
1
9606-
304
NUT; BRKT
M6
9-09110-406-0
04
1
9606-
