Isuzu WW
▶
BUSES
▶
MV
▶
10857 - MV118
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

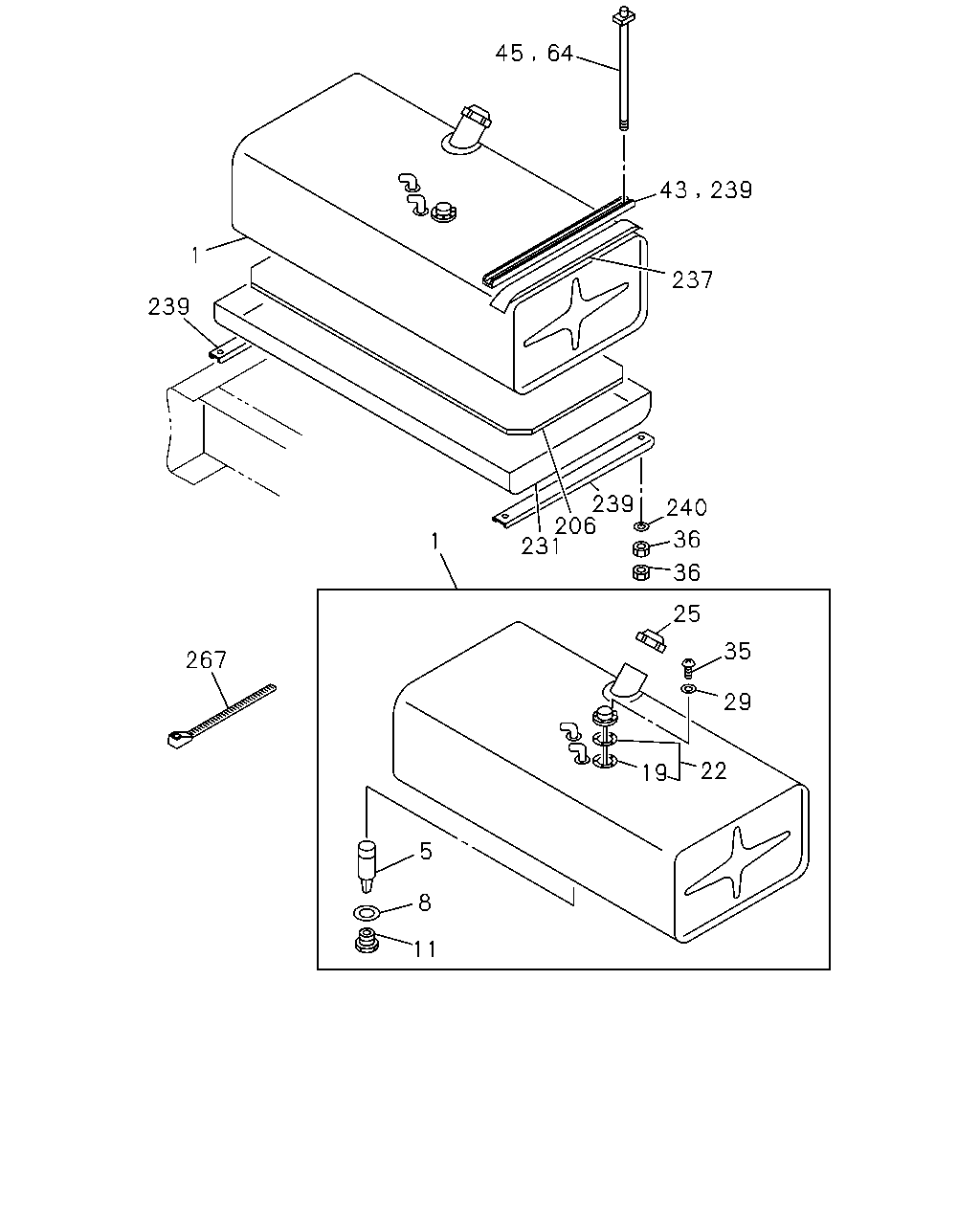

1-40 — FUEL TANK
(#9086) — 24 parça
45
64
1
237
239
239
206
231
240
36
1
36
25
35
267
29
22
19
5
8
11
43
239
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
DESERT ZONE PACKAGE<W01> 840X649X549 277L
1-22400-791-0
01
1
9606-
1
TANK; FUEL
EXC. DESERT ZONE PACKAGE<W01> 840X649X549 278L
8-94300-186-1
01
1
9606-
5
STRAINER; FUEL TANK
1-22460-001-1
01
1
9606-
8
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
9-09923-030-0
01
1
9606-
11
PLUG; DRAIN,FUEL TANK
1-09604-052-0
01
1
9606-
19
GASKET; FUEL TANK UNIT
9-83135-003-0
01
1
9606-
22
UNIT; FUEL TANK
DESERT ZONE PACKAGE<W01>
1-83141-057-0
01
1
9606-
22
UNIT; FUEL TANK
EXC. DESERT ZONE PACKAGE<W01>
9-83132-101-0
01
1
9606-
25
CAP; FILLER,FUEL TANK
DESERT ZONE PACKAGE<W01>
1-22440-034-1
01
1
9606-
25
CAP; FILLER,FUEL TANK
EXC. DESERT ZONE PACKAGE<W01>
1-22440-023-1
01
1
9606-
29
WASHER; PL,FUEL TANK UNIT
ID=4.3
9-09160-504-0
01
1
9606-
35
SCREW; FUEL TANK UNIT
DESERT ZONE PACKAGE<W01>
1-22419-012-0
05
1
9606-
35
SCREW; FUEL TANK UNIT
EXC. DESERT ZONE PACKAGE<W01> M4X10 W/LK&PL WASHER
9-03920-410-0
05
1
9606-
36
NUT; SPACER,FUEL TANK
M12
9-99111-412-0
04
1
9606-
36
NUT; SPACER,FUEL TANK
M12
9-99111-412-0
04
1
9606-
43
BRACKET; FUEL TANK
1-22555-004-0
02
1
9606-
45
BOLT; BRKT,FUEL TANK
1-22559-020-0
04
1
9606-
64
BOLT; FUEL TANK
1-22559-020-0
04
1
9606-
206
SLEEPER; FUEL TANK
1-22554-002-0
01
1
9606-
231
COVER; UNDER,FUEL TANK
1-22557-003-0
01
1
9606-
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
04
1
9606-
239
SUPPORT; FUEL TANK
1-22555-004-0
04
1
9606-
240
WASHER; PL,FUEL TANK
ID=12.5 OD=26
9-09164-612-0
04
1
9606-
267
CLIP; BAND,VINYL PIPE
L=250
5-09707-030-1
04
1
9606-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
