◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10857 - MV118 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#9084) — 19 parça

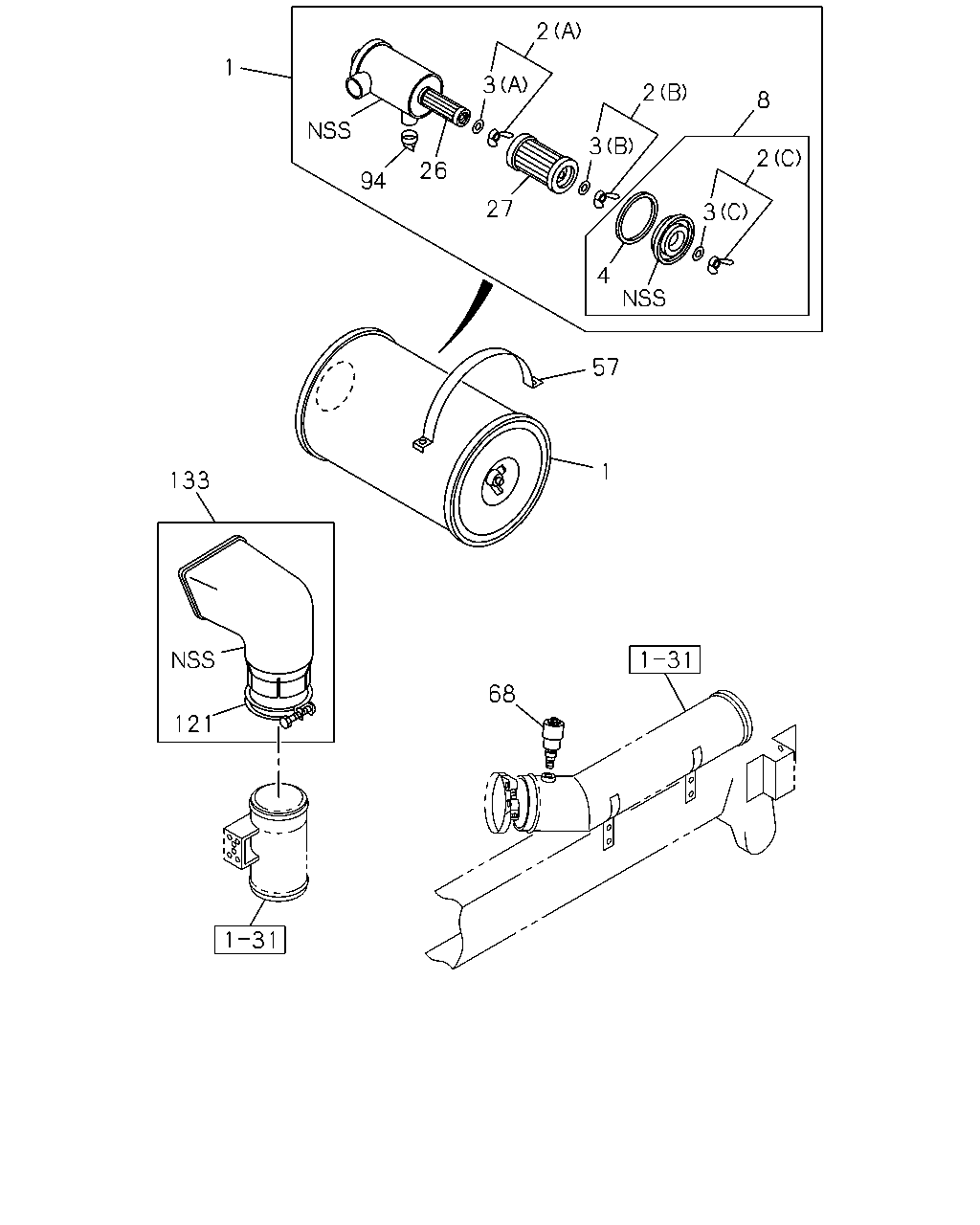

çizim 74413
2 1 3 2 8 3 2 26 94 27 3 4 57 1 133 68 121
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
RIGHT HAND DRIVE(MVR5FB) 		8-93559-618-6 01 1 9606-
1 CLEANER ASM; AIR
LEFT HAND DRIVE(MVR6FB) CAUTIONS FRENCH<WJ8> 		1-14210-643-2 01 1 9606-
1 CLEANER ASM; AIR
LEFT HAND DRIVE(MVR6FB) EXC. CAUTIONS FRENCH<WJ8> 		1-14210-550-3 01 1 9606-
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 9606-
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9606-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9606-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 9606-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9606-
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9606-
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9606-
8 COVER ASM; ACL
EXC. CAUTIONS FRENCH<WJ8> 		1-14212-087-0 01 1 9606-
8 COVER ASM; ACL
LEFT HAND DRIVE(MVR6FB) CAUTIONS FRENCH<WJ8> 		1-14212-105-0 01 1 9606-
26 FILTER; ACL,INNER 1-14215-140-0 01 1 9606-
27 FILTER; ACL,OUTER 1-14215-185-0 01 1 9606-
57 BAND; ACL 1-53419-251-0 02 1 9606-
68 INDICATOR; SERVICE 9-14219-191-0 01 1 9606-
94 VALVE; VACUATOR 1-14219-129-0 01 1 9606-
121 CLAMP; INL HOOD,ACL 1-14219-103-0 01 1 9606-
133 HOOD ASM; INL,ACL 1-14219-099-1 01 1 9606-
