0-85 — AUTO TIMER; INJECTION PUMP (#9079) — 37 parça

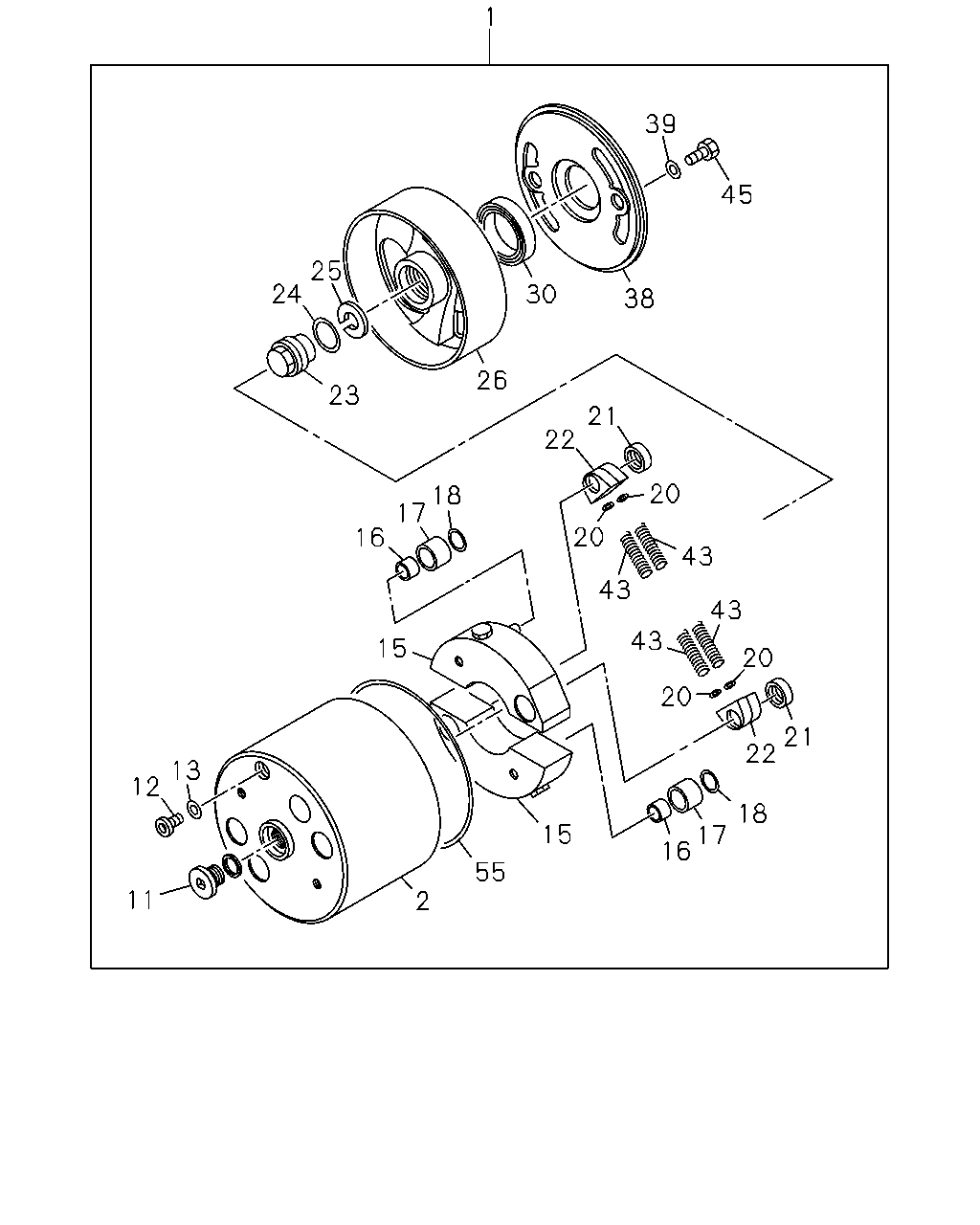

çizim 18714
1 39 45 25 24 30 38 26 23 21 22 20 18 17 43 20 16 43 43 20 43 15 20 21 22 13 12 18 15 17 16 55 11 2
BalonParca AdiParca NoAdetTipApplied Date
1 TIMER ASM; INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15740-130-0 01 1 -
2 HOUSING; TIMER,INJ PUMP
ASM PART: A = 1-15601-653-2 		5-15741-002-0 01 1 -
11 CAP; TIMER HSG,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-115-0 01 1 -
12 PLUG; TIMER HSG,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-031-0 01 1 -
13 GASKET; HSG PLUG,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-030-0 01 1 -
15 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15743-017-0 02 1 -
16 BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU
ASM PART: A = 1-15601-653-2 		5-15749-042-0 02 1 -
17 ROLLER; FLYWEIGHT,TIMER,INJ PUMP
OD=18.00 ASM PART: A = 1-15601-653-2 		5-15749-043-0 01 1 -
17 ROLLER; FLYWEIGHT,TIMER,INJ PUMP
OD=17.90 ASM PART: A = 1-15601-653-2 		5-15749-044-0 01 1 -
17 ROLLER; FLYWEIGHT,TIMER,INJ PUMP
OD=18.10 ASM PART: A = 1-15601-653-2 		5-15749-045-0 01 1 -
17 ROLLER; FLYWEIGHT,TIMER,INJ PUMP
OD=18.20 ASM PART: A = 1-15601-653-2 		5-15749-046-0 01 1 -
18 WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM
ASM PART: A = 1-15601-653-2 		5-15749-047-0 02 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.30 ASM PART: A = 1-15601-653-2 		1-15749-097-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.40 ASM PART: A = 1-15601-653-2 		1-15749-098-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.50 ASM PART: A = 1-15601-653-2 		1-15749-099-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: A = 1-15601-653-2 		1-15749-100-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: A = 1-15601-653-2 		1-15749-101-1 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.80 ASM PART: A = 1-15601-653-2 		1-15749-102-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.90 ASM PART: A = 1-15601-653-2 		1-15749-103-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=1.50 ASM PART: A = 1-15601-653-2 		1-15749-290-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=2.00 ASM PART: A = 1-15601-653-2 		1-15749-291-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.10 ASM PART: A = 1-15601-653-2 		9-81325-379-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.20 ASM PART: A = 1-15601-653-2 		9-81325-380-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.25 ASM PART: A = 1-15601-653-2 		9-81325-381-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 1-15601-653-2 		9-81325-382-0 AR 1 -
21 RETAINER; SPRING SEAT,TIMER,INJ PUMP
ASM PART: A = 1-15601-653-2 		5-15749-048-0 02 1 -
22 SEAT; INNER SPRING,TIMER,INJ PUMP
ASM PART: A = 1-15601-653-2 		5-15749-040-0 04 1 -
23 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15601-653-2 		5-15749-051-1 01 1 -
24 GASKET; FLANGE,TIMER,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-036-0 01 1 -
25 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-034-0 01 1 -
26 FLANGE; TIMER,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15742-026-0 01 1 -
30 SEAL; OIL,TIMER COVER,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-073-0 01 1 -
38 COVER; TIMER,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-072-0 01 1 -
39 GASKET; TIMER COVER BOLT,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-028-0 02 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-107-0 04 1 -
45 BOLT; TIMER COVER,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-029-0 02 1 -
55 GASKET; TIMER HSG,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15749-449-1 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
