10857 - MV118
▶
0 - Engine, Emission, Engine Electrical
▶
0-84 - FEED PUMP; INJECTION PUMP
▶

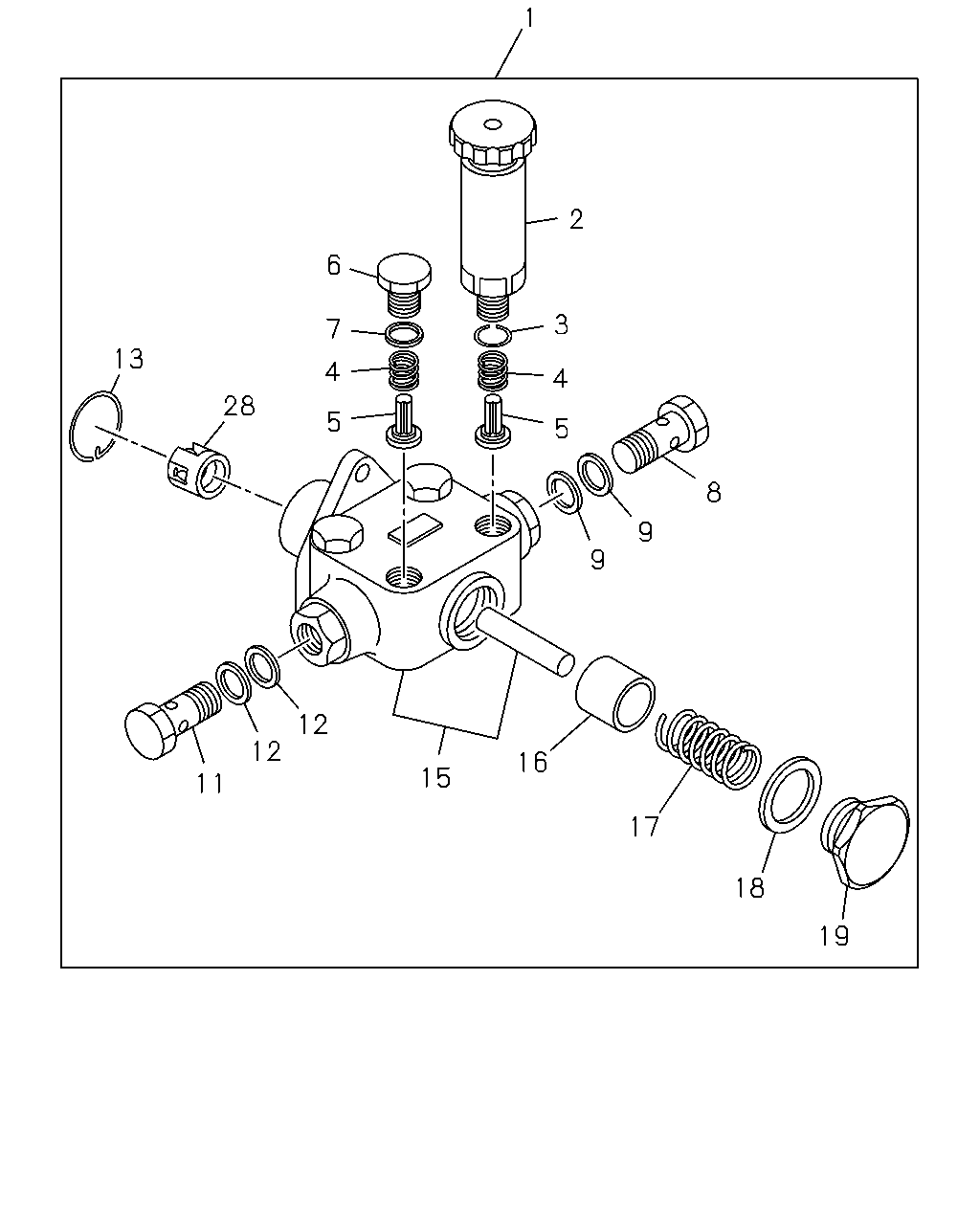

0-84 — FEED PUMP; INJECTION PUMP
(#9078) — 18 parça
1
2
6
3
7
13
4
4
28
5
5
8
9
9
12
12
16
15
11
17
18
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15601-653-2
1-15750-068-0
01
1
-
2
PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
8-94131-130-0
01
1
-
3
GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
1-19623-016-0
01
1
-
4
SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
9-81351-702-0
04
1
-
5
VALVE; FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
9-81351-602-0
04
1
-
6
PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
1-15759-009-0
03
1
-
7
GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
9-81355-031-0
03
1
-
8
BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15601-653-2
1-15759-029-0
01
1
-
9
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
1-15759-012-0
02
1
-
11
BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15601-653-2
1-15759-011-0
01
1
-
12
GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
1-15759-012-0
02
1
-
13
RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
9-81355-062-0
01
1
-
15
HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
1-15751-010-0
01
1
-
16
PISTON; FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
9-81351-205-0
01
1
-
17
SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
9-81351-503-0
01
1
-
18
GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
9-81355-035-0
01
1
-
19
PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
8-94171-185-0
01
1
-
28
TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15601-653-2
1-15754-004-0
01
1
-
