0-81 — GOVERNOR; INJECTION PUMP (#9076) — 108 parça

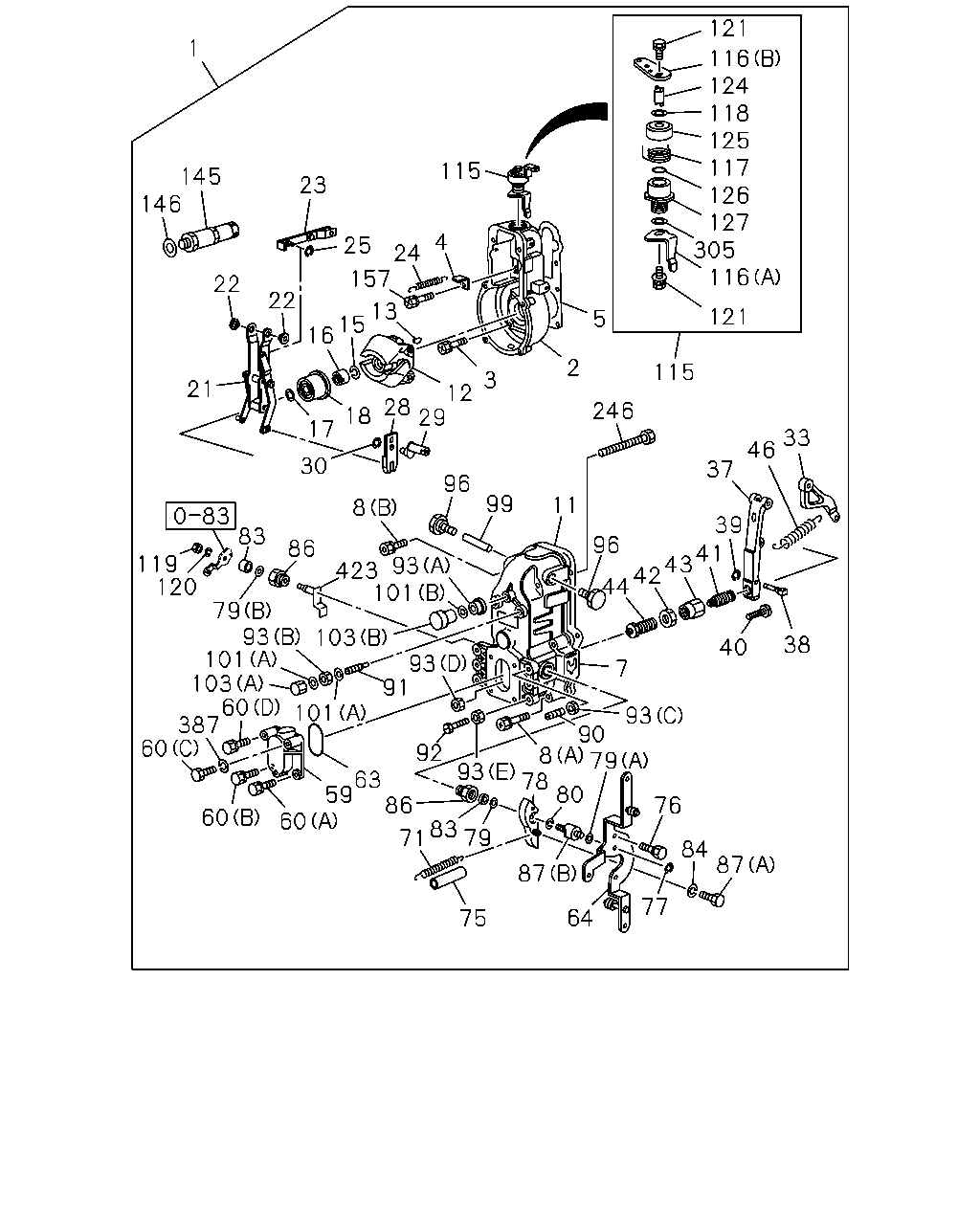

çizim 19593
121 1 116 124 118 125 117 126 127 305 116 115 145 146 23 25 4 24 157 22 13 15 16 22 121 5 2 115 3 21 12 28 29 246 18 17 33 46 30 37 96 99 11 8 39 41 43 42 44 83 96 86 93 423 101 119 120 79 93 101 103 60 387 60 103 93 91 38 40 7 101 93 90 79 92 8 93 78 80 63 59 86 60 76 60 83 71 79 84 87 87 77 64 75
BalonParca AdiParca NoAdetTipApplied Date
1 GOVERNOR ASM; INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15720-680-2 01 1 -
2 HOUSING; GOV,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15721-033-0 01 1 -
3 BOLT; GOV HSG,INJ PUMP
M6X20 ASM PART: A = 1-15601-653-2 		9-81325-187-0 04 1 -
4 PLATE; START SPRING,GOV
ASM PART: A = 1-15601-653-2 		9-81325-527-0 01 1 -
5 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 1-15601-653-2 		1-15729-018-0 01 1 -
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15721-333-0 01 1 -
8 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: A = 1-15601-653-2 		5-15729-033-0 04 1 -
8 BOLT; GOV COVER,INJ PUMP
(B) ASM PART: A = 1-15601-653-2 		5-15729-054-0 02 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 1-15601-653-2 		1-15729-002-0 01 1 -
12 FLYWEIGHT ASM; GOV
ASM PART: A = 1-15601-653-2 		1-15722-014-0 01 1 -
13 KEY; FLYWEIGHT,GOV
16MM ASM PART: A = 1-15601-653-2 		5-19619-049-0 01 1 -
13 KEY; FLYWEIGHT,GOV
13MM ASM PART: A = 1-15601-653-2 		9-81325-030-0 02 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 1-15601-653-2 		5-15729-034-0 01 1 -
16 NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 1-15601-653-2 		9-81325-086-0 01 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00 ASM PART: A = 1-15601-653-2 		1-15729-891-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00 ASM PART: A = 1-15601-653-2 		1-15729-892-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00 ASM PART: A = 1-15601-653-2 		1-15729-893-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50 ASM PART: A = 1-15601-653-2 		5-15729-286-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50 ASM PART: A = 1-15601-653-2 		5-15729-287-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20 ASM PART: A = 1-15601-653-2 		9-81325-088-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30 ASM PART: A = 1-15601-653-2 		9-81325-551-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40 ASM PART: A = 1-15601-653-2 		9-81325-552-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00 ASM PART: A = 1-15601-653-2 		9-81325-553-0 AR 1 -
18 SLEEVE; GOV
ASM PART: A = 1-15601-653-2 		9-81325-438-0 01 1 -
21 LEVER ASM; GUIDE,GOV
ASM PART: A = 1-15601-653-2 		1-15725-226-0 01 1 -
22 COLLAR; LEVER,GOV
ASM PART: A = 1-15601-653-2 		9-81325-441-0 02 1 -
23 LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 1-15601-653-2 		1-15729-169-0 01 1 -
24 SPRING; START,GOV,INJ PUMP
ASM PART: A = 1-15601-653-2 		5-15723-160-0 01 1 -
25 RING; SNAP
ID=4 ASM PART: A = 1-15601-653-2 		9-09185-404-0 01 1 -
28 LEVER; SUPPORTING,GOV
ASM PART: A = 1-15601-653-2 		9-81322-131-0 01 1 -
29 SHAFT; SUPPORTING LEVER,GOV
ASM PART: A = 1-15601-653-2 		1-15729-178-0 01 1 -
30 RING; SNAP,SUPPORTING LEVER,GOV
ASM PART: A = 1-15601-653-2 		5-15729-023-0 01 1 -
33 LEVER; SPD CONT,GOV
ASM PART: A = 1-15601-653-2 		9-81322-123-0 01 1 -
37 LEVER ASM; TENSION,GOV
ASM PART: A = 1-15601-653-2 		1-15725-110-0 01 1 -
38 PIN; TENSION LEVER,GOV
ASM PART: A = 1-15601-653-2 		1-15729-641-0 01 1 -
39 RING; SNAP,LEVER PIN,GOV
ID=4 ASM PART: A = 1-15601-653-2 		9-09185-404-0 01 1 -
40 SCREW; LEVER ADJ,GOV
ASM PART: A = 1-15601-653-2 		1-15729-176-0 01 1 -
41 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 1-15601-653-2 		9-81322-219-0 01 1 -
42 NUT; SPRING CAPSULE,IDLE CONT,GOV
ASM PART: A = 1-15601-653-2 		1-15729-032-0 01 1 -
43 NUT; IDLING CONT SPRING,GOV
ASM PART: A = 1-15601-653-2 		9-00813-023-0 01 1 -
44 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 1-15601-653-2 		1-15723-114-0 01 1 -
46 SPRING; GOV,INJ PUMP
ASM PART: A = 1-15601-653-2 		5-15723-011-0 01 1 -
59 COVER; GOV COVER
ASM PART: A = 1-15601-653-2 		9-81322-313-0 01 1 -
60 BOLT; COVER FIX,GOV COVER
(A) ASM PART: A = 1-15601-653-2 		5-15729-063-0 01 1 -
60 BOLT; COVER FIX,GOV COVER
(C) ASM PART: A = 1-15601-653-2 		5-15729-124-0 01 1 -
60 BOLT; COVER FIX,GOV COVER
(B), M6X16 W/LK WASHER ASM PART: A = 1-15601-653-2 		9-01900-616-0 01 1 -
60 BOLT; COVER FIX,GOV COVER
(D), M6X45 W/LK WASHER ASM PART: A = 1-15601-653-2 		9-01900-645-0 01 1 -
63 GASKET; COVER TO GOV COVER
ASM PART: A = 1-15601-653-2 		9-81391-907-0 01 1 -
64 LEVER; LOAD CONT,GOV
ASM PART: A = 1-15601-653-2 		1-15725-533-0 01 1 -
71 SPRING; CONT LEVER,GOV
ASM PART: A = 1-15601-653-2 		1-15723-205-0 01 1 -
75 TUBE; RETURN SPRING,STOPPER LEVER,GOV
ASM PART: A = 1-15601-653-2 		1-15729-405-0 01 1 -
76 PIN; LOAD CONT LEVER,GOV
ASM PART: A = 1-15601-653-2 		1-15729-556-0 01 1 -
77 RING; SNAP,CONT LEVER,GOV
ASM PART: A = 1-15601-653-2 		8-94324-735-0 01 1 -
78 LEVER; STOPPER,GOV
ASM PART: A = 1-15601-653-2 		1-15725-111-0 01 1 -
79 SHIM; LEVER SETTING,GOV
(A),(B), T=0.95 ASM PART: A = 1-15601-653-2 		1-15729-076-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A),(B), T=0.20 ASM PART: A = 1-15601-653-2 		1-15729-077-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A),(B), T=0.25 ASM PART: A = 1-15601-653-2 		1-15729-078-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A),(B), T=0.30 ASM PART: A = 1-15601-653-2 		1-15729-079-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A),(B), T=0.35 ASM PART: A = 1-15601-653-2 		1-15729-080-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A),(B), T=0.40 ASM PART: A = 1-15601-653-2 		1-15729-081-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(A),(B), T=0.50 ASM PART: A = 1-15601-653-2 		1-15729-082-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.10 ASM PART: A = 1-15601-653-2 		1-15729-407-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.15 ASM PART: A = 1-15601-653-2 		1-15729-408-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.20 ASM PART: A = 1-15601-653-2 		1-15729-409-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.50 ASM PART: A = 1-15601-653-2 		1-15729-410-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.70 ASM PART: A = 1-15601-653-2 		1-15729-617-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.90 ASM PART: A = 1-15601-653-2 		1-15729-618-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.80 ASM PART: A = 1-15601-653-2 		1-15729-619-0 AR 1 -
79 SHIM; LEVER SETTING,GOV
(B), T=0.60 ASM PART: A = 1-15601-653-2 		1-15729-896-0 AR 1 -
80 WASHER; LK,CONT LEVER,GOV
ASM PART: A = 1-15601-653-2 		1-83579-492-0 01 1 -
83 SEAL; OIL,CONT SHAFT,GOV
ASM PART: A = 1-15601-653-2 		1-15729-875-0 02 1 -
84 WASHER; LK,RETURN SPR BOLT,GOV
ID=6.1 ASM PART: A = 1-15601-653-2 		9-09150-506-0 01 1 -
86 BUSHING; CONT SHAFT,GOV COVER
ASM PART: A = 1-15601-653-2 		1-15729-071-0 02 1 -
87 BOLT; RETURN SPRING,GOV
(A) ASM PART: A = 1-15601-653-2 		1-15729-503-0 01 1 -
87 BOLT; RETURN SPRING,GOV
(B) ASM PART: A = 1-15601-653-2 		1-15729-571-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
ASM PART: A = 1-15601-653-2 		5-15729-044-0 01 1 -
91 SPRING CAPSULE; ADJ,GOV
ASM PART: A = 1-15601-653-2 		1-15723-113-0 01 1 -
92 BOLT; FULL LOAD STOPPER,GOV
L=42 ASM PART: A = 1-15601-653-2 		1-15729-173-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(D) ASM PART: A = 1-15601-653-2 		1-15729-094-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(E) ASM PART: A = 1-15601-653-2 		1-15729-174-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 1-15601-653-2 		1-15729-283-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 1-15601-653-2 		9-81325-081-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 1-15601-653-2 		9-88410-276-0 01 1 -
96 PLUG; LEVER SHAFT,GOV
ASM PART: A = 1-15601-653-2 		5-15729-053-0 02 1 -
99 PIN; TENSION LEVER,GOV
ASM PART: A = 1-15601-653-2 		9-81325-440-0 01 1 -
101 GASKET; ADJ SPRING CAPSULE,GOV
(A), L=96 ASM PART: A = 1-15601-653-2 		1-15729-066-0 02 1 -
101 GASKET; ADJ SPRING CAPSULE,GOV
(B) ASM PART: A = 1-15601-653-2 		8-97084-347-0 01 1 -
103 NUT; CAP,ADJ SPRING CAPSULE,GOV
(B) ASM PART: A = 1-15601-653-2 		1-15729-092-0 01 1 -
103 NUT; CAP,ADJ SPRING CAPSULE,GOV
(A) ASM PART: A = 1-15601-653-2 		1-15729-095-0 01 1 -
115 LEVER ASM; ENG STOP
ASM PART: A = 1-15601-653-2 		1-15725-099-0 01 1 -
116 LEVER; ENG STOP,GOV
(A) ASM PART: A = 1-15601-653-2 		1-15725-118-0 01 1 -
116 LEVER; ENG STOP,GOV
(B) ASM PART: A = 1-15601-653-2 		1-15725-119-0 01 1 -
117 SPRING; STOP LEVER,GOV
ASM PART: A = 1-15601-653-2 		1-15723-088-1 01 1 -
118 COLLAR; CONT SHAFT,GOV
T=0.50 ASM PART: A = 1-15601-653-2 		9-81325-556-0 01 1 -
119 NUT; ENG STOP LEVER,GOV
ASM PART: A = 1-15601-653-2 		1-09429-003-0 01 1 -
120 WASHER; LK,SPD ADJ LEVER,GOV
ID=6.1 ASM PART: A = 1-15601-653-2 		9-09150-506-0 01 1 -
121 BOLT; ENG STOP LEVER,GOV
ASM PART: A = 1-15601-653-2 		1-15729-166-0 02 1 -
124 SHAFT; LEVER
ASM PART: A = 1-15601-653-2 		1-15729-936-0 01 1 -
125 CAP; STOP LEVER SPRING,GOV
ASM PART: A = 1-15601-653-2 		9-81325-210-0 01 1 -
126 GASKET; STOP LEVER,GOV
ASM PART: A = 1-15601-653-2 		9-81391-906-0 01 1 -
127 BUSHING; CONT SHAFT,GOV HSG
ASM PART: A = 1-15601-653-2 		1-15729-167-0 01 1 -
145 CAP; GOV COVER,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15729-162-0 01 1 -
146 GASKET; COVER CAP,GOV
ASM PART: A = 1-15601-653-2 		9-81325-528-0 01 1 -
157 BOLT; START SPRING PLATE,GOV
M6X20 ASM PART: A = 1-15601-653-2 		9-81325-187-0 04 1 -
246 BOLT; GOV
ASM PART: A = 1-15601-653-2 		9-81391-128-0 01 1 -
305 SHIM; STOP LEVER,GOV
T=0.20 ASM PART: A = 1-15601-653-2 		9-88410-421-0 01 1 -
387 WASHER; COVER
ID=6.1 ASM PART: A = 1-15601-653-2 		9-09150-506-0 01 1 -
423 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 1-15601-653-2 		1-15729-356-0 01 1 -
