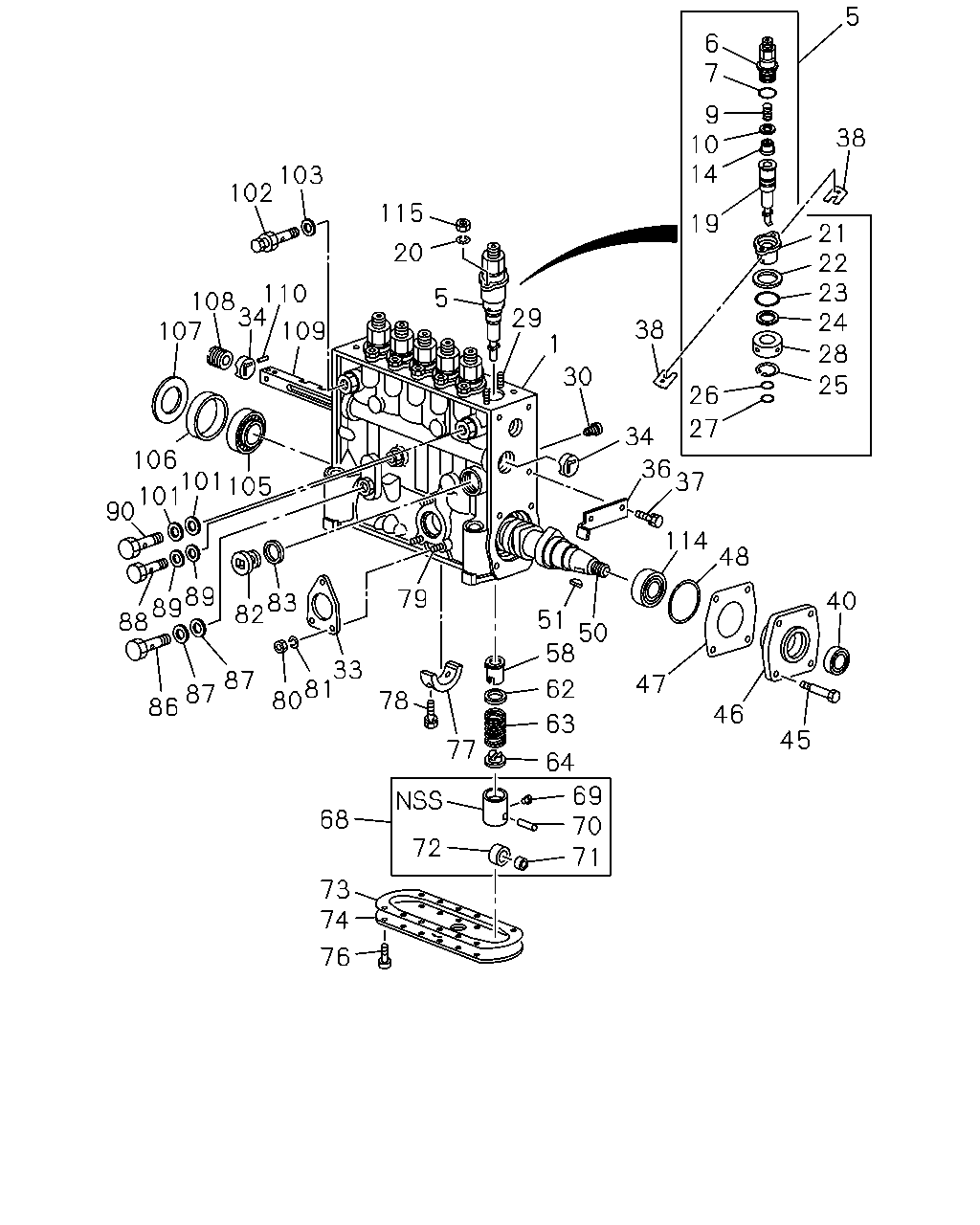

0-80 — INJECTION PUMP (#9075) — 134 parça

5 6 7 9 10 14 38 103 102 115 19 21 22 23 24 20 110 108 34 107 5 29 1 38 109 28 30 25 26 27 34 106 101 105 101 90 36 37 114 48 89 89 88 79 40 83 82 51 50 58 33 81 80 87 87 86 47 62 78 46 63 45 77 64 69 70 71 68 72 73 74 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15601-653-2	1-15611-065-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15601-653-2	1-15631-034-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15601-653-2	1-15644-010-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15601-653-2	9-81235-052-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15601-653-2	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15601-653-2	9-81215-174-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15601-653-2	1-15641-009-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15601-653-2	1-15631-039-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15601-653-2	1-15639-020-0	12	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15601-653-2	1-15742-082-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15601-653-2	1-15649-008-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15601-653-2	1-15639-016-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15601-653-2	9-88410-430-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15601-653-2	9-88410-431-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15601-653-2	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15601-653-2	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15601-653-2	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15601-653-2	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15601-653-2	9-81215-130-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15601-653-2	1-15619-068-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15601-653-2	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 1-15601-653-2	1-15619-156-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: A = 1-15601-653-2	9-01910-612-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15601-653-2	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15601-653-2	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15601-653-2	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15601-653-2	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15601-653-2	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15601-653-2	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15601-653-2	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15601-653-2	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15601-653-2	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15601-653-2	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15601-653-2	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15601-653-2	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15601-653-2	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15601-653-2	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15601-653-2	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15601-653-2	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15601-653-2	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15601-653-2	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15601-653-2	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15601-653-2	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15601-653-2	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15601-653-2	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15601-653-2	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15601-653-2	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15601-653-2	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15601-653-2	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15601-653-2	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15601-653-2	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15601-653-2	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15601-653-2	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15601-653-2	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15601-653-2	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15601-653-2	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15601-653-2	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15601-653-2	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15601-653-2	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15601-653-2	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15601-653-2	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15601-653-2	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15601-653-2	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15601-653-2	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15601-653-2	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15601-653-2	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15601-653-2	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15601-653-2	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15601-653-2	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15601-653-2	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15601-653-2	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15601-653-2	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15601-653-2	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15601-653-2	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15601-653-2	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15601-653-2	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15601-653-2	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15601-653-2	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15601-653-2	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15601-653-2	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15601-653-2	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15601-653-2	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15601-653-2	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15601-653-2	9-81215-127-0	01	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: A = 1-15601-653-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15601-653-2	9-81211-273-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15601-653-2	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15601-653-2	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15601-653-2	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15601-653-2	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15601-653-2	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15601-653-2	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15601-653-2	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15601-653-2	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15601-653-2	1-15621-013-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15601-653-2	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15601-653-2	1-15635-001-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15601-653-2	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15601-653-2	1-15634-005-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15601-653-2	1-15643-004-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15601-653-2	9-81221-240-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15601-653-2	1-15629-063-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15601-653-2	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15601-653-2	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15601-653-2	9-81225-060-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15601-653-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15601-653-2	1-15612-012-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15601-653-2	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15601-653-2	9-81225-066-0	01	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15601-653-2	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15601-653-2	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: A = 1-15601-653-2	9-09110-406-0	03	1	-
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: A = 1-15601-653-2	9-09150-506-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15601-653-2	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15601-653-2	1-15619-067-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15601-653-2	1-15722-012-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ASM PART: A = 1-15601-653-2	1-15759-012-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15601-653-2	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15601-653-2	1-15719-093-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15601-653-2	1-15759-012-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15601-653-2	1-13260-050-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15601-653-2	1-15759-012-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15601-653-2	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15601-653-2	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15601-653-2	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15601-653-2	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15601-653-2	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15601-653-2	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15601-653-2	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15601-653-2	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15601-653-2	1-15637-008-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15601-653-2	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15601-653-2	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15601-653-2	9-88410-456-0	12	1	-
