0-66 — GENERATOR (#9074) — 73 parça

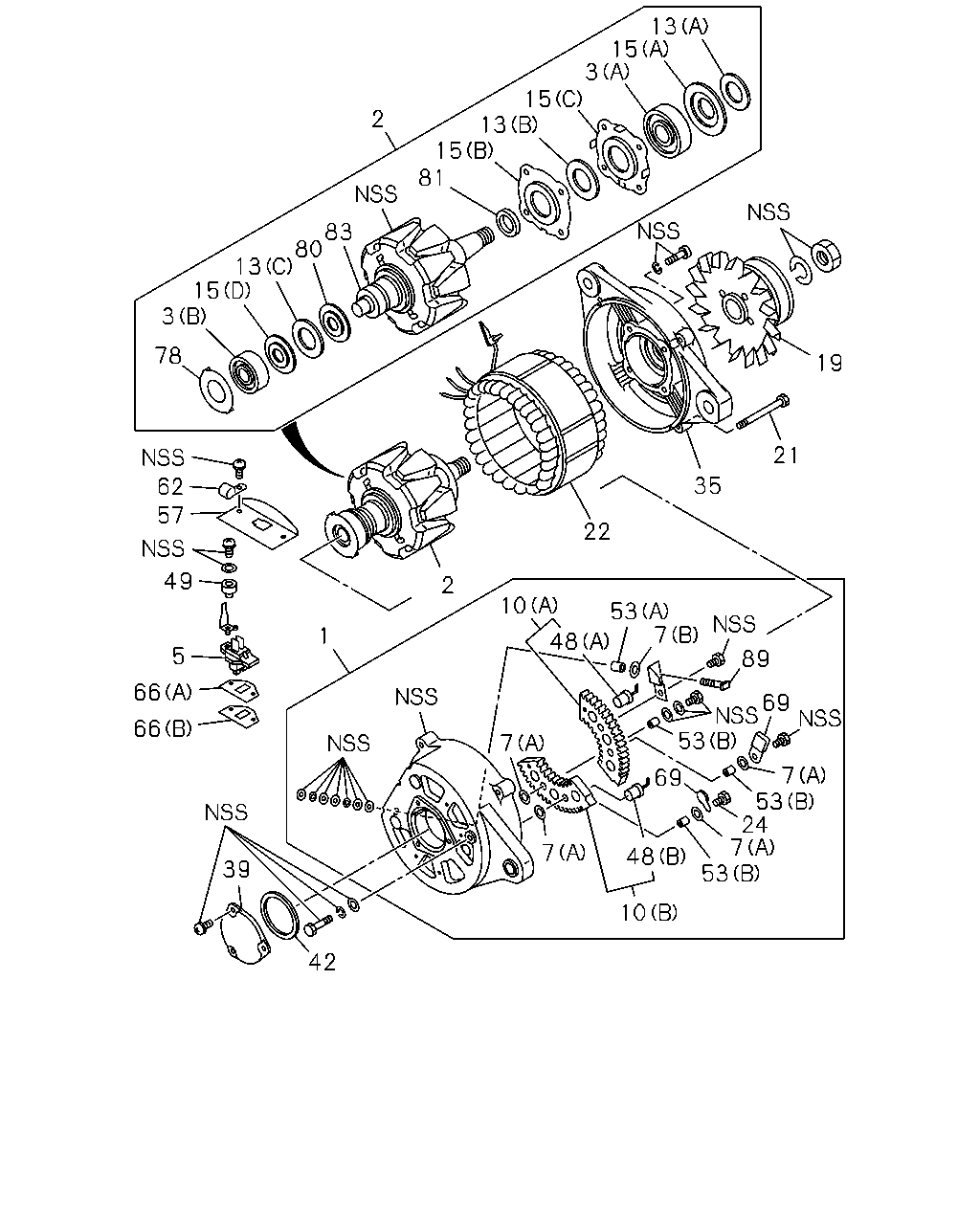

13 15 3 15 13 15 81 2 83 80 13 15 3 78 19 21 35 62 57 22 49 2 10 53 7 1 48 5 89 66 69 53 69 66 7 7 53 24 7 53 7 48 39 10 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-213-1	1-81214-159-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-550-0	1-81222-380-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-213-1	1-81221-079-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-550-0	1-81221-105-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-213-1	1-81229-224-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-213-1	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 1-81200-550-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 1-81200-550-0	1-81229-816-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 1-81200-213-1	1-81217-015-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN (B) ASM PART: A = 1-81200-213-1	1-81229-182-0	02	1	-
7	WASHER; INSULATE,RECTIFIER,GEN (A) ASM PART: A = 1-81200-213-1	1-81229-227-0	04	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 1-81200-213-1	1-81219-003-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: A = 1-81200-213-1	1-81219-004-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: B = 1-81200-550-0	1-81219-129-0	01	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: A = 1-81200-213-1	1-81229-162-0	01	1	-
13	GASKET; ROTOR,GEN (B) ASM PART: A = 1-81200-213-1	1-81229-165-0	01	1	-
13	GASKET; ROTOR,GEN (C) ASM PART: A = 1-81200-213-1	1-81229-231-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-213-1	1-81229-164-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-213-1	1-81229-170-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-213-1	1-81229-171-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: A = 1-81200-213-1	9-82216-060-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-213-1	1-81222-039-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-550-0	1-81222-166-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-213-1	1-81229-034-0	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-213-1	1-81211-035-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-550-0	1-81211-131-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 1-81200-213-1	1-81229-339-0	01	1	-
35	COVER; FRT,GEN ASM PART: A = 1-81200-213-1	1-81213-037-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: A = 1-81200-213-1	1-81214-083-0	01	1	-
42	GASKET; RR COVER,GEN ASM PART: A = 1-81200-213-1	1-81229-233-0	01	1	-
48	DIODE; GEN (A) ASM PART: A = 1-81200-213-1	9-82212-136-0	03	1	-
48	DIODE; GEN (B) ASM PART: A = 1-81200-213-1	9-82212-137-0	03	1	-
49	BUSHING; RECTIFIER,GEN ASM PART: A = 1-81200-213-1	1-81229-042-0	03	1	-
53	TUBE; RECTIFIER,GEN (A) ASM PART: A = 1-81200-213-1	1-81229-011-0	01	1	-
53	TUBE; RECTIFIER,GEN (B) ASM PART: A = 1-81200-213-1	9-82215-443-0	04	1	-
57	COVER; BRUSH,GEN ASM PART: A = 1-81200-213-1	1-81214-050-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN ASM PART: A = 1-81200-213-1	1-81118-011-0	01	1	-
66	GASKET; BRUSH HOLDER,GEN (A) ASM PART: A = 1-81200-213-1	1-81229-226-0	01	1	-
66	GASKET; BRUSH HOLDER,GEN (B) ASM PART: A = 1-81200-213-1	1-81229-232-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: A = 1-81200-213-1	1-81229-122-0	02	1	-
78	CLIP; ROTOR,GEN ASM PART: A = 1-81200-213-1	1-81229-230-0	01	1	-
80	PLATE; ROTOR,GEN ASM PART: A = 1-81200-213-1	1-81229-123-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-213-1	1-81229-160-0	01	1	-
83	RING; SLIP,ROTOR,GEN ASM PART: A = 1-81200-213-1	1-81224-016-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-213-1	9-82216-068-0	01	1	-

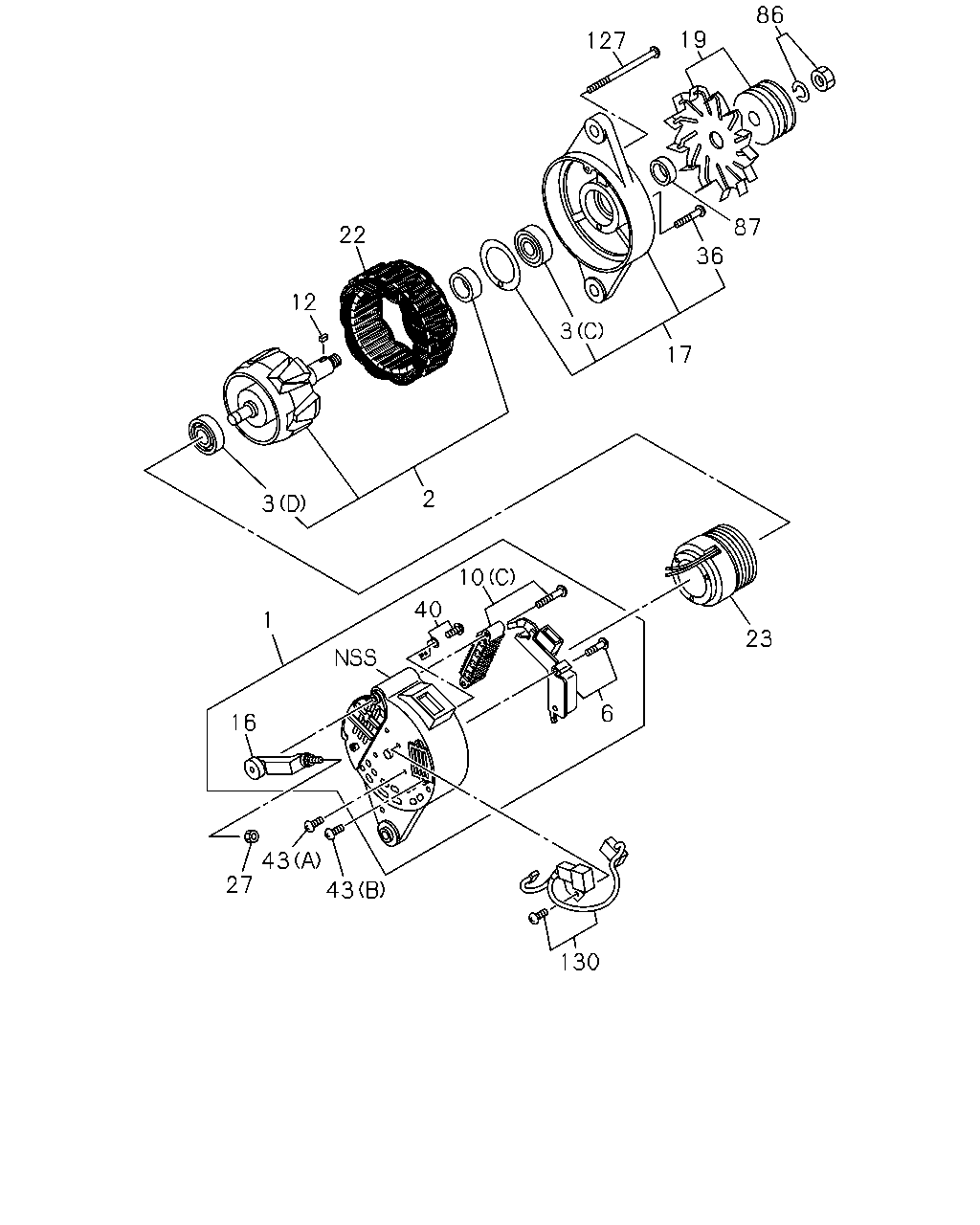

86 19 127 87 22 36 12 3 17 2 3 10 40 1 23 6 16 43 27 43 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-213-1	1-81214-159-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-550-0	1-81222-380-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-213-1	1-81221-079-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-550-0	1-81221-105-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-213-1	1-81229-224-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-213-1	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 1-81200-550-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 1-81200-550-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-550-0	1-81260-018-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 1-81200-213-1	1-81219-003-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: A = 1-81200-213-1	1-81219-004-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: B = 1-81200-550-0	1-81219-129-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: B = 1-81200-550-0	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 1-81200-550-0	1-81229-834-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-550-0	1-81213-119-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-213-1	1-81222-039-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-550-0	1-81222-166-0	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-213-1	1-81211-035-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-550-0	1-81211-131-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 1-81200-550-0	1-81212-019-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: B = 1-81200-550-0	1-81229-837-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 1-81200-550-0	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: B = 1-81200-550-0	1-81222-146-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: B = 1-81200-550-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (A) ASM PART: B = 1-81200-550-0	1-81229-817-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: B = 1-81200-550-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: B = 1-81200-550-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 1-81200-550-0	1-81229-900-0	01	1	-
