0-65 — STARTER (#9073) — 104 parça

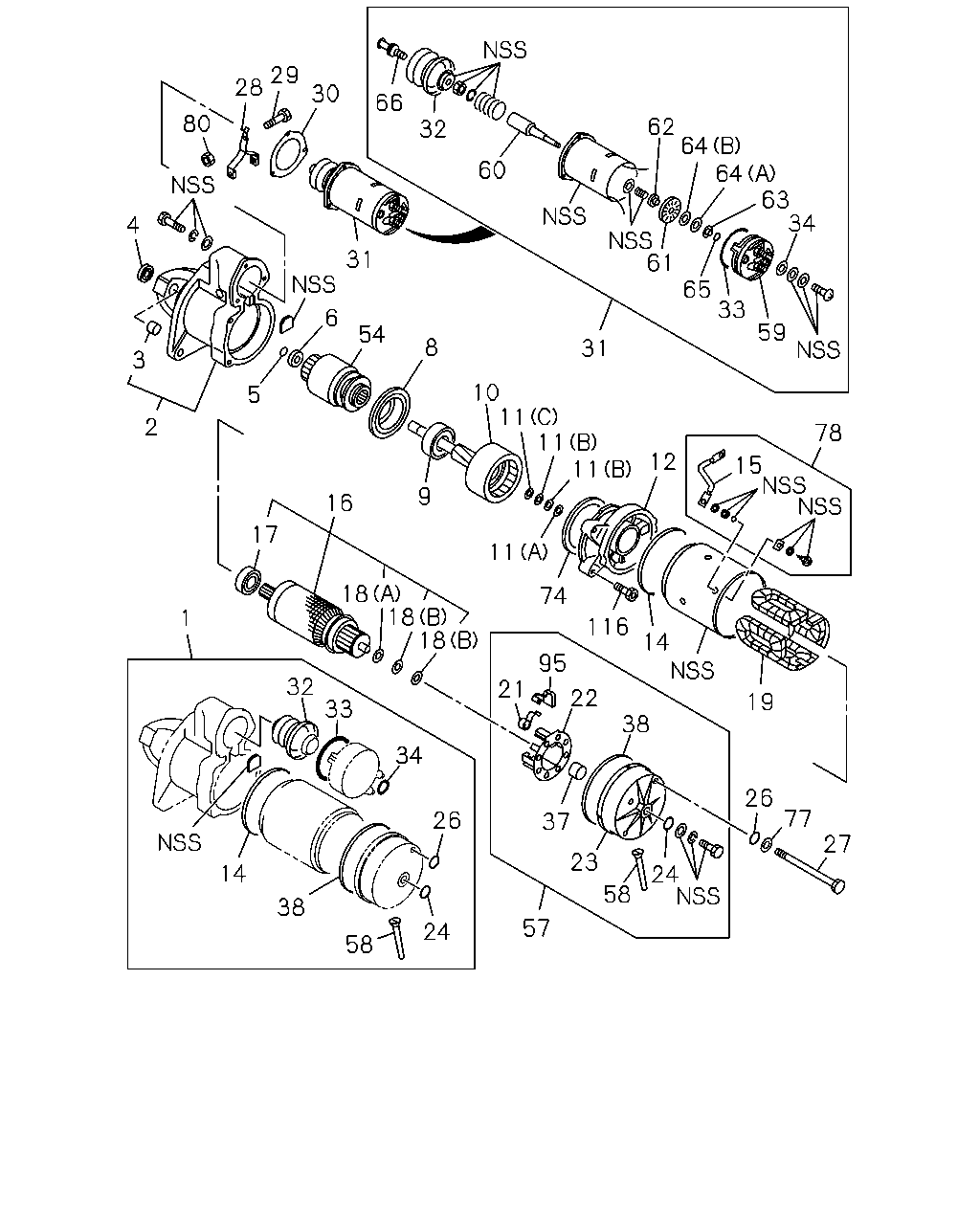

29 28 30 66 80 62 64 64 63 34 32 60 4 61 31 65 33 6 59 54 8 31 3 10 11 11 11 5 2 78 12 15 9 16 17 11 18 18 18 74 1 116 14 95 32 21 22 19 33 38 34 26 77 26 37 27 23 14 24 58 38 57 24 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: A = 1-81100-217-1	1-81129-440-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-217-1	1-81113-050-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-400-1	1-81123-070-0	01	1	-
3	METAL; PINION CASE STARTER ASM PART: A = 1-81100-217-1	1-81129-286-0	01	1	-
4	COVER; PINION CASE STARTER ASM PART: A = 1-81100-217-1	1-81129-305-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: A = 1-81100-217-1	1-81129-189-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-217-1	1-81129-190-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: B = 1-81100-400-1	1-81129-785-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-217-1	1-81113-084-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 1-81100-217-1	1-81129-298-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 1-81100-217-1	1-81123-017-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-217-1	1-81129-160-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-217-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (D) ASM PART: B = 1-81100-400-1	1-81129-781-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-217-1	5-81129-159-0	02	1	-
12	BRACKET; CENTER RR STARTER ASM PART: A = 1-81100-217-1	1-81113-083-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 1-81100-217-1	1-81129-205-0	01	1	-
15	WIRE; LEAD STARTER ASM PART: A = 1-81100-217-1	1-81116-034-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-217-1	1-81121-033-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-400-1	1-81121-067-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: A = 1-81100-217-1	1-81129-294-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: B = 1-81100-400-1	1-81129-790-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (A) ASM PART: A = 1-81100-217-1	1-81129-289-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (B) ASM PART: A = 1-81100-217-1	1-81129-290-0	02	1	-
19	COIL; FIELD,STARTER ASM PART: A = 1-81100-217-1	1-81112-028-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-217-1	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 1-81100-400-1	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-217-1	1-81118-032-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-400-1	1-81121-071-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-217-1	1-81115-180-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-400-1	1-81115-233-0	01	1	-
24	SEAL; HOLDER STARTER ASM PART: A = 1-81100-217-1	5-81128-029-0	02	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: A = 1-81100-217-1	9-82215-686-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-217-1	1-81129-292-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 1-81100-400-1	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-217-1	1-81127-040-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 1-81100-400-1	1-81129-783-0	01	1	-
29	PIN; SHIFT LEVER STARTER NIKKO ASM PART: A = 1-81100-217-1	1-81129-185-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	1-81129-287-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-217-1	1-81151-037-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-400-1	1-81151-115-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 1-81100-217-1	1-81129-120-0	01	1	-
33	GASKET; ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	1-81129-093-0	01	1	-
34	GASKET; TERMINAL ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	9-88120-277-0	02	1	-
37	METAL; RR COVER STARTER ASM PART: A = 1-81100-217-1	1-81129-291-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 1-81100-217-1	1-81129-300-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-217-1	1-81122-040-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-400-1	1-81129-782-0	01	1	-
57	COVER ASM; RR,STARTER ASM PART: A = 1-81100-217-1	1-81115-179-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER NIKKO ASM PART: A = 1-81100-217-1	1-81129-439-0	01	1	-
59	TERMINAL; ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	1-81129-121-0	01	1	-
60	PLUNGER; ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	1-81129-122-0	01	1	-
61	CONTACT; ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	1-81129-193-0	01	1	-
62	BUSHING; ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	1-81129-192-0	01	1	-
63	HOLDER; ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	1-81118-009-0	01	1	-
64	WASHER; INSULATION ENGAGE SW STARTER (A) ASM PART: A = 1-81100-217-1	1-81129-096-0	01	1	-
64	WASHER; INSULATION ENGAGE SW STARTER (B) ASM PART: A = 1-81100-217-1	1-81129-194-0	02	1	-
65	RING; CLIP ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	1-81129-104-0	02	1	-
66	SCREW; ENGAGE SW STARTER ASM PART: A = 1-81100-217-1	1-81129-191-0	01	1	-
74	GASKET; PINION CASE,STARTER ASM PART: A = 1-81100-217-1	1-81129-120-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER NIKKO ASM PART: A = 1-81100-217-1	1-81229-114-0	02	1	-
78	TERMINAL; LEAD WIRE STARTER ASM PART: A = 1-81100-217-1	1-81129-288-0	01	1	-
80	NUT; SHIFT LEVER PIN STARTER NIKKO ASM PART: A = 1-81100-217-1	1-81129-184-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 1-81100-217-1	1-81116-035-0	04	1	-
95	BRUSH ASM; STARTER ASM PART: B = 1-81100-400-1	1-81116-067-0	01	1	-
116	BOLT; BRKT ASM PART: A = 1-81100-217-1	1-81129-293-0	03	1	-

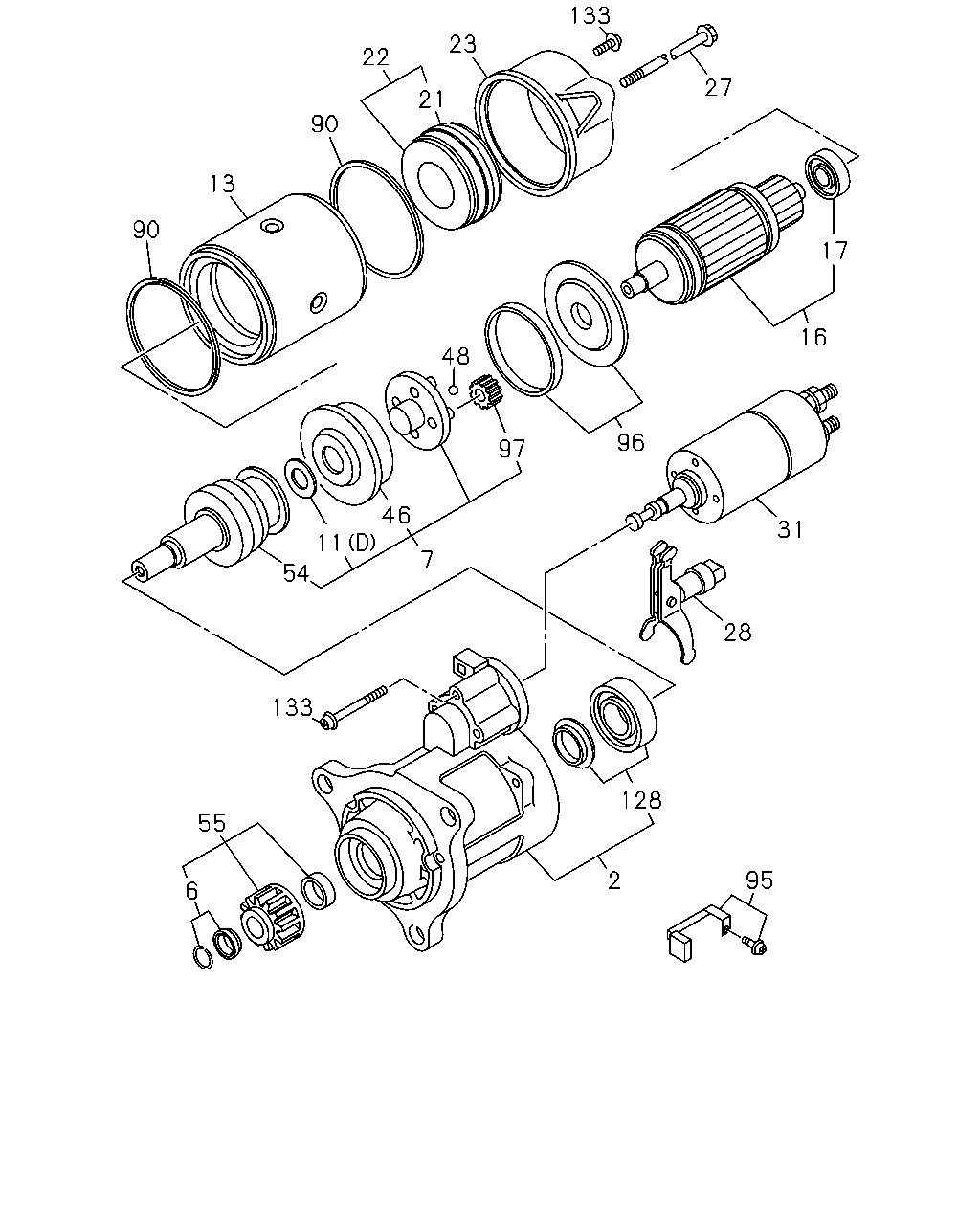

133 23 22 27 21 90 13 90 17 16 48 96 97 46 11 31 7 54 28 133 128 55 95 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-217-1	1-81113-050-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-400-1	1-81123-070-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-217-1	1-81129-190-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: B = 1-81100-400-1	1-81129-785-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 1-81100-400-1	1-81129-794-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-217-1	1-81129-160-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-217-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (D) ASM PART: B = 1-81100-400-1	1-81129-781-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-217-1	5-81129-159-0	02	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-400-1	1-81129-848-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-217-1	1-81121-033-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-400-1	1-81121-067-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: A = 1-81100-217-1	1-81129-294-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: B = 1-81100-400-1	1-81129-790-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-217-1	1-81117-016-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 1-81100-400-1	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-217-1	1-81118-032-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-400-1	1-81121-071-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-217-1	1-81115-180-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-400-1	1-81115-233-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-217-1	1-81129-292-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 1-81100-400-1	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-217-1	1-81127-040-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 1-81100-400-1	1-81129-783-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-217-1	1-81151-037-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-400-1	1-81151-115-0	01	1	-
46	GEAR; CLU STARTER ASM PART: B = 1-81100-400-1	1-81123-061-0	01	1	-
48	BALL; PINION,STARTER ASM PART: B = 1-81100-400-1	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-217-1	1-81122-040-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-400-1	1-81129-782-0	01	1	-
55	PINION; CLU,STARTER ASM PART: B = 1-81100-400-1	1-81129-784-0	01	1	-
90	GASKET; ARMATURE ASM PART: B = 1-81100-400-1	1-81129-827-0	02	1	-
95	BRUSH ASM; STARTER ASM PART: A = 1-81100-217-1	1-81116-035-0	04	1	-
95	BRUSH ASM; STARTER ASM PART: B = 1-81100-400-1	1-81116-067-0	01	1	-
96	GASKET; FRT CASE ASM PART: B = 1-81100-400-1	1-81129-796-0	01	1	-
97	GEAR; STARTER ASM PART: B = 1-81100-400-1	1-81123-056-0	04	1	-
128	BEARING; STARTER ASM PART: B = 1-81100-400-1	1-81129-780-0	01	1	-
133	SCREW SET; STARTER ASM PART: B = 1-81100-400-1	1-81129-787-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
