10857 - MV118
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

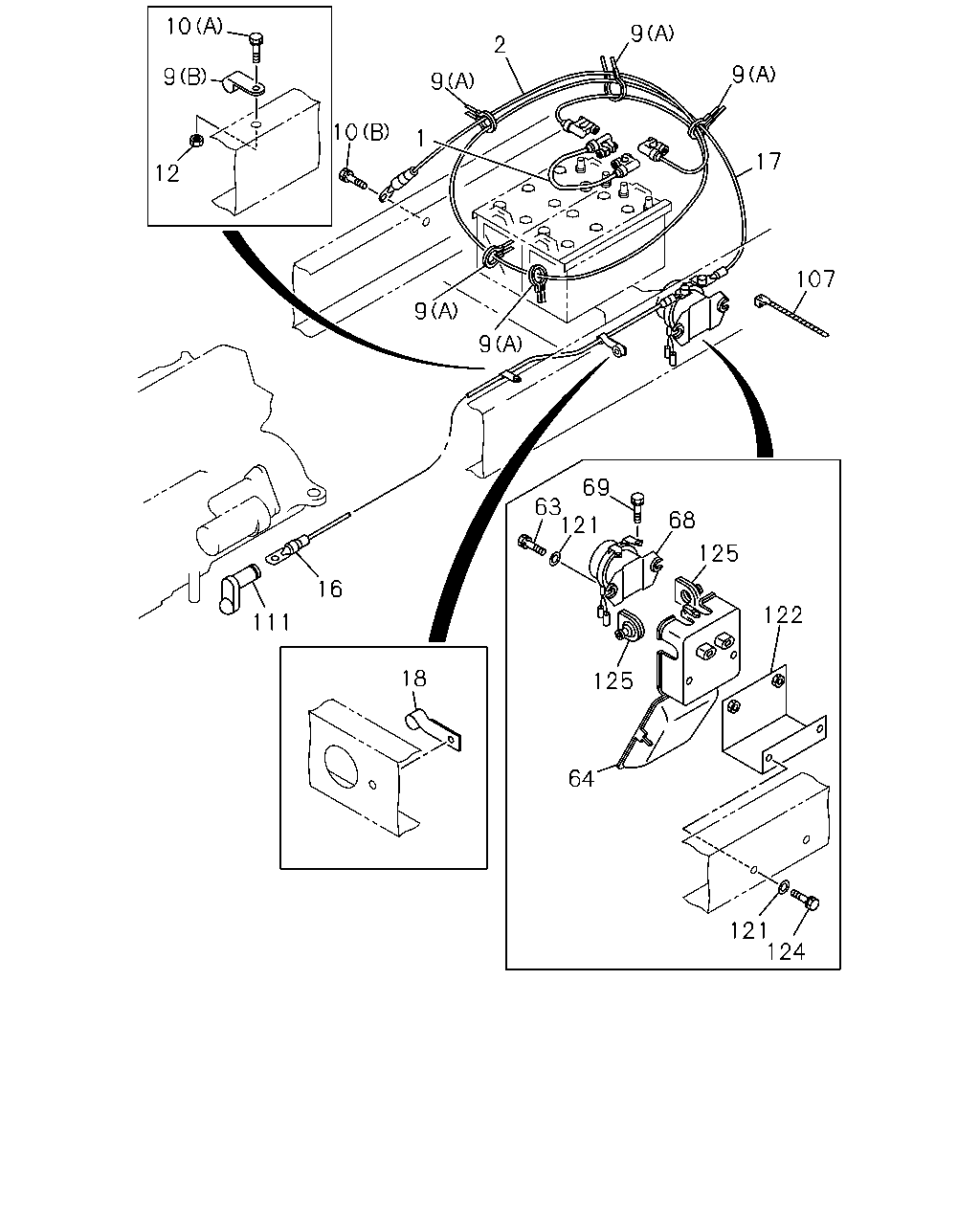

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#9072) — 20 parça
10
9
2
9
9
9
10
1
17
12
107
9
9
69
63
121
68
125
16
122
111
18
125
64
121
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=700
1-82652-199-0
01
1
9606-
2
CABLE; BATTERY
L=1400
1-82652-198-0
01
1
9606-
9
CLIP; BATTERY CABLE
(A) ID=18 L=68
1-09700-467-0
07
1
9606-
9
CLIP; BATTERY CABLE
(B) ID=19 L=40
9-09525-875-0
01
1
9606-
10
BOLT; BATTERY CABLE CLIP
(A) M8X25 W/LK WASHER
0-50040-825-0
01
1
9606-
10
BOLT; BATTERY CABLE CLIP
(B) M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
9606-
12
NUT; BATTERY CABLE CLIP
M8
9-09110-408-0
01
1
9606-
16
CABLE; STARTER TO RELAY
1-82652-223-1
01
1
9606-
17
CABLE; BATTERY (+) TO RELAY
L=2600
1-82652-167-0
01
1
9606-
18
CLIP; BATTERY CABLE
1-09700-357-1
01
1
9606-
63
BOLT; RELAY BATTERY
M8X40 W/LK WASHER
0-50040-840-0
02
1
9606-
64
BOX; BATTERY RELAY
1-81809-012-2
01
1
9606-
68
RELAY; BATTERY
1-82550-226-0
01
1
9606-
69
BOLT; CABLE BATTERY
M8X18
0-20800-818-0
02
1
9606-
107
CLIP; BAND
L=140
5-09707-031-1
04
1
9606-
111
CAP; INSULATOR,BATTERY RELAY
1-82699-206-0
01
1
9606-
121
WASHER; PL,RELAY,BATTERY
ID=8.4 OD=22
9-09160-708-0
04
1
9606-
122
BRACKET; BATTERY RELAY
1-53487-009-0
01
1
9606-
124
BOLT; RELAY,BATTERY
M8X30 W/LK WASHER
0-50040-830-0
02
1
9606-
125
GROMMET; CABLE BATTERY
ID=28 H=45 L=30
1-09333-061-0
02
1
9606-
