Isuzu WW
▶
BUSES
▶
MV
▶
10857 - MV118
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶

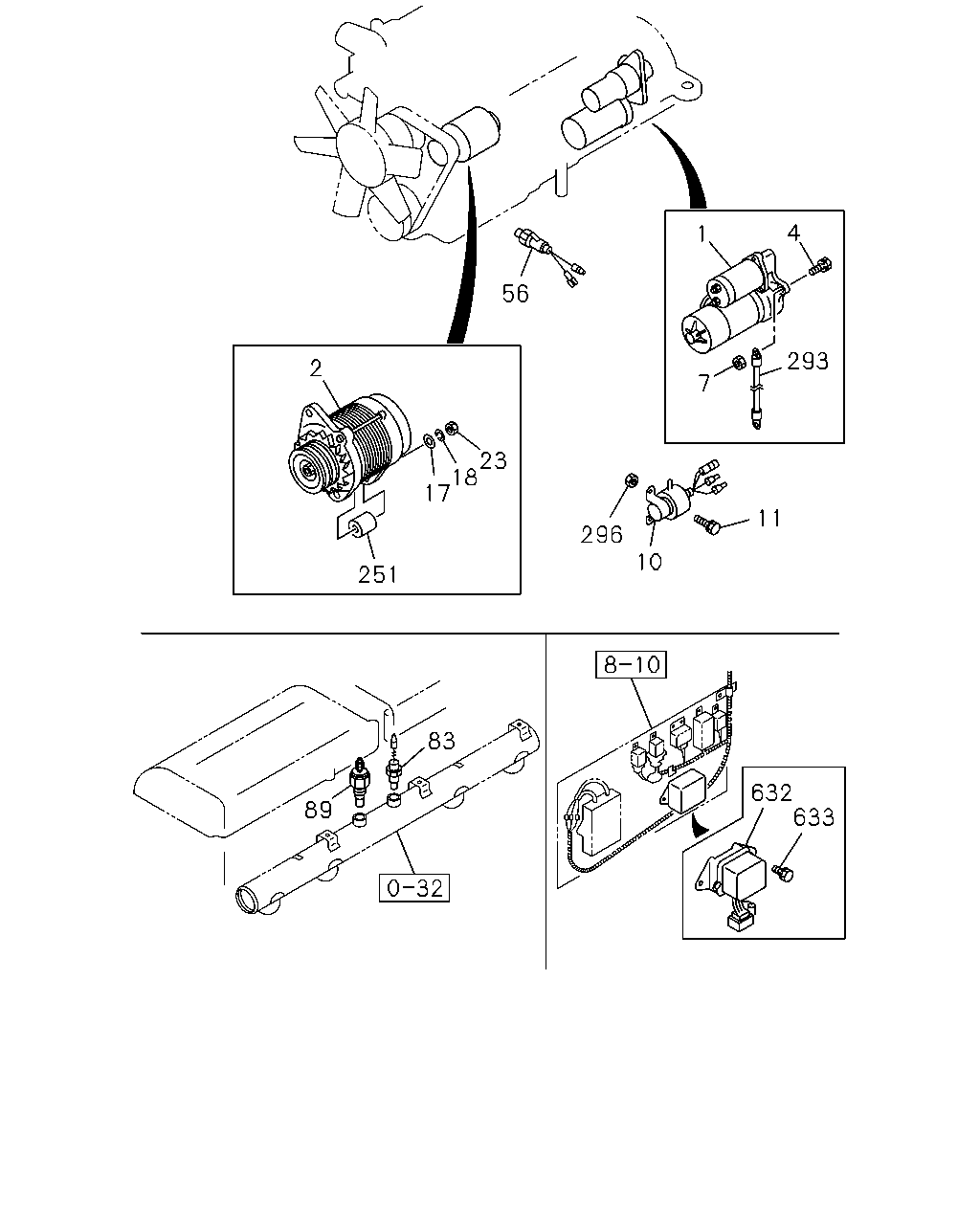

0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#9071) — 21 parça
4
1
56
293
2
7
23
18
17
11
296
10
251
83
632
633
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.4KW NIKKO
1-81100-217-1
01
1
9606-
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
1-81100-400-1
01
1
9904-9907
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-213-1
01
1
9606-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI
1-81200-550-0
01
1
9906-9907
4
BOLT; STARTER
M14X55
0-10806-455-0
01
1
9606-
7
NUT; STARTER
M14
9-99110-414-0
03
1
9606-
10
RELAY; STARTER
NIKKO
1-81171-015-1
01
1
9606-
10
RELAY; STARTER
HITACHI
1-81171-084-0
01
1
9904-9907
10
RELAY; STARTER
EXC. NIKKO<Y70> HITACHI
1-81171-084-0
01
1
9908-
11
BOLT; RELAY STARTER
M8X25 W/LK WASHER
0-50040-825-0
02
1
9606-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
9606-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
9606-
23
NUT; GEN
M14
9-99110-414-0
01
1
9606-
56
SWITCH; OIL PRESSURE WARNING
PT1/4
1-82410-161-0
01
1
9606-
83
THERMOMETER UNIT
1-83161-019-1
01
1
9606-
89
SWITCH; OVER HEAT WARNING
1-82450-013-0
01
1
9606-
251
SPACER; GEN
1-19719-017-0
01
1
9606-
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
9606-
296
NUT; RELAY,STARTER
M8
9-09110-408-0
02
1
9606-
632
REGULATOR; VOLTAGE
1-81251-048-0
01
1
9606-
633
BOLT; VOLTAGE REG
M6X12 W/LK WASHER
0-50040-612-0
02
1
9606-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
