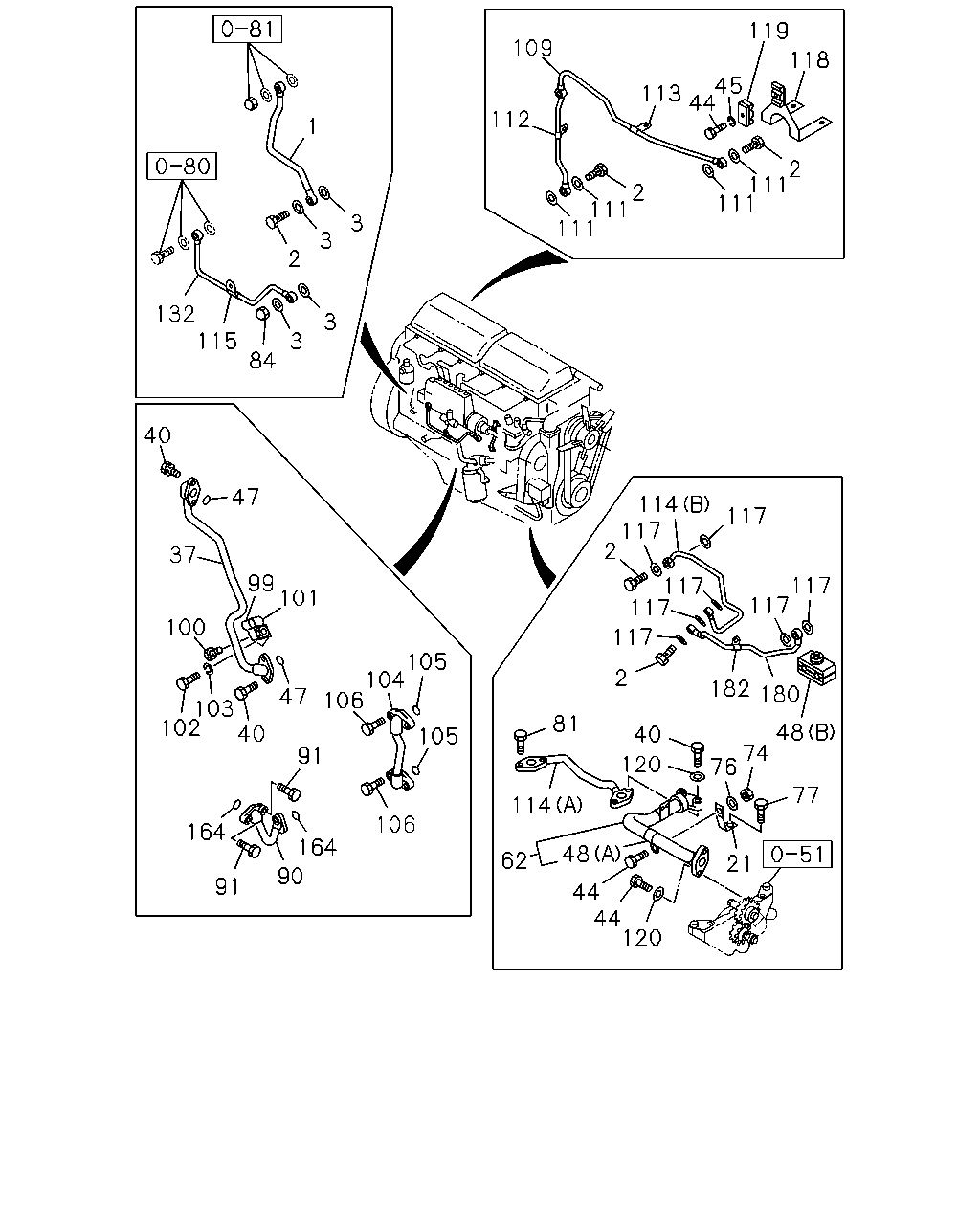

0-52 — OIL AND VACUUM PIPING; ENGINE (#9070) — 77 parça

119 109 118 45 113 44 112 1 2 111 111 2 111 111 3 3 2 132 115 3 3 84 40 47 114 117 2 117 37 117 117 99 101 117 117 100 117 105 104 106 2 47 182 180 103 102 40 81 48 74 76 40 105 91 120 77 114 106 164 164 48 62 21 90 91 44 44 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	9-13312-675-0	01	1	9606-
2	BOLT; EYE,OIL PIPE M10X39	1-09675-066-0	01	1	9606-
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	03	1	9606-
2	BOLT; EYE,OIL PIPE M12X27 FLANGE	1-09675-085-0	01	1	9606-
2	BOLT; EYE,OIL PIPE M10X32	1-09675-119-0	01	1	9606-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9606-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9606-
21	STAY; OIL PIPE	1-13345-105-1	01	1	9606-
37	PIPE; OIL,FILTER TO COOLER	1-13311-848-0	01	1	9606-
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9606-
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9606-
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9606-
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9606-
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9606-
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9606-
44	BOLT; CLIP,OIL PIPE M5X25	9-09602-082-0	01	1	9606-
45	WASHER; LK,CLIP ID=5.1	9-09150-505-0	01	1	9606-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9606-
48	CLIP; OIL PIPE (A)	1-09700-377-0	01	1	9606-
48	CLIP; OIL PIPE (B)	9-15419-612-0	01	1	9606-
62	PIPE; OIL,PUMP TO C/BL	1-13311-871-1	01	1	9606-
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	9606-
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9606-
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9606-
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9606-
84	NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9606-
90	PIPE ASM; OIL,C/BL TO FILTER	1-13311-849-1	01	1	9606-
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	02	1	9606-
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	02	1	9606-
99	CLIP; OIL PIPE,FILTER TO COOLER ID=23.6 L=35	1-09700-634-0	01	1	9606-
100	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9606-
101	BRACKET; CLIP	1-13345-118-0	01	1	9606-
102	BOLT; BRKT M14X25	0-23801-425-0	01	1	9606-
103	WASHER; LK,BRKT ID=14.2	9-09150-514-0	01	1	9606-
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-304-1	01	1	9606-
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9606-
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9606-
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9606-
109	PIPE ASM; OIL,BODY TO HD	1-13311-649-0	01	1	9606-
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	9606-
112	CLIP; OIL PIPE,TAP CHAMBER CVR	1-09700-144-0	01	1	9606-
113	CLIP; WATER OUTLET PIPE	1-09700-444-0	01	1	9606-
114	PIPE ASM; OIL,BODY (A) OD=15.0	1-13311-703-1	01	1	9606-
114	PIPE ASM; OIL,BODY (B) OD=6.35	1-13313-101-0	01	1	9606-
115	CLIP; PIPE,INJ PUMP	9-09917-649-0	01	1	9606-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	03	1	9606-
118	BRACKET; CLIP,OIL PIPE	1-13319-016-0	01	1	9606-
119	CLIP; OIL PIPE,BODY TO CMPR	9-15419-613-0	01	1	9606-
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	9606-
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	9606-
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	9606-
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9606-
180	PIPE ASM; OIL,FAN CENTER	1-13313-100-0	01	1	9606-
182	CLIP; OIL PIPE TO ELBOW ID=7 L=20	9-09524-635-0	01	1	9606-

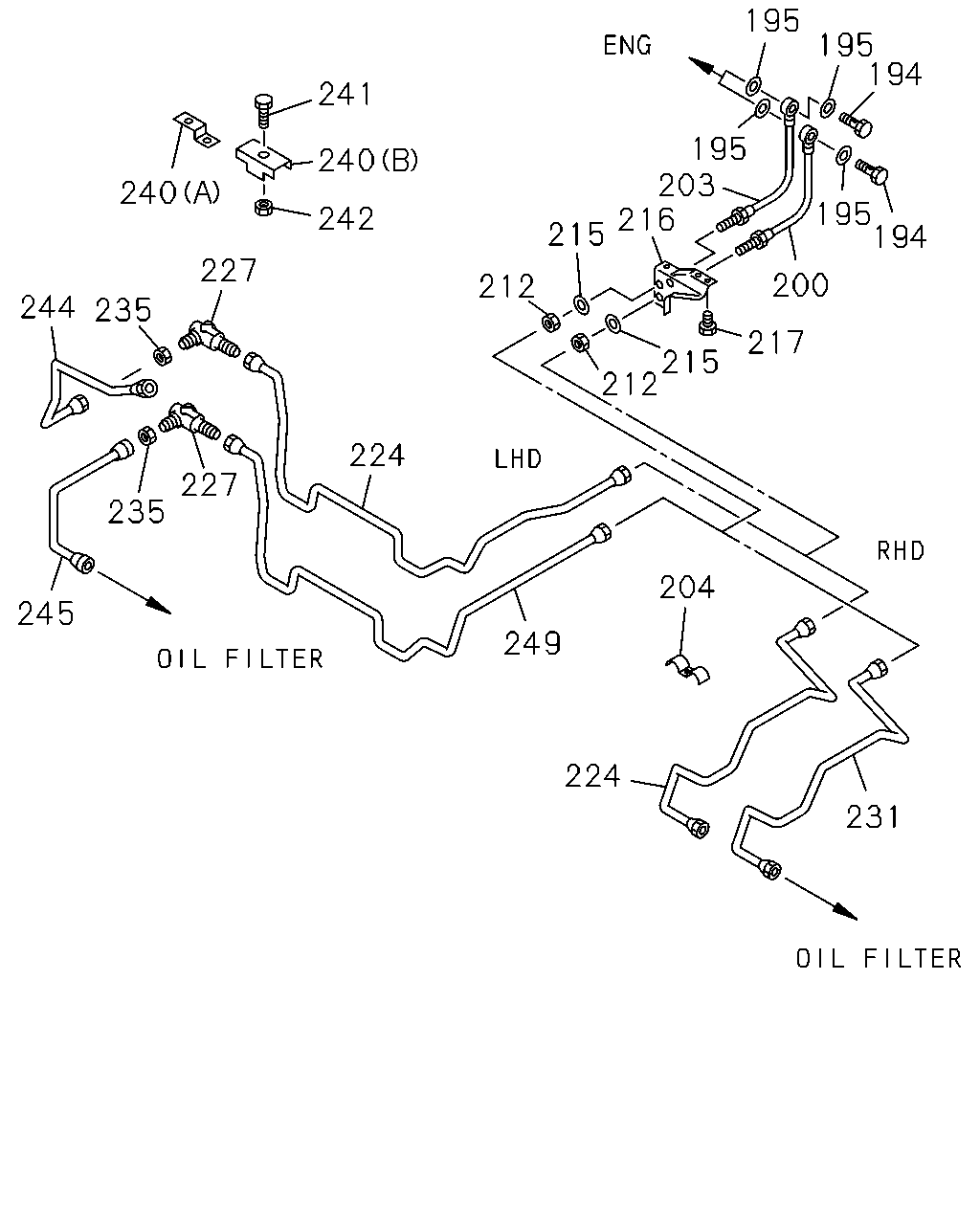

195 195 194 241 195 203 216 215 240 240 195 194 242 227 200 212 244 235 217 215 212 224 227 235 204 245 249 224 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9606-
195	GASKET; EYE BOLT,PARTIAL FILTER ID=14.2 OD=19.2	1-09630-085-0	04	1	9606-
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY L=480	1-09364-506-0	01	1	9606-
203	HOSE; FLEX,PARTIAL FILTER,RETURN	1-09364-485-0	01	1	9606-
204	CLIP; OIL PIPE RIGHT HAND DRIVE(MVR5FB) ID=11 & 11 L=15 & 15	1-09700-063-0	01	1	9606-
204	CLIP; OIL PIPE LEFT HAND DRIVE(MVR6FB) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9606-
212	NUT; FLEX HOSE,PARTIAL FILTER M16	9-99111-416-0	02	1	9606-
215	WASHER; PL ID=17	9-09160-516-0	02	1	9606-
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER	1-47475-296-1	01	1	9606-
217	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9606-
224	PIPE; OIL,DELIVERY RIGHT HAND DRIVE(MVR5FB)	1-13313-289-0	01	1	9606-
224	PIPE; OIL,DELIVERY LEFT HAND DRIVE(MVR6FB)	1-13313-290-0	01	1	9606-
227	UNION; OIL PIPE LEFT HAND DRIVE(MVR6FB) M16 ELBOW	9-09235-110-1	02	1	9606-
231	PIPE; OIL,RETURN RIGHT HAND DRIVE(MVR5FB)	1-13313-291-0	01	1	9606-
235	NUT; UNION,OIL PIPE LEFT HAND DRIVE(MVR6FB) M16	9-99110-416-0	02	1	9606-
240	BRACKET; CLIP RIGHT HAND DRIVE(MVR5FB) (A)	1-47469-040-0	01	1	9606-
240	BRACKET; CLIP LEFT HAND DRIVE(MVR6FB) (B)	1-47475-427-1	01	1	9606-
241	BOLT; CLIP BRKT RIGHT HAND DRIVE(MVR5FB) M6X25 W/LK WASHER	0-50040-625-0	02	1	9606-
241	BOLT; CLIP BRKT LEFT HAND DRIVE(MVR6FB) M8X45 W/LK WASHER	0-50040-845-0	01	1	9606-
242	NUT; CLIP BRKT LEFT HAND DRIVE(MVR6FB) M8	9-09110-408-0	01	1	9606-
244	PIPE; OIL,UNION TO FLEX HOSE LEFT HAND DRIVE(MVR6FB)	1-13313-292-0	01	1	9606-
245	PIPE; OIL,FLEX HOSE TO PARTIAL FILTER LEFT HAND DRIVE(MVR6FB)	1-13313-293-0	01	1	9606-
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE LEFT HAND DRIVE(MVR6FB)	1-13313-294-0	01	1	9606-
