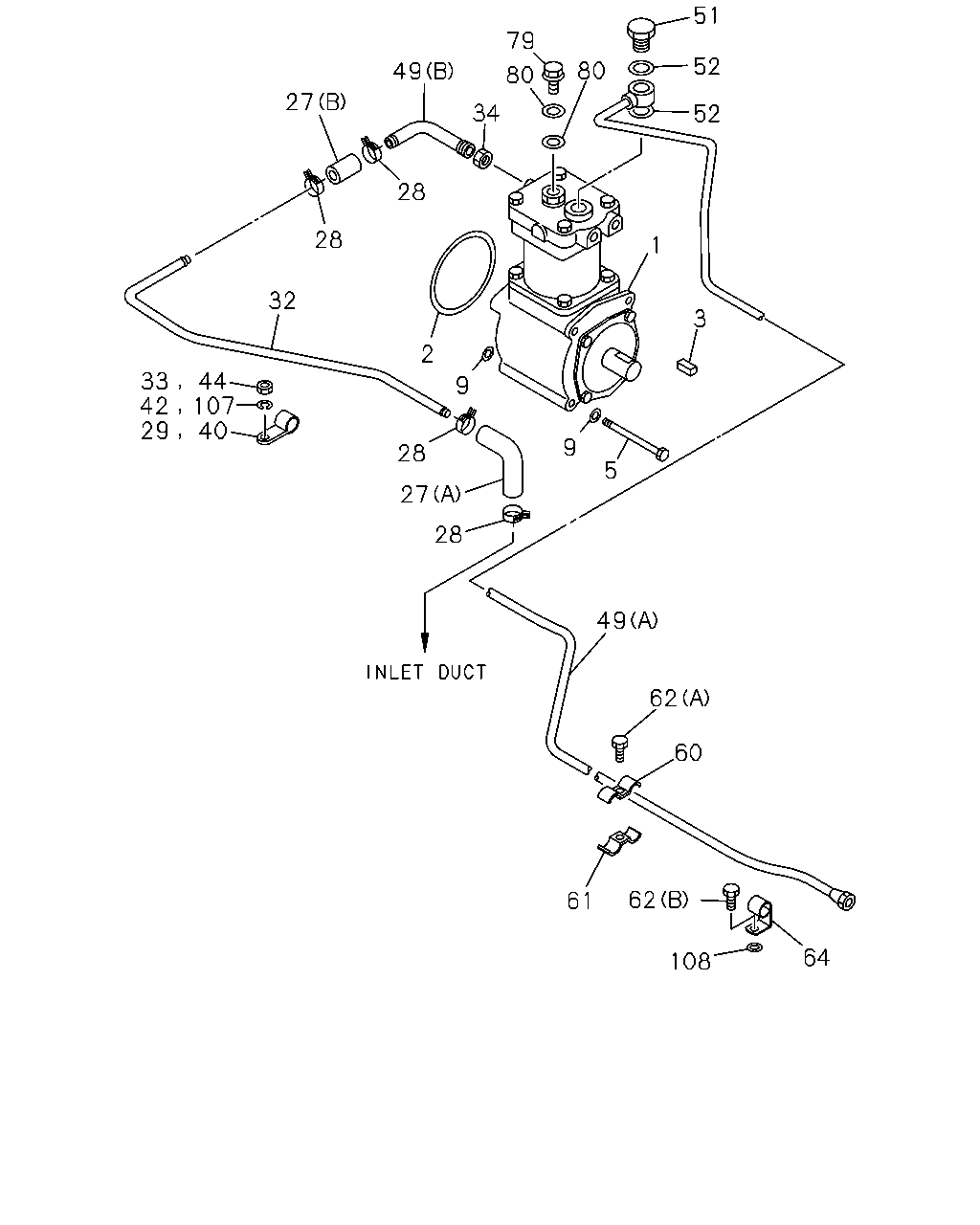

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#9063) — 29 parça
51
79
52
80
49
80
27
34
52
28
28
1
32
3
2
33
42
29
44
107
40
9
9
28
5
27
28
49
62
60
62
61
64
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-232-5
01
1
9606-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=124.6
1-09623-468-0
01
1
9606-
3
KEY; COUPLING,INJ PUMP
9-08055-622-0
01
1
9606-
5
BOLT; AIR CMPR FIX
M10X143
1-09044-025-2
04
1
9606-
9
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
08
1
9606-
27
HOSE; AIR CMPR,SUCTION
(A)
1-09360-779-0
01
1
9606-
27
HOSE; AIR CMPR,SUCTION
(B)
1-09360-780-0
01
1
9606-
28
CLIP; HOSE,AIR CMPR
ID=26
1-09707-091-0
02
1
9606-
28
CLIP; HOSE,AIR CMPR
ID=22.7
8-94466-382-0
02
1
9606-
29
CLIP; AIR PIPE
ID=13
1-09701-030-1
01
1
9606-
32
PIPE; AIR,AIR CMPR
1-19191-496-0
01
1
9606-
33
NUT; PIPE FIX
M8
9-09110-408-0
01
1
9606-
34
NUT; LK SUCTION PIPE
9-09840-254-0
01
1
9606-
40
CLIP; AIR PIPE
ID=20 L=24
1-09700-730-1
02
1
9606-
42
WASHER; LK,CLIP
ID=10.2
9-09150-510-0
01
1
9606-
44
NUT
M10
9-09110-410-0
01
1
9606-
49
PIPE; AIR,CHARGE
(B)
1-19191-321-0
01
1
9606-
49
PIPE; AIR,CHARGE
(A)
1-19192-722-0
01
1
9606-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-1
01
1
9606-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
9606-
60
CLIP; AIR PIPE
WO/NUT
1-09700-079-0
04
1
9606-
61
CLIP; AIR PIPE
W/NUT
1-09700-080-0
02
1
9606-
62
BOLT; CLIP
(A) M6X25 W/LK WASHER
0-50040-625-0
02
1
9606-
62
BOLT; CLIP
(B) M6X30 W/LK WASHER
0-50040-630-0
01
1
9606-
64
CLIP; AIR PIPE
1-09700-056-1
01
1
9606-
79
BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE
1-09675-086-0
01
1
9606-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9606-
107
WASHER; LK,CLIP,AIR PIPE
ID=8.2
9-09150-508-0
01
1
9606-
108
WASHER; PL,AIR PIPE CLIP
ID=8.4 OD=22
9-09160-708-0
01
1
9606-
