Isuzu WW
▶
BUSES
▶
MV
▶
10857 - MV118
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

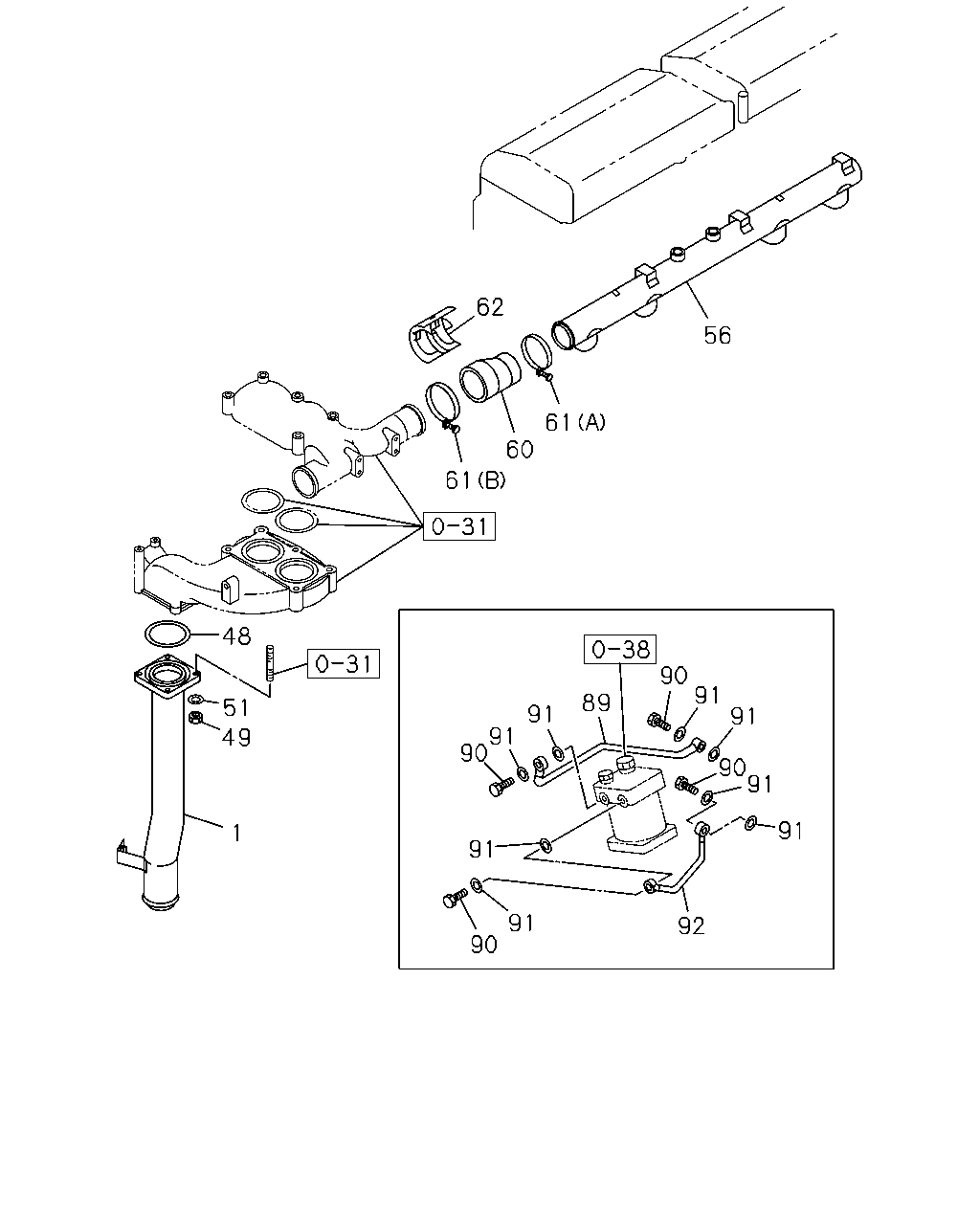

0-32 — WATER PIPING; ENGINE
(#9060) — 14 parça
62
56
61
60
61
48
90
91
89
51
49
91
91
91
90
90
91
91
1
91
91
92
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; WATER PUMP,INL
1-13711-387-1
01
1
9606-0012
1
PIPE; WATER PUMP,INL
1-13711-842-0
01
1
0101-
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-217-0
01
1
9606-
49
NUT; WATER PIPE
M8
9-09110-508-0
04
1
9606-
51
WASHER; LK,PIPE
ID=8.2
9-09150-508-0
04
1
9606-
56
PIPE; WATER OUTLET
1-13711-304-2
01
1
9606-
60
HOSE; OUTLET PIPE TO HSG
1-09360-895-0
01
1
9606-
61
CLIP; HOSE,OUTLET PIPE TO HSG
(A) ID=63
1-09704-067-0
01
1
9606-
61
CLIP; HOSE,OUTLET PIPE TO HSG
(B) ID=70
1-09704-078-0
01
1
9606-
62
PROTECTOR; HEAT,RUB HOSE,OUTLET PIPE
1-14181-156-1
01
1
9606-
89
PIPE; WATER,AIR CMPR,IN
1-13721-156-1
01
1
9606-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 FLANGE
1-09675-086-0
04
1
9606-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9606-
92
PIPE; WATER,AIR CMPR,OUT
1-13721-127-0
01
1
9606-
