Isuzu WW
▶
BUSES
▶
MV
▶
10857 - MV118
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

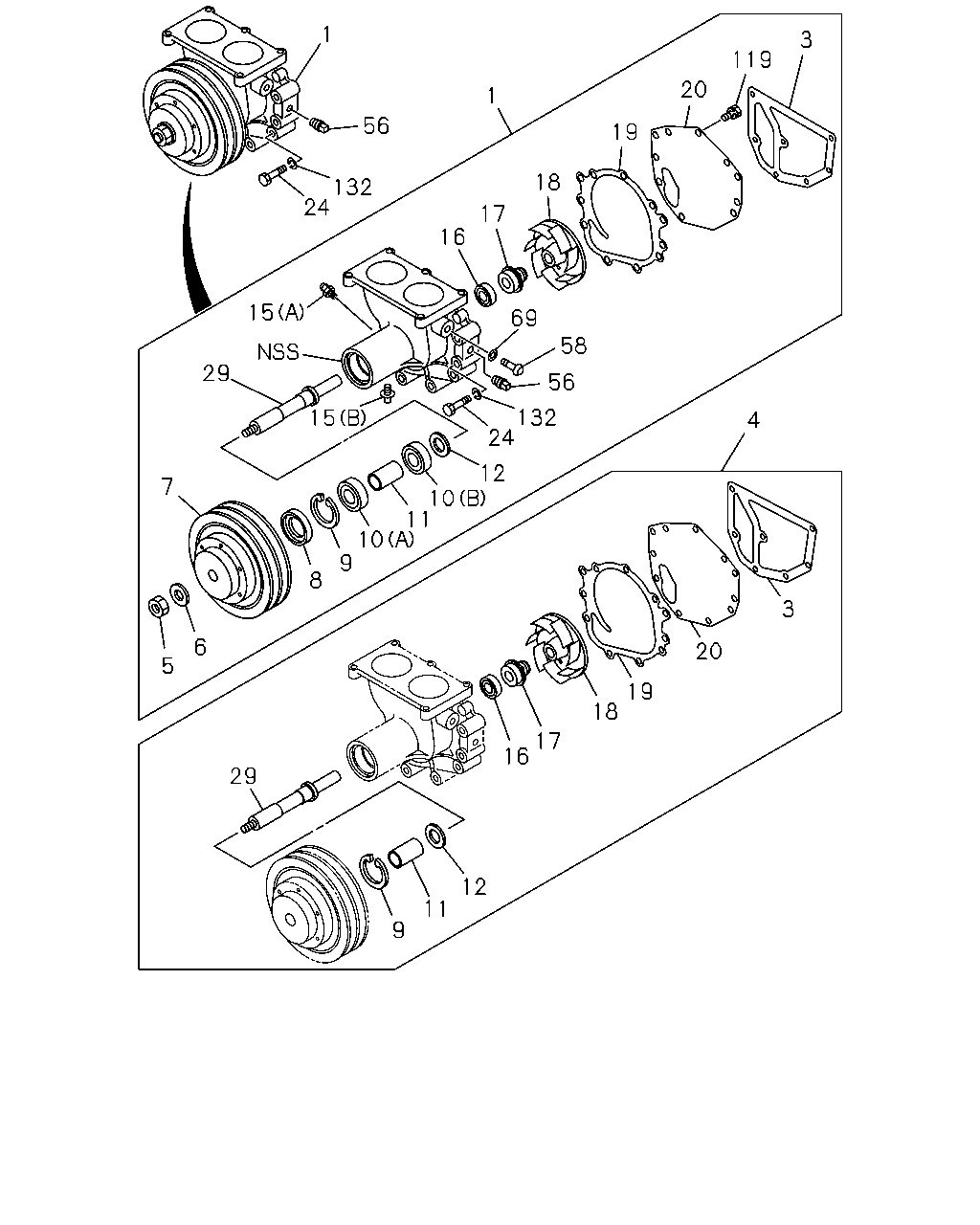

0-30 — WATER PUMP AND CORROSION RESISTOR
(#9058) — 27 parça
1
3
119
20
1
56
19
18
132
24
17
16
15
69
58
29
56
132
24
15
4
12
10
11
7
10
9
8
3
6
20
5
19
18
17
16
29
12
11
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
1-13610-867-0
01
1
9606-
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13614-014-0
01
1
9606-
4
REPAIR KIT; WATER PUMP
1-87810-669-1
01
1
9606-
5
NUT; PULLEY
1-09400-028-0
01
1
9606-
6
WASHER; PL,PULLEY
1-09503-076-0
01
1
9606-
7
PULLEY; WATER PUMP
2-GROOVE
1-13641-106-1
01
1
9606-
8
THROWER; DUST,WATER PUMP
1-13639-021-0
01
1
9606-9811
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
9812-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
9606-
10
BEARING; WATER PUMP
(A)
1-09800-011-0
01
1
9606-
10
BEARING; WATER PUMP
(B)
1-09800-012-0
01
1
9606-
11
SPACER; BRG,WATER PUMP
1-13634-016-0
01
1
9606-
12
WASHER; BALL BRG
1-09503-024-0
01
1
9606-
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
1-09380-002-0
01
1
9606-
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
9-09031-010-0
01
1
9606-
16
SEAL; OIL,WATER PUMP
1-09625-437-0
01
1
9606-
17
SEAL UNIT; WATER PUMP
1-13620-015-0
01
1
9606-
18
IMPELLER; WATER PUMP
1-13621-032-1
01
1
9606-
19
GASKET; COVER TO BODY
1-13613-040-0
01
1
9606-
20
COVER; WATER PUMP
1-13612-030-0
01
1
9606-
24
BOLT; WATER PUMP
M12X65
0-16806-265-0
06
1
9606-
29
SHAFT; WATER PUMP
1-13631-062-0
01
1
9606-
56
PLUG; TAPER SCREW
PT3/8
9-09204-517-0
01
1
9606-
58
PLUG; HTR
M20
9-99202-320-0
01
1
9606-
69
GASKET; PLUG,HTR
1-09630-088-0
01
1
9606-
119
BOLT; PUMP COVER
M8X18 W/LK WASHER
0-50040-818-0
03
1
9606-
132
WASHER; PL,WATER PUMP
ID=12.2
9-09150-512-0
06
1
9606-
