Isuzu WW
▶
BUSES
▶
MV
▶
10857 - MV118
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

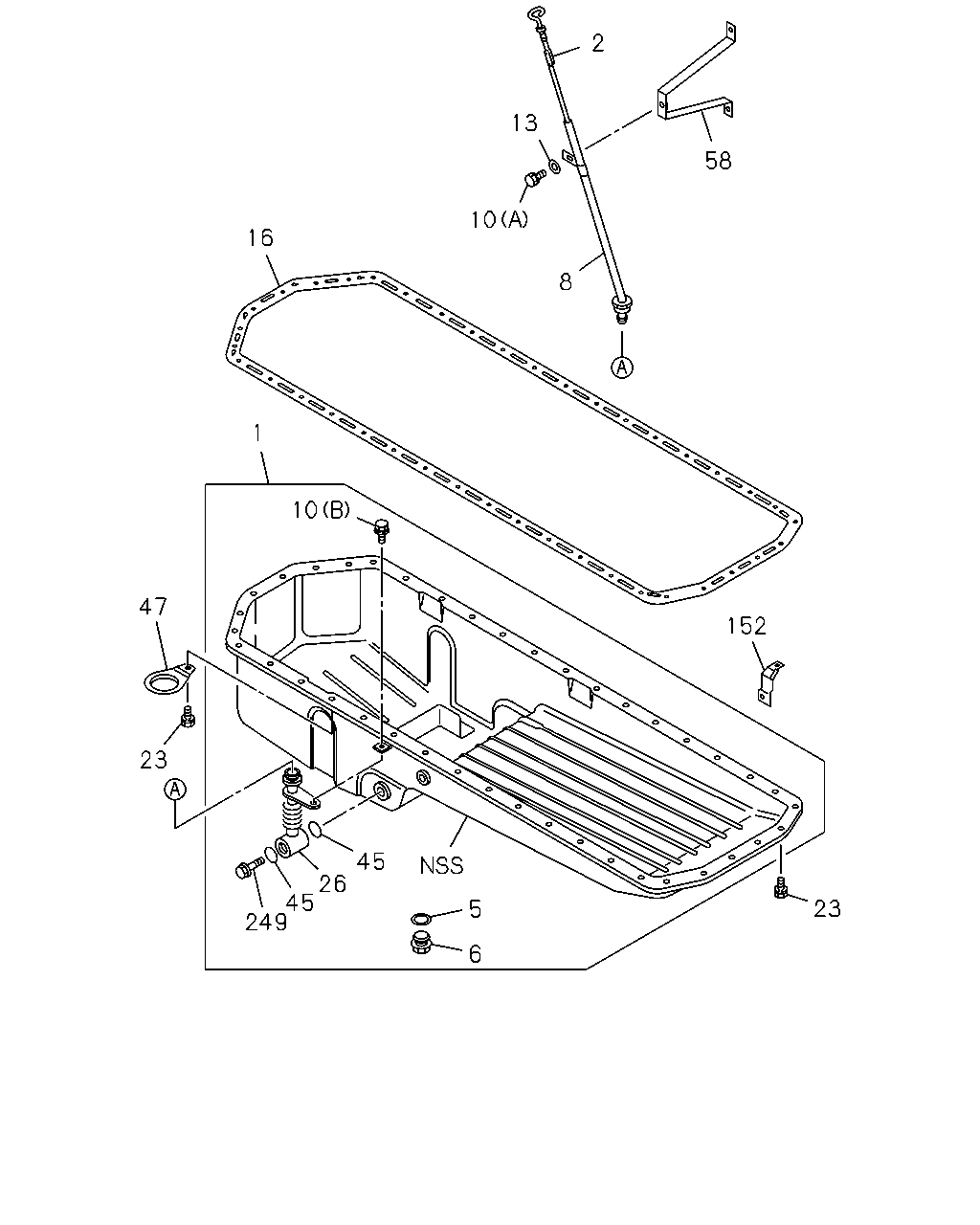

0-13 — OIL PAN AND LEVEL GAUGE
(#9050) — 16 parça
2
13
58
10
16
8
1
10
47
152
23
45
26
45
249
23
5
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-542-2
01
1
9606-
2
GAUGE; OIL LEVEL
1-11760-305-0
01
1
9606-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8
1-09623-058-0
01
1
9606-
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-022-0
01
1
9606-
8
TUBE; GUIDE,OIL LEVEL GAUGE
1-11766-229-0
01
1
9606-
10
BOLT; GUIDE TUBE
(A) M8X16 W/LK WASHER
0-50040-816-0
01
1
9606-
10
BOLT; GUIDE TUBE
(B) M8X18 W/LK&PL WASHER
0-50140-818-0
01
1
9606-
13
WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE
ID=8.4 OD=22
9-09160-708-0
01
1
9606-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-098-0
01
1
9606-
23
BOLT; OIL PAN
M10X25 W/LK WASHER
0-50051-025-0
40
1
9606-
26
TUBE; GUIDE,OIL LEVEL
1-11766-214-2
01
1
9606-
45
GASKET; GUIDE TUBE
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-179-0
02
1
9606-
47
CLIP; HOSE,AIR BREATHER
9-11369-315-0
01
1
9606-
58
STAY; GUIDE TUBE
1-11769-106-0
01
1
9606-
152
BRACKET; CLIP POWER STRG PIPE
RIGHT HAND DRIVE(MVR5FB)
1-11369-124-0
02
1
9810-
249
BOLT; EYE GUIDE TUBE
1-09675-147-0
01
1
9606-
