Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#905) — 182 parça

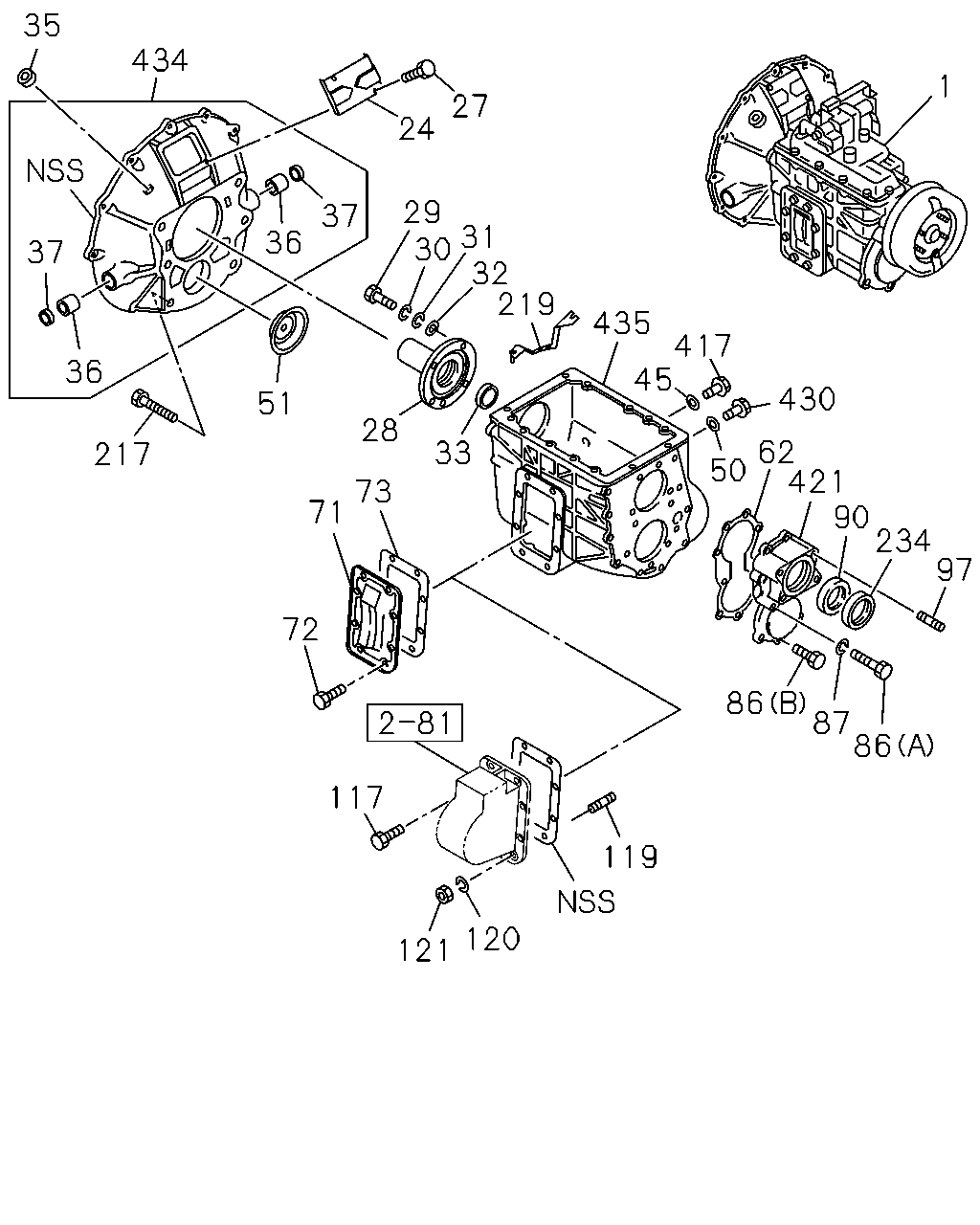

35 434 1 27 24 29 31 30 32 219 37 36 37 435 417 45 36 430 51 28 62 50 421 90 234 97 33 217 73 71 72 86 87 86 117 119 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL PTO CONTROL AIR LINK TYPE<SEC>	1-33033-352-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6>	1-33033-330-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33033-919-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTER SHIFT CONTROL<WX8>	1-33033-932-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33033-971-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33035-393-0	01	1	9305-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/7 15.5"(W3S) RR TIRE 10.00-20<96X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33035-393-0	01	1	9305-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5"(W3K),FINAL GEAR 41/7 15.5"(W3S) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33033-406-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/7 15.5"(W3S) PTO CONTROL<SV6> RR TIRE 9.00-20<94X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33035-419-0	01	1	9402-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/7 15.5"(W3S) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTER SHIFT CONTROL<WX8>	1-33033-354-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/7 15.5"(W3S) RR TIRE 9.00-20<94X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTO CONTROL<SV6>,ASSISTER SHIFT CONTROL<WX8>	1-33035-395-0	01	1	9202-			●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9202-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-		●	●
29	BOLT; FRT COVER	1-09020-120-1	04	1	9202-9205	●	●	●
29	BOLT; FRT COVER	1-09040-089-0	04	1	9206-	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9202-9306	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-		●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9405	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9202-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-		●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9202-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9202-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-		●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●
86	BOLT; RR COVER (A) M10X60	9-01656-060-0	02	1	9202-9205	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9206-	●
86	BOLT; RR COVER (B) M10X30	9-01931-030-0	07	1	9202-9205	●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9206-	●
86	BOLT; RR COVER (A) M12X65	9-01656-265-0	01	1	9202-9205		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9206-		●
86	BOLT; RR COVER (B) M12X40	9-01991-240-0	08	1	9202-9205		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9206-		●
86	BOLT; RR COVER (C) M12X50	1-09020-137-0	02	1	9202-9205			●
86	BOLT; RR COVER (C) M12X50	1-09044-085-0	02	1	9206-			●
86	BOLT; RR COVER (C) M12X40	9-01991-240-0	09	1	9202-9205			●
86	BOLT; RR COVER (C) M12X50 M17X35	1-09044-076-0	09	1	9206-			●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9202-9205	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205		●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	02	1	9202-9205			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9202-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9202-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-		●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9202-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9202-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-0	03	1	9202-		●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 W/LK WASHER	0-50051-030-0	06	1	9202-9205	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28	0-50051-028-0	06	1	9202-9205		●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9206-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9202-	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9202-9205	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
217	BOLT; CLU HSG TO FRT PTO	1-09020-034-0	01	1	9202-	●
219	PLATE; TRANS CASE & QUAD BOX	1-33119-073-1	01	1	9202-	●
234	COVER; OIL SEAL	1-33139-001-1	01	1	9202-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9405	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9202-	●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-		●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9202-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-	●	●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9202-	●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-		●	●
435	CASE; TRANS	1-33111-157-3	01	1	9202-	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204		●
435	CASE; TRANS	1-33111-235-0	01	1	9205-		●
435	CASE; TRANS	1-33111-194-1	01	1	9202-9204			●
435	CASE; TRANS	1-33111-236-0	01	1	9205-			●

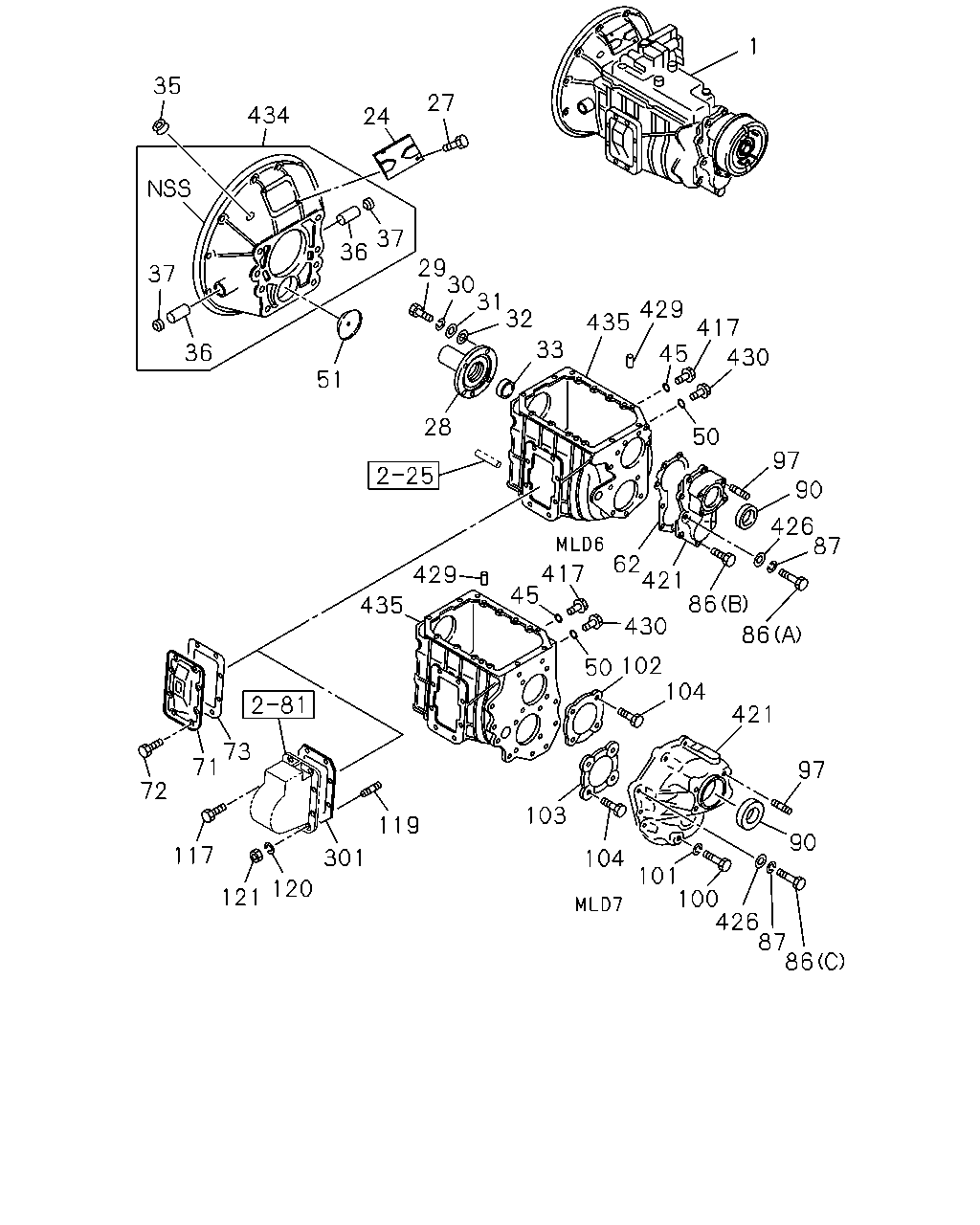

1 35 27 434 24 37 36 29 30 31 32 37 429 435 417 45 33 36 430 51 28 50 97 90 426 87 62 421 86 417 45 429 435 430 86 102 104 50 421 73 71 97 72 103 119 90 117 301 104 101 100 426 87 86 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL PTO CONTROL AIR LINK TYPE<SEC>	1-33033-352-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6>	1-33033-330-0	01	1	9202-	●
1	TRANSMISSION ASM; MANUAL ASSISTER SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33033-919-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTER SHIFT CONTROL<WX8>	1-33033-932-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33033-984-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33033-971-0	01	1	9202-		●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5"(W3K) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33035-393-0	01	1	9305-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/7 15.5"(W3S) RR TIRE 10.00-20<96X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33035-393-0	01	1	9305-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 39/7 15.5"(W3K),FINAL GEAR 41/7 15.5"(W3S) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ASSISTER SHIFT CONTROL<WX8>	1-33033-406-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/7 15.5"(W3S) PTO CONTROL<SV6> RR TIRE 9.00-20<94X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTER SHIFT CONTROL<WX8>	1-33035-419-0	01	1	9402-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/7 15.5"(W3S) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTER SHIFT CONTROL<WX8>	1-33033-354-0	01	1	9202-			●
1	TRANSMISSION ASM; MANUAL FINAL GEAR 41/7 15.5"(W3S) RR TIRE 9.00-20<94X> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTO CONTROL<SV6>,ASSISTER SHIFT CONTROL<WX8>	1-33035-395-0	01	1	9202-			●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9202-	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	9-01900-816-0	02	1	9202-9204	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9205	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9206-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-079-0	01	1	9202-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9202-		●	●
29	BOLT; FRT COVER	1-09020-120-1	04	1	9202-9205	●	●	●
29	BOLT; FRT COVER	1-09040-089-0	04	1	9206-	●	●	●
30	WASHER; LK,FRT COVER ID=10.2	9-09150-510-0	04	1	9202-9205	●	●	●
31	WASHER; PL,FRT COVER BOLT ID=10.5	9-09164-510-0	04	1	9202-9205	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9202-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-502-0	01	1	9202-9306	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-0	01	1	9307-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9202-		●	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9202-	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9202-	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9202-	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5	9-09920-392-0	01	1	9202-9405	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9406-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	9202-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-057-0	01	1	9202-9402		●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9403-		●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9202-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9202-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-028-0	01	1	9202-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9202-		●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	9-01921-020-0	08	1	9202-9204	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER	0-50051-020-0	08	1	9205-9205	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9206-	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9202-	●	●	●
86	BOLT; RR COVER (A) M10X60	9-01656-060-0	02	1	9202-9205	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9206-	●
86	BOLT; RR COVER (B) M10X30	9-01931-030-0	07	1	9202-9205	●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9206-	●
86	BOLT; RR COVER (A) M12X65	9-01656-265-0	01	1	9202-9205		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9206-		●
86	BOLT; RR COVER (B) M12X40	9-01991-240-0	08	1	9202-9205		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9206-		●
86	BOLT; RR COVER (C) M12X50	1-09020-137-0	02	1	9202-9205			●
86	BOLT; RR COVER (C) M12X50	1-09044-085-0	02	1	9206-			●
86	BOLT; RR COVER (C) M12X40	9-01991-240-0	09	1	9202-9205			●
86	BOLT; RR COVER (C) M12X50 M17X35	1-09044-076-0	09	1	9206-			●
87	WASHER; LK,RR COVER ID=10.2	9-09150-510-0	02	1	9202-9205	●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	01	1	9202-9205		●
87	WASHER; LK,RR COVER ID=12.2	9-09150-512-0	02	1	9202-9205			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9202-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). KOYO	1-09625-522-0	01	1	9202-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9202-		●	●
97	STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	9202-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9202-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-0	03	1	9202-		●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9202-			●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9202-			●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	9202-			●
103	RETAINER; BRG	1-33151-037-0	01	1	9202-			●
104	BOLT; BRG RET M10X30	9-01921-030-0	08	1	9202-9204			●
104	BOLT; BRG RET M10X30 W/LK WASHER	0-50051-030-0	08	1	9205-9205			●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9206-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 W/LK WASHER	0-50051-030-0	06	1	9202-9205	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28	0-50051-028-0	06	1	9202-9205		●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9206-	●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9202-	●	●	●
120	WASHER; LK,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09110-410-0	02	1	9202-9205	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-039-0	01	1	9409-			●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-021-0	01	1	9202-9405	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9406-	●	●	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9202-	●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9202-		●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9202-			●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	01	1	9202-9205		●
426	WASHER; PL,RR COVER ID=12.5	9-09160-512-0	02	1	9202-9205			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9202-		●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9202-	●	●	●
434	HOUSING; CLU	1-31110-085-2	01	1	9202-	●
434	HOUSING; CLU	1-31110-092-2	01	1	9202-		●	●
435	CASE; TRANS	1-33111-157-3	01	1	9202-	●
435	CASE; TRANS	1-33111-193-1	01	1	9202-9204		●
435	CASE; TRANS	1-33111-235-0	01	1	9205-		●
435	CASE; TRANS	1-33111-194-1	01	1	9202-9204			●
435	CASE; TRANS	1-33111-236-0	01	1	9205-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
