Isuzu WW
▶
BUSES
▶
MV
▶
10857 - MV118
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

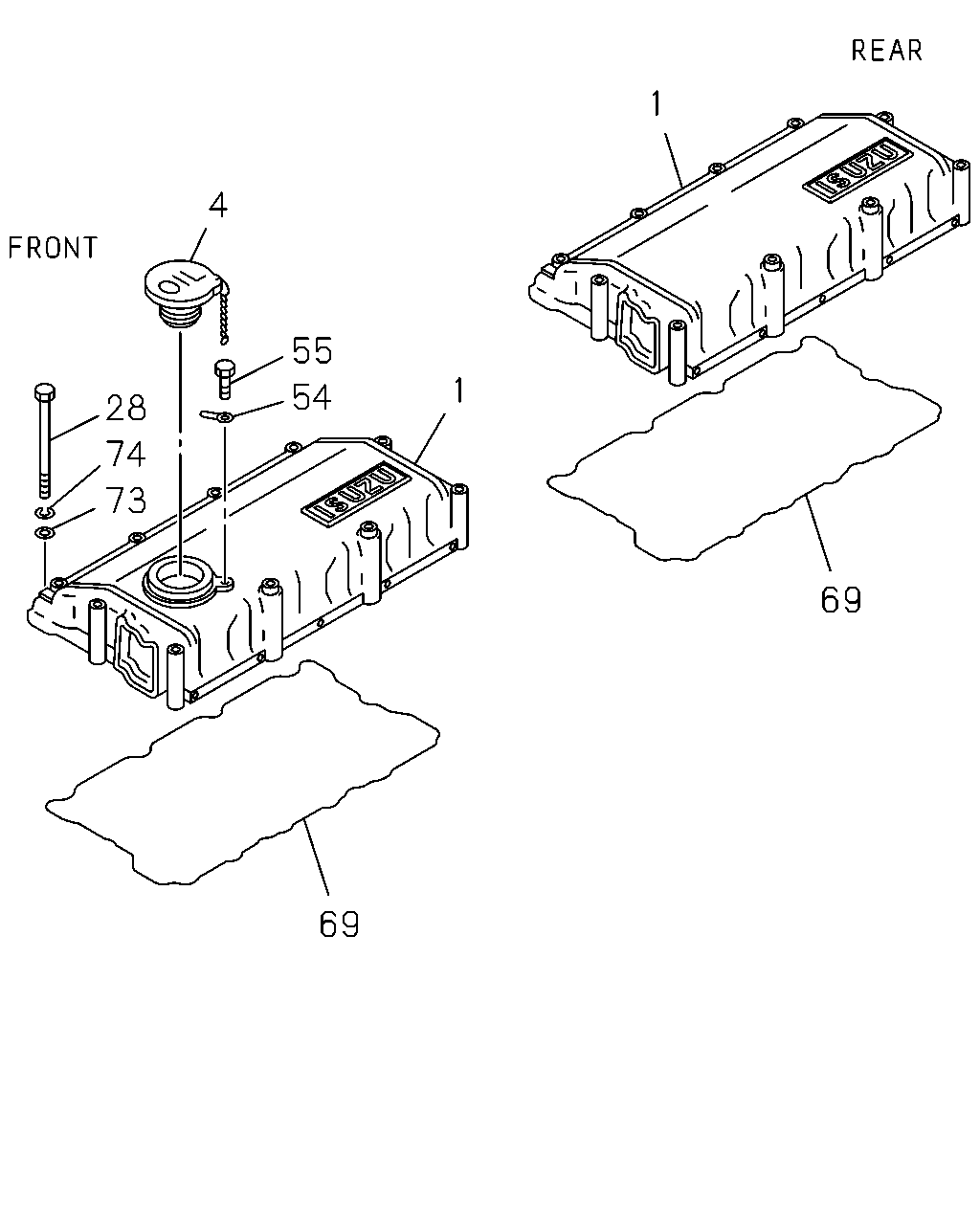

0-10 — CYLINDER HEAD COVER
(#9047) — 11 parça
1
4
55
1
54
28
74
73
69
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
REAR
1-11171-086-4
01
1
9606-
1
COVER; CYL HD
FRONT
1-11171-239-0
01
1
9606-
4
CAP; OIL FILLER
W/WHITE MARK
1-11750-017-0
01
1
9606-
28
BOLT; HD COVER
M10X100
0-16806-000-0
08
1
9606-
28
BOLT; HD COVER
M10X50
0-16806-050-0
08
1
9606-
28
BOLT; HD COVER
M10X110
9-09804-143-1
04
1
9606-
54
BRACKET; CHAIN HD COVER FRT
9-11759-014-0
01
1
9606-
55
BOLT; BRKT CHAIN FRT COVER
M8X14 W/LK WASHER
0-50040-814-0
01
1
9606-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-010-1
02
1
9606-
73
WASHER; PL,HD COVER
ID=10.5 OD=18
9-09160-510-0
18
1
9606-
74
WASHER; LK,HD COVER
ID=10.2
9-09150-510-0
20
1
9606-
