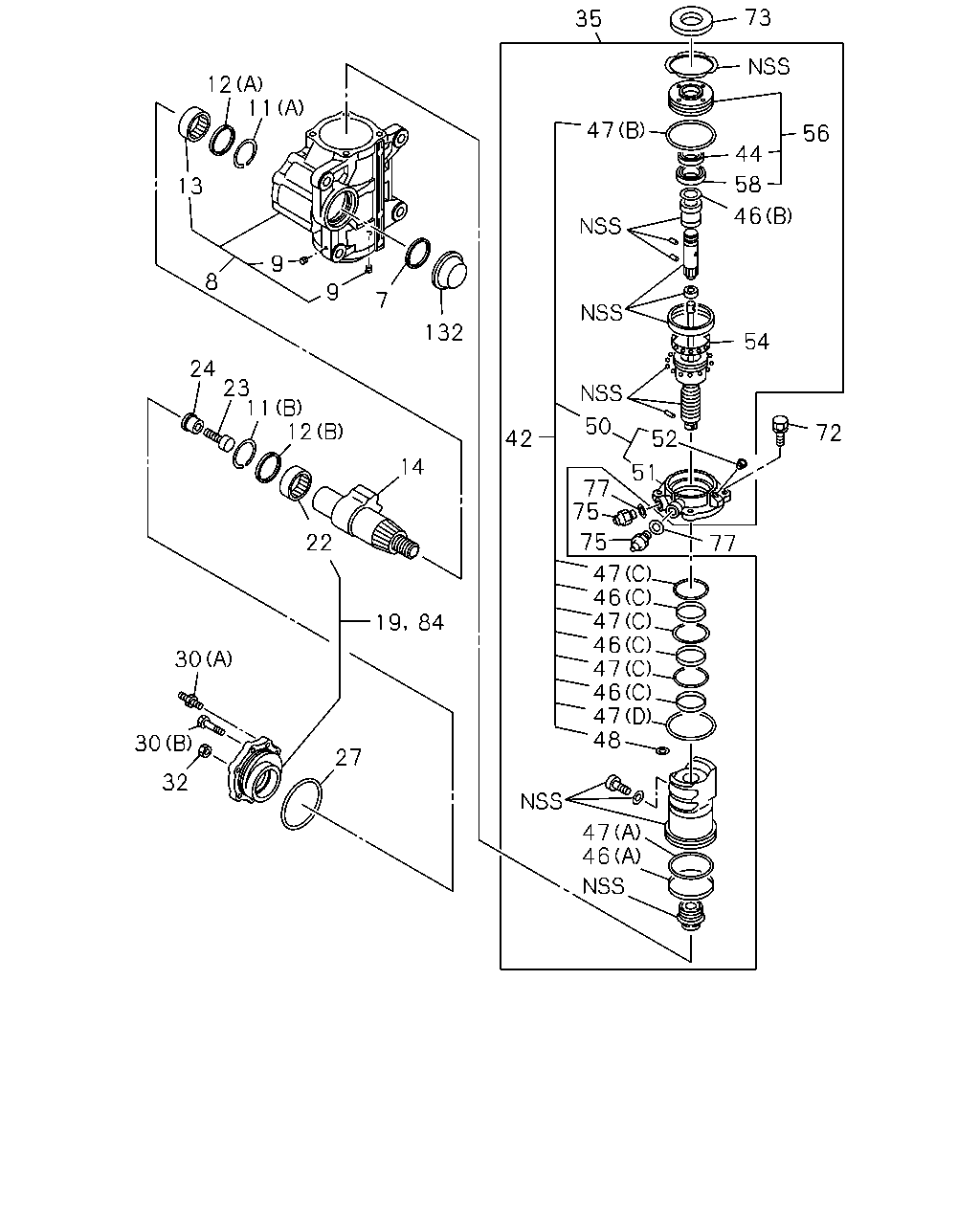

4-40 — STEERING UNIT (#9037) — 69 parça

12 11 13 8 9 9 7 132 12 14 11 23 24 22 19 84 27 30 30 32 35 73 56 47 44 58 46 54 72 52 50 42 51 77 75 75 77 47 46 47 46 47 46 47 48 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-041-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44240-114-0	01	1	-
8	BOX ASM; STRG UNIT ASM PART: E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44240-152-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-071-0	02	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: A = 1-44000-861-2, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-071-0	01	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-265-0	01	1	-
13	BEARING; SHAFT,BOX SIDE,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44249-072-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, G = 1-44000-916-0	1-44321-032-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-0	1-44321-035-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44260-021-0	01	1	-
22	BEARING; SHAFT,COVER SIDE,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0	1-44519-234-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44269-035-0	01	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44279-012-0	05	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44279-012-0	05	1	0202-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-861-2	1-44569-103-0	05	1	-0201
32	NUT; ADJ SCREW,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44269-007-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 1-44000-866-1, E = 1-44000-914-0	1-44150-073-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 1-44000-861-2, F = 1-44000-915-0	1-44150-084-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 1-44000-893-0	1-44150-101-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-44150-103-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44560-080-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-0, F = 1-44000-915-0	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-261-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-262-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44560-076-0	01	1	-
51	HOUSING; VALVE STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44561-020-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-029-0	01	1	-
72	BOLT; HSG FIX STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-017-0	04	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-114-0	01	1	-
75	CONNECTOR; HSG STRG UNIT M22X1.5 ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-035-1	02	1	-
77	GASKET; CONNECTOR,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	9-89970-787-0	02	1	-
84	COVER ASM; STRG UNIT ASM PART: E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44260-030-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-227-0	01	1	-

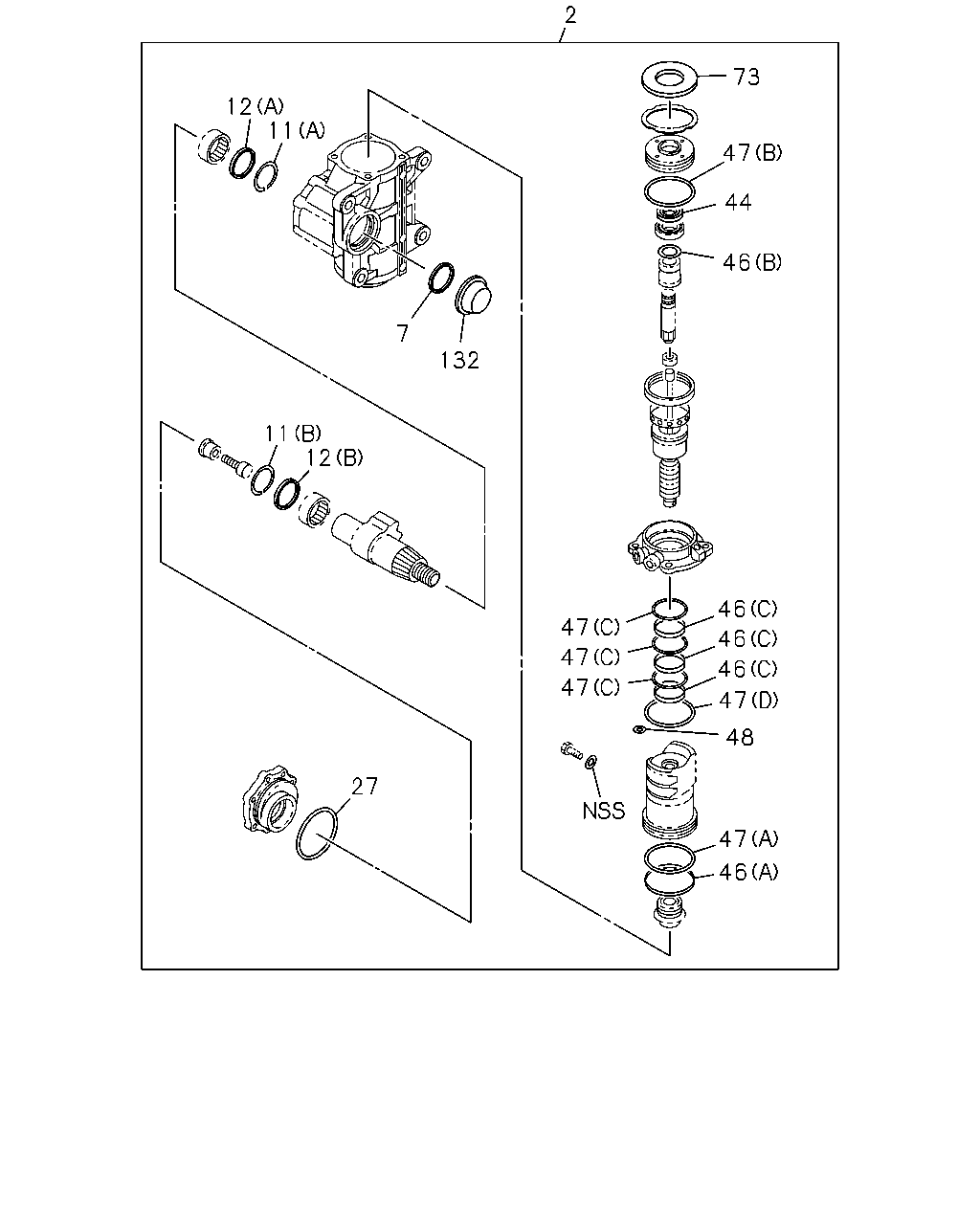

2 12 11 7 132 73 47 44 46 11 12 27 47 47 47 46 46 46 47 48 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-0, F = 1-44000-915-0	1-85574-052-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR 2 YEAR ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-85574-084-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-041-0	01	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-265-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44269-035-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, E = 1-44000-914-0, F = 1-44000-915-0	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: D = 1-44000-894-0, G = 1-44000-916-0	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-261-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-262-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-114-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-861-2, B = 1-44000-866-1, C = 1-44000-893-0, D = 1-44000-894-0, E = 1-44000-914-0, F = 1-44000-915-0, G = 1-44000-916-0	1-44519-227-0	01	1	-
