◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶

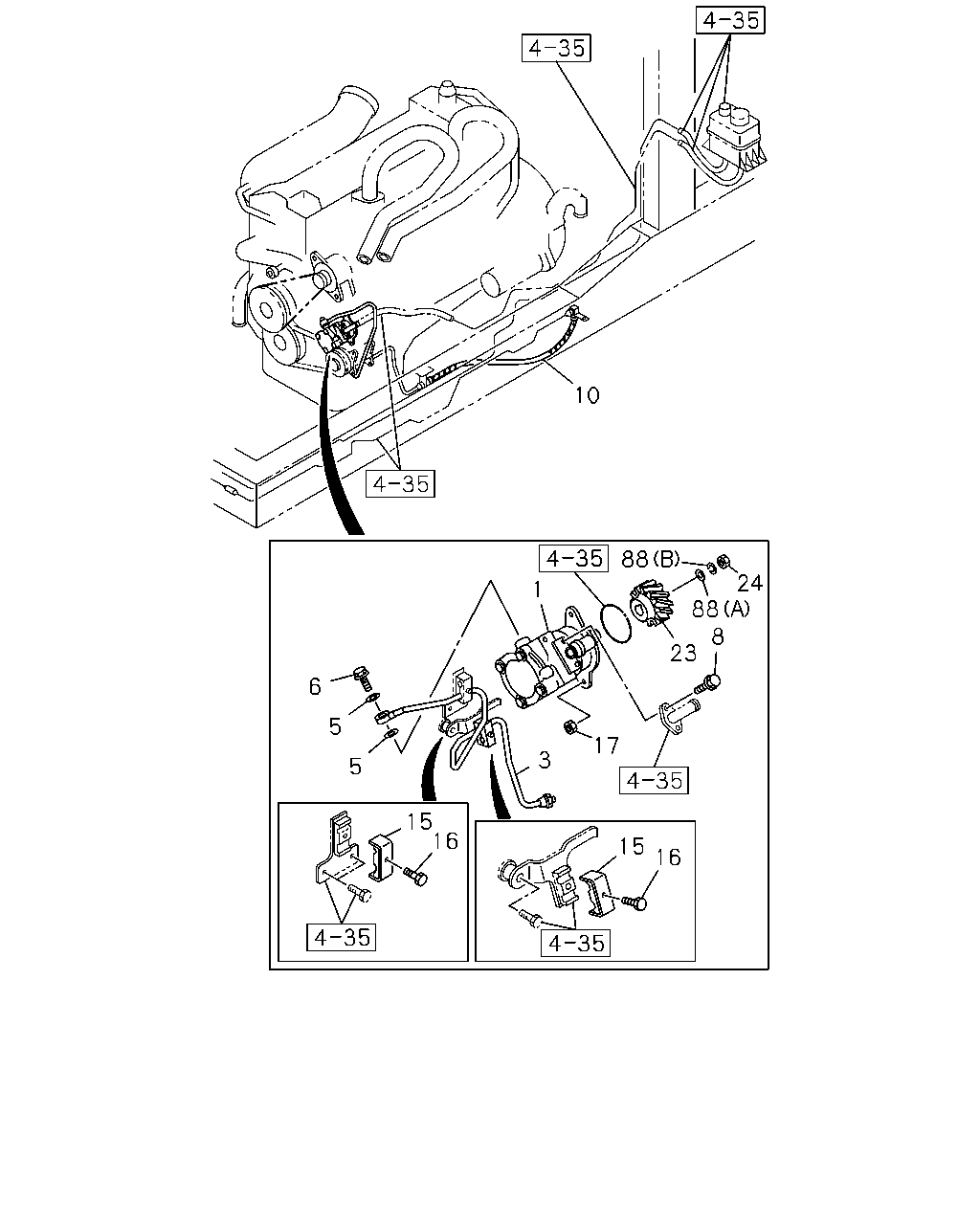

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#9036) — 22 parça
çizim 73016
10 88 24 88 8 23 17 3 5 5 6 16 15 15 16 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) STRG VARIABLE CONTROL<TFY> 		1-19500-563-2 01 1 0106-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. STRG VARIABLE CONTROL<TFY> 		1-19500-447-2 01 1 0106-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6WF1 TC-C(1B8) 		1-19500-561-2 01 1 0106-
3 PIPE; OIL,CHARGE,P/S
6WA1 TC-C(55L),6WG1 TC-C(72L) 		1-13313-637-1 01 1 0106-
3 PIPE; OIL,CHARGE,P/S
6WF1 TC-C(1B8) 		1-13313-773-1 01 1 0106-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 0106-
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-174-0 01 1 0106-0306
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-205-0 01 1 0307-
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0106-0512
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
10 HOSE; FLEX,P/S OIL PUMP,INL
L=430 		0-09671-430-0 01 1 0106-0106
10 HOSE; FLEX,P/S OIL PUMP,INL
L=430 		1-09365-045-0 01 1 0106-
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 0106-
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28680-635-0 02 1 0106-0512
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 0601-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 0106-0602
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 0603-
23 GEAR; OIL PUMP
Z=20 		1-19581-038-0 01 1 0106-0202
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 0203-
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0106-
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0106-
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0106-
