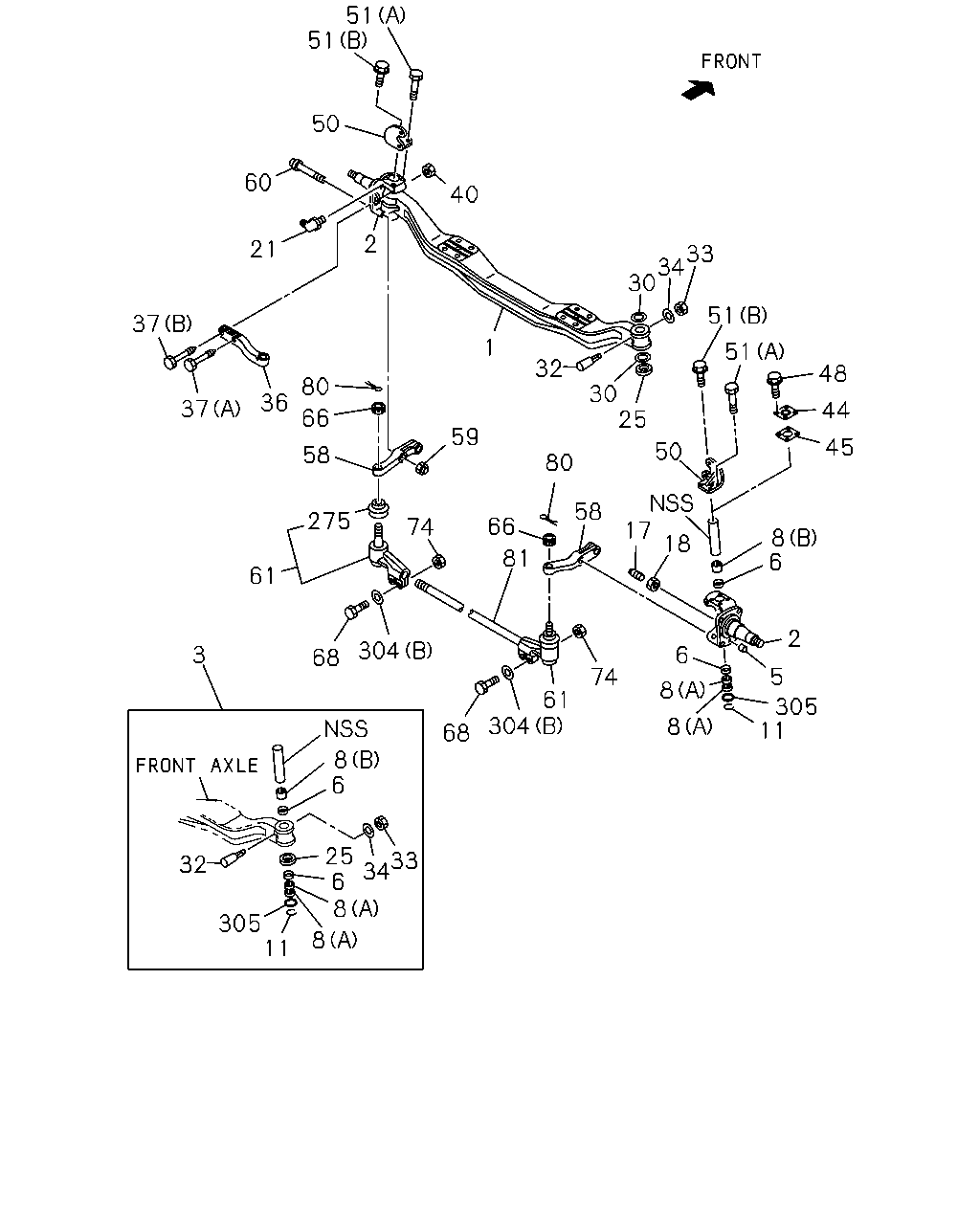

1 |
AXLE; FRT
|
1-43111-107-5 |
01 |
1 |
0106- |
| |
2 |
KNUCKLE; FRT AXLE
|
1-43132-079-0 |
01 |
1 |
0106- |
| |
2 |
KNUCKLE; FRT AXLE
|
1-43131-079-0 |
01 |
1 |
0106- |
| |
3 |
KING PIN SET
|
1-87830-738-4 |
02 |
1 |
0106- |
| |
5 |
PIN; KNUCKLE TO DRUM COVER
|
1-09740-072-0 |
02 |
1 |
0106- |
| |
6 |
SEAL; KING PIN
|
9-09926-024-0 |
04 |
1 |
0106- |
| |
8 |
BEARING; NEEDLE,KING PIN
(A)
NTN
|
9-00096-242-0 |
04 |
1 |
0106- |
| |
8 |
BEARING; NEEDLE,KING PIN
(B)
NTN
|
9-00096-243-0 |
02 |
1 |
0106- |
| |
11 |
RING; SNAP,KNUCKLE PLUG
|
9-09950-204-0 |
02 |
1 |
0106- |
| |
17 |
BOLT; STOPPER KNUCKLE
M18X43
|
1-09009-065-0 |
02 |
1 |
0106- |
| |
18 |
NUT; STOPPER BOLT,KNUCKLE
M18
|
9-99110-518-0 |
02 |
1 |
0106-0512 |
| |
18 |
NUT; STOPPER BOLT,KNUCKLE
M18
|
0-91110-518-0 |
02 |
1 |
0601- |
| |
21 |
NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
04 |
1 |
0106-0512 |
| |
21 |
NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
04 |
1 |
0601- |
| |
25 |
BEARING; THRUST,KING PIN
NSK
|
1-09829-043-2 |
02 |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.875 -4.900
|
1-43171-185-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.900 -4.925
|
1-43171-186-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.925 -4.950
|
1-43171-187-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.950 -4.975
|
1-43171-188-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.975 -5.000
|
1-43171-189-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.000 -5.025
|
1-43171-190-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.025 -5.050
|
1-43171-191-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.050 -5.075
|
1-43171-192-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.075 -5.100
|
1-43171-193-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.100 -5.125
|
1-43171-194-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.125 -5.150
|
1-43171-195-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.150 -5.175
|
1-43171-196-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.175 -5.200
|
1-43171-197-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.200 -5.225
|
1-43171-198-0 |
AR |
1 |
0106- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.225 -5.250
|
1-43171-199-0 |
AR |
1 |
0106- |
| |
32 |
BOLT; KEY,KING PIN
|
1-43116-002-1 |
02 |
1 |
0106- |
| |
33 |
NUT; KEY BOLT
M10
|
9-09110-410-0 |
02 |
1 |
0106-0512 |
| |
33 |
NUT; KEY BOLT
M10
|
0-91110-510-0 |
02 |
1 |
0601- |
| |
34 |
WASHER; LK,KEY BOLT
ID=10.2
|
9-09150-510-0 |
02 |
1 |
0106-0603 |
| |
34 |
WASHER; LK,KEY BOLT
ID=10.2
|
0-91510-510-0 |
02 |
1 |
0604- |
| |
36 |
ARM; KNUCKLE
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-43133-066-3 |
01 |
1 |
0106- |
| |
36 |
ARM; KNUCKLE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-43133-063-3 |
01 |
1 |
0106- |
| |
37 |
BOLT; KNUCKLE ARM
(A)
M22X179
|
1-09000-578-1 |
01 |
1 |
0106- |
| |
37 |
BOLT; KNUCKLE ARM
(B)
M22X167
|
9-09806-847-3 |
01 |
1 |
0106- |
| |
40 |
NUT; KNUCKLE ARM
M22
|
9-09844-670-1 |
02 |
1 |
0106- |
| |
44 |
COVER; KING PIN
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-43175-014-1 |
02 |
1 |
0106- |
| |
45 |
GASKET; KING PIN COVER
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-42319-044-0 |
02 |
1 |
0106- |
| |
48 |
BOLT; COVER
BRAKE SYSTEM SPRING BRAKE(BCR)
M12X16 FLANGE
|
0-28081-216-0 |
08 |
1 |
0106-0512 |
| |
48 |
BOLT; COVER
BRAKE SYSTEM SPRING BRAKE(BCR)
M12X16 FLANGE
|
0-28051-216-0 |
08 |
1 |
0601- |
| |
50 |
BRACKET; POWER CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-43145-010-3 |
01 |
1 |
0106- |
| |
50 |
BRACKET; POWER CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-43145-009-3 |
01 |
1 |
0106- |
| |
51 |
BOLT; POWER CHAMBER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
(A)
M12X60 FLANGE
|
0-28081-260-0 |
02 |
1 |
0106-0512 |
| |
51 |
BOLT; POWER CHAMBER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
(A)
M12X60 FLANGE
|
0-28051-260-0 |
02 |
1 |
0601- |
| |
51 |
BOLT; POWER CHAMBER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
(B)
M12X25 FLANGE
|
0-28681-225-0 |
06 |
1 |
0106-0512 |
| |
51 |
BOLT; POWER CHAMBER BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
(B)
M12X25 FLANGE
|
0-28651-225-0 |
06 |
1 |
0601- |
| |
58 |
ARM; TIE ROD
|
1-43135-042-3 |
01 |
1 |
0106- |
| |
58 |
ARM; TIE ROD
|
1-43134-042-3 |
01 |
1 |
0106- |
| |
59 |
NUT; TIE ROD ARM
M22
|
9-09844-670-1 |
04 |
1 |
0106- |
| |
60 |
BOLT; TIE ROD ARM
M22X193
|
1-09000-154-2 |
04 |
1 |
0106- |
| |
61 |
ROD END; TIE ROD
|
1-43150-802-0 |
01 |
1 |
0106- |
| |
61 |
ROD END; TIE ROD
|
1-43150-801-0 |
01 |
1 |
0106- |
| |
66 |
NUT; TIE ROD END
M24 SLOTTED
|
1-09442-020-0 |
02 |
1 |
0106- |
| |
68 |
BOLT; TIE ROD END
M12X65
|
9-91061-265-0 |
04 |
1 |
0106- |
| |
74 |
NUT; TIE ROD END
M12
|
9-99110-512-0 |
04 |
1 |
0106-0512 |
| |
74 |
NUT; TIE ROD END
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
| |
80 |
PIN; SPLIT,ROD END
OD=4.6 L=35
|
9-08115-035-0 |
02 |
1 |
0106-0606 |
| |
80 |
PIN; SPLIT,ROD END
OD=4.6 L=35
|
0-81125-035-0 |
02 |
1 |
0607- |
| |
81 |
ROD; TIE
|
1-43151-118-0 |
01 |
1 |
0106- |
| |
275 |
BOOT; ROD END,TIE
|
1-43159-107-0 |
02 |
1 |
0106- |
| |
304 |
WASHER; PL
(B)
ID=12.5
|
9-09164-512-0 |
04 |
1 |
0106- |
| |
304 |
WASHER; PL
(A)
ID=21
|
9-09164-520-0 |
02 |
1 |
0106- |
| |
305 |
COVER; KNUCKLE
|
1-43175-021-0 |
02 |
1 |
0106- |
