Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#9024) — 245 parça

375 298 294 299 370 295 108 22 109 286 361 303 375 348 319 78 266 80 79 372 354 353 107 27 369 411 364

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	0106-
22	BRACKET; CLIP (C) L=225	1-47477-646-3	01	1	0106-
22	BRACKET; CLIP (B) L=125	1-47477-975-1	02	1	0106-
27	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=10 & 10	1-09709-277-1	01	1	0106-
78	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0106-
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0106-0602
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0106-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0106-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 L=35	5-09700-293-1	01	1	0108-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0106-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0106-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (D) ID=35 L=35	1-09700-895-0	01	1	0108-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0106-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	04	1	0108-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28050-825-0	04	1	0601-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0106-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
109	NUT; TUBE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0602
109	NUT; TUBE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
266	CLIP; NYLON TUBE AIR DRYER<PS7> ID=18 H=23 L=28	1-09700-860-0	01	1	0106-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0106-0109
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0106-
294	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-0602
294	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
295	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-0602
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0106-0602
295	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
298	BOLT; CLIP 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
298	BOLT; CLIP 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	0601-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0106-0602
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0106-0602
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
299	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0106-0602
299	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0603-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0106-
319	BRACKET; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) L=50	1-47475-299-2	01	1	0106-
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) ID=13 L=28	9-09525-252-0	03	1	0106-0606
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) ID=11 L=28	0-95235-252-0	03	1	0607-
348	CLIP; AIR PIPE TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	03	1	0106-0606
348	CLIP; AIR PIPE TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	0-95325-225-0	03	1	0607-
353	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16	9-09524-822-0	01	1	0204-0606
353	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16	0-95234-822-0	01	1	0607-
354	BOLT; PIPE CLIP PARKING BRAKE VALVE LEVER TYPE<W48> M6X16 W/LK WASHER	0-50040-616-0	01	1	0204-0211
354	BOLT; PIPE CLIP PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0212-
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0106-
364	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.3 & 10	8-94176-792-0	01	1	0204-
369	CLIP; AIR PIPE AIR DRYER<PS7> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-
370	BRACKET; PIPE CLIP AIR DRYER<PS7>	1-47477-669-1	01	1	0106-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0106-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-
372	BOLT; CLIP BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
372	BOLT; CLIP BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28650-830-0	01	1	0601-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=7 L=16	9-09524-625-0	01	1	0106-0202
375	CLIP; AIR PIPE (B) ID=7 L=16	9-09524-625-0	02	1	0203-0410
375	CLIP; AIR PIPE (B) ID=7 L=16	9-09524-625-0	01	1	0411-0606
375	CLIP; AIR PIPE (B) ID=7 L=16	0-95234-625-0	01	1	0607-
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-0202
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (B) ID=7 L=20	9-09524-635-0	01	1	0106-0606
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (B) ID=7 L=20	0-95234-635-0	01	1	0607-
411	SLEEVE; RUBBER CHINA GB VAR1<JAC> ID=29 OD=39 L=40	1-09337-013-0	01	1	0212-

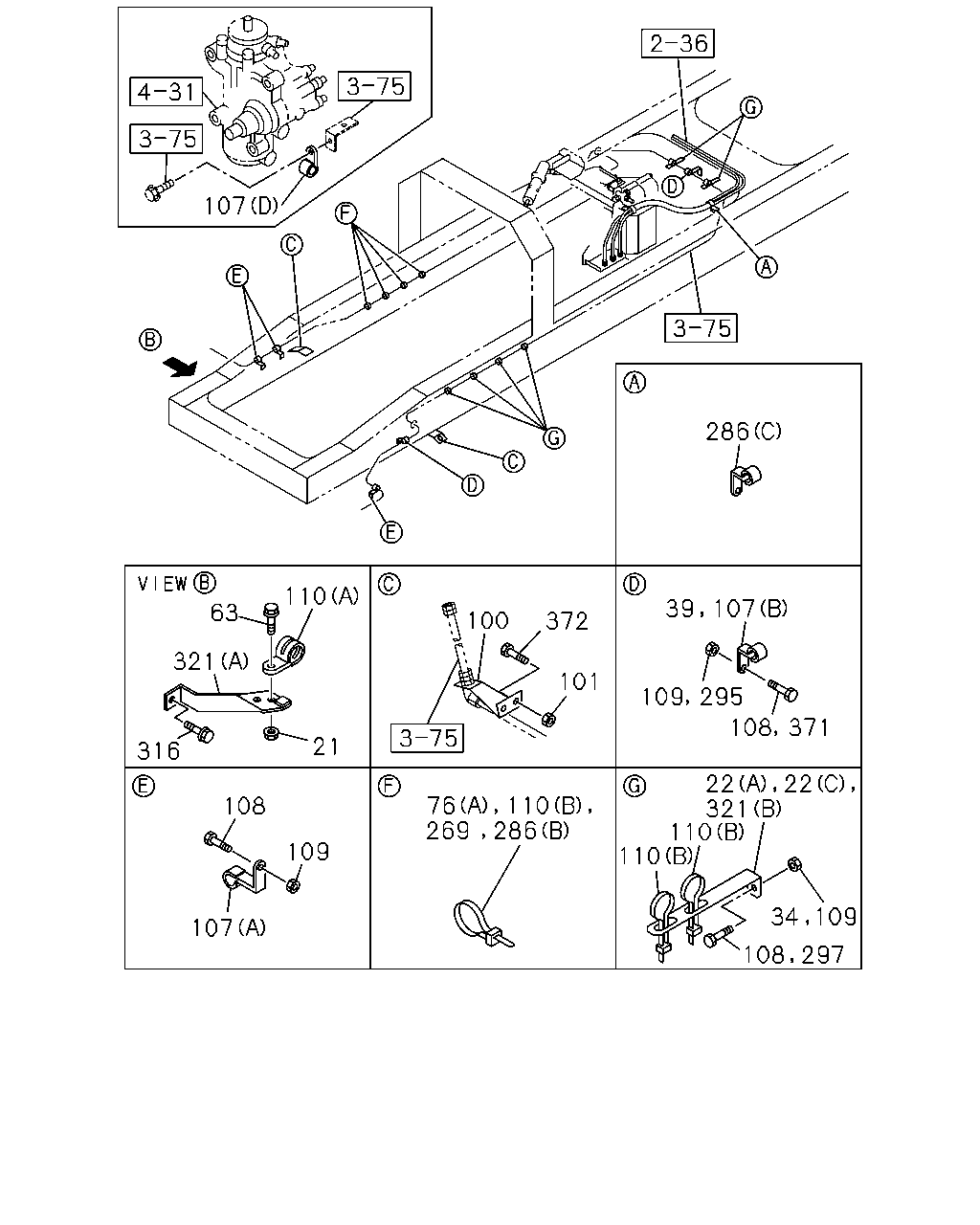

107 286 107 39 371 108 295 109 101 372 100 110 63 321 21 316 108 109 107 76 110 286 269 22 22 321 110 110 34 109 297 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
22	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	0106-
22	BRACKET; CLIP (C) L=225	1-47477-646-3	01	1	0106-
22	BRACKET; CLIP (B) L=125	1-47477-975-1	02	1	0106-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0106
34	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0107-0602
34	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	0106-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
76	CLIP; NYLON TUBE EXC. CHINA GB VAR1<JAC> (A) L=250	1-09707-126-0	07	1	0212-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	07	1	0106-0211
76	CLIP; NYLON TUBE CHINA GB VAR1<JAC> (A) L=250	1-09707-126-0	08	1	0212-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0106-
76	CLIP; NYLON TUBE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0106-0112
76	CLIP; NYLON TUBE (B) ID=6 & 8.3	8-94167-742-0	01	1	0201-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-452-0	01	1	0106-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-481-0	01	1	0106-
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-770-0	01	1	0106-
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-365-0	01	1	0106-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0106-0602
101	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0106-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0106-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 L=35	5-09700-293-1	01	1	0108-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0106-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0106-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (D) ID=35 L=35	1-09700-895-0	01	1	0108-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0106-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	04	1	0108-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28050-825-0	04	1	0601-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0106-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
109	NUT; TUBE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0602
109	NUT; TUBE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
110	CLIP; BAND,NYLON TUBE (B) L=700	1-09707-190-0	01	1	0302-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	39	1	0106-0106
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	40	1	0107-0410
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	37	1	0411-
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250	1-09707-126-0	01	1	0109-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0109-
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33	1-09700-945-0	01	1	0106-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09701-261-0	01	1	0106-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	20	1	0106-0204
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	21	1	0205-0410
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	07	1	0411-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0106-0109
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0106-
295	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-0602
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0106-0602
295	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0106-0410
297	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0411-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	03	1	0106-0106
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	04	1	0601-
321	BRACKET; CLIP (C)	1-47477-472-1	01	1	0106-
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0106-0410
321	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0106-0106
321	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	04	1	0106-
321	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	01	1	0106-0106
321	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	02	1	0107-
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	0106-
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0106-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-
372	BOLT; CLIP BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
372	BOLT; CLIP BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28650-830-0	01	1	0601-

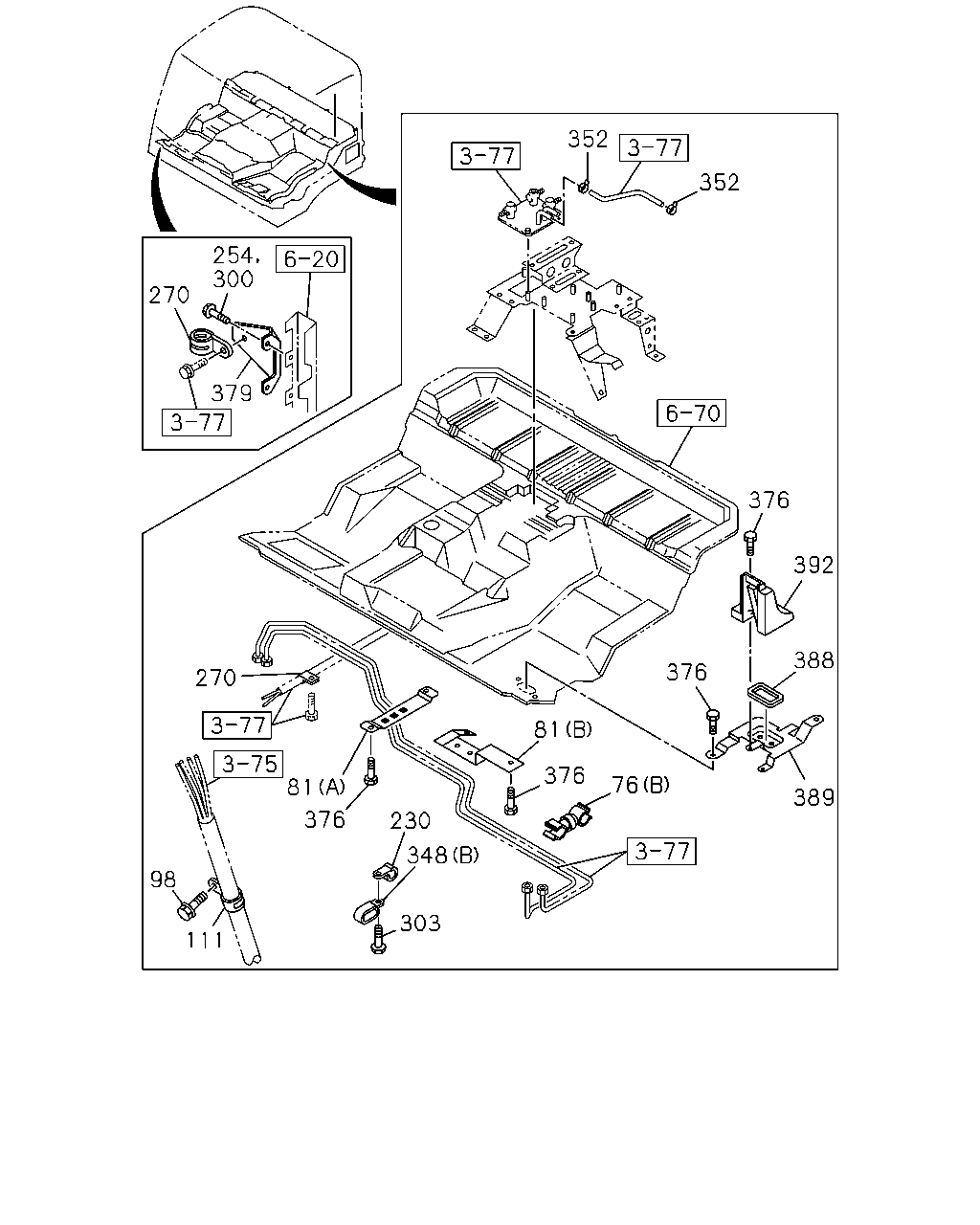

352 352 254 300 270 379 376 392 388 376 389 76 376 81 303 348 230 376 81 270 98 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE EXC. CHINA GB VAR1<JAC> (A) L=250	1-09707-126-0	07	1	0212-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	07	1	0106-0211
76	CLIP; NYLON TUBE CHINA GB VAR1<JAC> (A) L=250	1-09707-126-0	08	1	0212-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0106-
76	CLIP; NYLON TUBE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0106-0112
76	CLIP; NYLON TUBE (B) ID=6 & 8.3	8-94167-742-0	01	1	0201-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0106-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0106-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0106-
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16	9-09524-822-0	03	1	0106-0606
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16	0-95234-822-0	03	1	0607-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=35 L=33	1-09700-945-0	03	1	0106-
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ID=26 L=26	1-09701-236-0	01	1	0106-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0206-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0106-
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) ID=13 L=28	9-09525-252-0	03	1	0106-0606
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) ID=11 L=28	0-95235-252-0	03	1	0607-
348	CLIP; AIR PIPE TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	03	1	0106-0606
348	CLIP; AIR PIPE TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	0-95325-225-0	03	1	0607-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0106-0203
352	CLIP; EXH HOSE PARKING BRAKE VALVE LEVER TYPE<W48> ID=14	8-94238-572-0	02	1	0204-
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	04	1	0106-0410
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0411-0512
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0106-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0106-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0106-
388	SEAL L=215	1-79738-794-1	01	1	0106-
389	BRACKET; UNION	1-79738-790-1	01	1	0106-
392	COVER; BRKT	1-73996-264-1	01	1	0106-

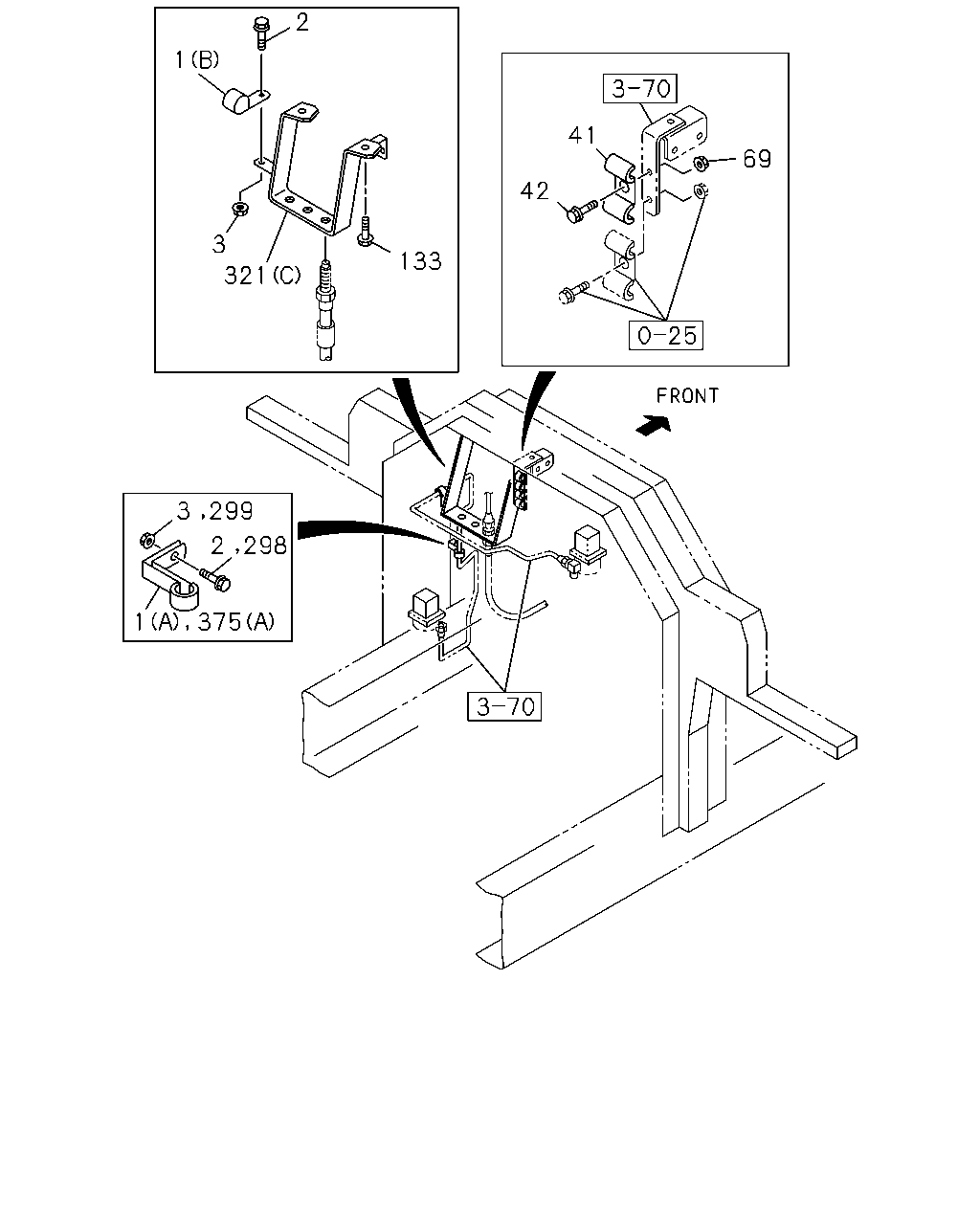

1 2 3 321 133 42 41 69 299 3 2 298 1 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=7 L=20	9-09524-635-0	01	1	0106-0606
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=7 L=20	0-95234-635-0	01	1	0607-
2	BOLT; CLIP FIX 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
2	BOLT; CLIP FIX 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	02	1	0601-
3	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	0106-0602
3	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	02	1	0603-
41	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-
42	BOLT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
42	BOLT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
69	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0106-0602
69	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0106-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-0512
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
298	BOLT; CLIP 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
298	BOLT; CLIP 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	0601-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0106-0602
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0106-0602
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
299	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0106-0602
299	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0603-
321	BRACKET; CLIP (C)	1-47477-472-1	01	1	0106-
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0106-0410
321	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0106-0106
321	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	04	1	0106-
321	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	01	1	0106-0106
321	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	02	1	0107-
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	0106-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=7 L=16	9-09524-625-0	01	1	0106-0202
375	CLIP; AIR PIPE (B) ID=7 L=16	9-09524-625-0	02	1	0203-0410
375	CLIP; AIR PIPE (B) ID=7 L=16	9-09524-625-0	01	1	0411-0606
375	CLIP; AIR PIPE (B) ID=7 L=16	0-95234-625-0	01	1	0607-
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-0202
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (B) ID=7 L=20	9-09524-635-0	01	1	0106-0606
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (B) ID=7 L=20	0-95234-635-0	01	1	0607-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
